Main Control: Notes
Material
| Item | Specification |
|---|---|
| FNR5 Automatic Transmission Fluid XT-9-QMM5 |
Mazda MES MN 117C (ATF-M V) |
| Motorcraft Metal Surface Prep ZC-31-A |
- |
| Ultra Silicone Sealant TA-29 |
- |

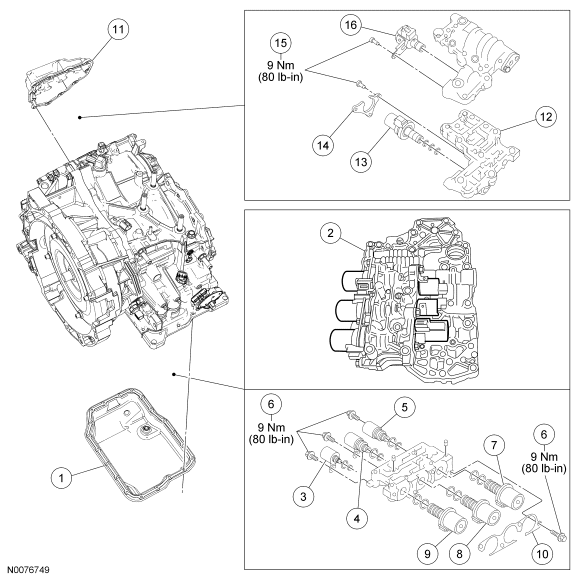

| Item | Part Number | Description |
|---|---|---|
| 1 | 7A194 | Transmission fluid pan |
| 2 | - | Main control valve body |
| 3 | 7G383 | Pressure Control Solenoid A (PCA) |
| 4 | 7H148 | Shift Solenoid D (SSD) |
| 5 | 7H148 | Shift Solenoid E (SSE) |
| 6 | - | Solenoid retaining bolts (7 required) |
| 7 | 7H448 | Shift Solenoid B (SSB) |
| 8 | 7H448 | Shift Solenoid C (SSC) |
| 9 | 7G484 | Shift Solenoid A (SEA) |
| 10 | - | Solenoid retaining bracket |
| 11 | 7G004 | Solenoid body cover |
| 12 | - | Solenoid body |
| 13 | 7G383 | Pressure Control Solenoid B (PCB) |
| 14 | - | Solenoid retaining bracket |
| 15 | - | Solenoid retaining bolts (2 required) |
| 16 | 7H448 | Shift Solenoid F (SSF) |
