Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Smart Junction Box (SJB)

G00467073

Courtesy of FORD MOTOR CO.

Fig 2: Roof (W/O Moonroof)

G00418326

Courtesy of FORD MOTOR CO.

Fig 3: Roof (W/ Moonroof)

G00418327

Courtesy of FORD MOTOR CO.

Fig 4: Trunk (MKZ)

G00440038

Courtesy of FORD MOTOR CO.

Fig 5: Trunk (Milan)

G00440037

Courtesy of FORD MOTOR CO.

Fig 6: Trunk (Fusion)

G00440036

Courtesy of FORD MOTOR CO.

Fig 7: Rear End (MKZ)

G00418331

Courtesy of FORD MOTOR CO.

Fig 8: Right Rear Door

G00418332

Courtesy of FORD MOTOR CO.

Fig 9: Left Rear Door

G00418333

Courtesy of FORD MOTOR CO.

Fig 10: Front Passenger's Door

G00418334

Courtesy of FORD MOTOR CO.

Fig 11: Driver's Door

G00440035

Courtesy of FORD MOTOR CO.

Fig 12: Front Passenger's Seat

G00418336

Courtesy of FORD MOTOR CO.

Fig 13: Driver's Seat

G00418337

Courtesy of FORD MOTOR CO.

Fig 14: Right Front Of Passenger Compartment

G00440034

Courtesy of FORD MOTOR CO.

Fig 15: Left Front Of Passenger Compartment

G00440033

Courtesy of FORD MOTOR CO.

Fig 16: Center Console

G00440032

Courtesy of FORD MOTOR CO.

Fig 17: Steering Wheel

G00418341

Courtesy of FORD MOTOR CO.

Fig 18: Dash

G00440031

Courtesy of FORD MOTOR CO.

Fig 19: Dash

G00418343

Courtesy of FORD MOTOR CO.

Fig 20: Manual Transmission (2.3L)

G00418344

Courtesy of FORD MOTOR CO.

Fig 21: Automatic Transmission (3.0L)

G00418345

Courtesy of FORD MOTOR CO.

Fig 22: Automatic Transmission (2.3L)

G00440030

Courtesy of FORD MOTOR CO.

Fig 23: Rear Of Engine (3.0L)

G00440029

Courtesy of FORD MOTOR CO.

Fig 24: Front Of Engine (3.0L)

G00418347

Courtesy of FORD MOTOR CO.

Fig 25: Front Of Engine (2.3L)

G00418349

Courtesy of FORD MOTOR CO.

Fig 26: Rear Of Engine (2.3L)

G00418350

Courtesy of FORD MOTOR CO.

Fig 27: Engine Compartment (3.0L)

G00440028

Courtesy of FORD MOTOR CO.

Fig 28: Engine Compartment (3.0L)

G00418352

Courtesy of FORD MOTOR CO.

Fig 29: Engine Compartment (2.3L)

G00440027

Courtesy of FORD MOTOR CO.

Fig 30: Engine Compartment (2.3L)

G00440026

Courtesy of FORD MOTOR CO.

Fig 31: Rear Of Engine (3.5L)

G00440039

Courtesy of FORD MOTOR CO.

Fig 32: Front Of Engine (3.5L)

G00440040

Courtesy of FORD MOTOR CO.

Fig 33: Engine Compartment (3.5L)

G00440041

Courtesy of FORD MOTOR CO.

Fig 34: Engine Compartment (3.5L)

G00440042

Courtesy of FORD MOTOR CO.

Fig 35: Battery Junction Box (BJB)

G00467401

Courtesy of FORD MOTOR CO.

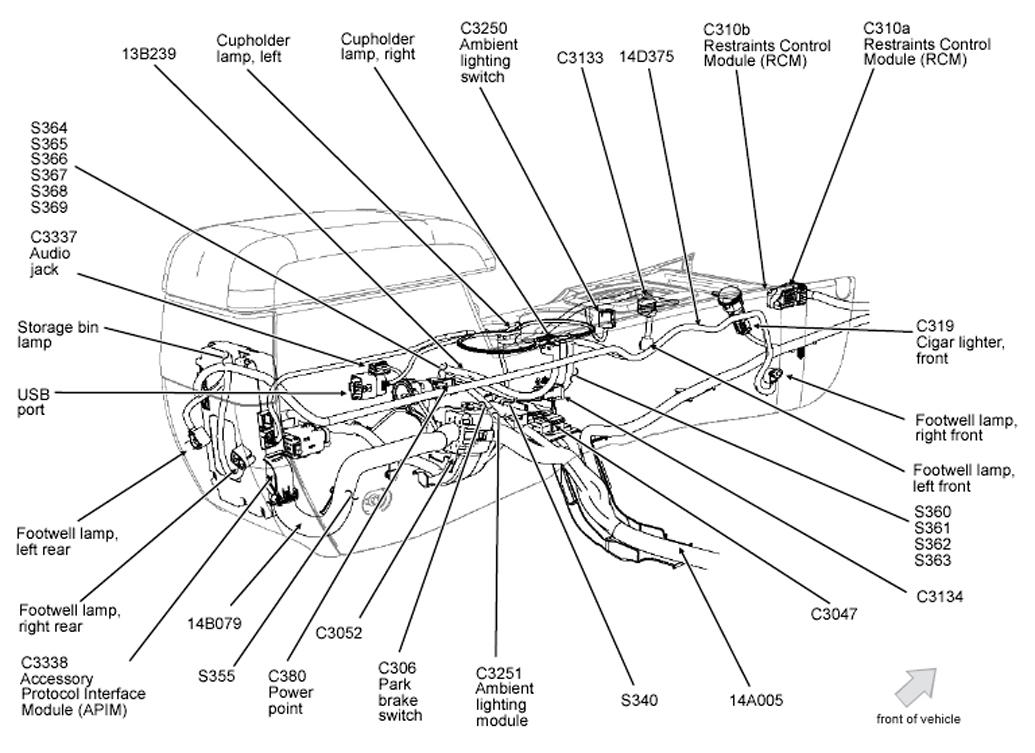

Fig 36: API Module

G00458319

Courtesy of FORD MOTOR CO.

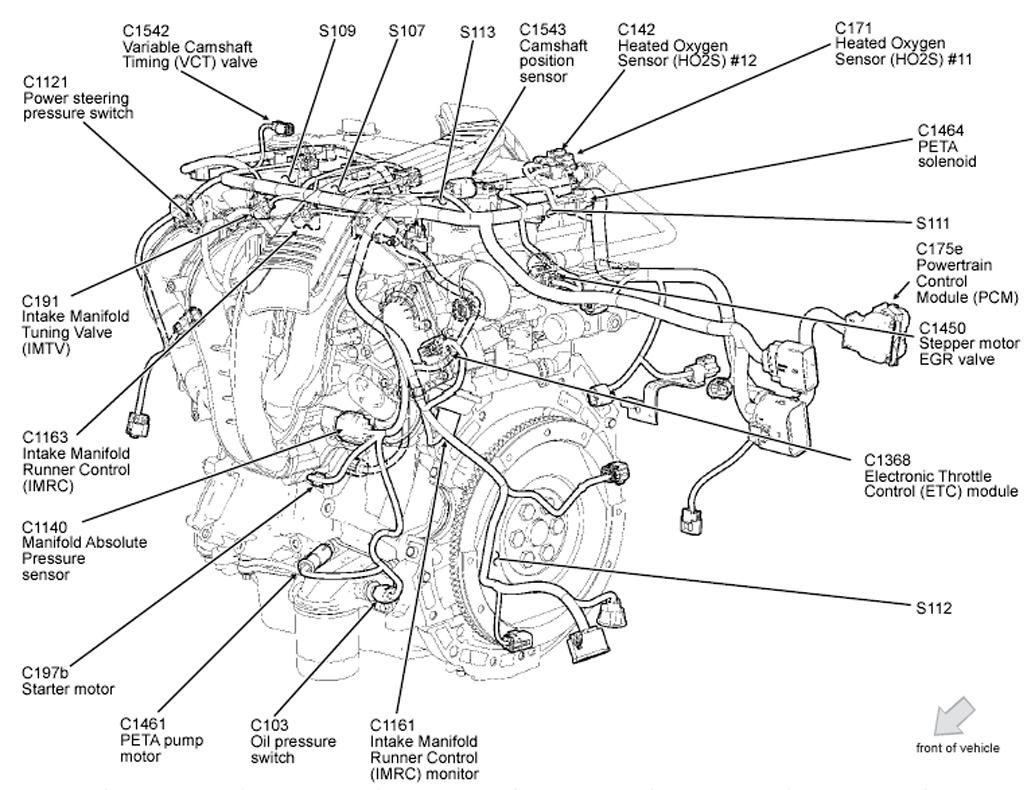

Fig 37: Engine Overview

G00458321

Courtesy of FORD MOTOR CO.

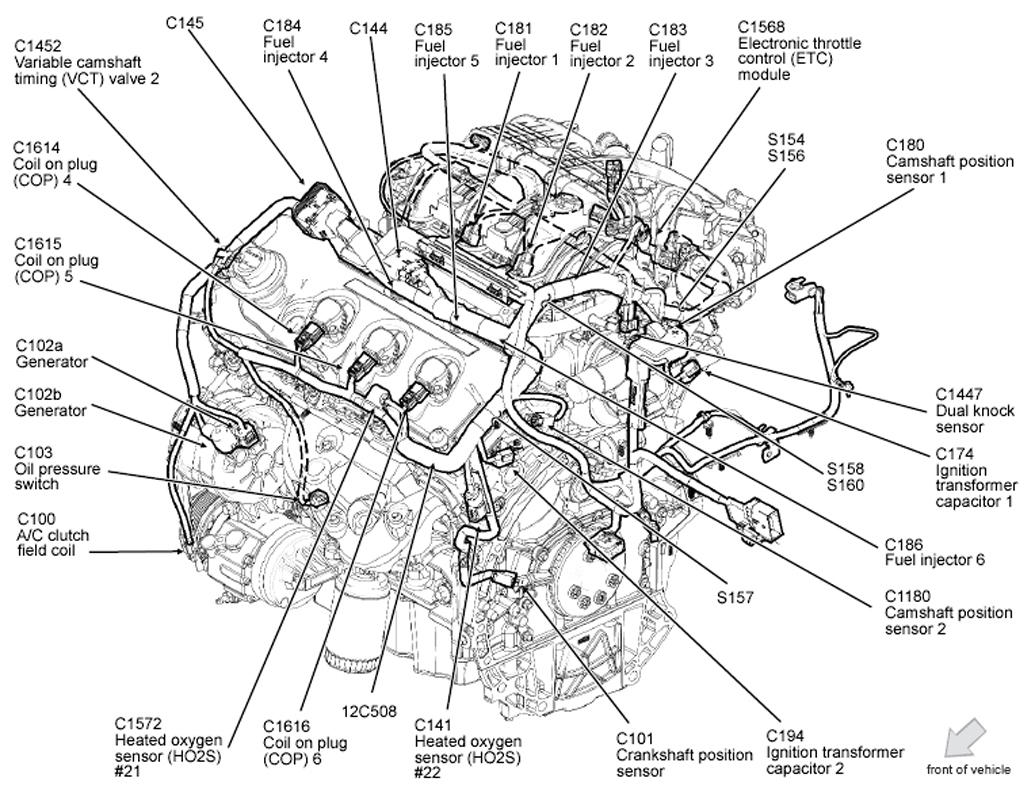

Fig 38: Engine Overview

G00458322

Courtesy of FORD MOTOR CO.

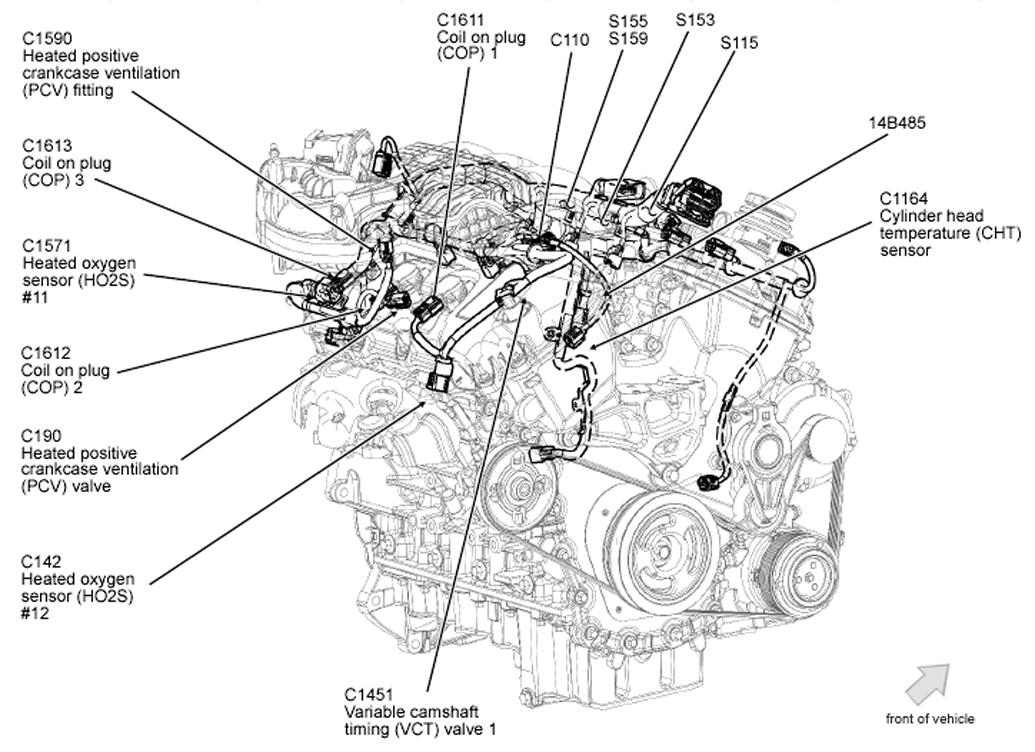

Fig 39: Front Of Engine

G00458323

Courtesy of FORD MOTOR CO.

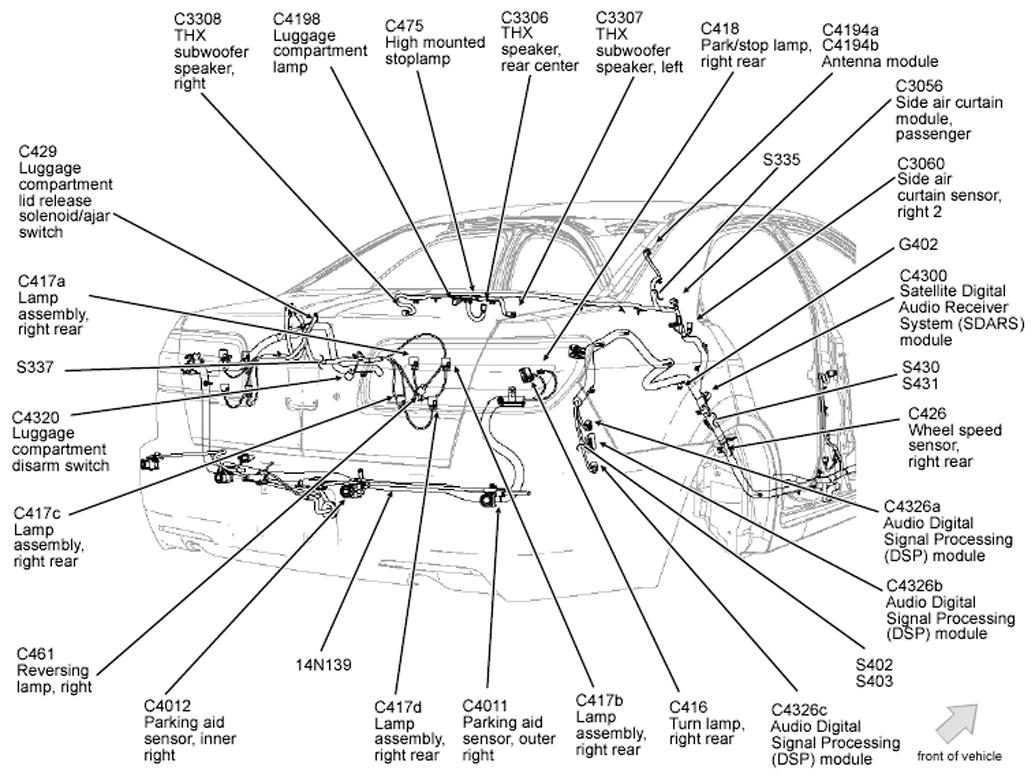

Fig 40: Right Rear Of Vehicle

G00458325

Courtesy of FORD MOTOR CO.

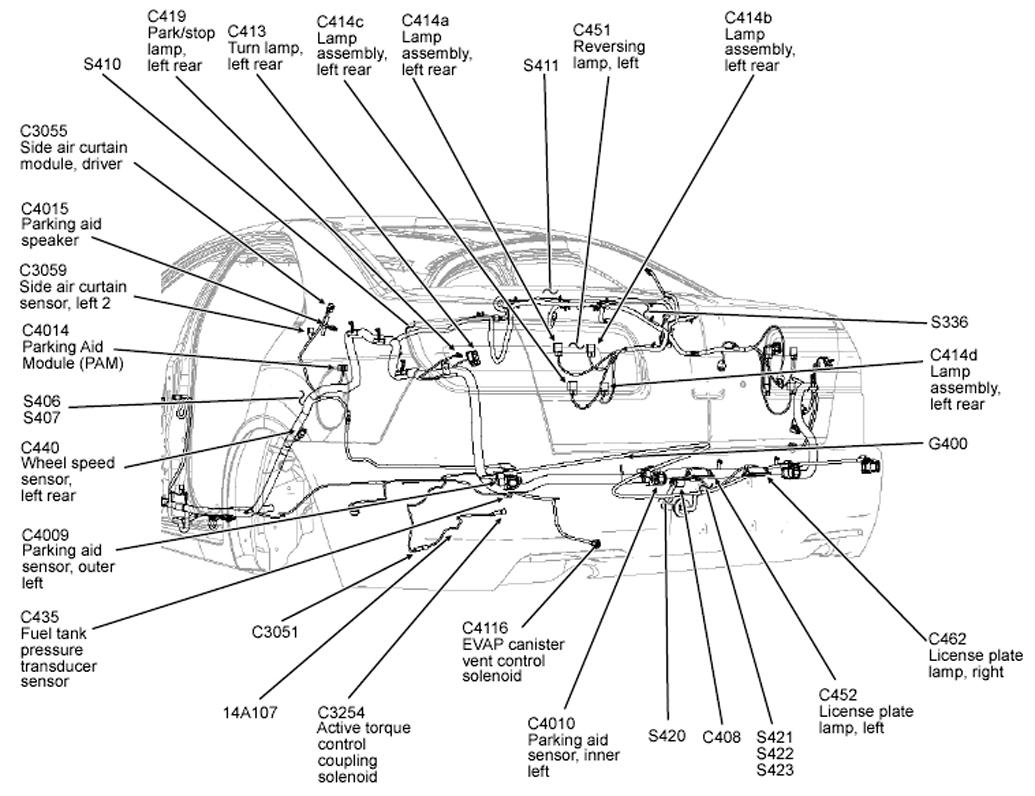

Fig 41: Left Rear Of Vehicle

G00458326

Courtesy of FORD MOTOR CO.

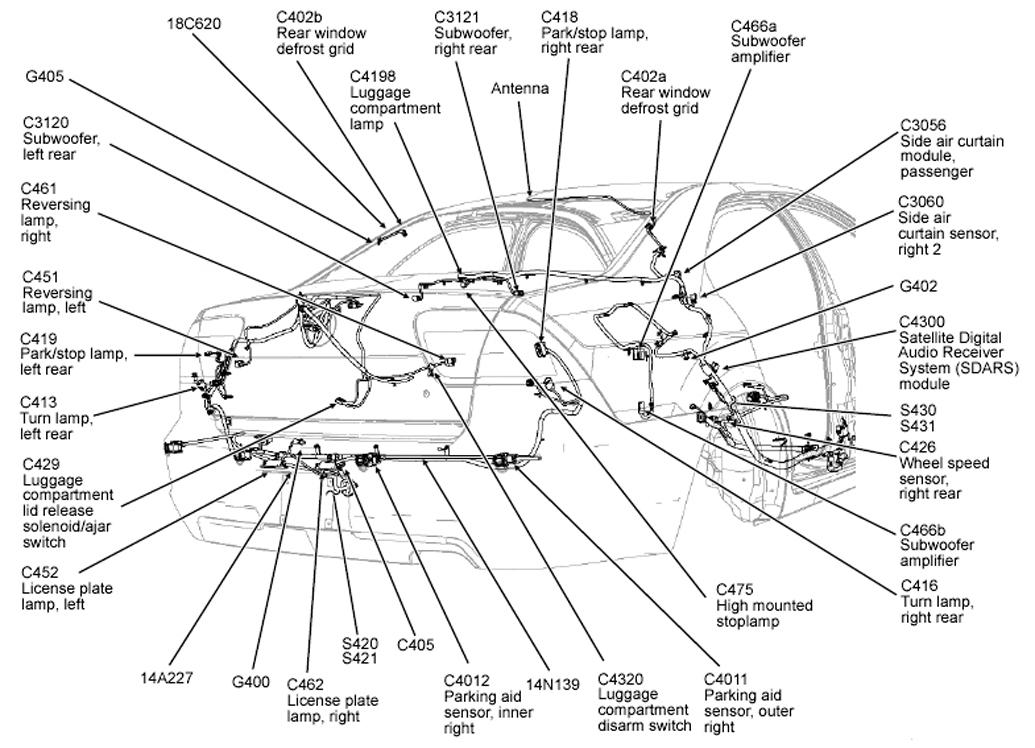

Fig 42: Right Rear Of Vehicle

G00458327

Courtesy of FORD MOTOR CO.

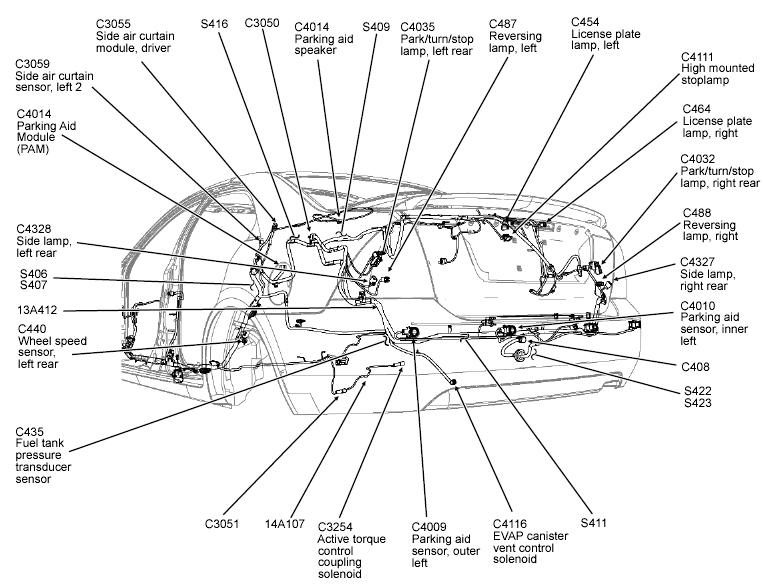

Fig 43: Rear Vehicle Overview

G00458328

Courtesy of FORD MOTOR CO.

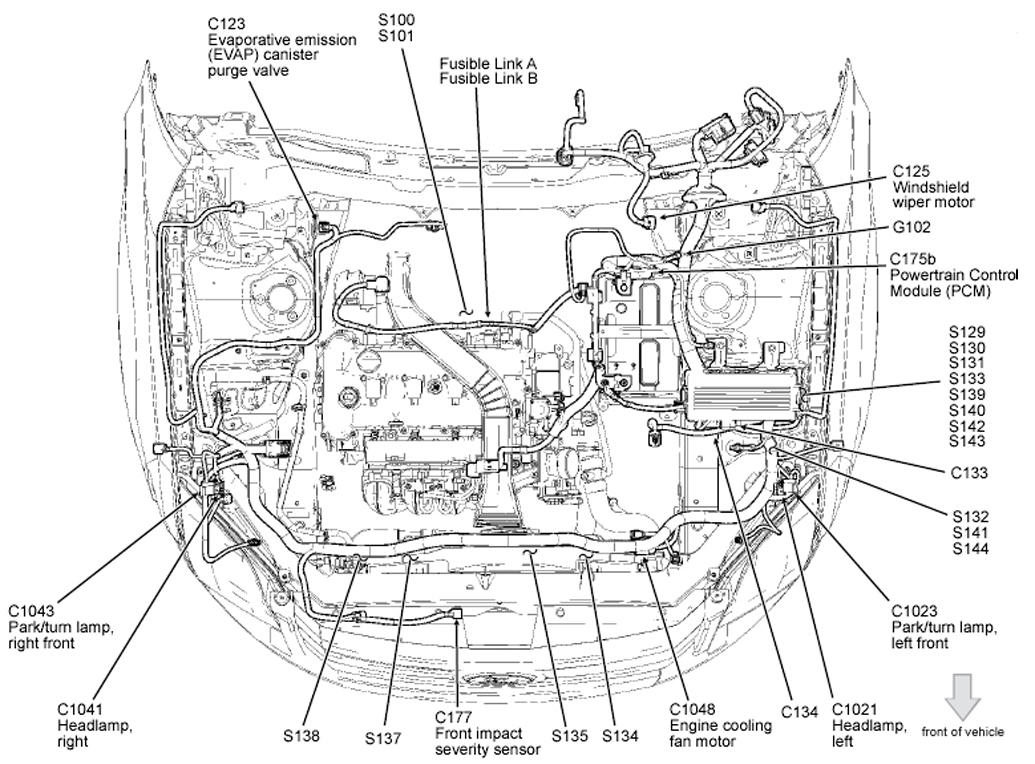

Fig 44: Engine Overview

G00458329

Courtesy of FORD MOTOR CO.

Fig 45: Below Front Passenger's Seat

GF0028607

Courtesy of FORD MOTOR CO.

Fig 46: Transaxle Assembly

G00476752

Courtesy of FORD MOTOR CO.

Fig 47: Transmission Control Module (TCM)

GF0029691

Courtesy of FORD MOTOR CO.
