Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| A/C Evaporative Thermistor | Right side of dash. See Figure. |
| Battery Junction Box (BJB) (2.3L) | Left side of engine compartment. See Figure. |
| Battery Junction Box (BJB) (3.0L) | Left front of engine compartment. See Figure. |

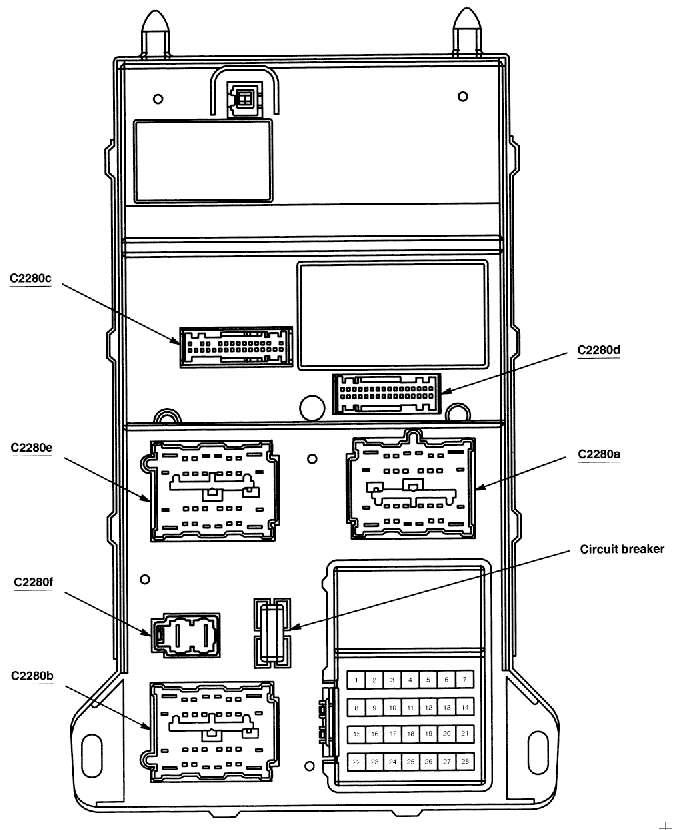

| Circuit Breaker | Smart Junction Box (SJB). See Figure. |
| Fusible Link A (2.3L) | Right side of engine. See Figure. |

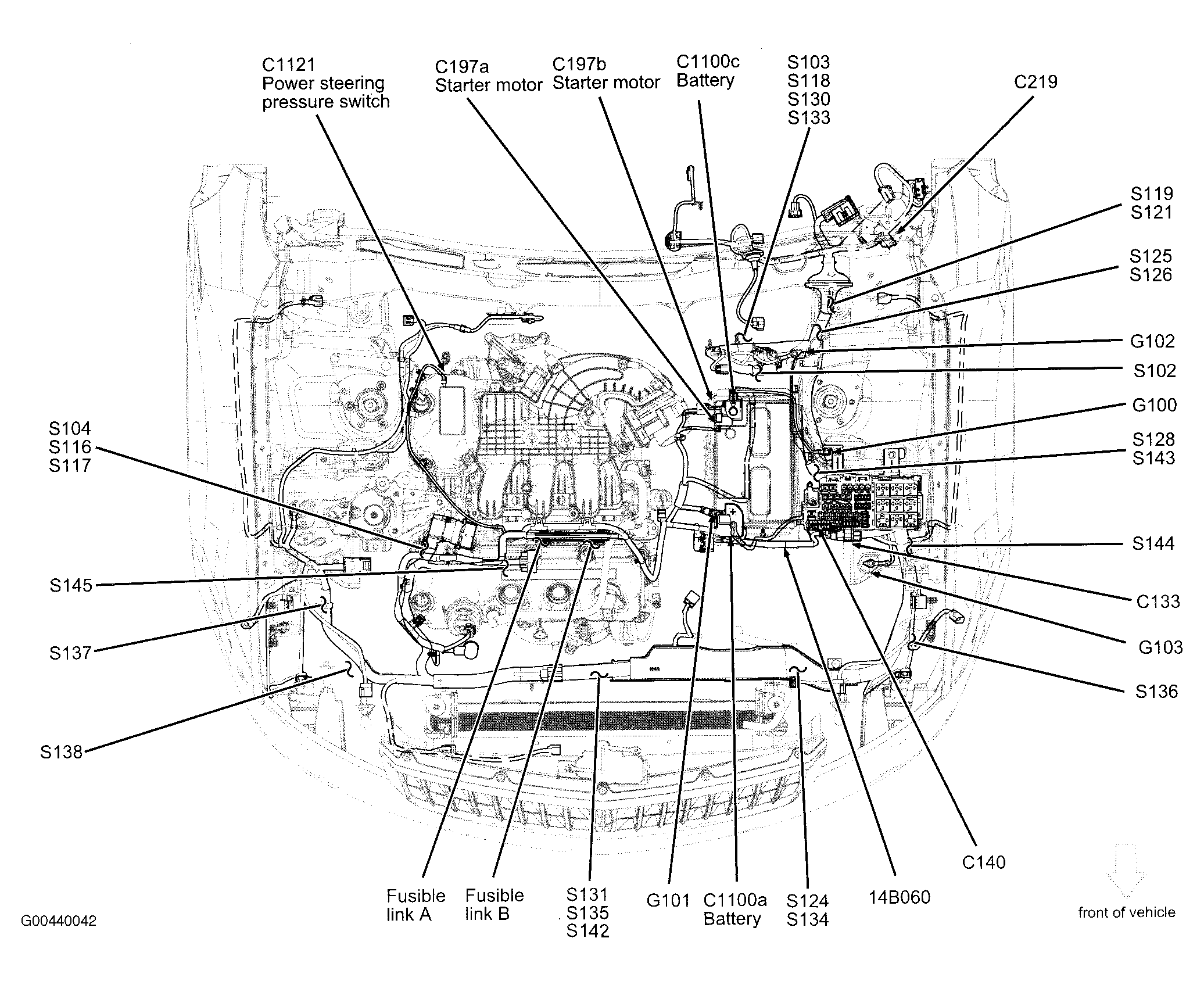

| Fusible Link A (3.0L) | Center front of engine compartment. See Figure. |
| Fusible Link A (3.5L) | Top of engine. See Figure. |
| Fusible Link B (2.3L) | Right side of engine. See Figure. |
| Fusible Link B (3.0L) | Center front of engine compartment. See Figure. |
| Fusible Link B (3.5L) | Top of engine. See Figure. |

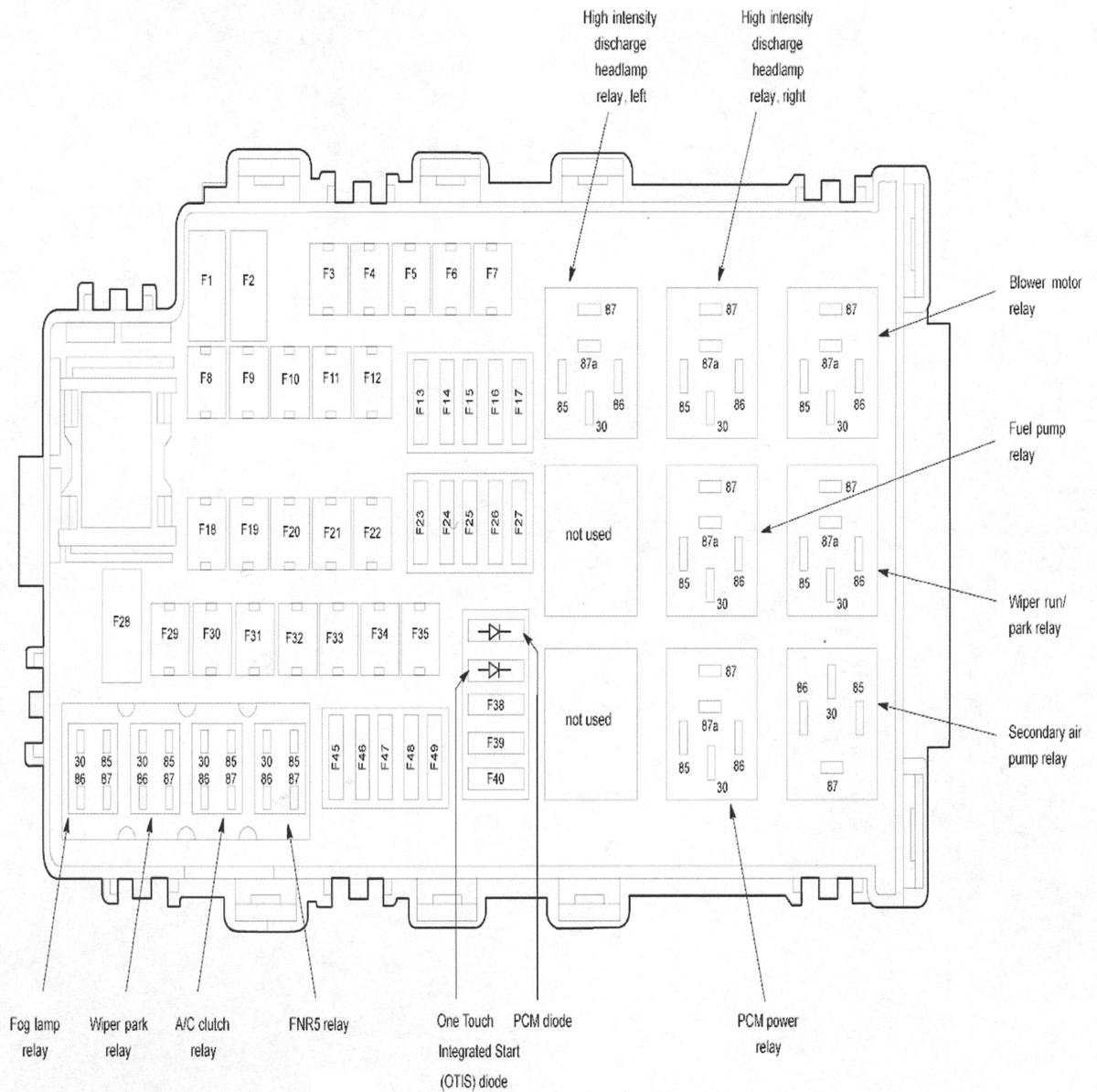

| One Touch Integrated Start (OTIS) Diode | Battery Junction Box (BJB). See Figure. |
| PCM Diode | Battery Junction Box (BJB). See Figure. |
| Smart Junction Box (SJB) | Base of left "A" pillar. See Figure. |
