Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|
| S100 | Engine harness, near S119. See Figure. |
| S100 (4.0L) | Engine control sensor & fuel charge harness, near breakout to heated oxygen sensor #21. See Figure. |
| S100 (5.4L) | Engine control sensor & fuel charge harness, near breakout to ignition transformer capacitor 1. See Figure. |

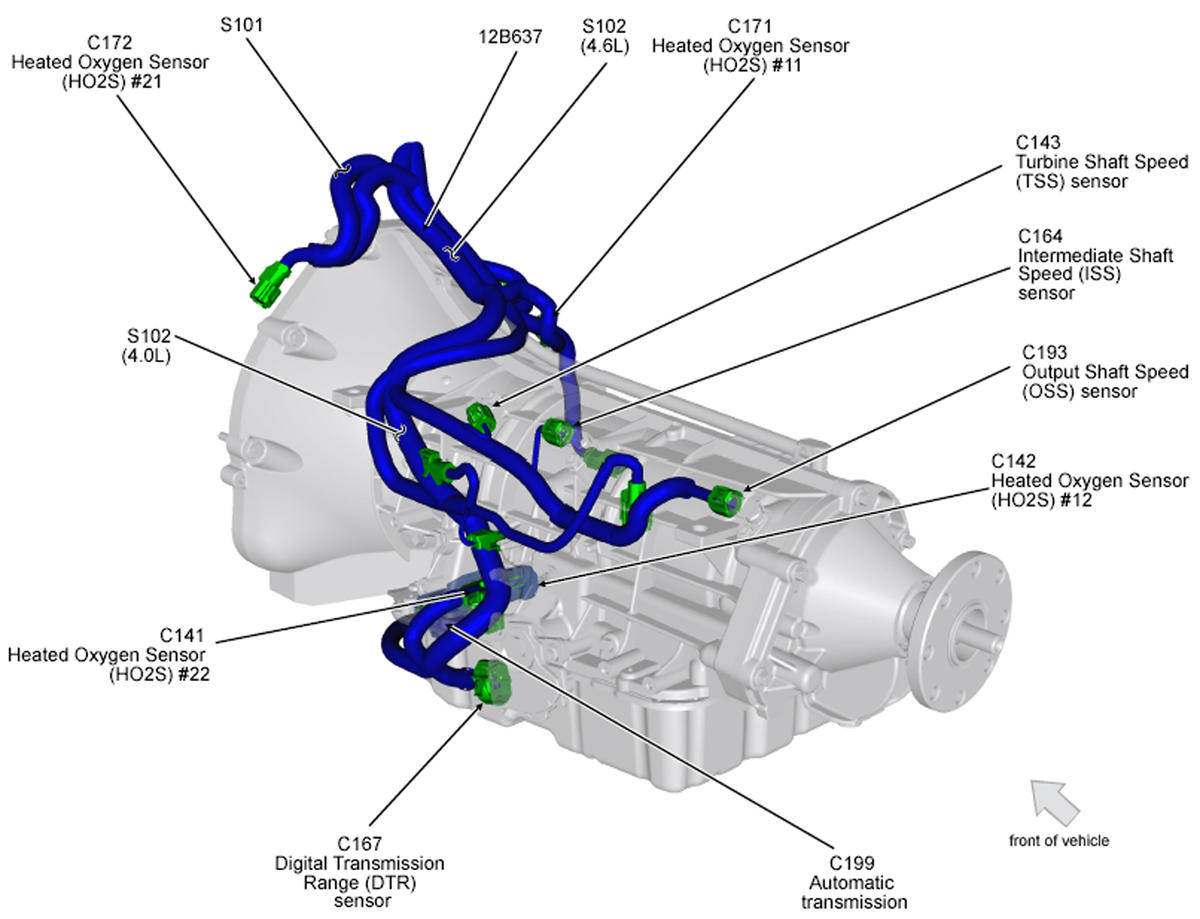

| S101 (A/T) | Engine control sensor & fuel charge harness, near breakout to heated oxygen sensor #21. See Figure. |
| S101 (4.0) | Near engine control sensor. See Figure. |
| S101 (4.6L) | Engine control sensor & fuel charge harness, near breakout to fuel injector 4. See Figure. |
| S101 (5.4L) | Engine control sensor & fuel charge harness, near breakout to ignition transformer capacitor 1. See Figure. |
| S102 (4.0L) | Engine control sensor & fuel charge harness, near breakout to EGR system module. See Figure. |
| S102 (5.4L) | Engine control sensor & fuel charge harness, near breakout to heated oxygen sensor #21. See Figure. |

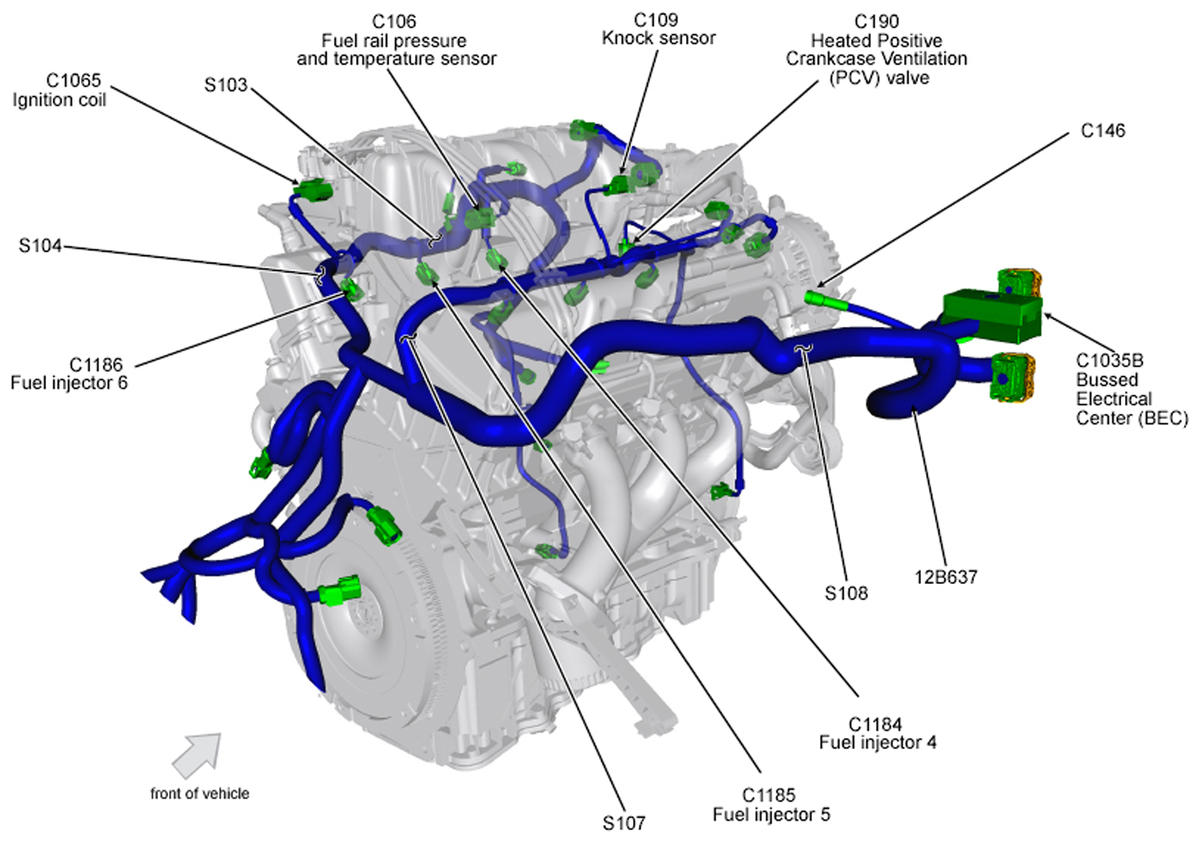

| S103 (4.0L) | Engine control sensor & fuel charge harness, on top of engine. See Figure. |
| S103 (5.4L) | Engine control sensor & fuel charge harness, near breakout to bussed electrical center. See Figure. |

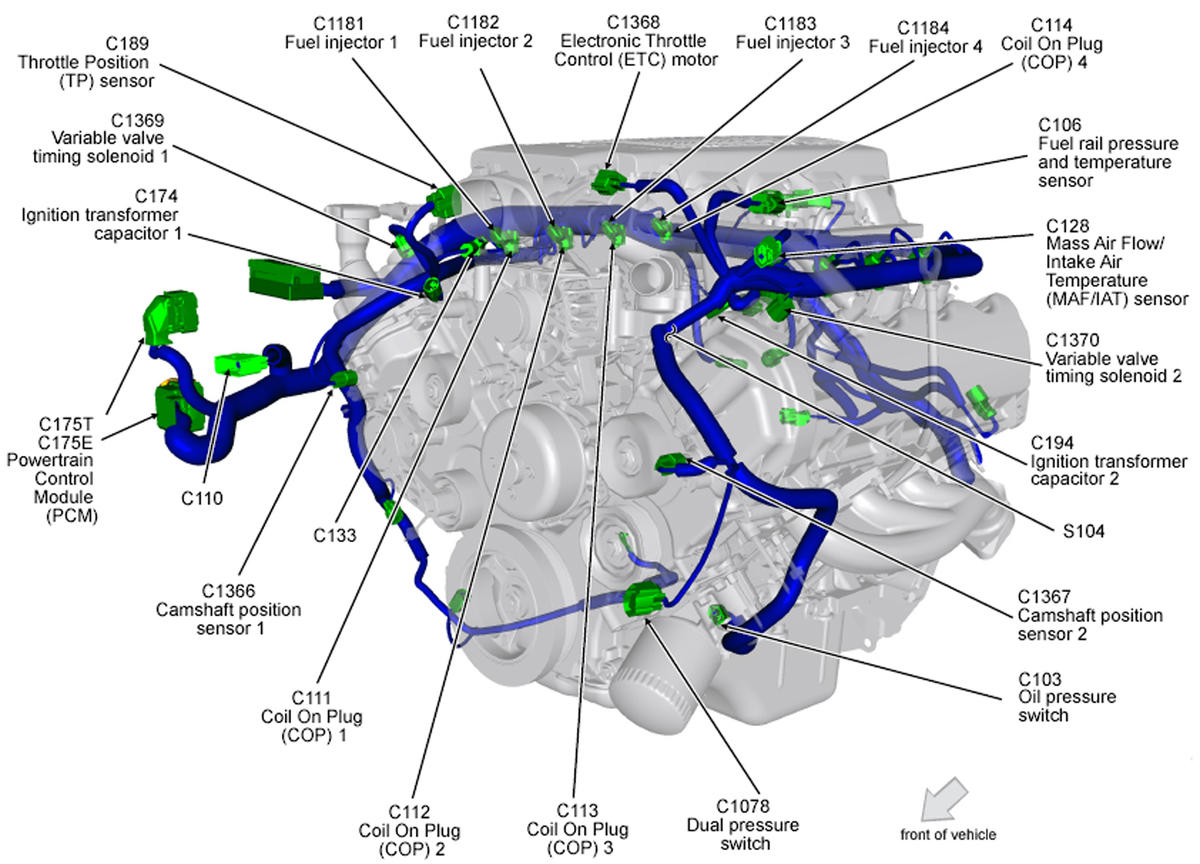

| S104 | Under throttle body. See Figure. |
| S104 (4.0L) | Engine control sensor & fuel charge harness, near breakout to ignition coil. See Figure. |
| S104 (4.6L) | Engine control sensor & fuel charge harness, near breakout to ignition coil. See Figure. |
| S106 (4.0) | Engine control sensor & fuel charge harness, near breakout to heated oxygen sensor #12. See Figure. |
| S106 (4.6L) | Engine control sensor & fuel charge harness, near breakout to heated oxygen sensor #11. See Figure. |
| S106 (5.4L) | Engine control sensor & fuel charge harness, near breakout to cylinder head temperature sensor. See Figure. |
| S107 (4.0L) | Engine control sensor & fuel charge harness, near breakout to heated positive crankcase ventilation valve. See Figure. |
| S107 (4.6L) | Engine control sensor & fuel charge harness, near breakout to fuel injector 4. See Figure. |
| S107 (5.4L) | Engine control sensor & fuel charge harness, near breakout to cylinder head temperature sensor. See Figure. |
| S108 (4.0L) | Engine control sensor & fuel charge harness, near breakout to C146. See Figure. |
| S108 (4.6L) | Engine control sensor & fuel charge harness, near breakout to bussed electrical center. See Figure. |
| S108 (5.4L) | Engine control sensor & fuel charge harness, near breakout to bussed electrical center. See Figure. |
| S109 (4.6L) | Engine control sensor & fuel charge harness, near breakout to C134. See Figure. |

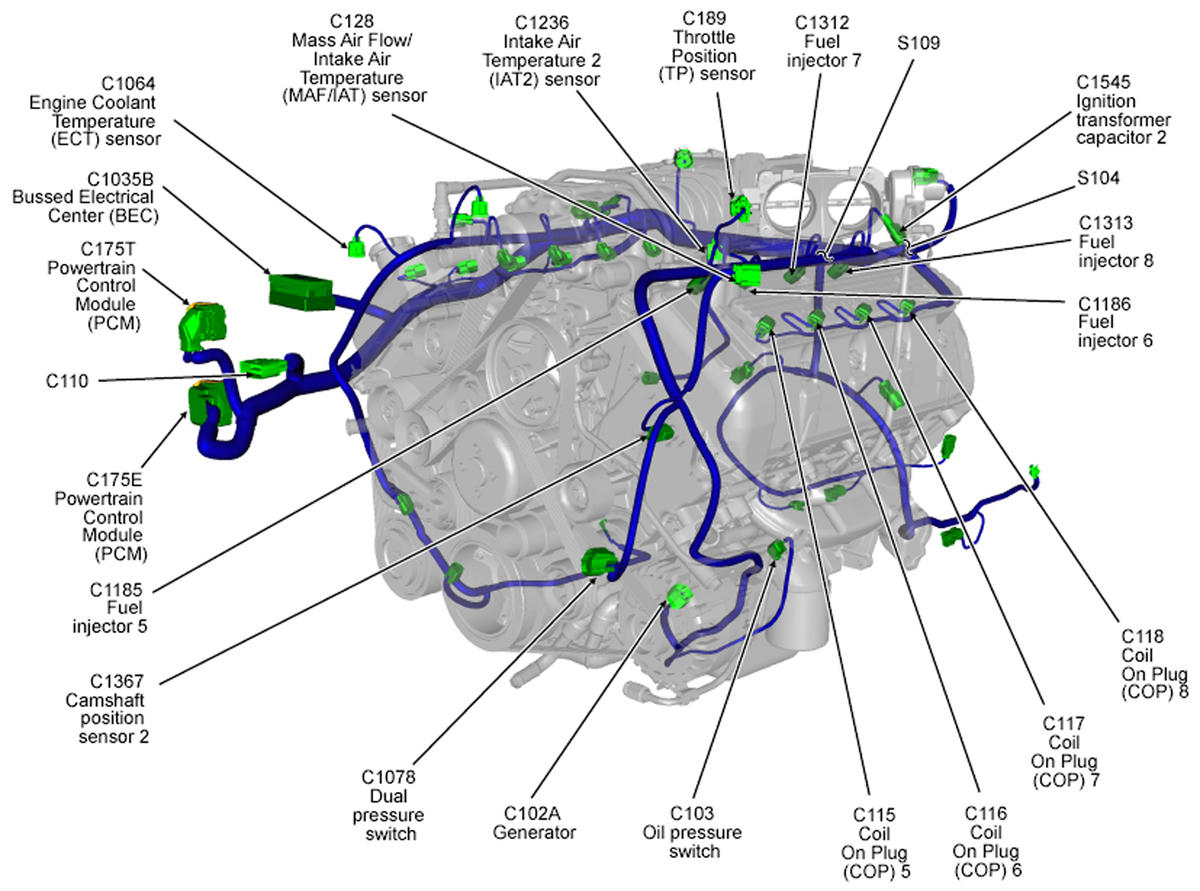

| S109 (5.4L) | Engine control sensor & fuel charge harness, near breakout to fuel injector 8. See Figure. |
| S110 | Alternator rectifier system harness, near breakout to battery. See Figure. |
| S111 | Alternator rectifier system harness, near breakout to battery. See Figure. |
| S112 | Dash panel to headlight junction harness, near breakout to right headlight. See Figure. |
| S115 | Body main harness, near breakout to G102. See Figure. |

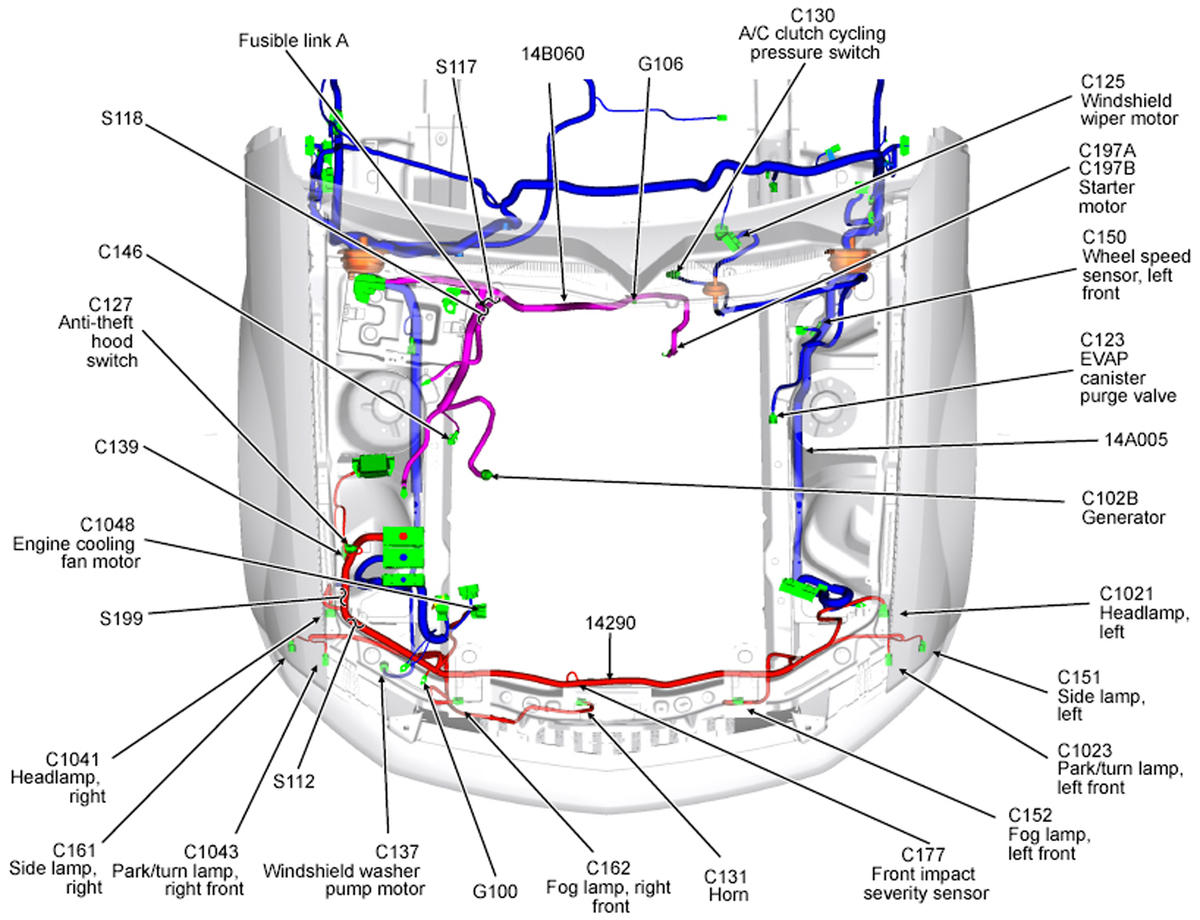

| S117 | Starter motor relay & battery ground harness, near breakout to G106. See Figure. |
| S118 | Starter motor relay & battery ground harness, near breakout to G106. See Figure. |
| S119 (4.6L) | Engine control sensor & fuel charge harness, near breakout to bussed electrical center. See Figure. |
| S119 (5.4L) | Engine control sensor & fuel charge harness, near breakout to ignition transformer capacitor 1. See Figure. |
| S199 | Dash panel to headlight junction harness, near breakout to right headlight. See Figure. |

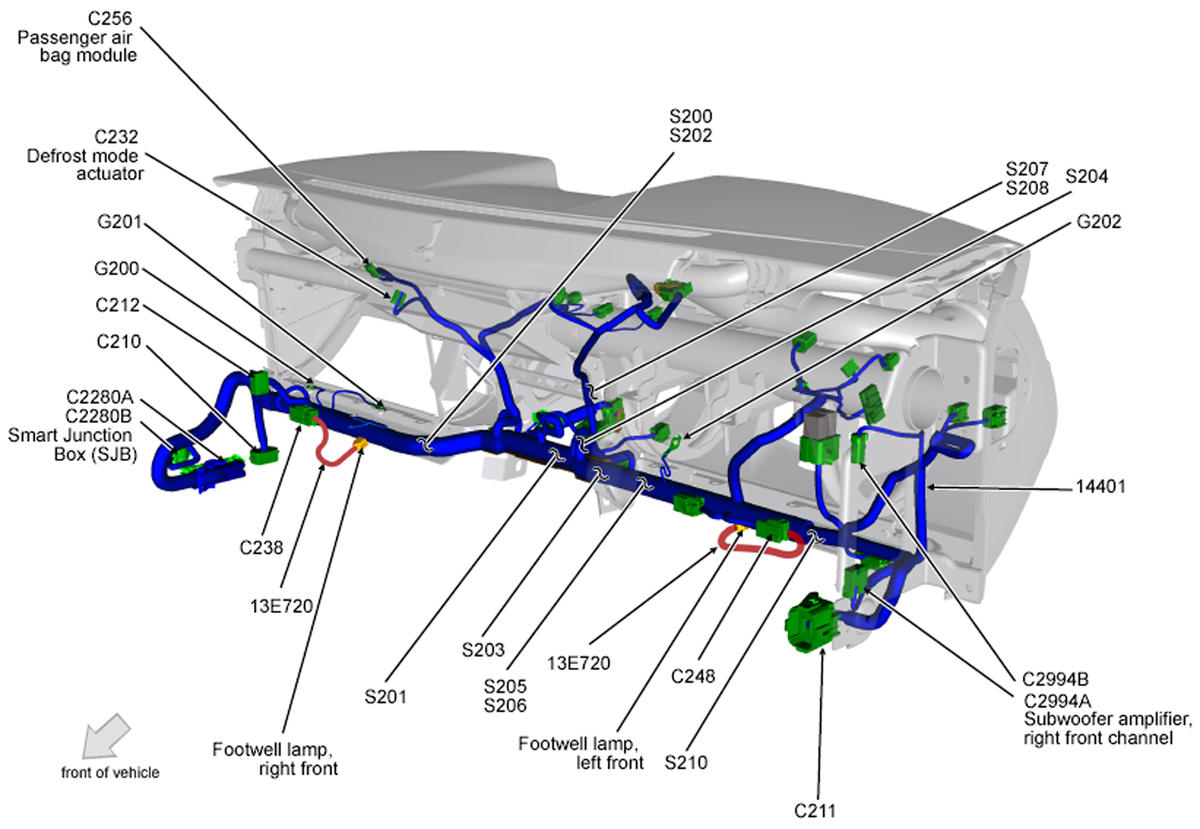

| S200 | Main harness, near breakout to climate control unit. See Figure. |
| S201 | Main harness, near breakout to audio unit. See Figure. |
| S202 | Main harness, near breakout to audio unit. See Figure. |
| S203 | Main harness, near breakout to audio unit. See Figure. |
| S204 | Main harness, near breakout to audio unit. See Figure. |
| S205 | Main harness, near breakout to audio unit. See Figure. |
| S206 | Main harness, near breakout to audio unit. See Figure. |
| S207 | Main harness, near breakout to climate control unit. See Figure. |
| S208 | Main harness, near breakout to climate control unit. See Figure. |

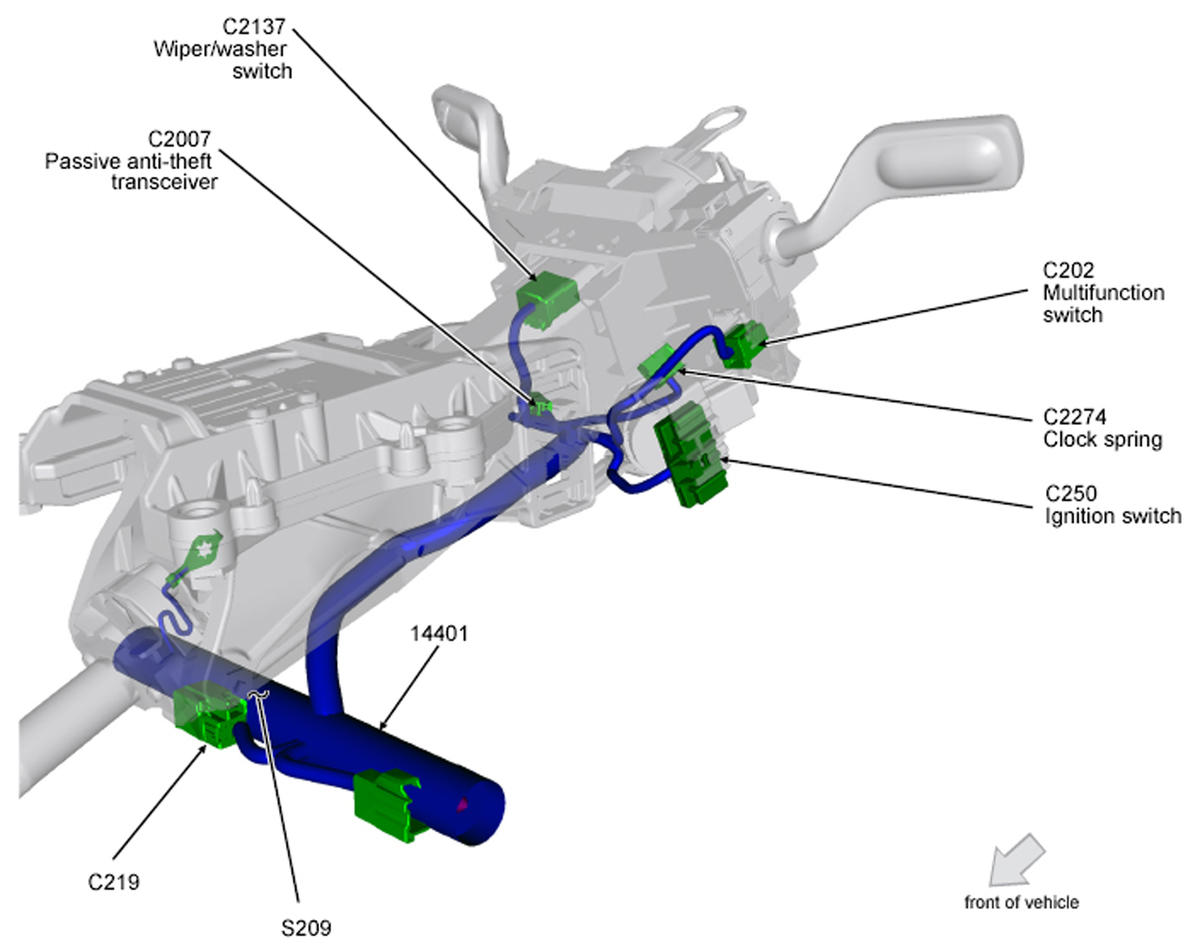

| S209 | Main harness, near breakout to G202. See Figure. |
| S210 | Main harness, near breakout to C212. See Figure. |
| S211 | Heater blower motor harness, near breakout to C212. See Figure. |
| S212 | Body main harness, near breakout to C211. See Figure. |
| S213 | Body main harness, near breakout to G204. See Figure. |

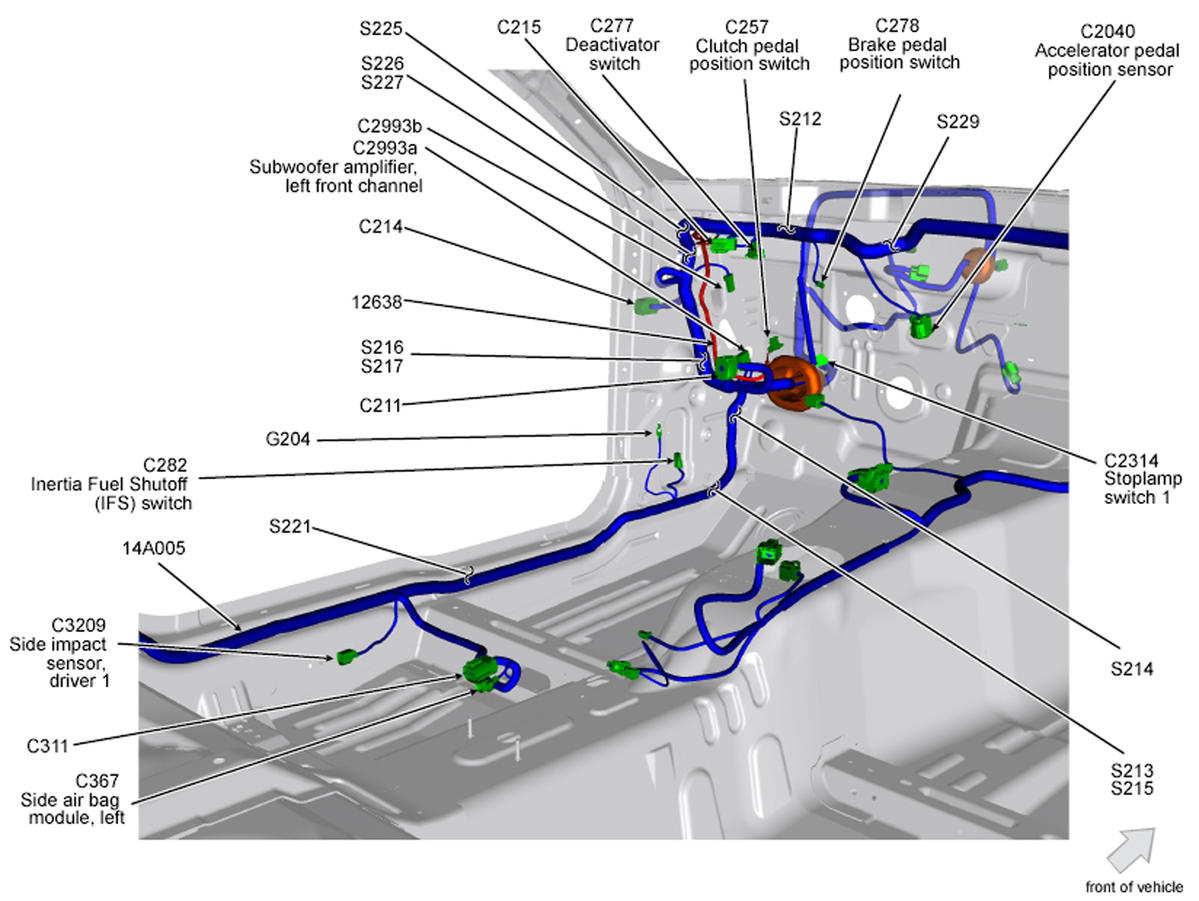

| S214 | Body main harness, near breakout to left front channel subwoofer amplifier. See Figure. |
| S215 | Body main harness, near breakout to G204. See Figure. |
| S216 | Body main harness, near breakout to C211. See Figure. |
| S217 | Body main harness, near breakout to C211. See Figure. |

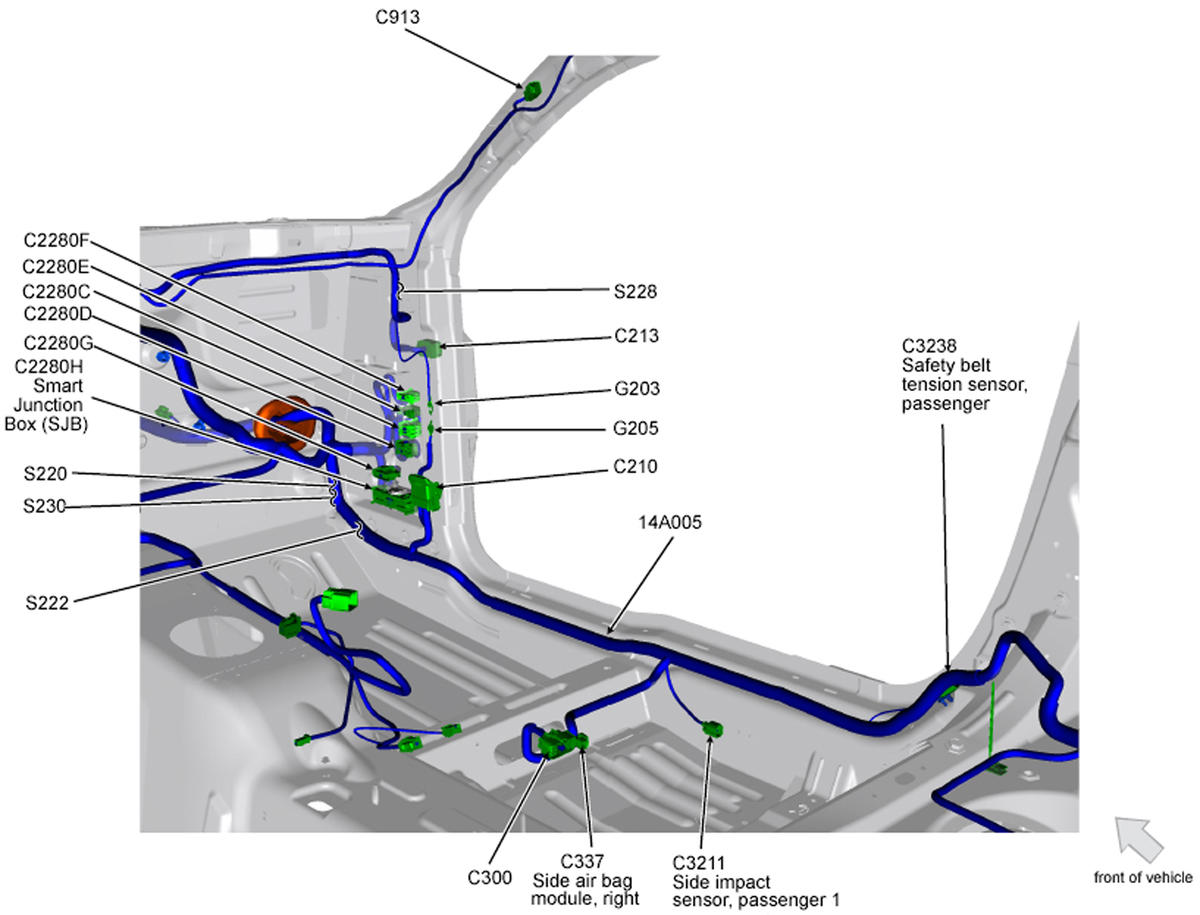

| S220 | Body main harness, near breakout to smart junction box. See Figure. |
| S221 (Except 5.4L) | Body main harness, near breakout to C421. See Figure. |
| S221 (5.4L) | Body main harness, near breakout to G204. See Figure. |
| S222 | Body main harness, near breakout to C421. See Figure. |
| S224 | Body main harness, near breakout to C421. See Figure. |
| S225 (5.4L) | Body main harness, near breakout to C215. See Figure. |
| S226 (5.4L) | Body main harness, near breakout to left front channel subwoofer amplifier. See Figure. |
| S227 (5.4L) | Body main harness, near breakout to left front channel subwoofer amplifier. See Figure. |
| S228 | Body main harness, near breakout to C213. See Figure. |
| S229 | Body main harness, near breakout to accelerator pedal position sensor. See Figure. |
| S230 | Under center of dash. See Figure. |
| S231 | Main harness, near breakout to heated seat relay box. See Figure. |

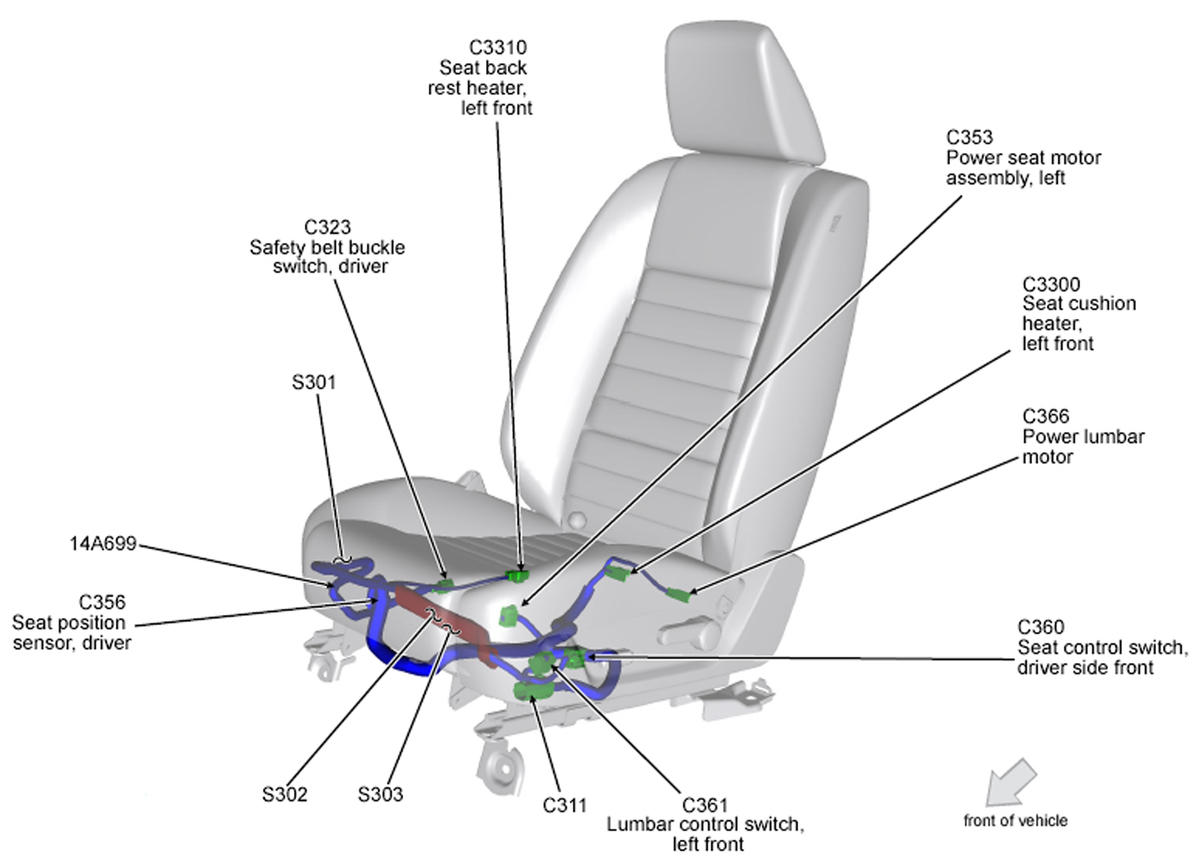

| S301 | Power seats harness, near breakout to driver safety belt buckle switch. See Figure. |
| S302 | Power seats harness, near breakout to driver side front seat adjust switch. See Figure. |
| S303 | Power seats harness, near breakout to driver side front seat adjust switch. See Figure. |
| S306 | Under passenger seat. See Figure. |
| S310 | Under center console. See Figure. |
| S311 | Under center console. See Figure. |
| S312 | Under center console. See Figure. |
| S313 | Under center console. See Figure. |
| S400 | Rear light connector harness, near breakout to license plate light. See Figure. |
| S401 | Radio amplifier harness, near breakout to C421. See Figure. |

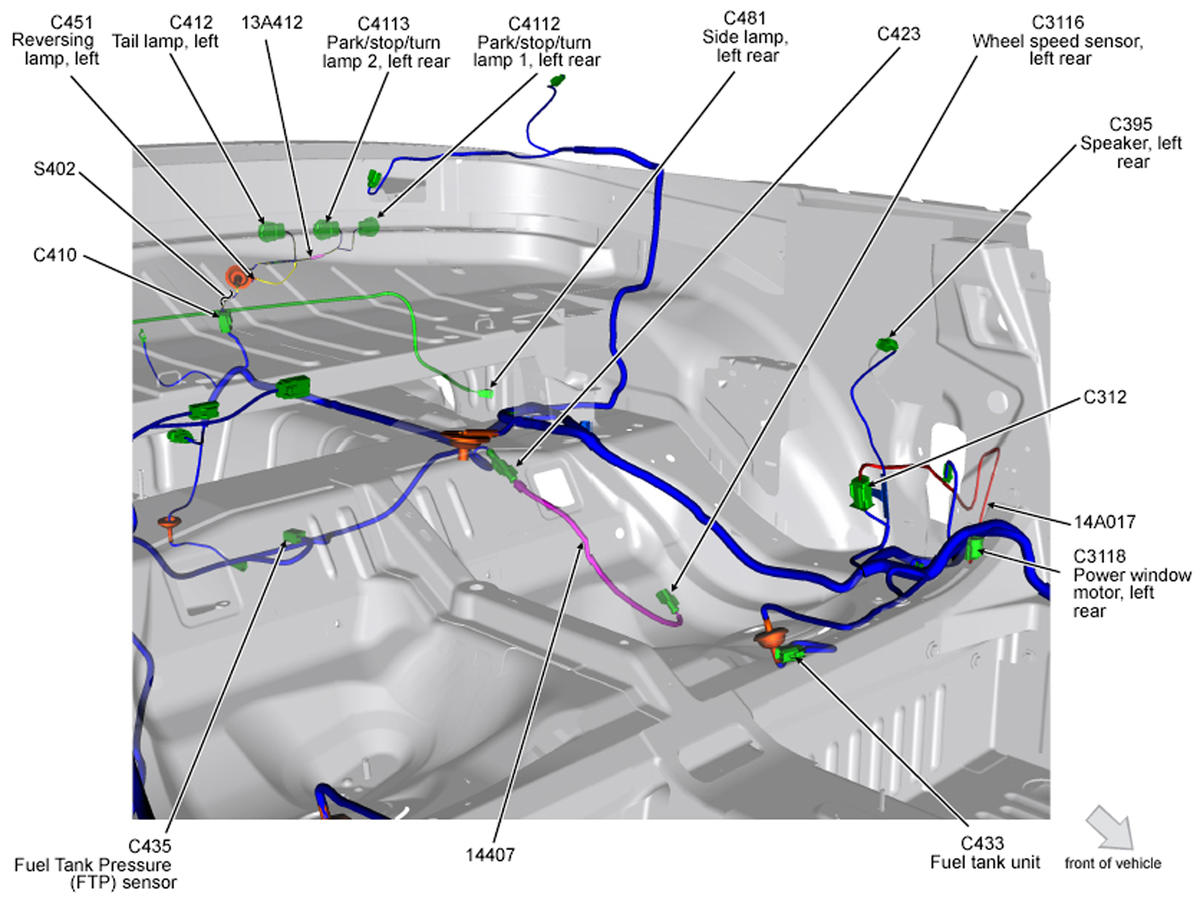

| S402 | Rear light jumper harness, near breakout to C410. See Figure. |
| S403 | Rear light jumper harness, near breakout to C411. See Figure. |
| S404 | Body main harness, near breakout to G401. See Figure. |
| S406 | Luggage compartment light harness, near breakout to high mounted stoplight. See Figure. |
| S407 (5.4L) | Body main harness, near breakout to fuel pump driver module. See Figure. |
| S408 (Coupe) | Main harness, near breakout to fuel pump driver module. See Figure. |
| S409 | Radio amplifier harness, near breakout to luggage compartment right inboard subwoofer amplifier. See Figure. |
| S410 | Radio amplifier harness, near breakout to luggage compartment right inboard subwoofer amplifier. See Figure. |
| S411 | Main body harness near C421. See Figure. |
| S412 | Rear of passenger compartment. See Figure. |
| S413 (Early Production) | Body main harness, near breakout to satellite radio receiver. See Figure. |
| S413 (Late Production) | Body main harness, near breakout to rear window defrost grid. See Figure. |
| S414 (Early Production) | Body main harness, near breakout to satellite radio receiver. See Figure. |

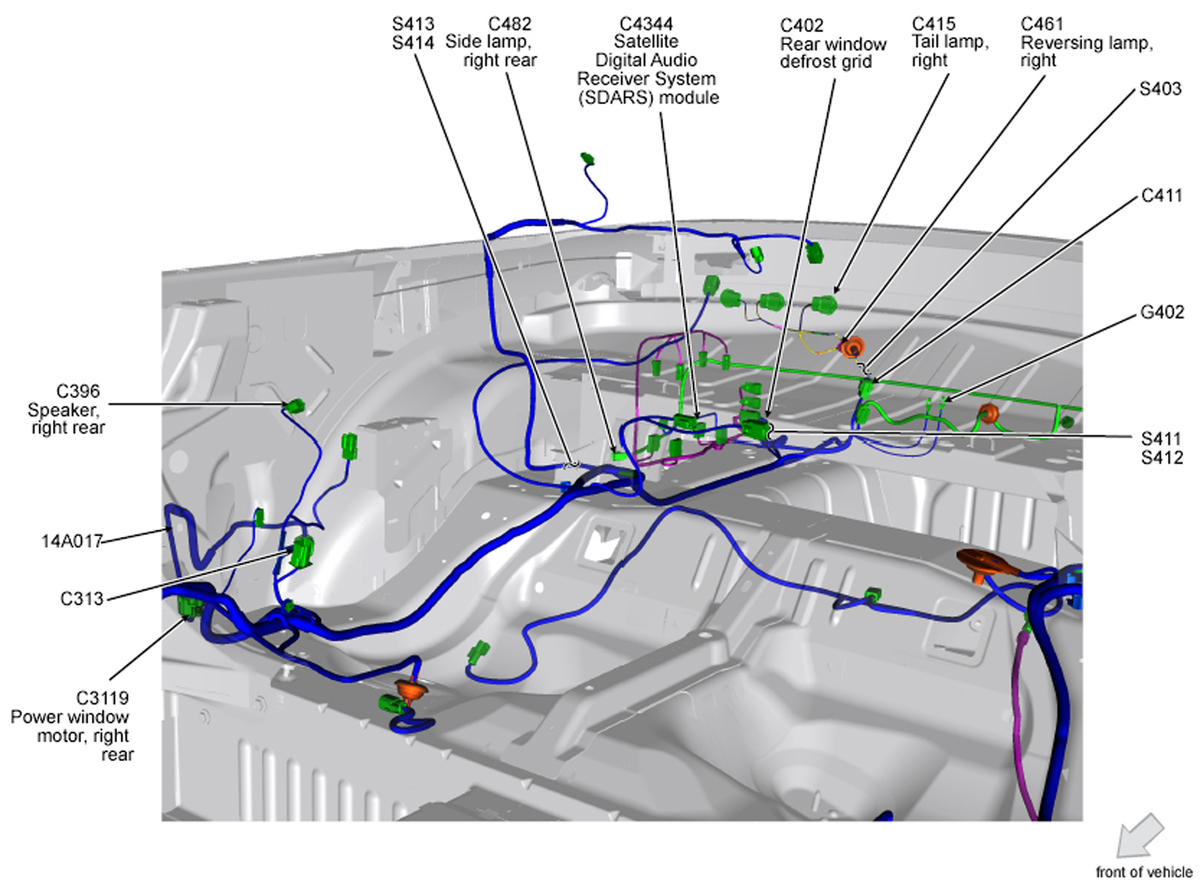

| S414 (Late Production) | Body main harness, near breakout to rear window defrost grid. See Figure. |
| S415 (5.4L) | Body main harness, near breakout to G403. See Figure. |
| S417 (5.4L) | Body main harness, near breakout to fuel pump driver module. See Figure. |
| S500 | Left front door window regulator harness, near breakout to left front power window motor. See Figure. |
| S501 | Left front door window regulator harness, near breakout to left front power window motor. See Figure. |
| S502 | Left front door window regulator harness, near breakout to left exterior rearview mirror. See Figure. |
| S503 | Left front door window regulator harness, near breakout to left front door lock actuator. See Figure. |
| S600 | Right front door window regulator harness, near breakout to right front speaker. See Figure. |
| S601 | Right front door window regulator harness, near breakout to right front power window motor. See Figure. |
| S602 | Right front door window regulator harness, near breakout to right front power window motor. See Figure. |
| S603 | Right front door window regulator harness, near breakout to passenger side window adjust switch. See Figure. |
| S604 | Right front door window regulator harness, near breakout to passenger side window adjust switch. See Figure. |
