Main Control Valve Body: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Aligner, Valve Body (2 required)	307-334 (T95L-70010-C)

Material

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

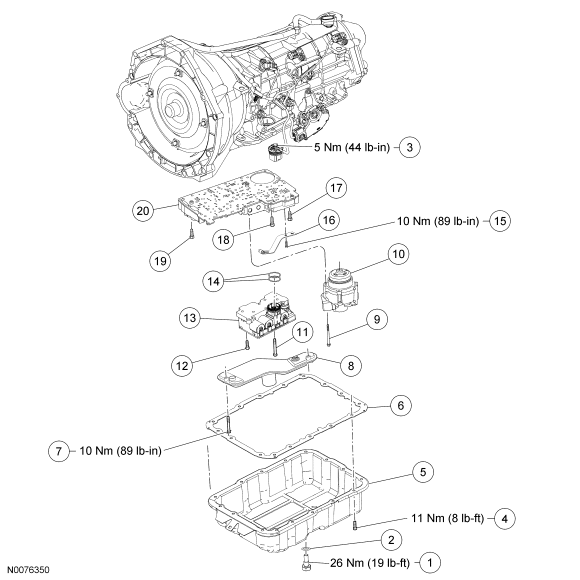

Fig 1: Exploded View Of Main Control Valve Body With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7A010	Transmission fluid pan drain plug assembly
2	6734	Transmission fluid pan drain plug gasket
3	-	Solenoid body electrical connector screw
4	W500213	Transmission fluid pan-to-case screw (16 required)
5	7A194	Transmission fluid pan
6	7A191	Transmission fluid pan gasket
7	W705559	Transmission fluid filter screw (2 required)
8	7A098	Transmission fluid filter
9	W702359	Reverse servo screw (4 required)
10	7B193	Reverse servo assembly
11	W703189	Solenoid body screw (7 required)
12	W702921	Solenoid body screw
13	7G391	Solenoid body
14	W705928	Solenoid body O-rings
15	W500100	Manual valve detent spring screw
16	7E332	Manual valve detent spring
17	W500102	Main control valve body screw (18 required)
18	W702791	Main control valve body screw
19	W706672	Main control valve body screw
20	7A100	Main control valve body assembly
