Restraints Control Module (RCM): Notes

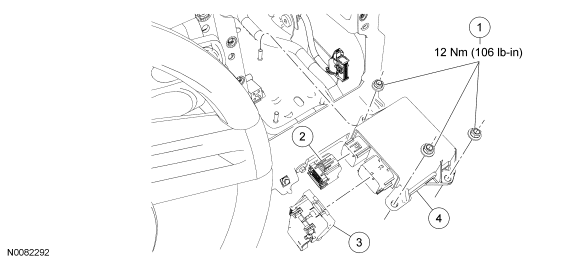

Fig 1: Exploded View Of Restraints Control Module (RCM) With Torque Specification
GF0046287Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W520111 Restraints Control Module (RCM) nuts (3 required)
2 - RCM small connector (part of 14401)
3 - RCM large connector (part of 14A005)
4 14B321 RCM
