Exhaust System

Exhaust System - Exploded View

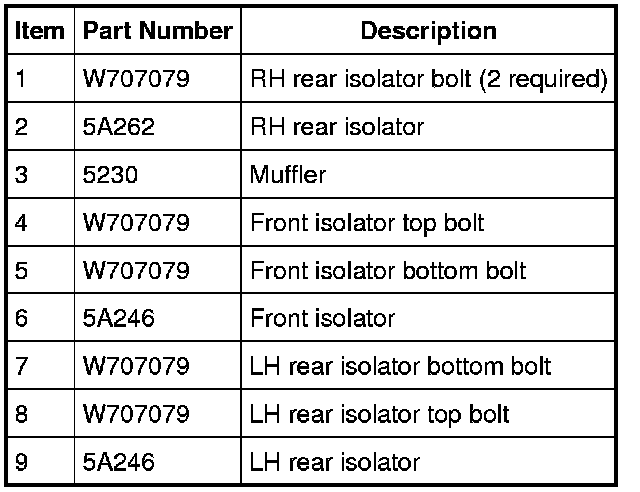

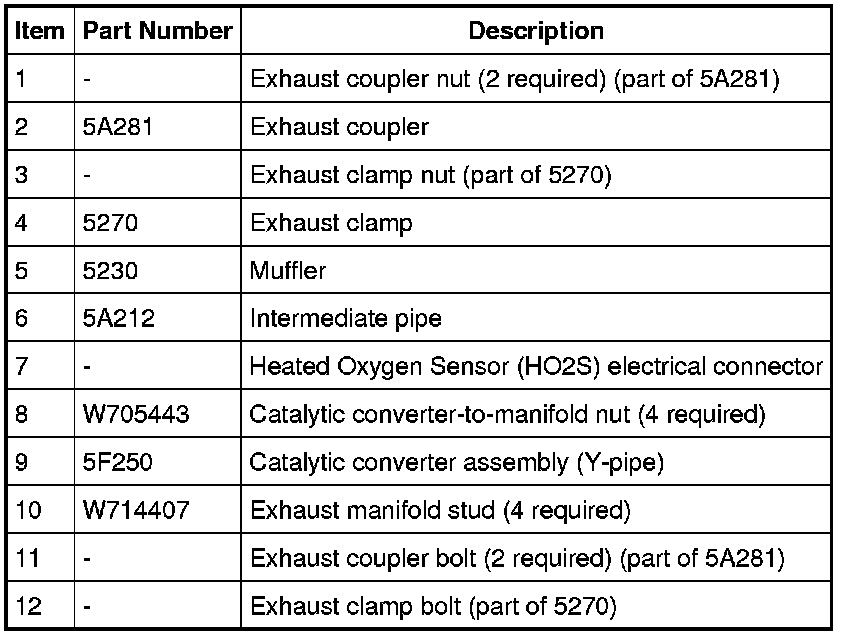

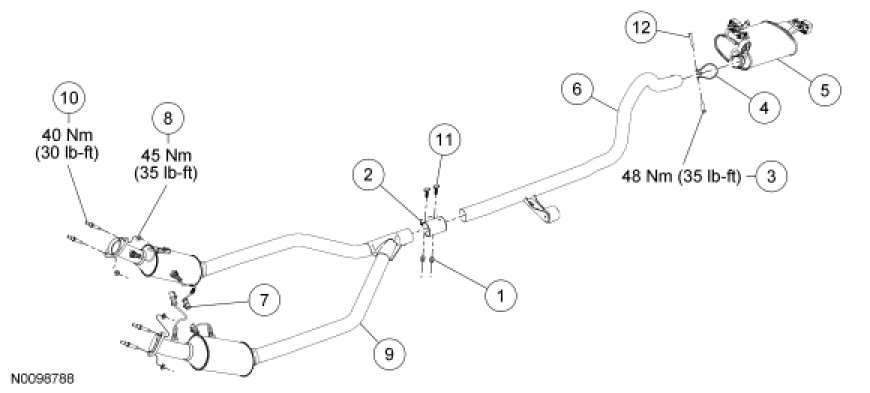

4.0L (View 1 of 2)

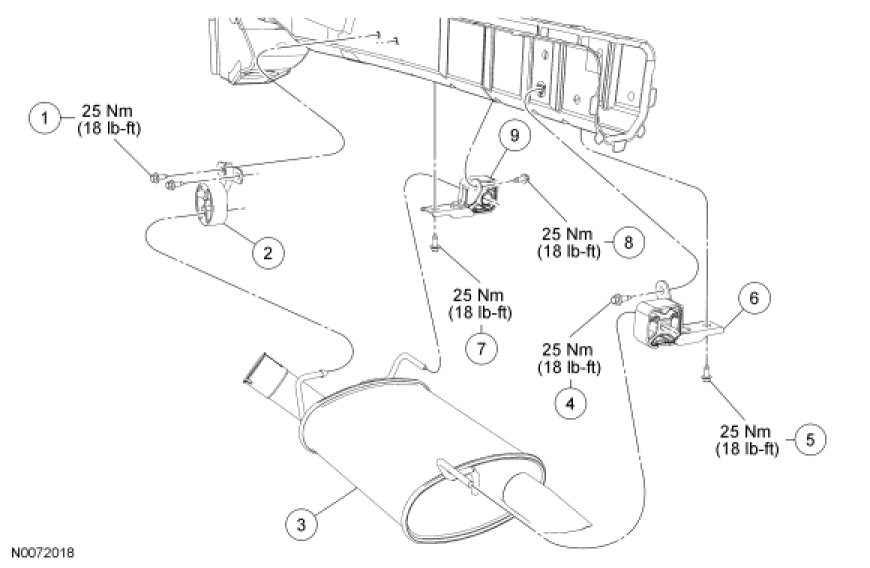

4.0L (View 2 of 2)

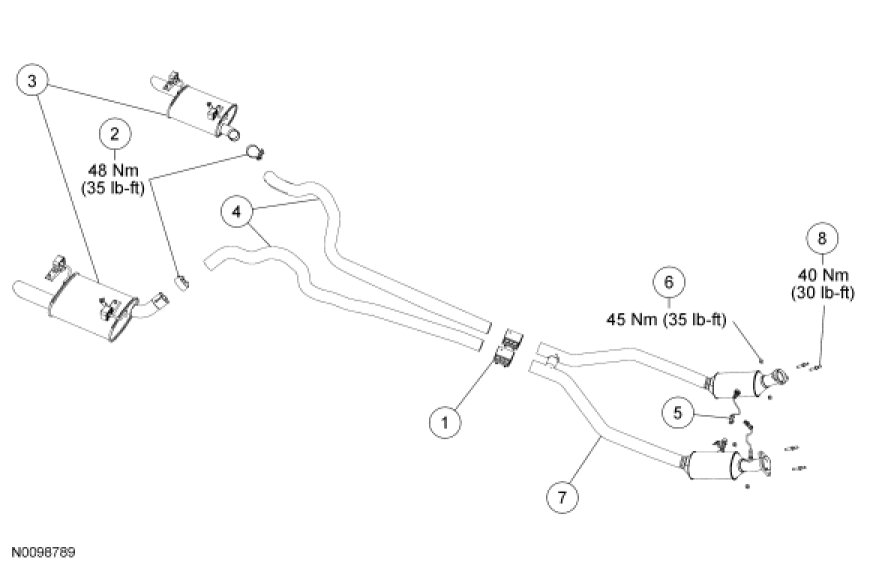

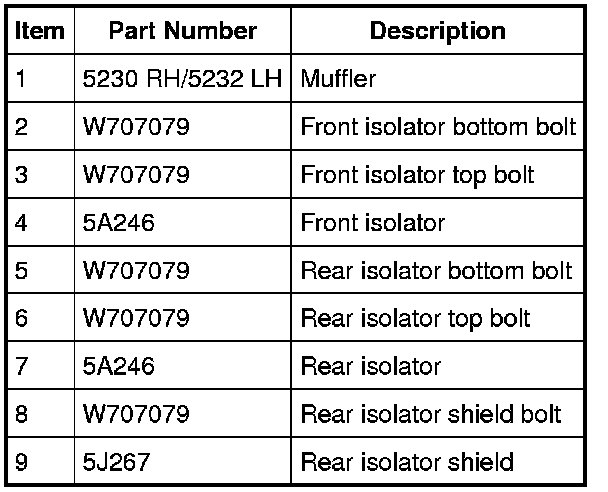

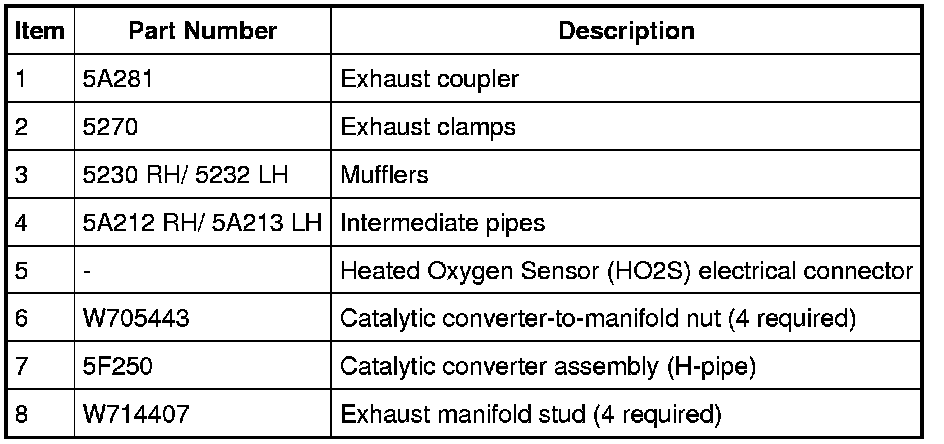

V8 Engines (View 1 of 2)

NOTE: 4.6L shown, 5.4L similar.

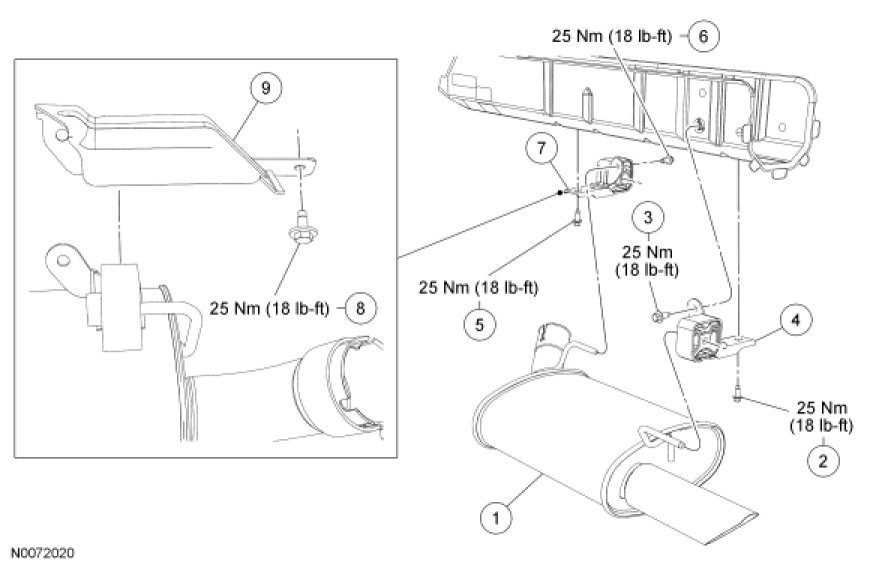

V8 Engines (View 2 of 2)









1. For additional information, refer to the procedures.
