Subframe and Engine Support Insulators - Exploded View




Engine Lubrication Components - Exploded View

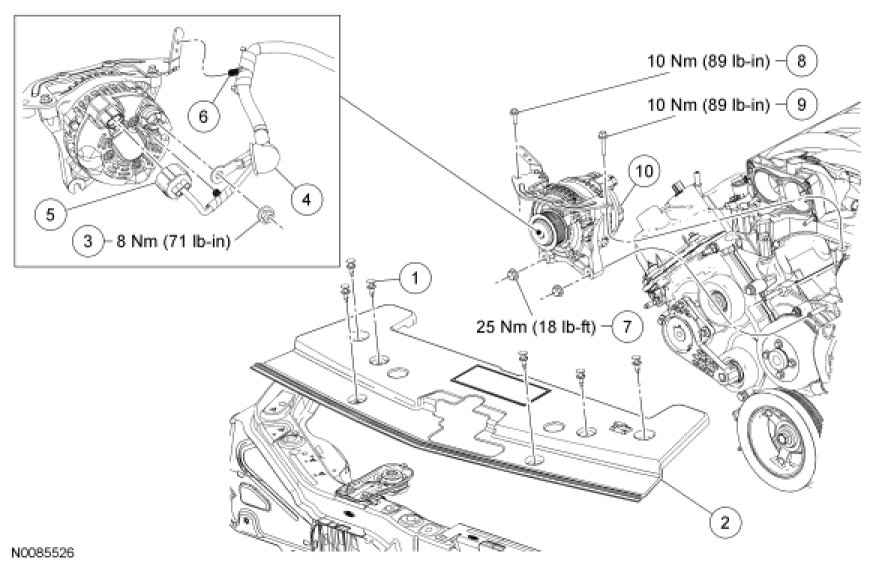

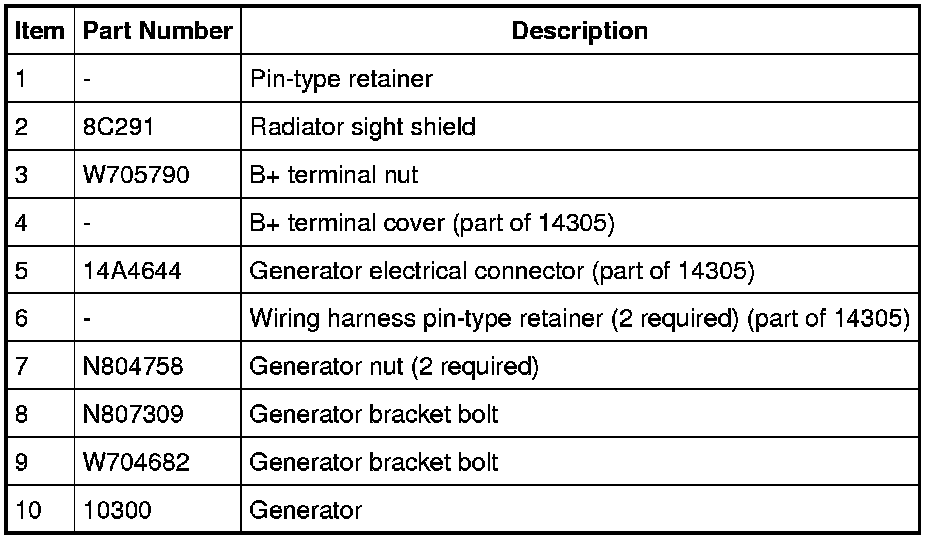

Generator and Radiator Sight Shield

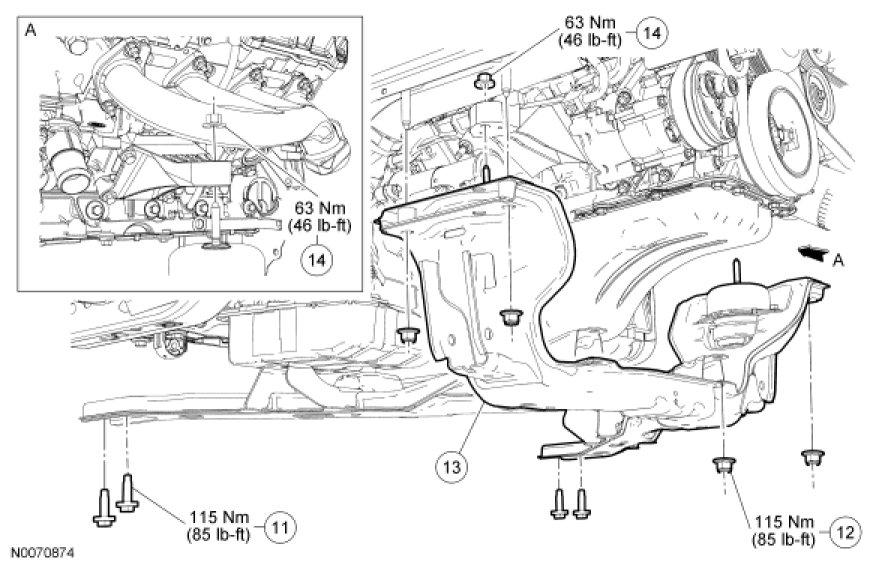

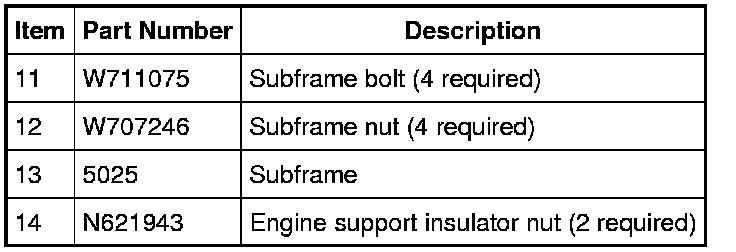

Subframe and Engine Support Insulators

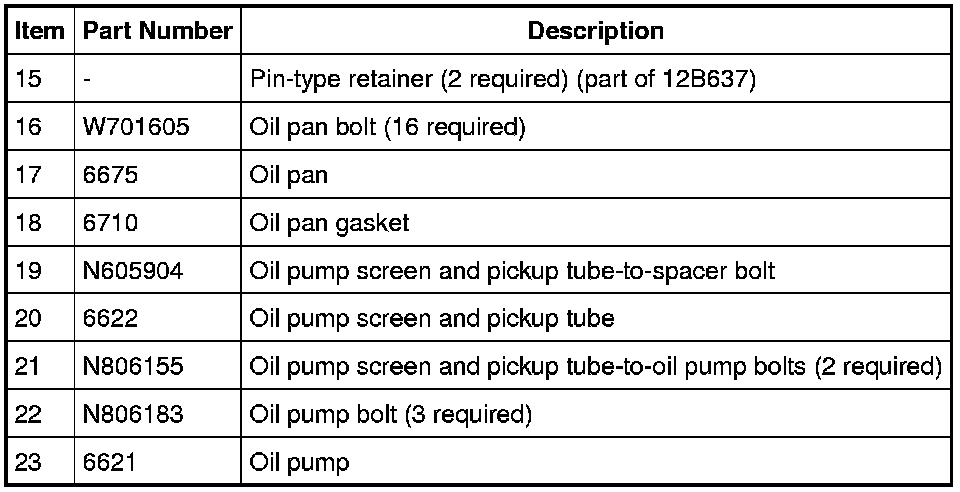

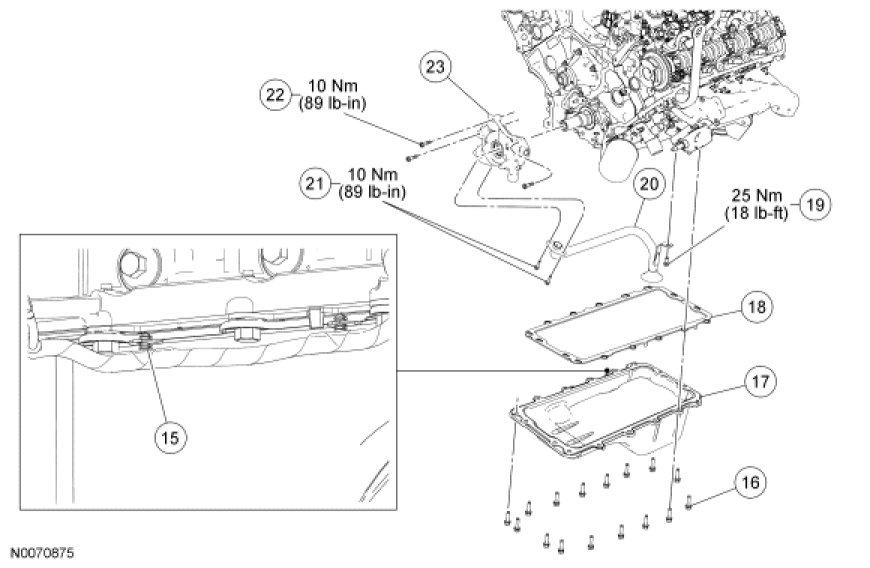

Oil Pump, Oil Pan and Oil Pump Screen and Pickup Tube









1. For additional information, refer to the procedures.
