Emission Control Systems: Diagrams




Engine Emission Control

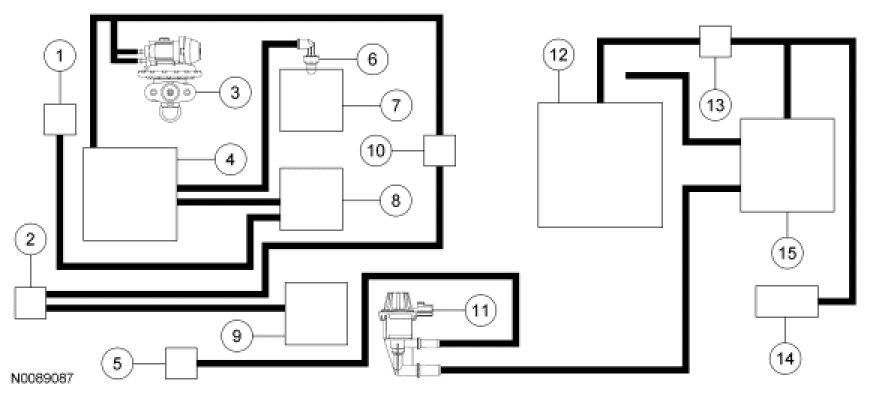

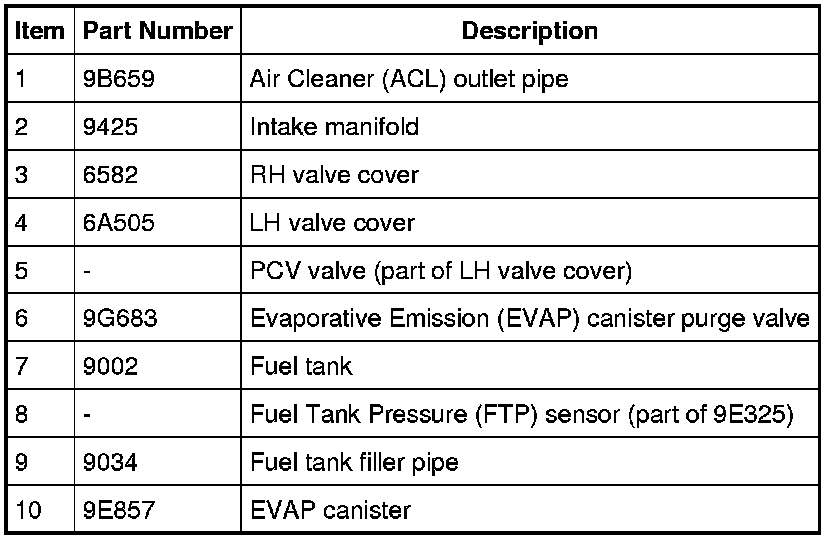

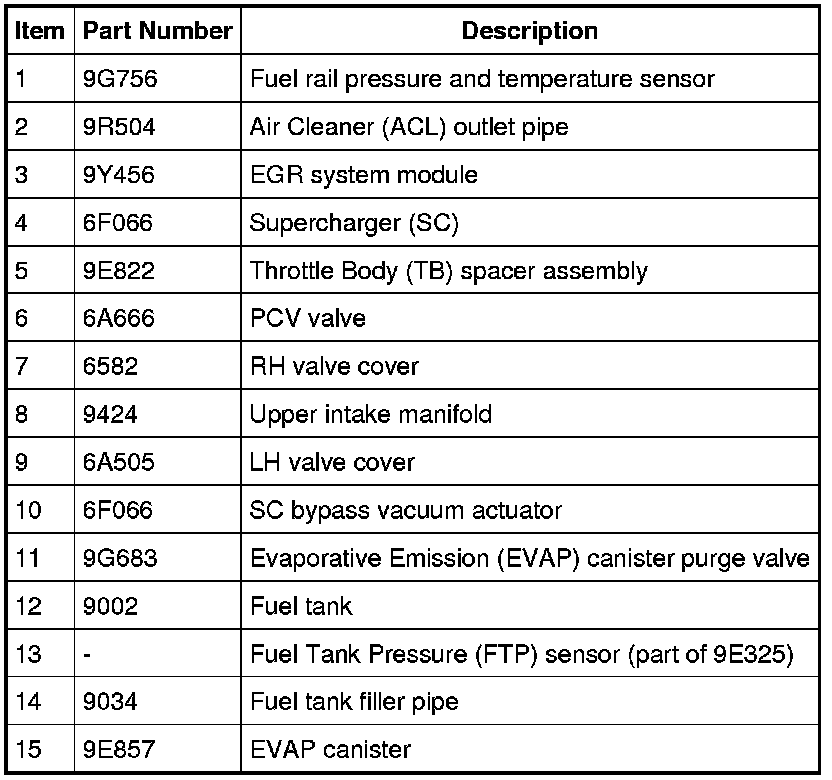

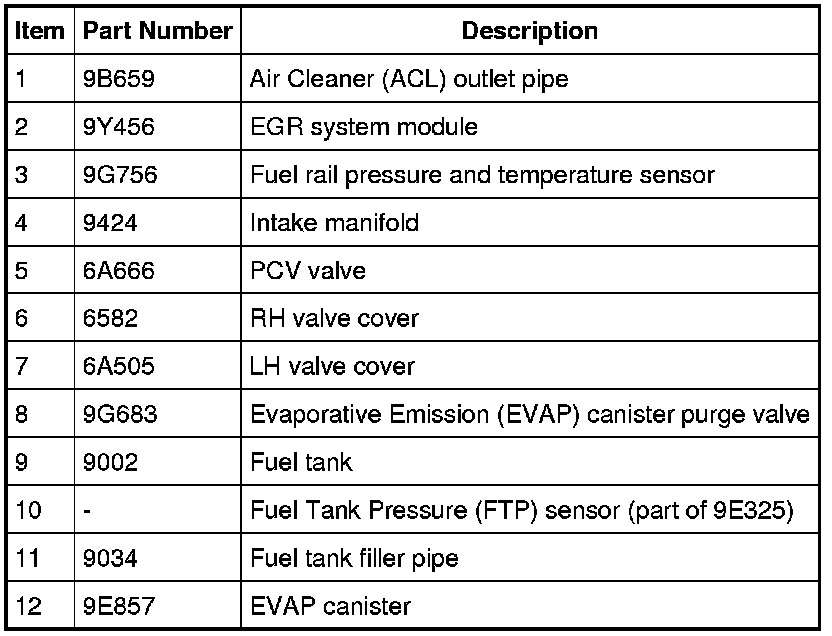

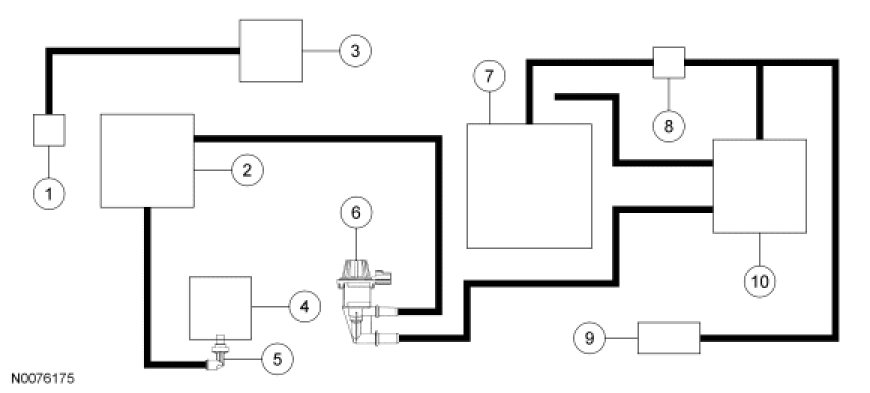

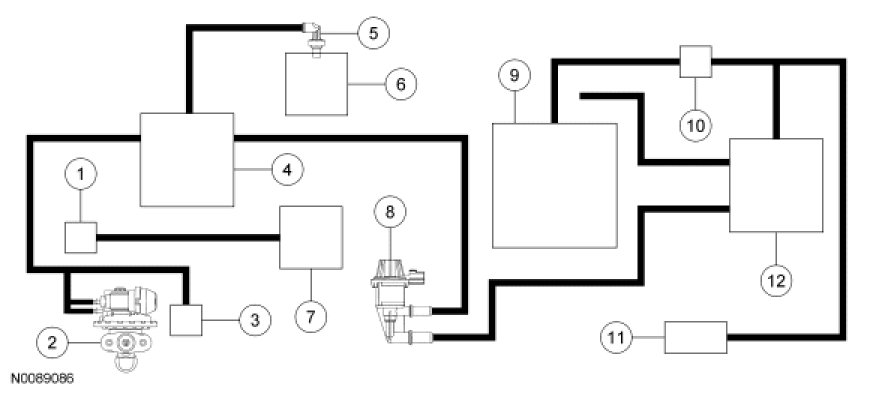

Vehicle Emission Vacuum Routing

4.0L SOHC










4.6L (3V)










5.4L (4V)
