Overhaul Specs

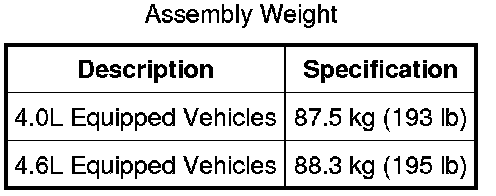

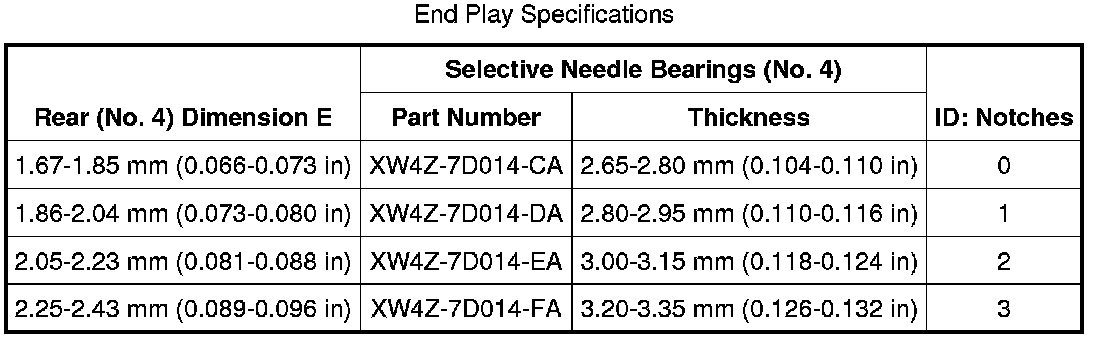

End Play Specifications:

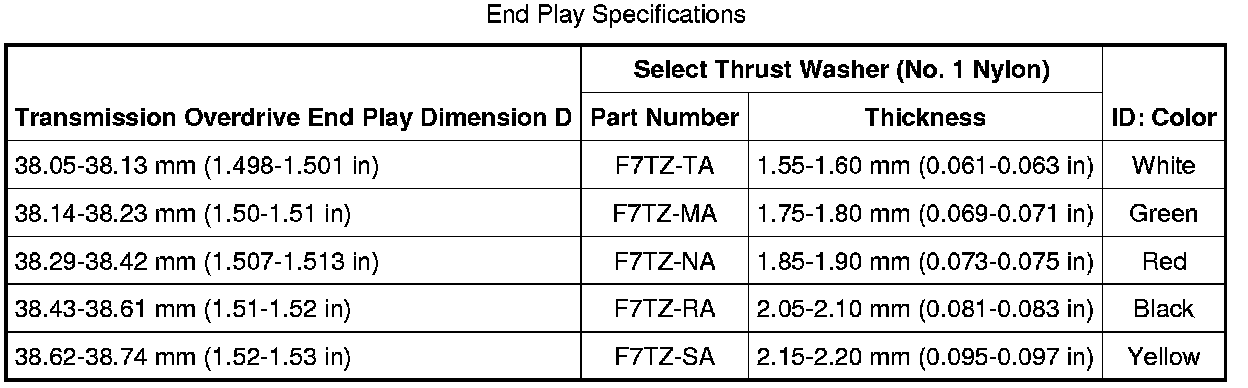

End Play Specifications:

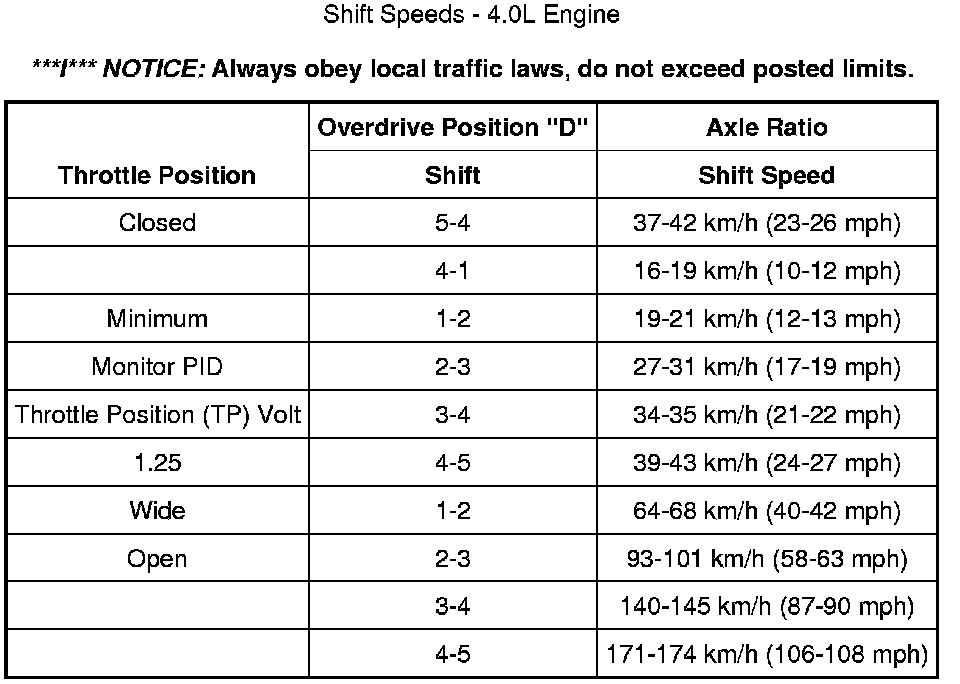

Shift Speeds - 4.0L Engine:

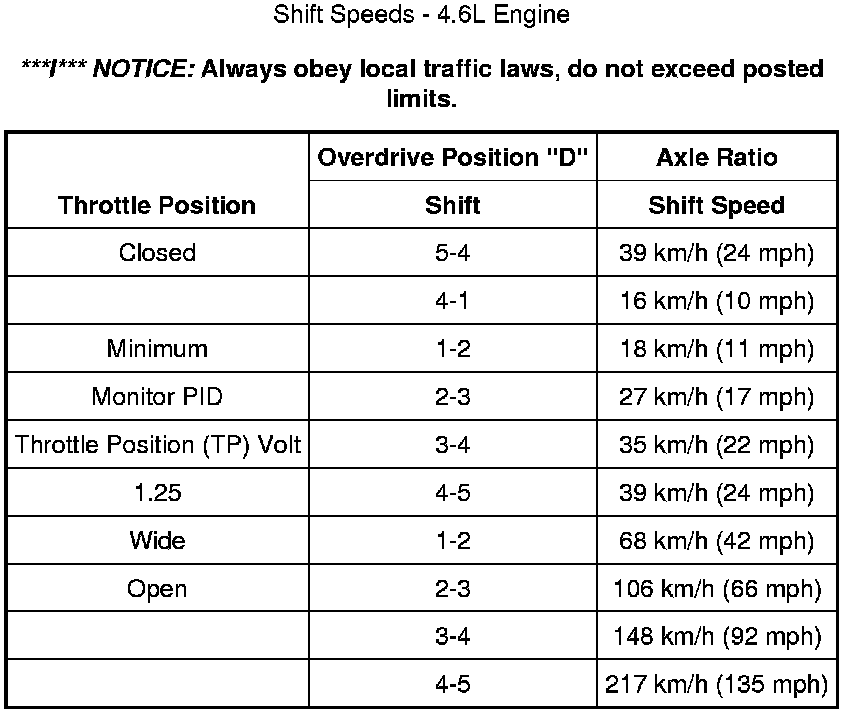

Shift Speeds - 4.6L Engine:

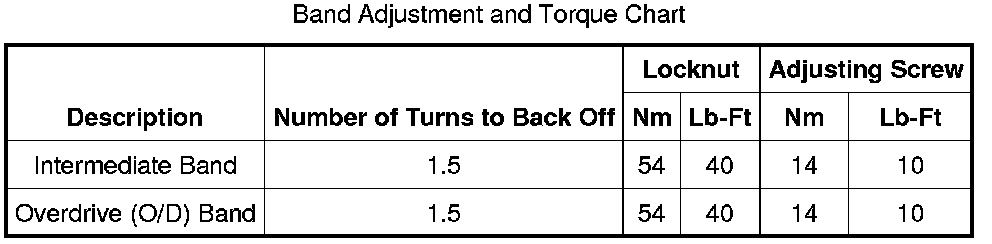

Band Adjustment And Torque Chart:

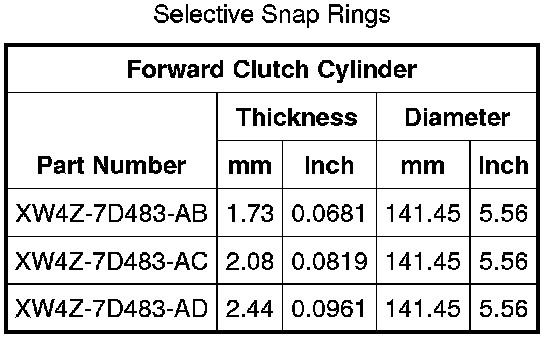

Selective Snap Rings:

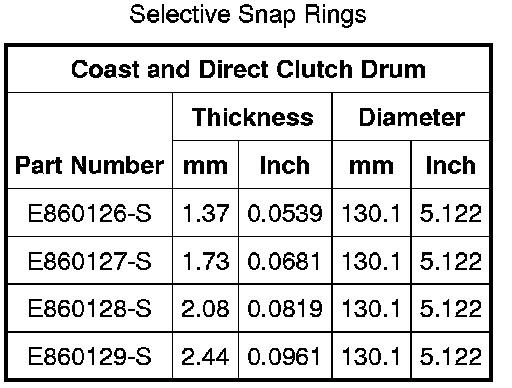

Selective Snap Rings:

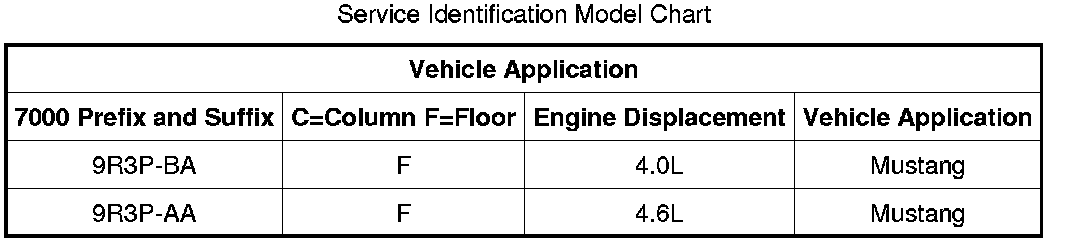

Service Identification Model Chart:

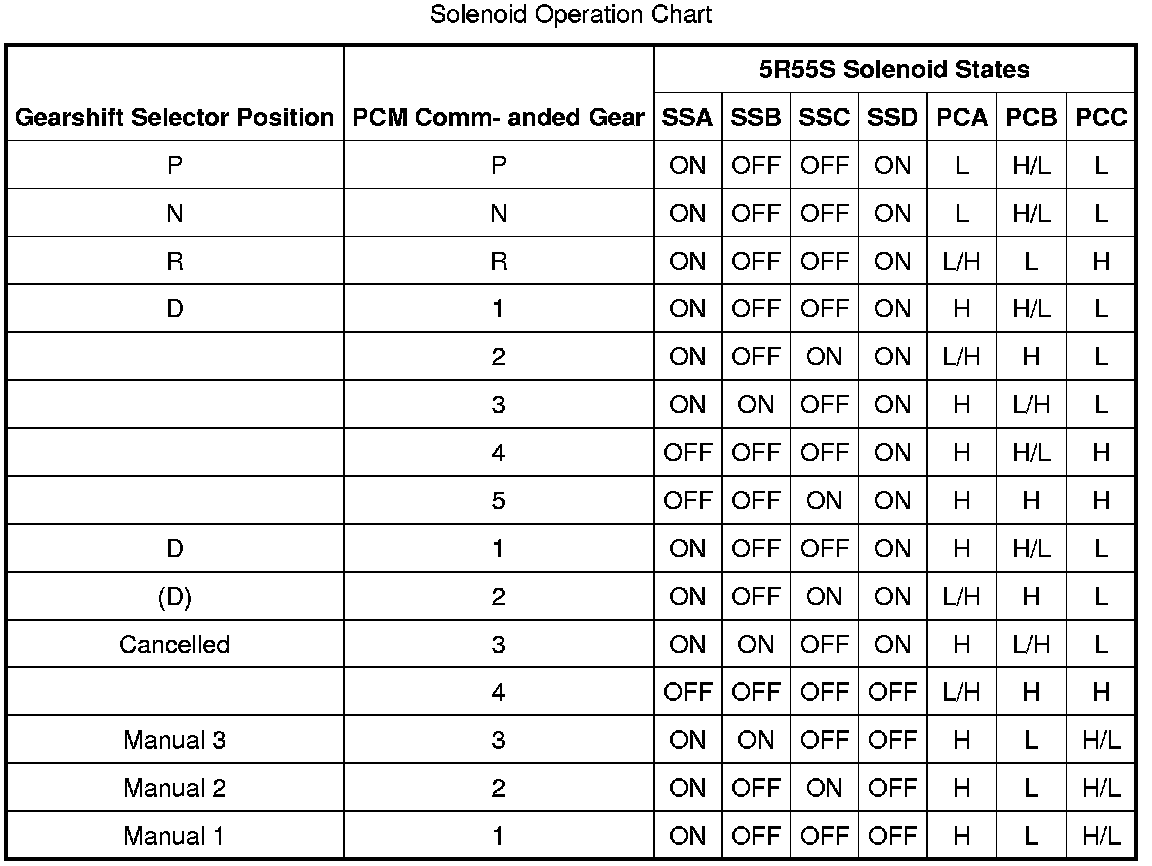

Solenoid Operation Chart:

H = HIGH
L = LOW
H/L = PCM controlled
Manual = if equipped

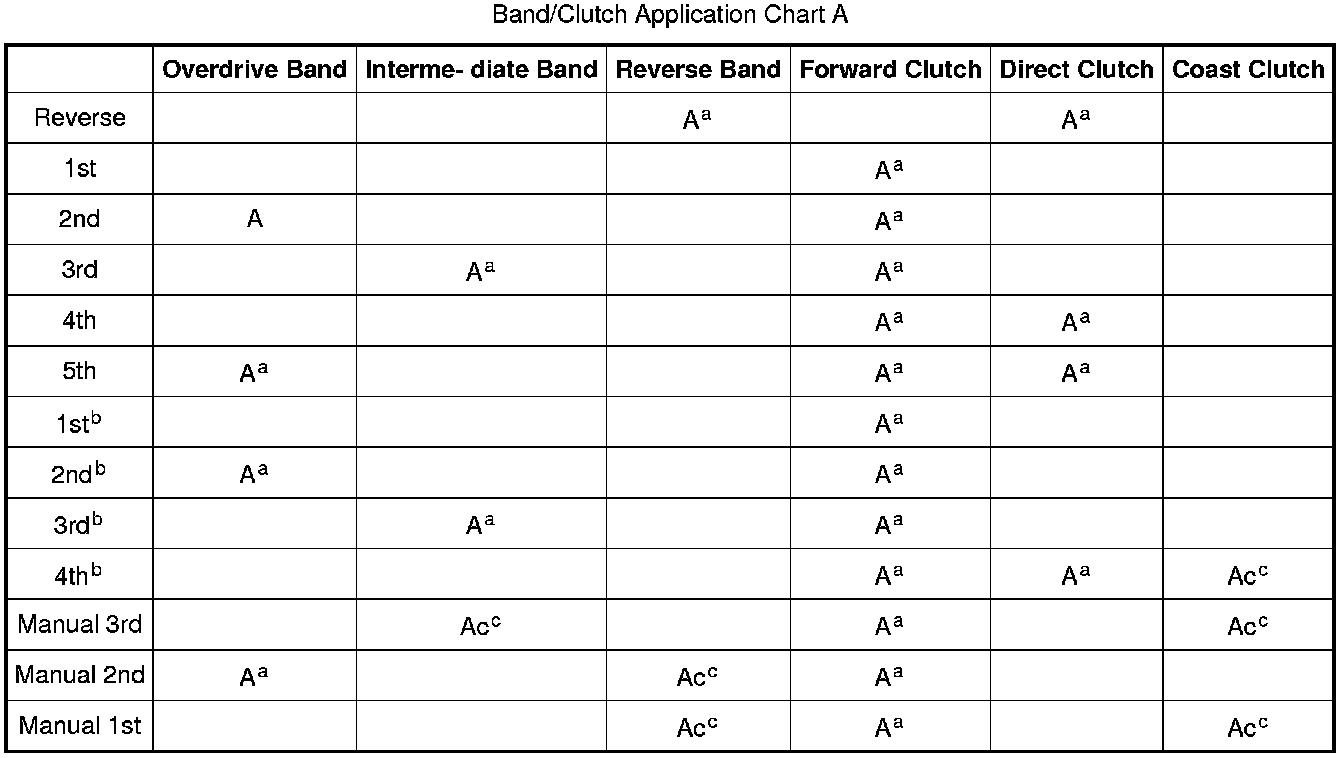

Band/Clutch Application Chart A:

a A = Applied
b D Position ((D) cancelled)
c Ac = Applied to carry coast torque

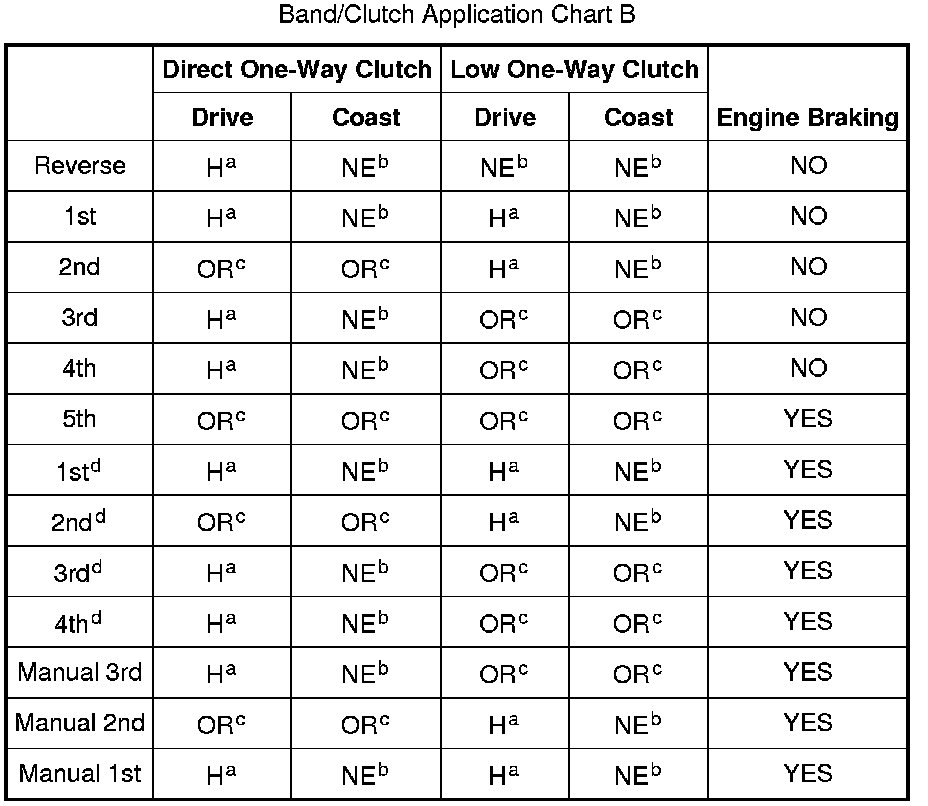

Band/Clutch Application Chart B:

a H = Hold
b NE = No effect
c OR = Overrunning
d D Position (D) cancelled)

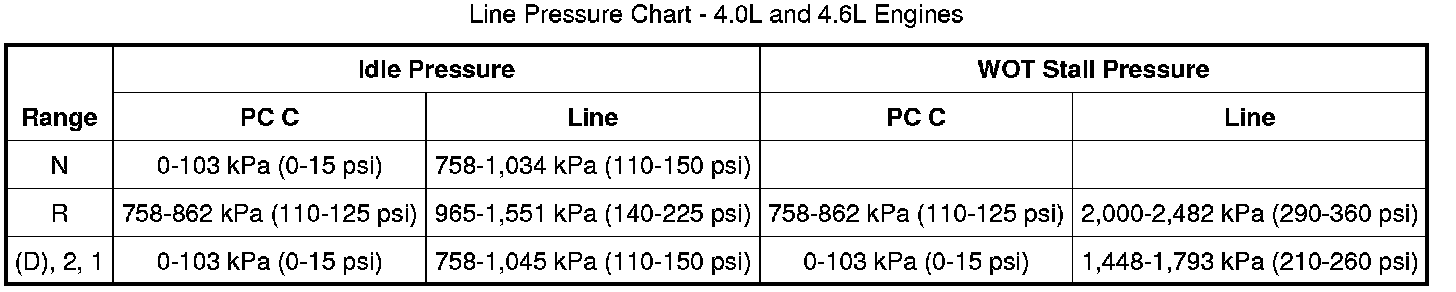

Line Pressure Chart - 4.0L And 4.6L Engines:

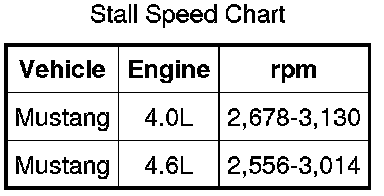

Stall Speed Chart:
