Generator

Generator - 4.6L (3V)

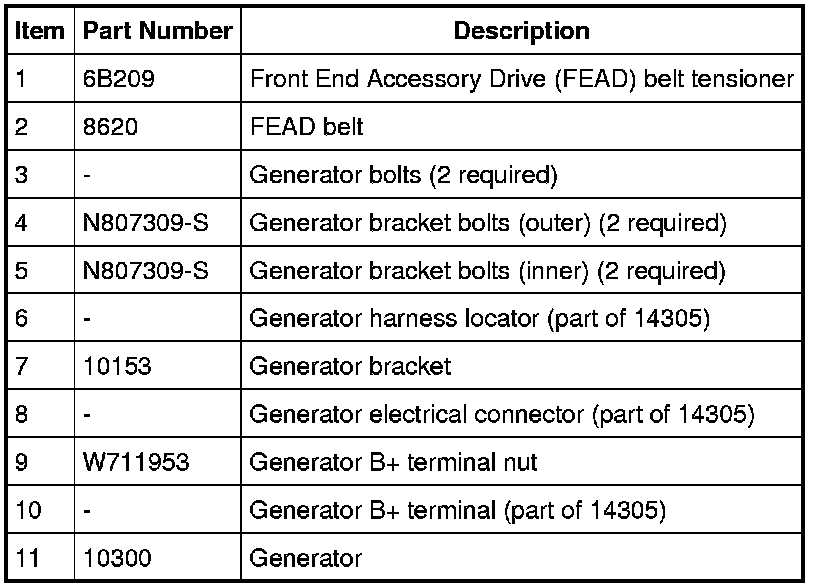

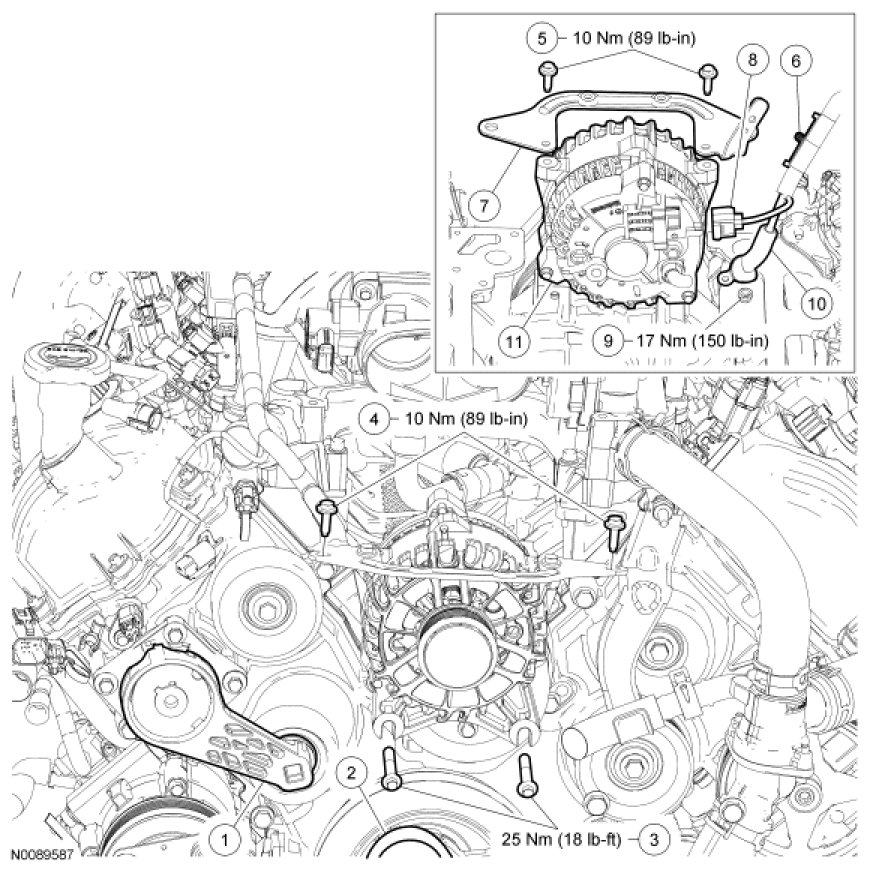

Removal and Installation

1. Disconnect the battery.

2. Press the lock tab, remove the crankcase vent tube from the Air Cleaner (ACL) outlet pipe and position it aside.

3. Loosen the clamps, remove the ACL outlet pipe from the throttle body and remove it from the vehicle.

4. Rotate the Front End Accessory Drive (FEAD) belt tensioner clockwise and position the FEAD belt aside.

5. Remove the generator harness locator.

6. Remove the 2 generator bolts.
- To install, tighten to 25 Nm (18 lb-ft).

7. Remove the 2 outer generator bracket bolts and position the generator aside.
- To install, tighten to 10 Nm (89 lb-in).

8. Loosen the 2 inner generator bracket bolts.
- Pull the generator outward.

- Remove the generator bracket.

- To install, tighten to 10 Nm (89 lb-in).

9. Disconnect the generator electrical connector.

10. Position the generator B+ protective boot aside, remove the nut and position the generator B+ terminal aside.
- To install, tighten to 17 Nm (150 lb-in).

11. Remove the generator.

12. To install, reverse the removal procedure.
