Engine Subframe and Engine Insulators - Exploded View

Engine Lubrication Components - Exploded View

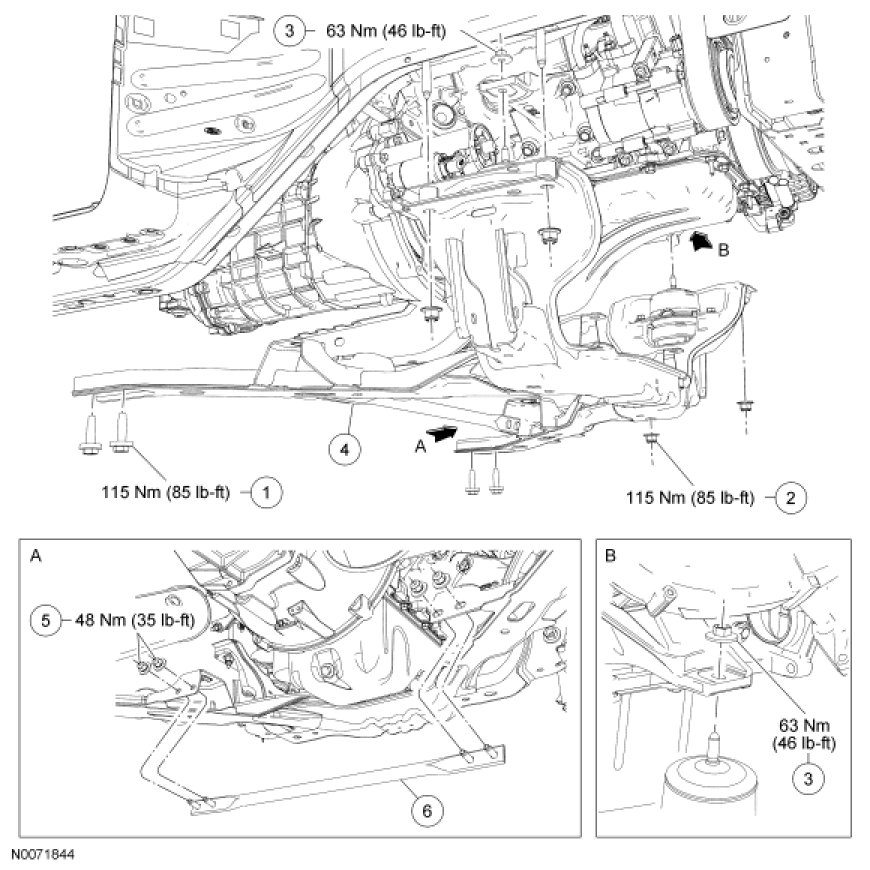

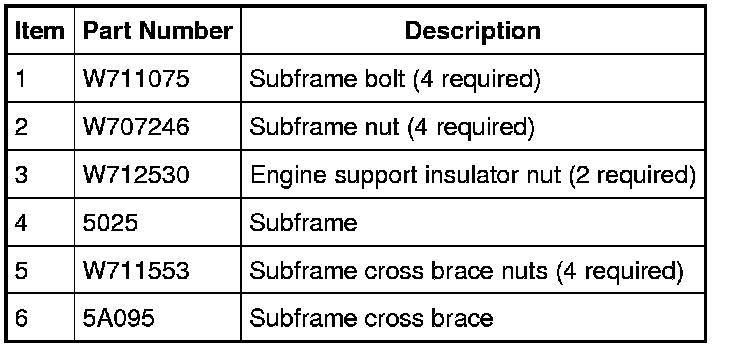

Engine Subframe and Engine Insulators

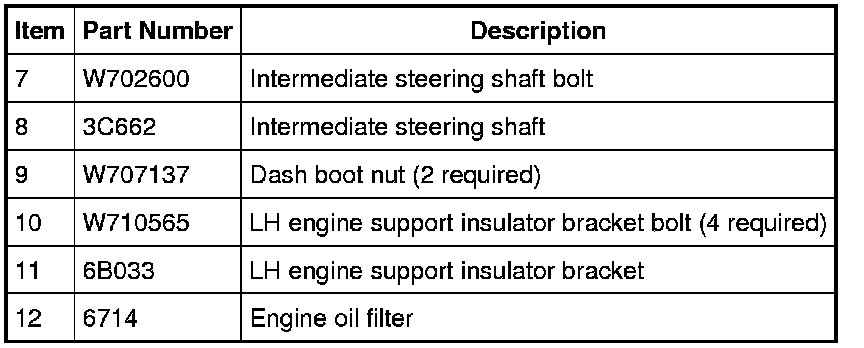

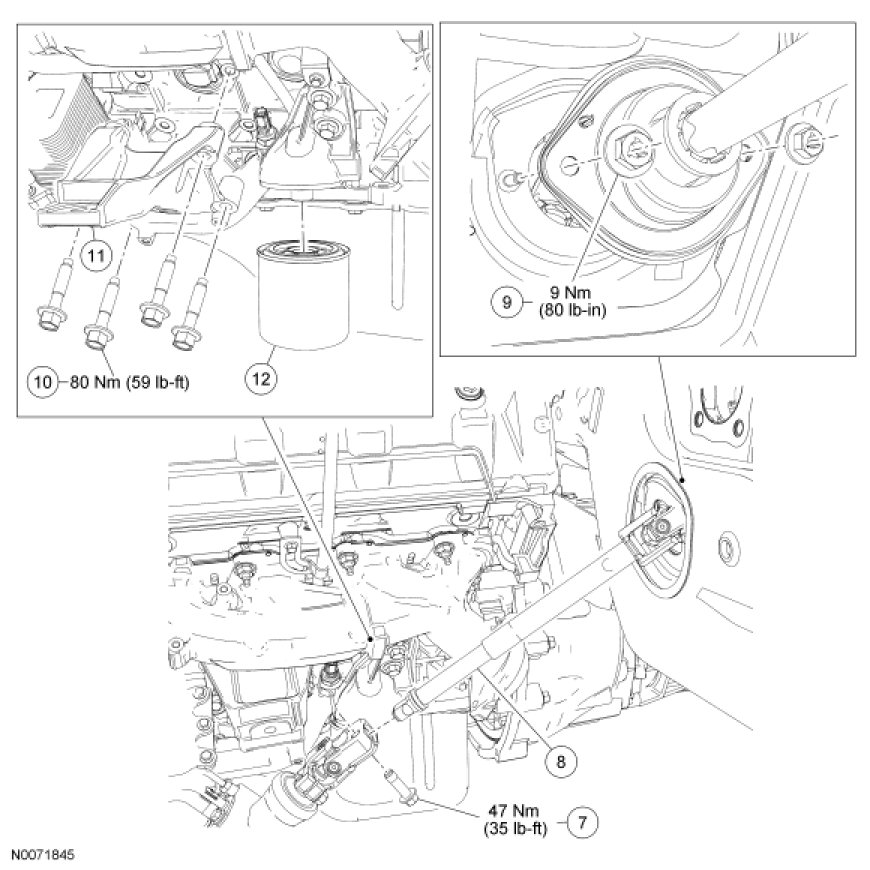

Intermediate Shaft, LH Support Insulator and Engine Oil Filter

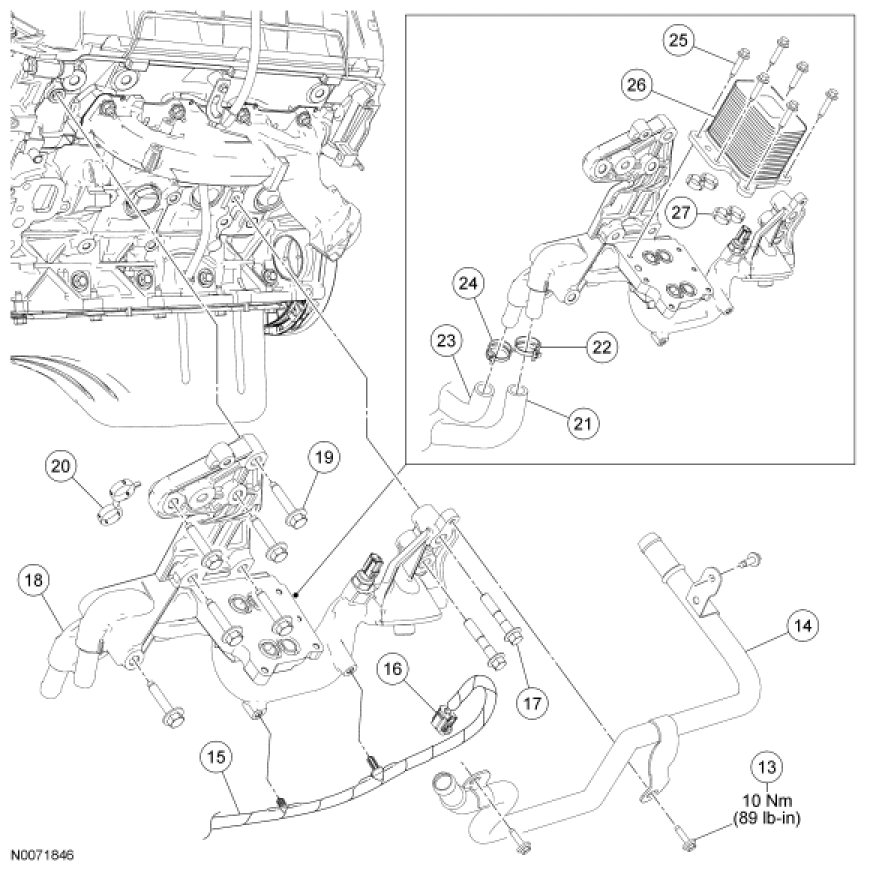

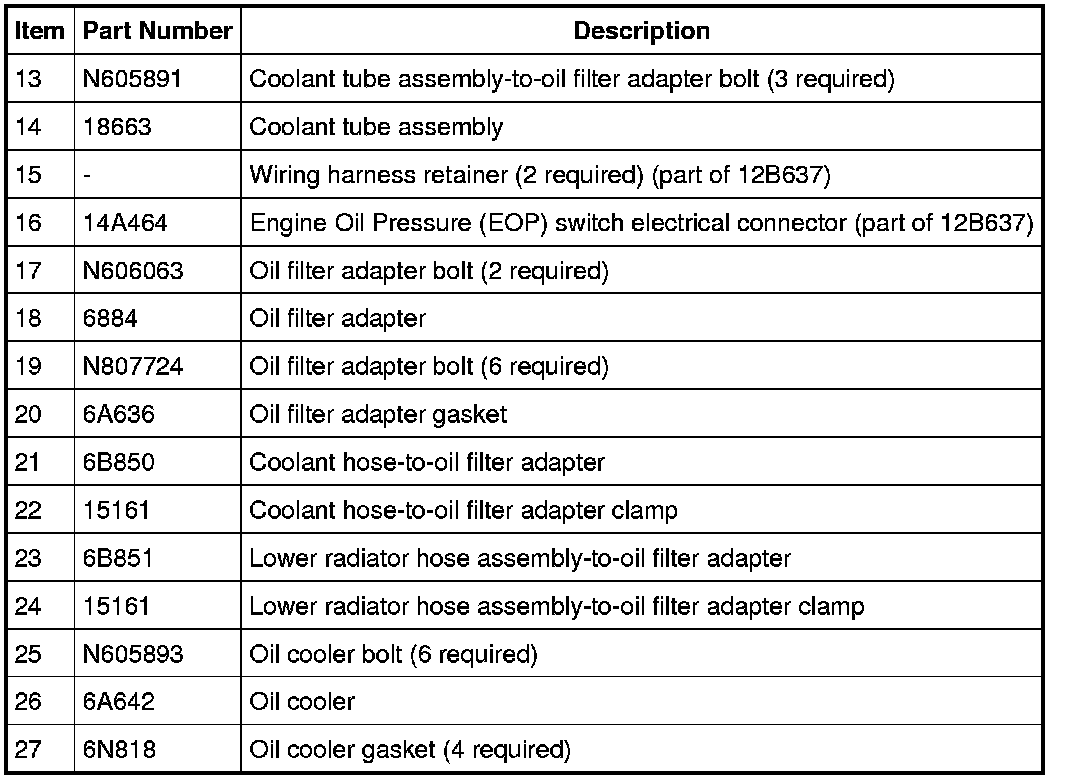

Oil Filter Adapter, Coolant Hoses and Oil Cooler

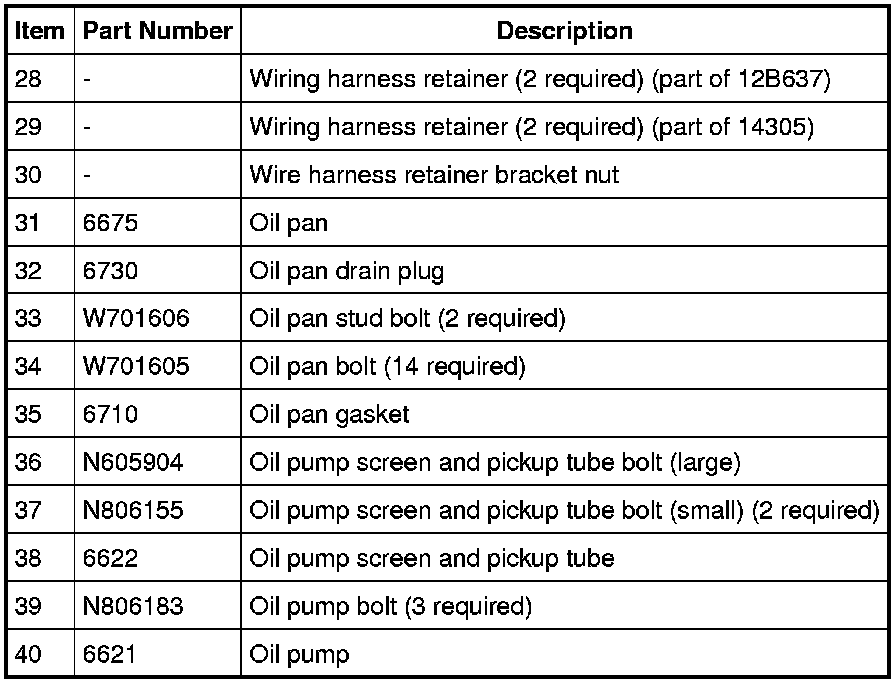

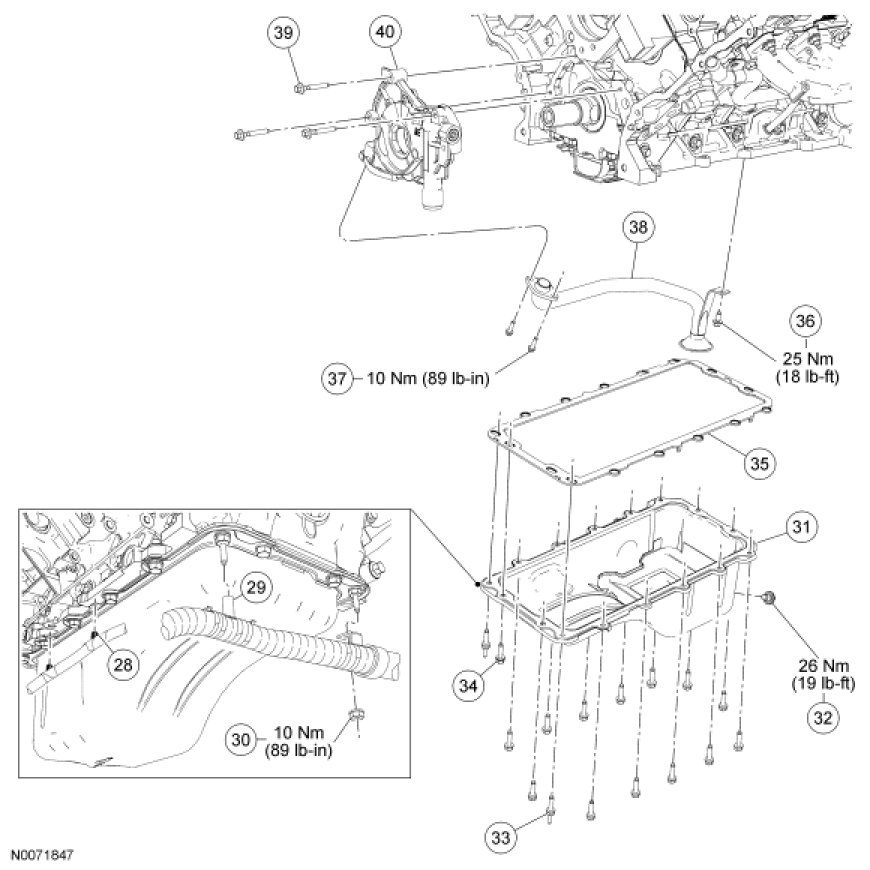

Wiring Harness Retainers, Oil Pump, Oil Pump Screen and Pickup Tube and Oil Pan









1. For additional information, refer to the procedures.
