Smart Junction Box (SJB)

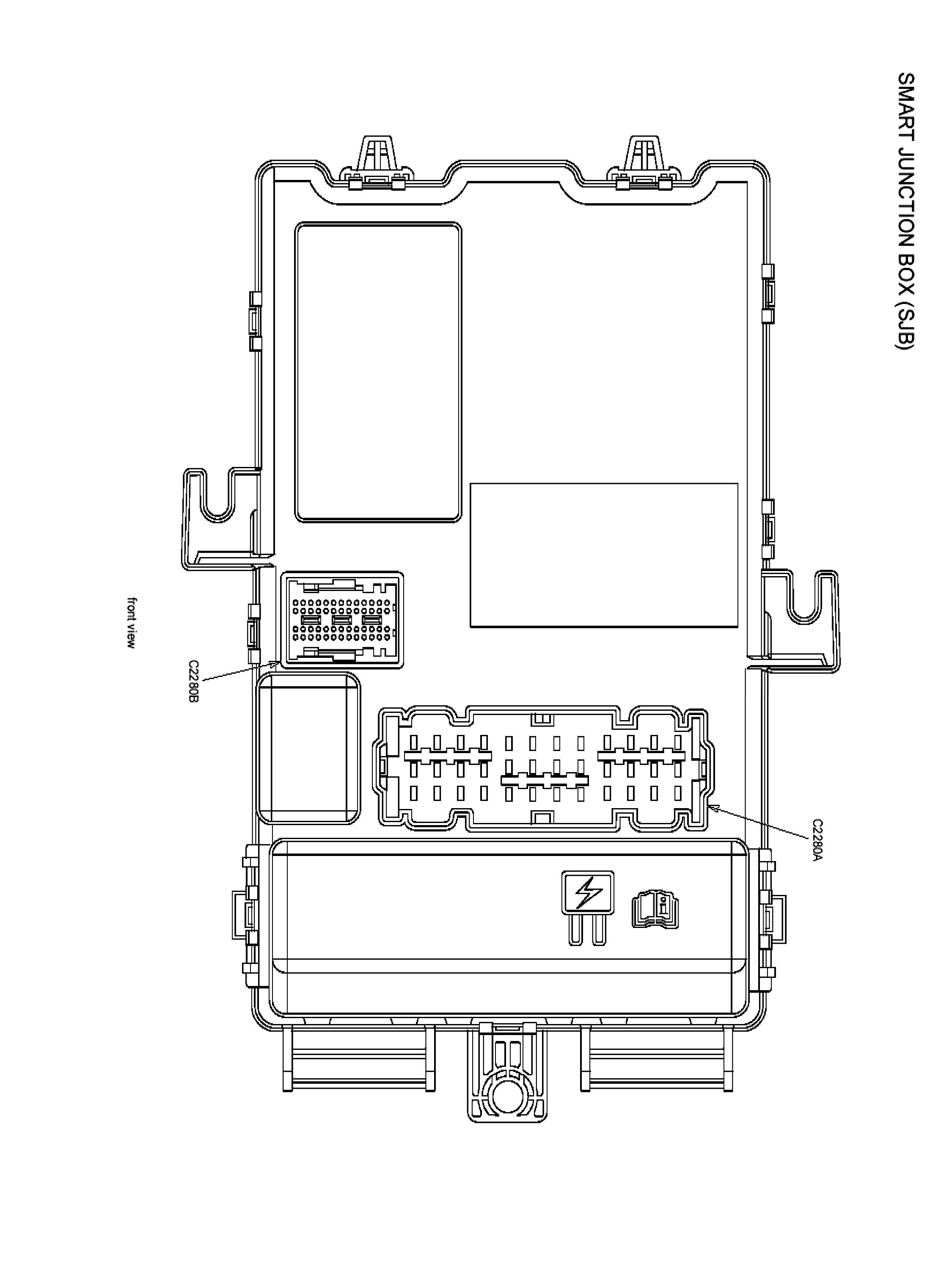

Front View:

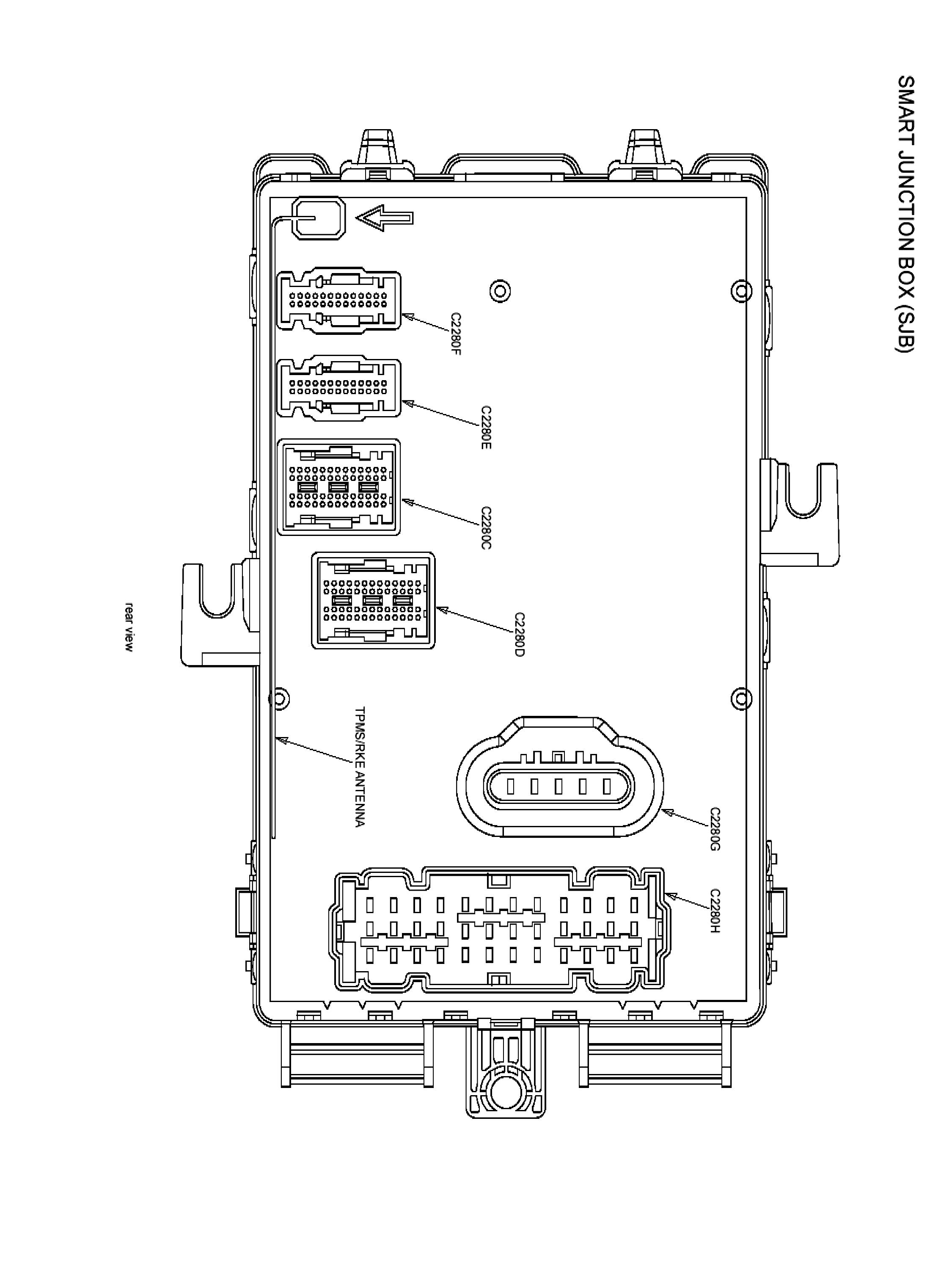

Rear View:

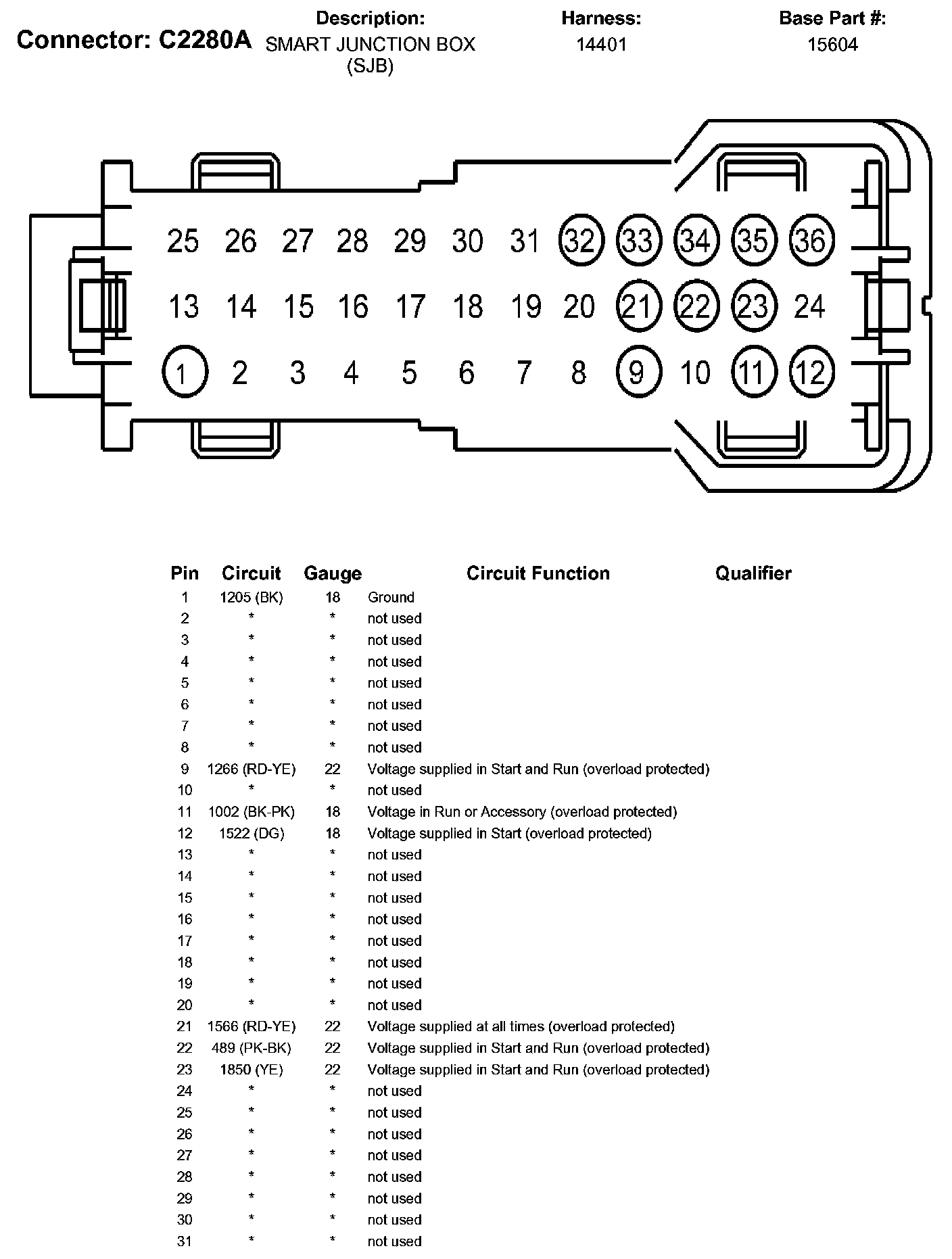

C2280A Part 1:

C2280A Part 2:

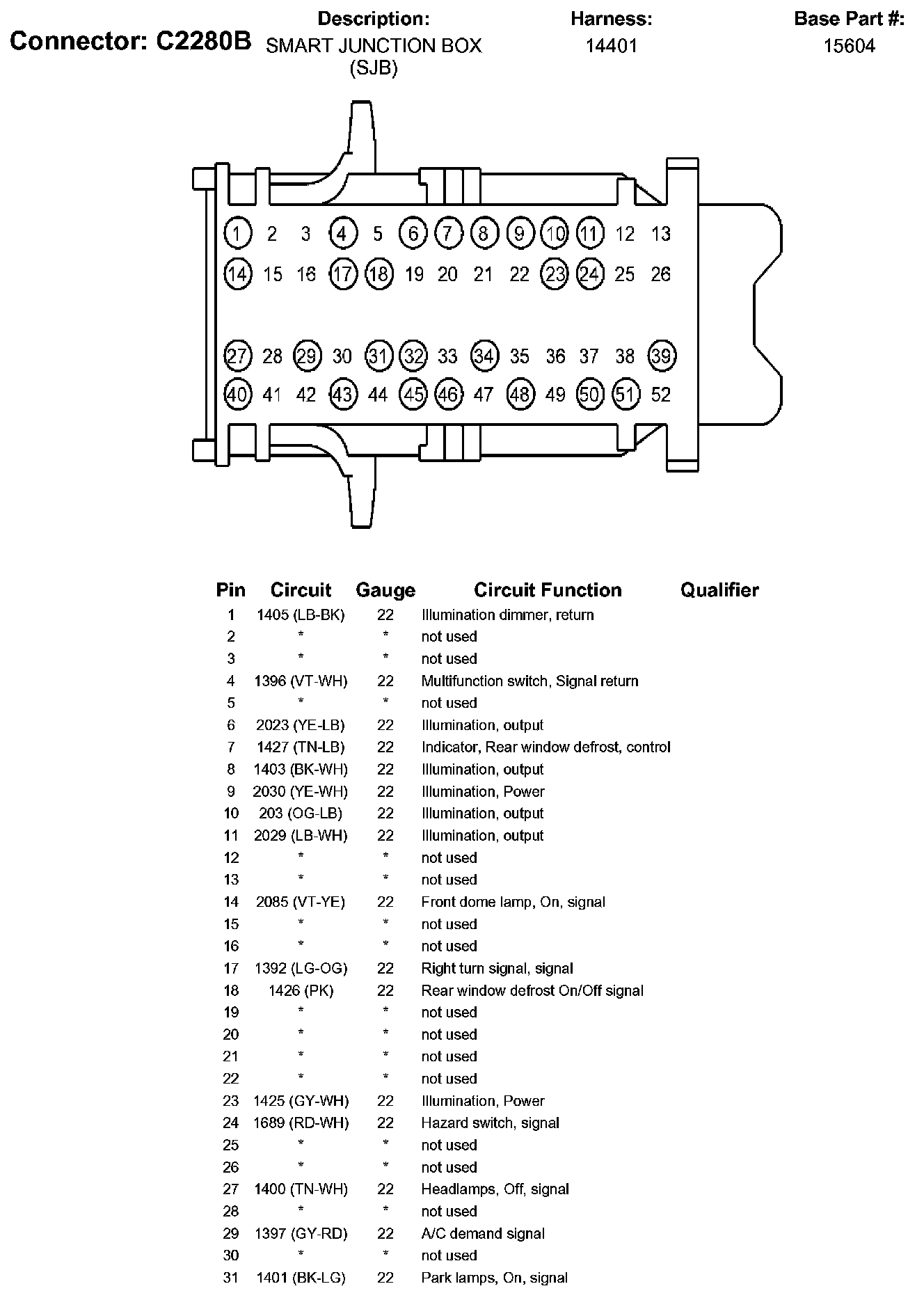

C2280B Part 1:

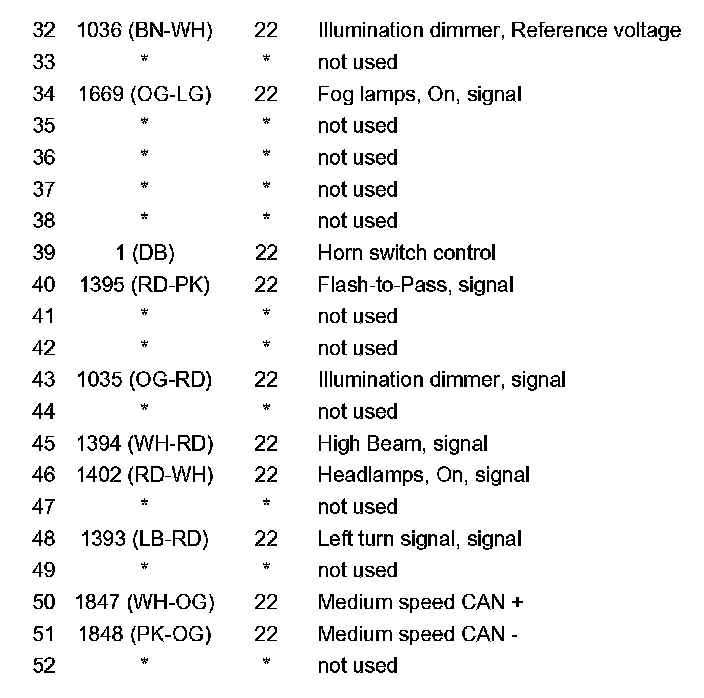

C2280B Part 2:

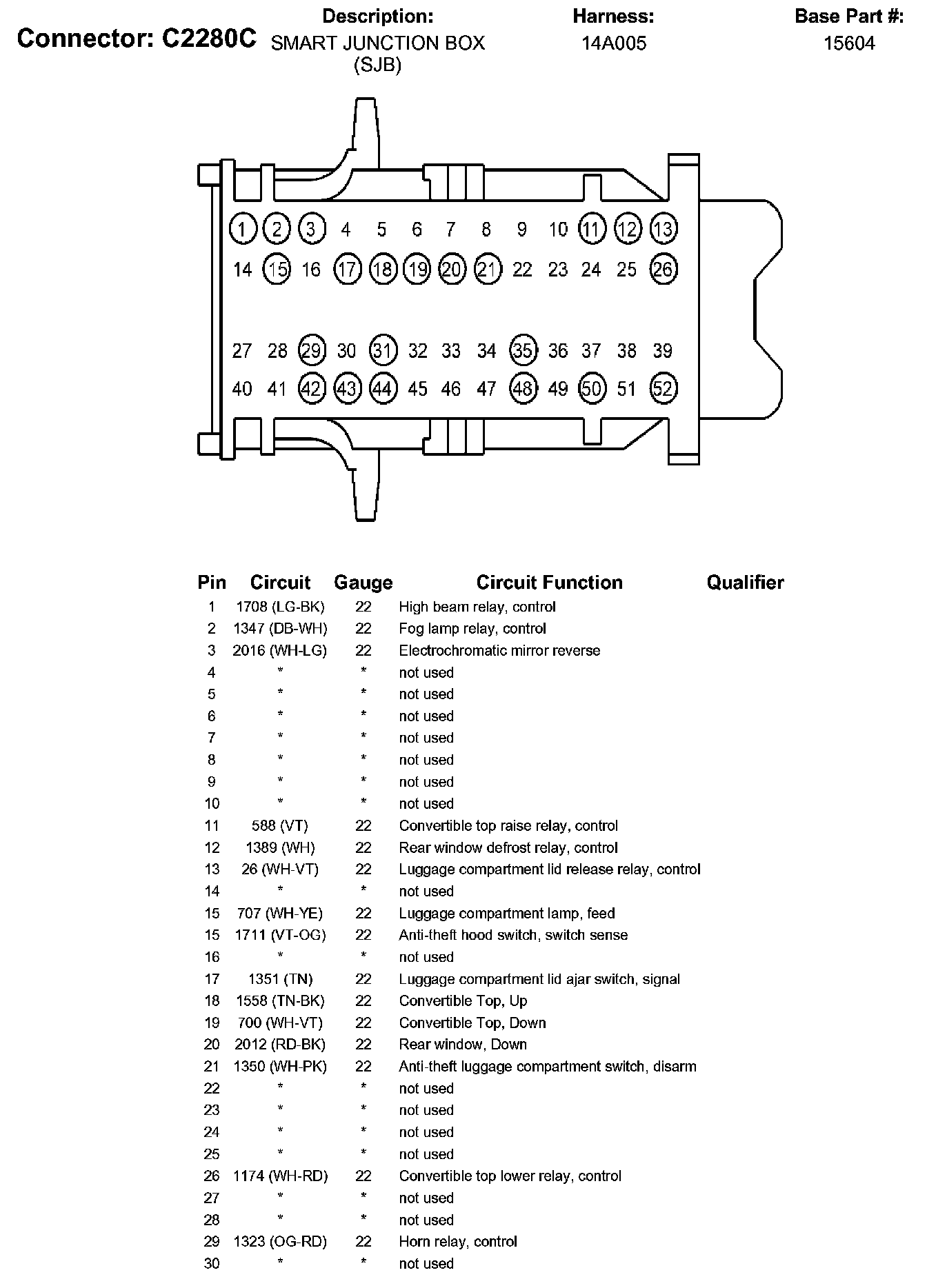

C2280C Part 1:

C2280C Part 2:

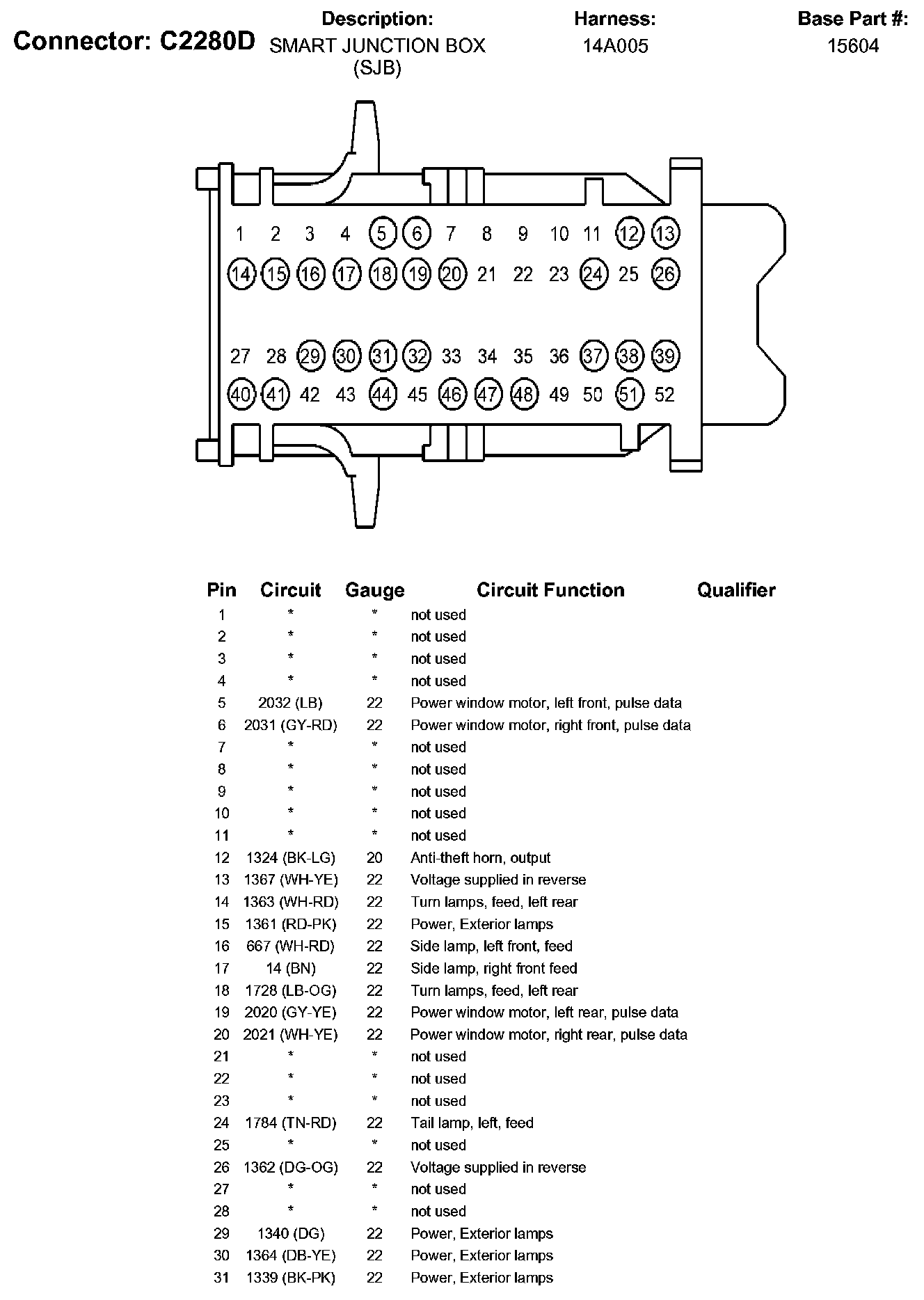

C2280D Part 1:

C2280D Part 2:

C2280E:

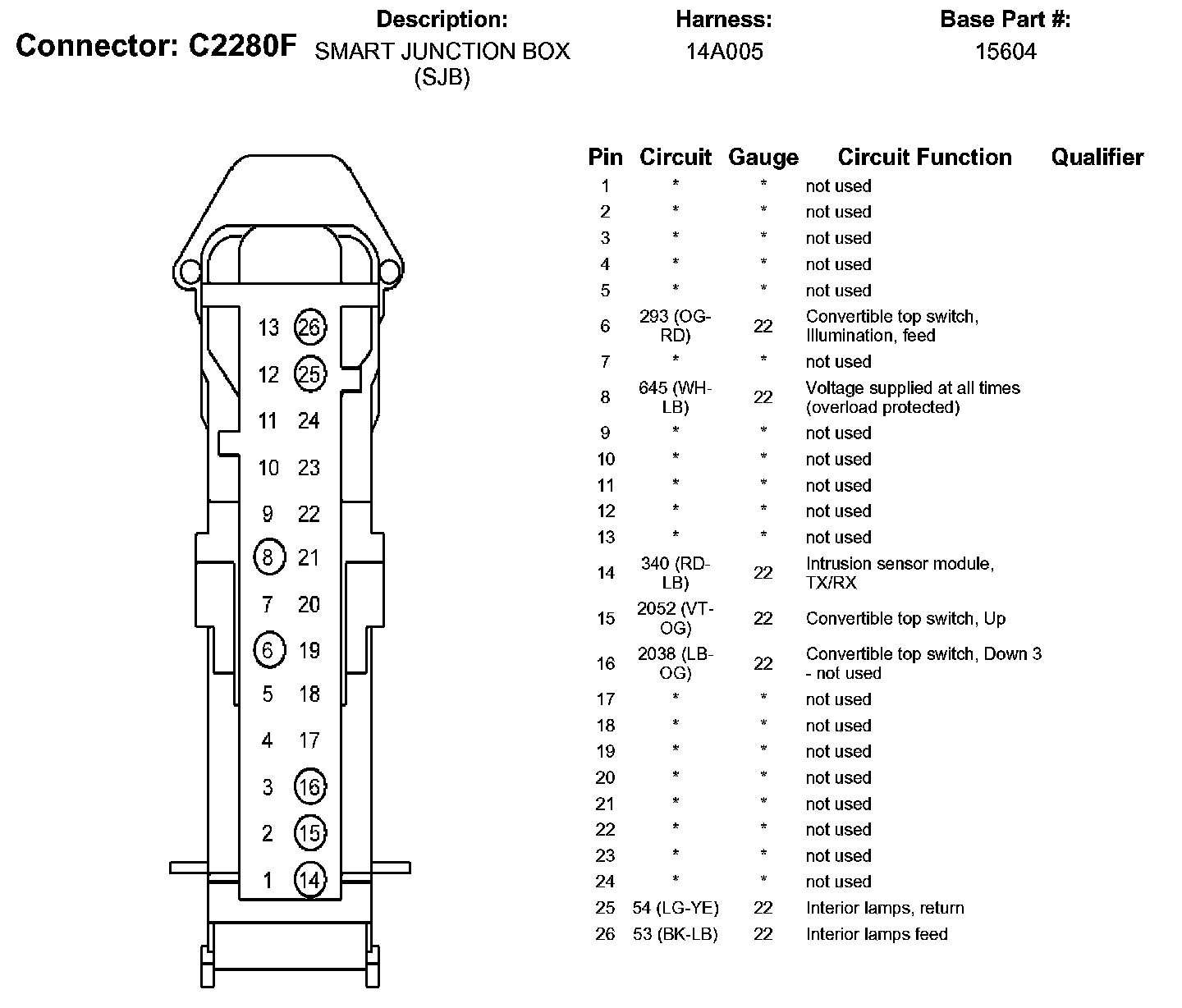

C2280F:

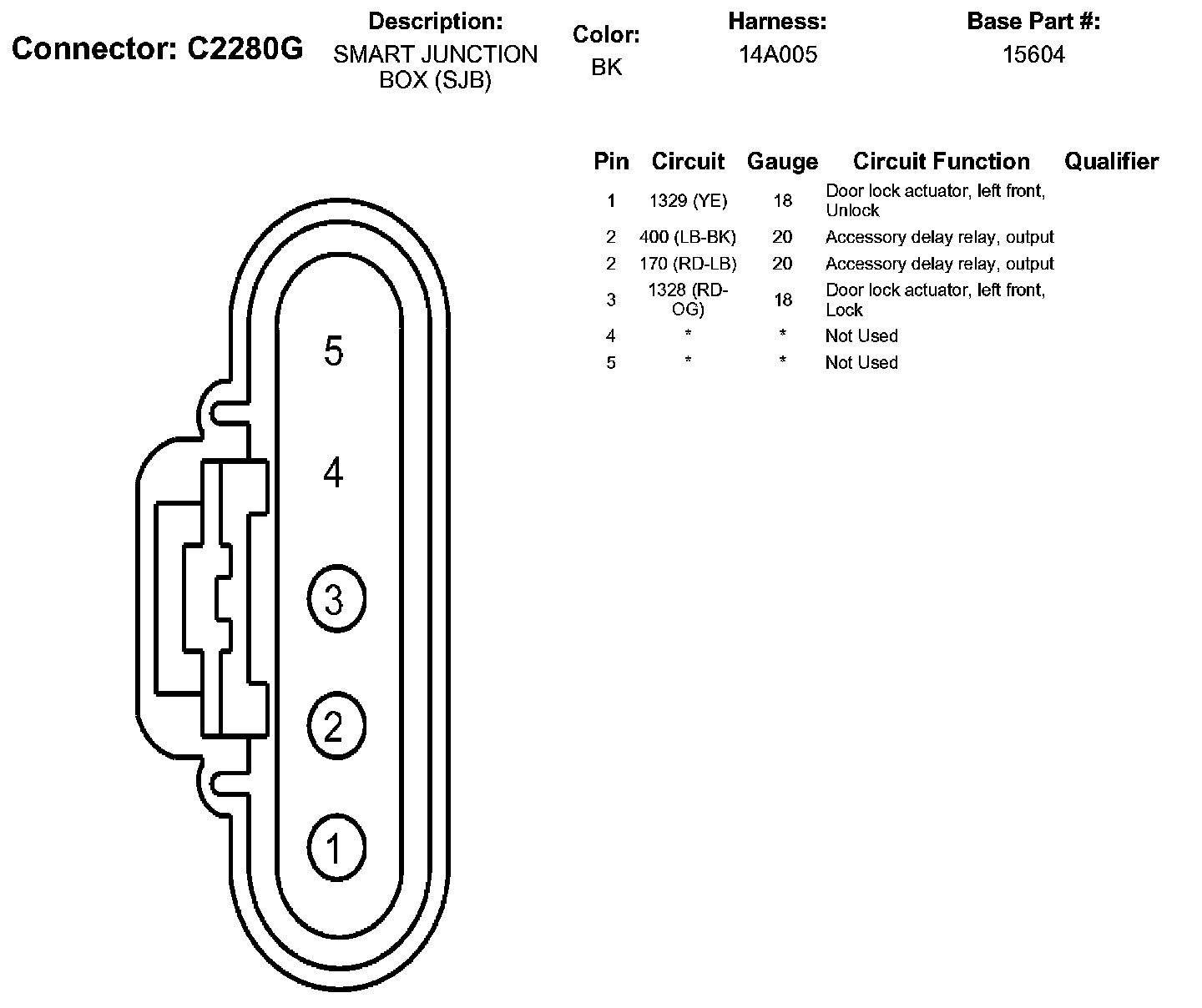

C2280G:

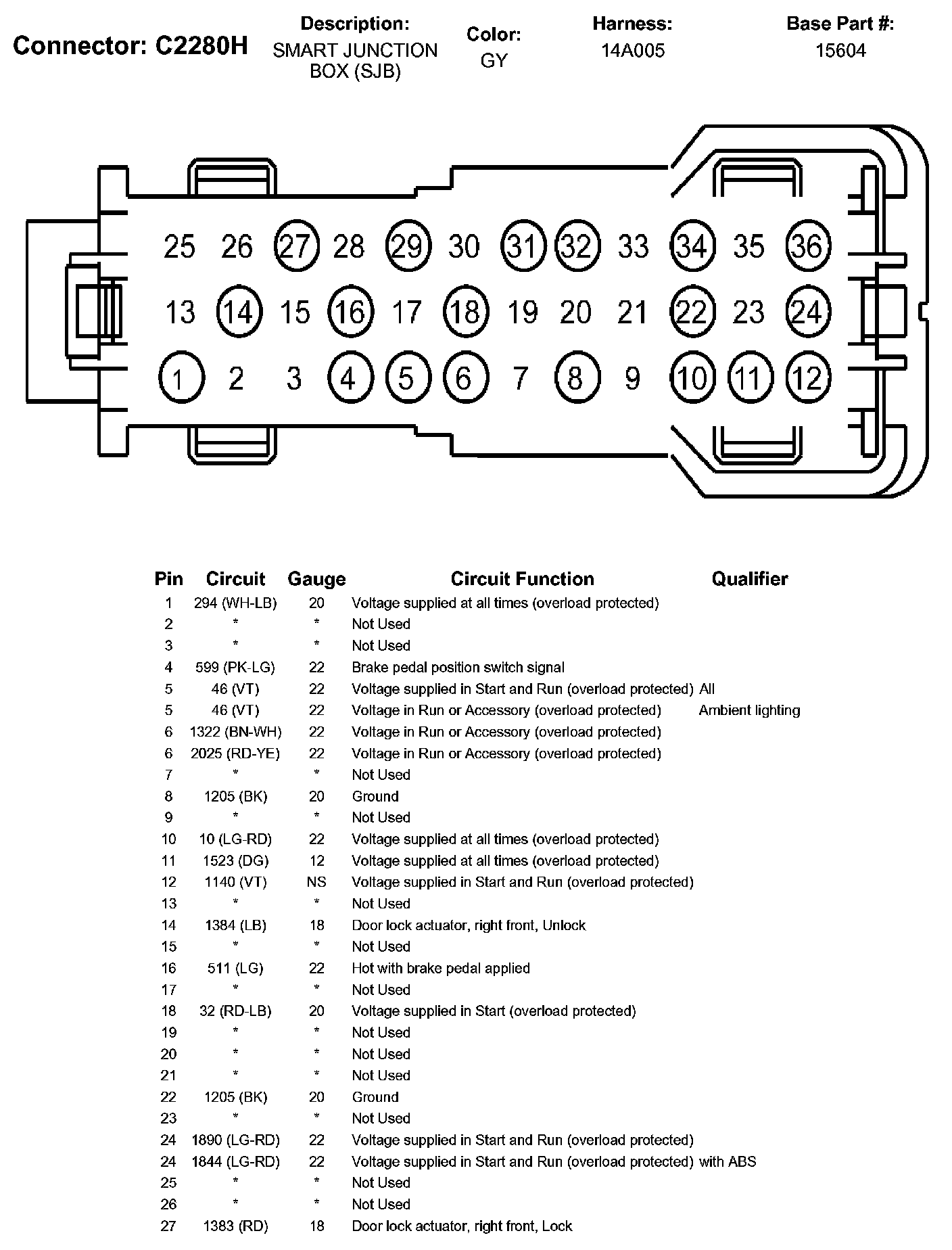

C2280H Part 1:

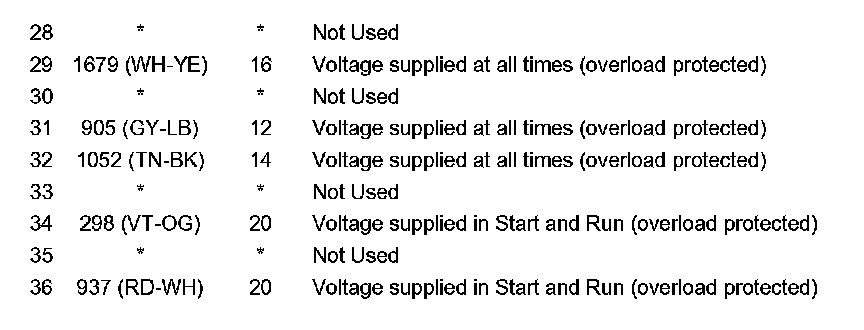

C2280H Part 2:
