Control Assembly: Service and Repair

Heating Ventilation Air Conditioning (HVAC) Module









Removal and Installation

1. Remove the center instrument panel finish panel.

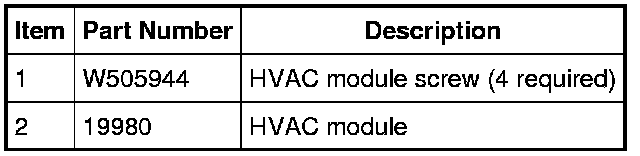

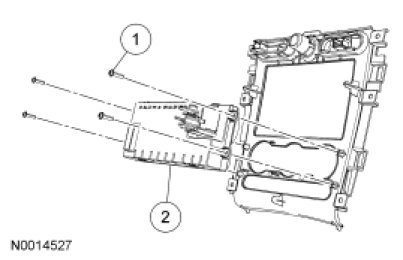

2. Remove the 4 HVAC module screws.

3. Remove the HVAC module.

4. NOTE: Be sure that all HVAC module electrical connectors are securely fastened before installing the center instrument panel finish panel.

To install, reverse the removal procedure.
