Engine Temperature Sensor: Service and Repair

Cylinder Head Temperature (CHT) Sensor - 5.4L (4V)









Removal and Installation

1. Remove the battery tray.

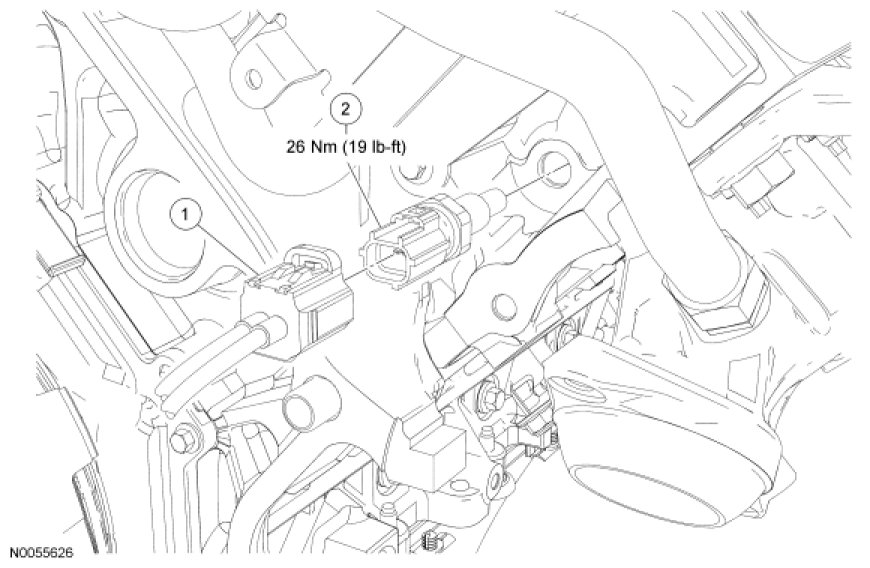

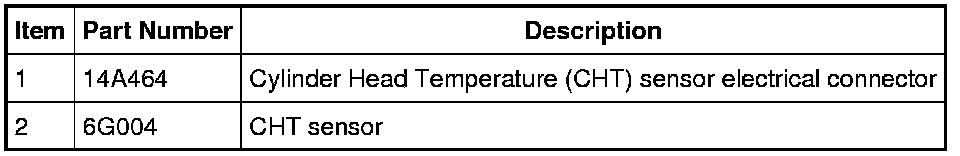

2. Disconnect the Cylinder Head Temperature (CHT) sensor electrical connector.

3. Remove and discard the CHT sensor.
- To install, tighten to 26 Nm (19 lb-ft).

4. To install, reverse the removal procedure.
- Do not reuse the CHT sensor, install a new sensor.
