Main Bearing Cap

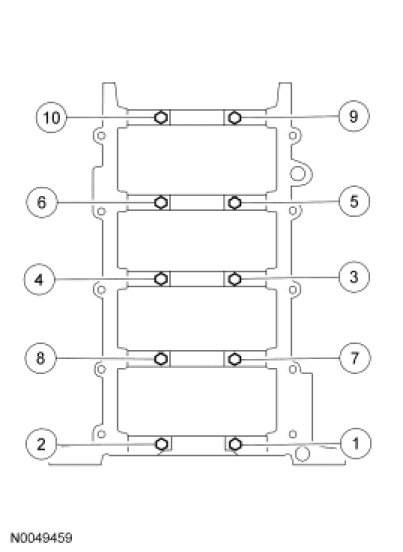

Tighten the vertical main bearing cap fasteners in the sequence shown, in 3 stages.
Stage 1: Tighten to 10 Nm (89 lb-in).
Stage 2: Tighten to 40 Nm (30 lb-ft).
Stage 3: Tighten an additional 90 degrees.

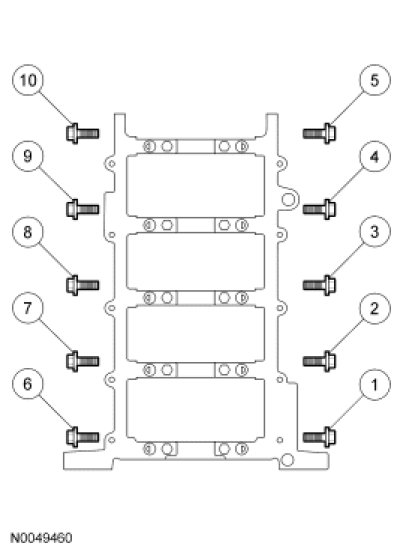

Install the new side bolts and tighten them in the sequence shown, in 2 stages.
Stage 1: Tighten to 40 Nm (30 lb-ft).
Stage 2: Tighten an additional 90 degrees.
