Oil Pan, Engine

Using a new gasket, install the oil pan, 14 bolts and 2 stud bolts.

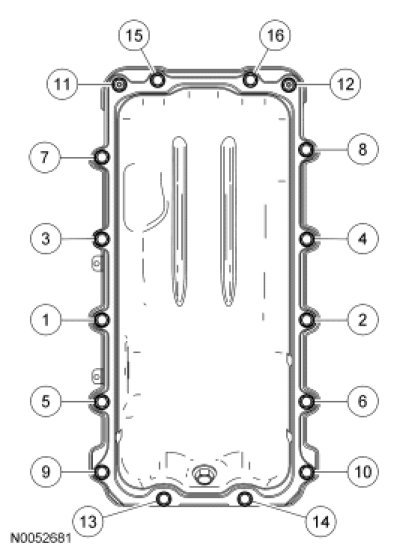

Tighten in the sequence shown to 25 Nm (18 lb-ft).
