Oil Pump, Engine

Install the oil pump and 3 bolts.

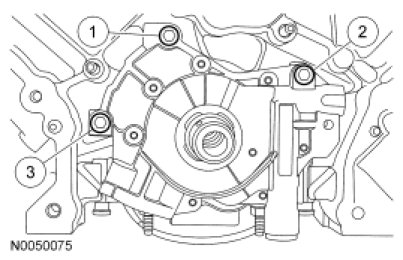

Tighten the bolts in the sequence shown to 10 Nm (89 lb-in).
