Flywheel

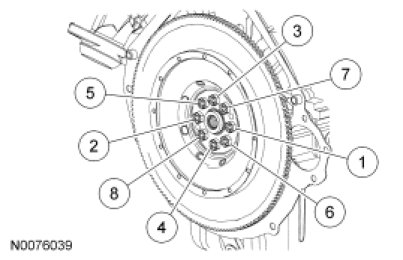

Tighten the flywheel bolts evenly in the sequence shown to fully seat the flywheel on the
crankshaft
pilot.
Tighten to
80 Nm (59 lb-ft).
