Battery Tray

Battery Tray





Removal and Installation

1. Remove the battery. For additional information, refer to Battery Battery.

2. Remove the 3 bolts and the battery tray.
- To install, tighten to 11 Nm (97 lb-in).

3. To install, reverse the removal procedure.

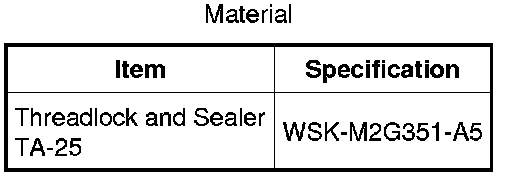

- For GT500 models, apply threadlock and sealer to the battery tray bolt threads.
