Powertrain Control Module Power (Pcm Power) Relay Connector Pin Reference Chart

This pinpoint test is intended to diagnose the following:

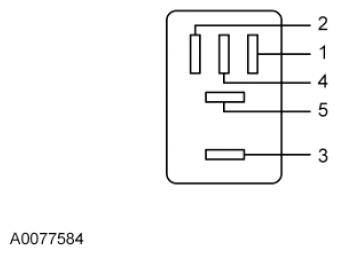

Fig 1: Identifying Powertrain Control Module Power (PCM Power) Relay Connector
G06054163Courtesy of FORD MOTOR CO.
POWERTRAIN CONTROL MODULE POWER (PCM POWER) RELAY CONNECTOR PIN REFERENCE CHART

Pin Circuit
5 VPWR (Vehicle Power)
2 PCMRC (PCM Relay Control)
1, 3 B+ (Battery Positive Voltage)
Fig 2: Identifying Powertrain Control Module (PCM) Connector
G06054164Courtesy of FORD MOTOR CO.
