Brake Pressure Switch Connector Pin Reference Chart: Notes
This pinpoint test is intended to diagnose the following:
- brake pressure switch
- brake pressure switch harness circuits BPS and B+
- powertrain control module (PCM) (12A650)

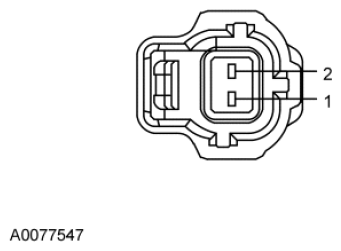

Courtesy of FORD MOTOR CO. BRAKE PRESSURE SWITCH CONNECTOR PIN REFERENCE CHART
| Pin |
Circuit |
| 2 |
B+ (Battery Positive Voltage) |
| 1 |
BPS (Brake Pressure Switch) |
Courtesy of FORD MOTOR CO.
