Powertrain Control Module (Pcm) Connector Pin Reference Chart

NOTE: The PCM reset occurs when the PCM momentarily reboots or is turned off and on while the engine is operating. If the condition occurs a single time, the engine momentarily stumbles and the PCM goes through a normal ignition on cycle, including turning the glow plug lamp and glow plugs on, and attempts to validate the accelerator pedal position. If the pedal is not at the idle position when this concern occurs, pedal authority is not allowed by the PCM until the accelerator pedal is released and the engine returns to idle.

This pinpoint test is intended to diagnose the following:

loose, damaged or corroded connections
harness circuits: VPWR and PWRGND

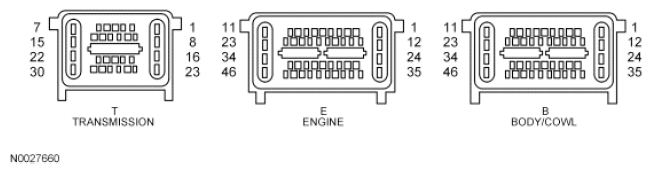

Fig 1: Identifying Powertrain Control Module (PCM) Connector

Courtesy of FORD MOTOR CO.

POWERTRAIN CONTROL MODULE (PCM) CONNECTOR PIN REFERENCE CHART

Pin	Circuit
B10, B11, B23	PWRGND (Power Ground)
B34, B46	VPWR (Vehicle Power)
