Fuel Pump (FP) Connector Pin Reference Chart: Notes

This pinpoint test is intended to diagnose the following:

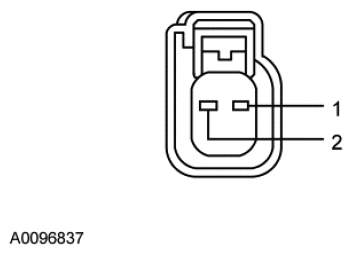

Fig 1: Identifying Fuel Pump (FP) Connector
G06054221Courtesy of FORD MOTOR CO.
FUEL PUMP (FP) CONNECTOR PIN REFERENCE CHART

Pin Circuit
1 FPPWR (Fuel Pump Power)
2 FPGND (Fuel Pump Ground)
Fig 2: Identifying Fuel Pump (FP) Relay Connector
G06054163Courtesy of FORD MOTOR CO.
