Seat Temperature Control Module: Service and Repair

Seat - Exploded View, Front

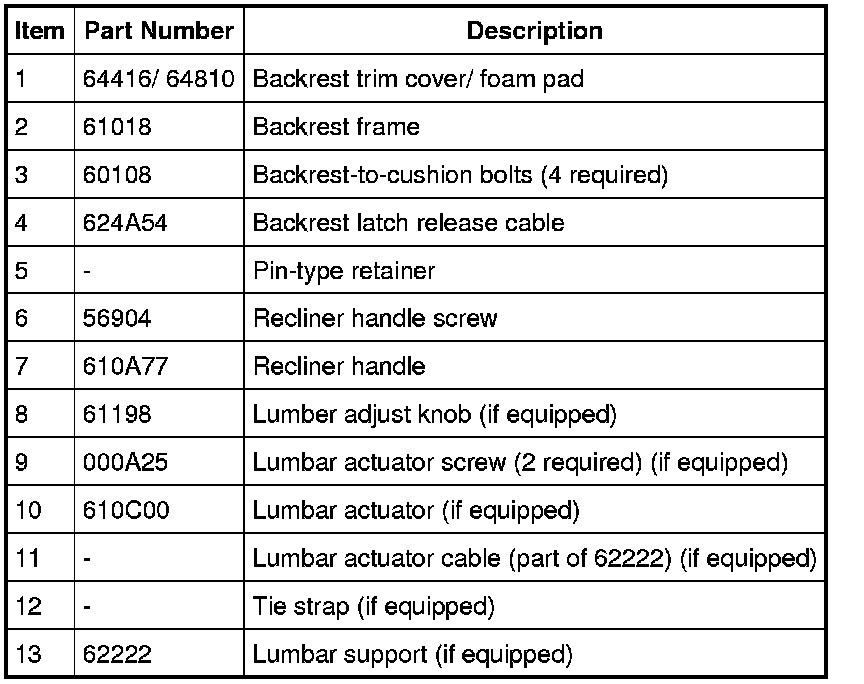

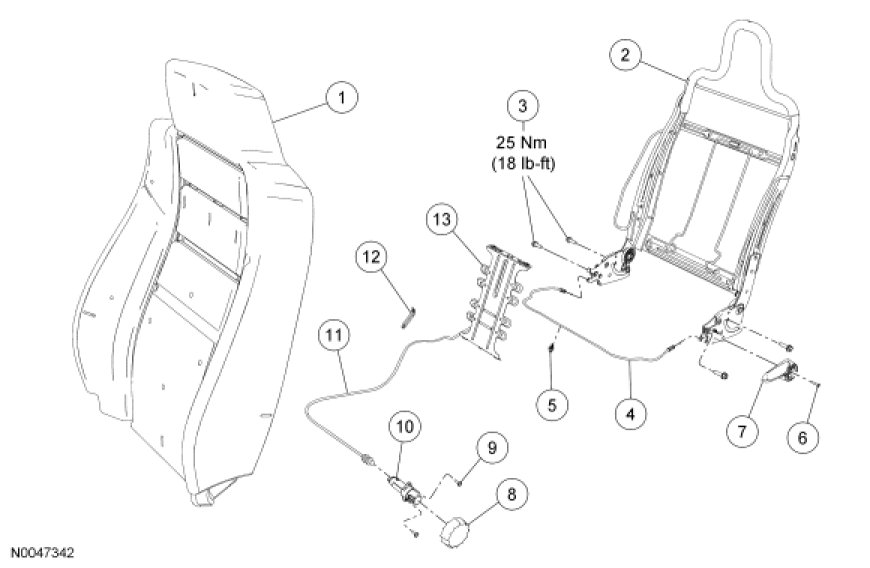

Seat Backrest, Front, 40 Percent

NOTE: Driver shown, passenger similar.

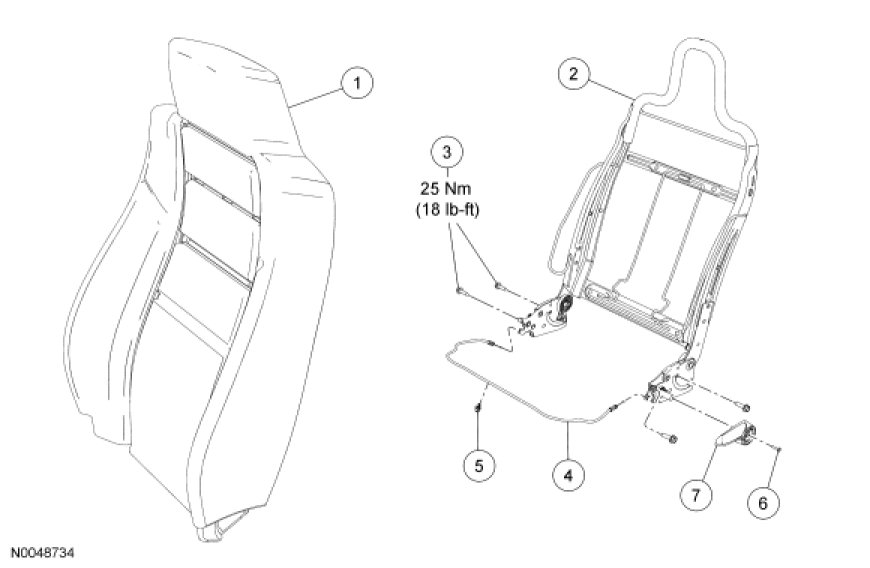

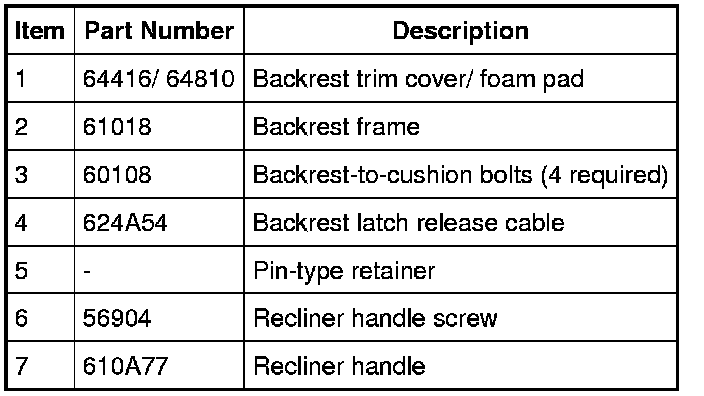

Seat Backrest, Front, 60 Percent

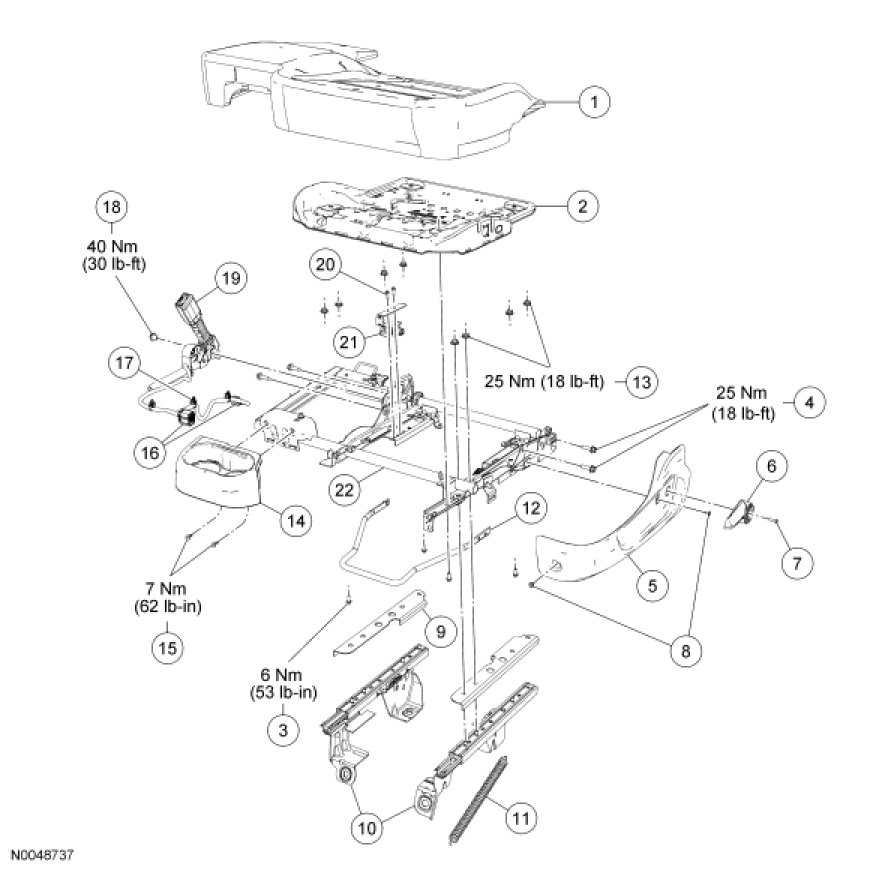

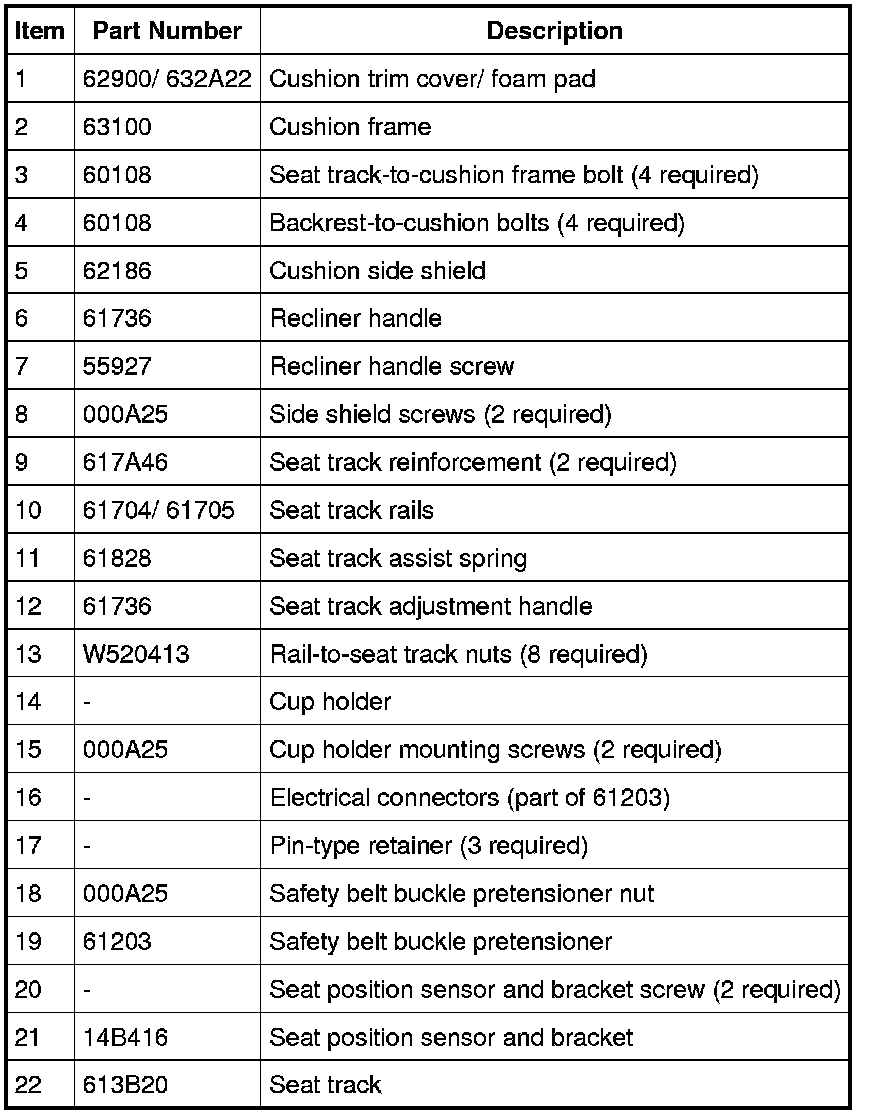

Seat Cushion, Front, 60 Percent

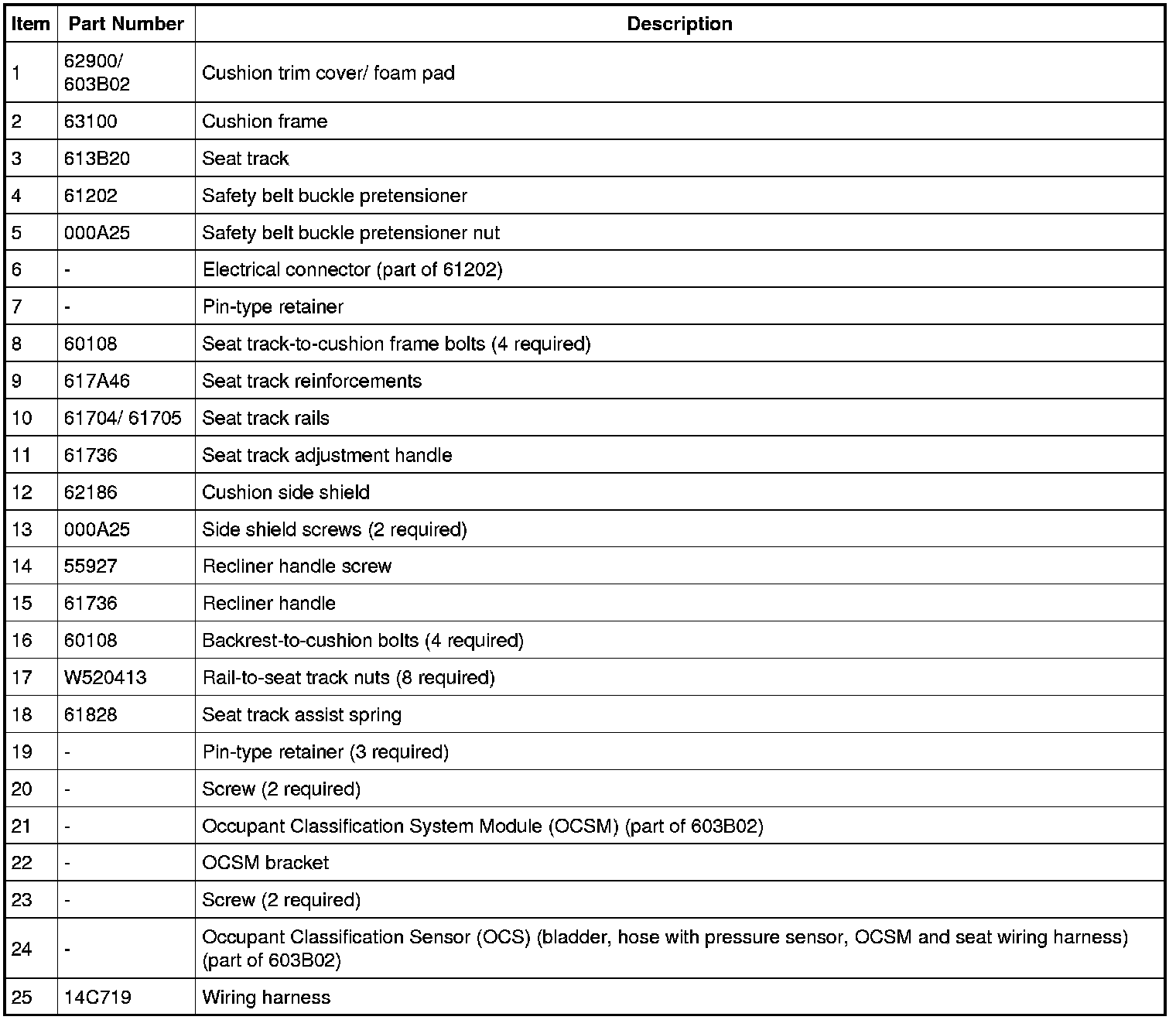

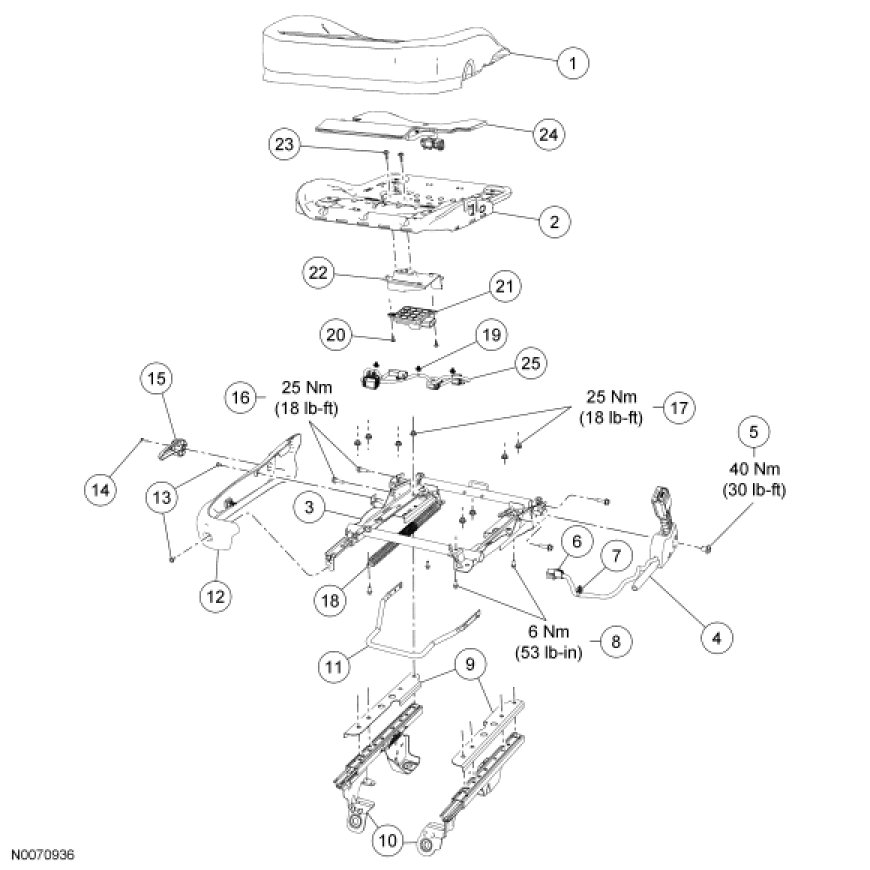

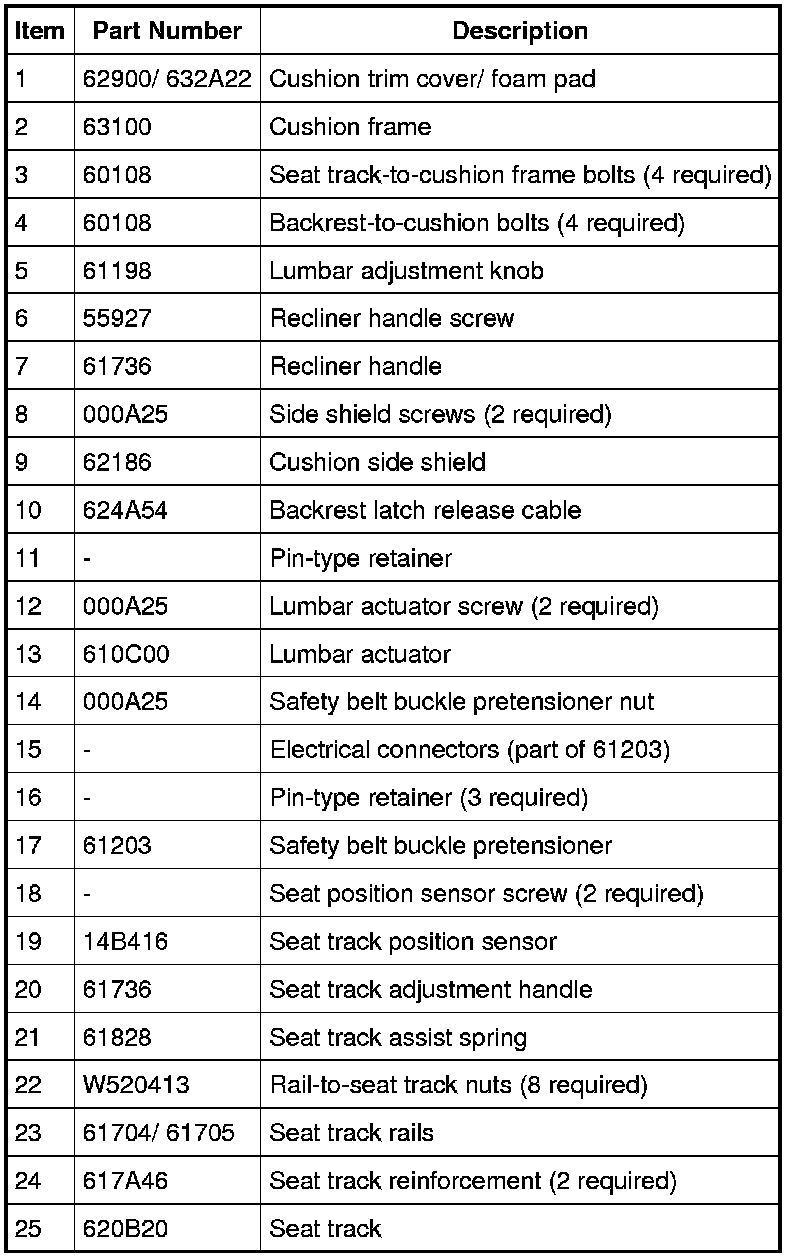

Seat Cushion, Driver, 40 Percent

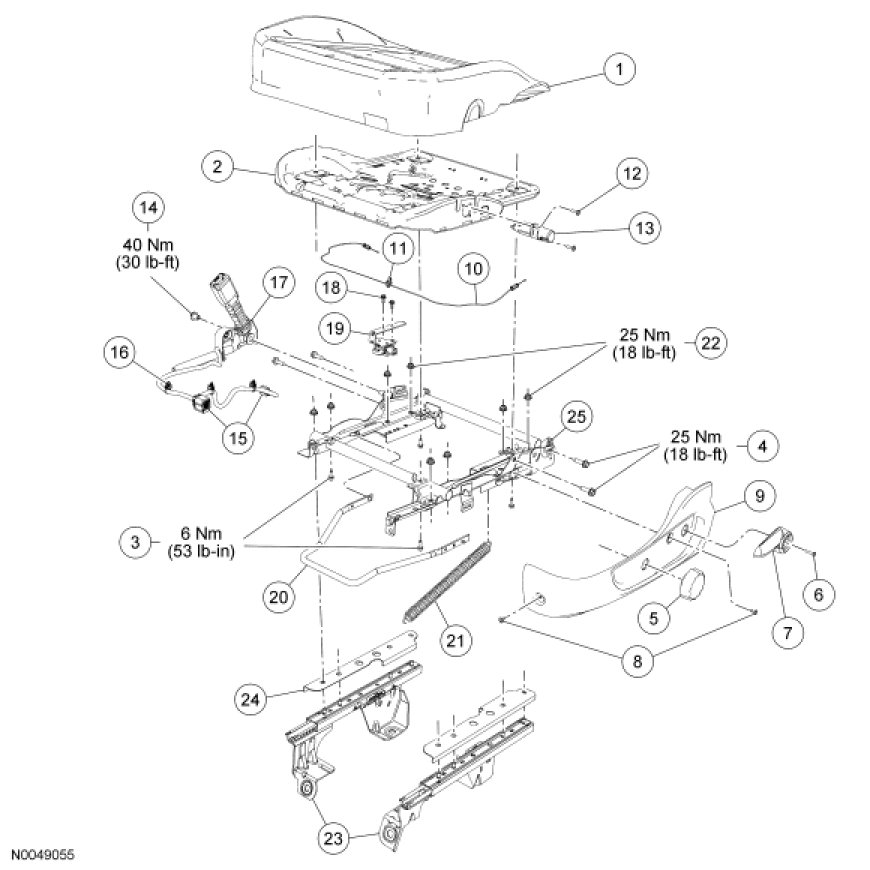

Seat Cushion, Front Passenger

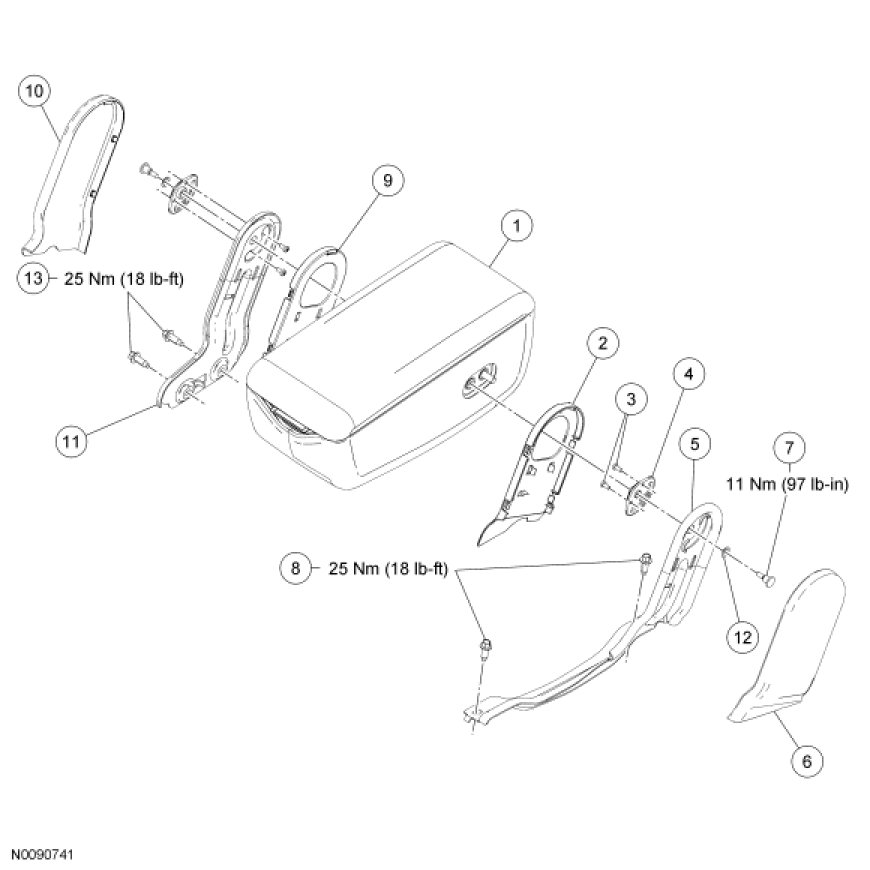

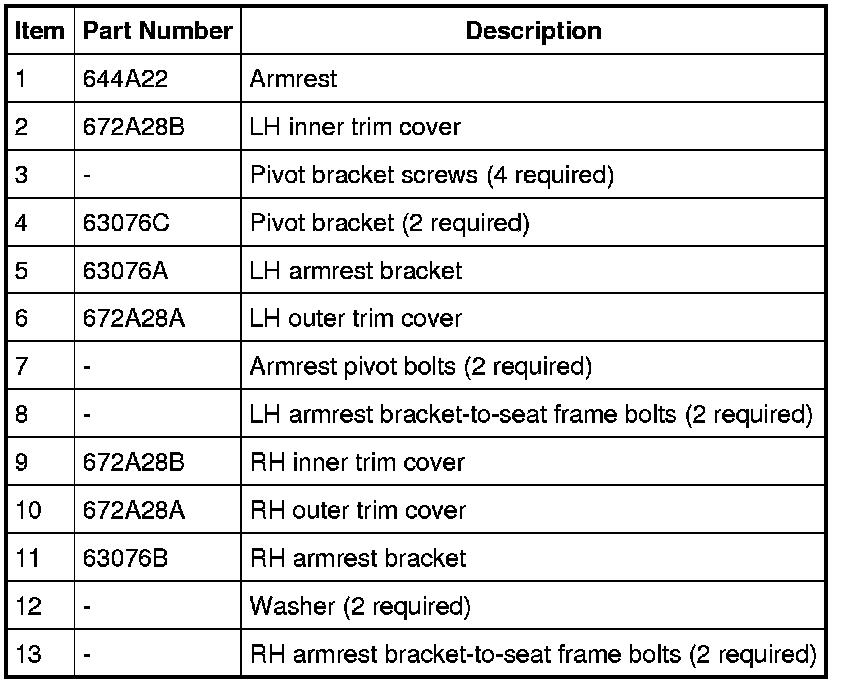

Seat Armrest, Front, 60 Percent









1. For additional information, refer to the procedures.
