Cruise Control Servo Cable: Service and Repair

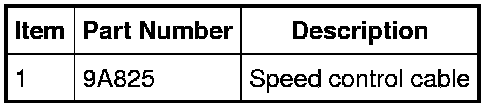

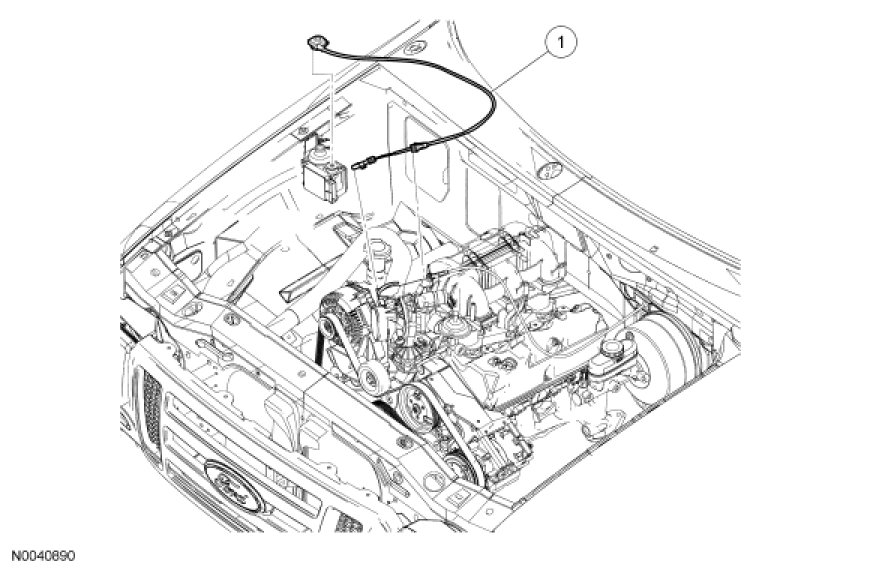

Speed Control Cable

NOTE: 4.0L shown, others similar.










Removal and Installation

Vehicles with 2.3L engine

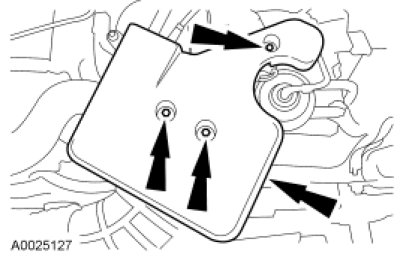

1. Remove the 2 bolts and the accelerator control splash shield.

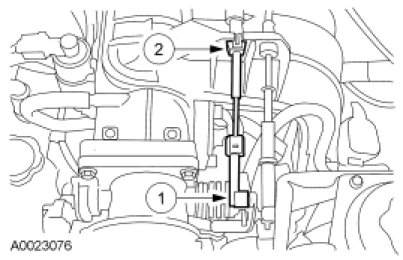

2. Disconnect the speed control cable from the throttle body.

1. Disconnect the cable from the throttle lever.

2. Press the tabs and separate the speed control cable from the intake manifold.





Vehicles with 4.0L engine

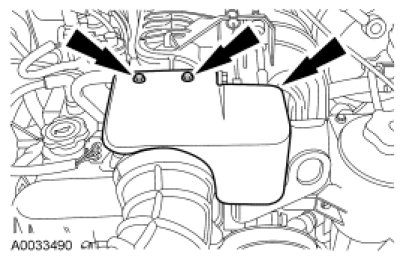

3. Remove the 3 bolts and the accelerator control splash shield.

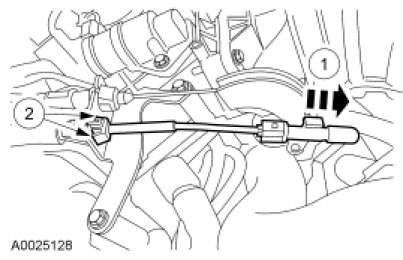

4. Separate the speed control cable from the intake manifold.

1. Disconnect the cable from the throttle lever.

2. Press the locking tabs and separate the speed control cable from the intake manifold.





All vehicles

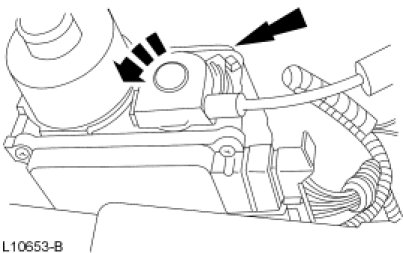

5. Remove the speed control cable cap from the speed control actuator.
- Push in the locking arm on the speed control cable cap then rotate the cap counterclockwise.





6. Remove the speed control cable.

1. Press the spring retainer.

2. Slide the core wire end out of the speed control actuator pulley and remove the speed control cable.





7. NOTE: Make sure the rubber seal is fully seated onto the speed control cable cap.

To install, reverse the removal procedure.
