Transmission Pan

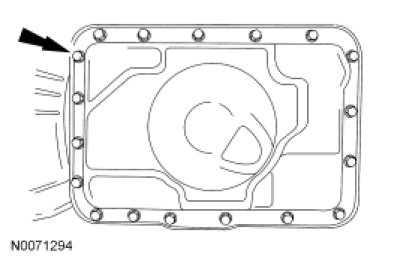

Tighten the transmission fluid pan screws in a crisscross pattern.
Tighten to 10 Nm (89 lb-in).
