Procedures

Axle and Differential Draining and Filling









1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the differential fill plug.

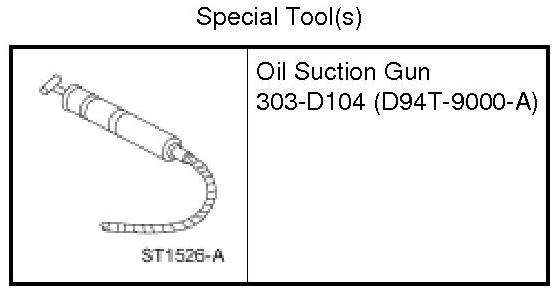

3. Use the Oil Suction Gun and remove the axle lubricant through the fill opening.

4. If necessary, a cleaning solvent can be injected to remove any contaminants.

5. Repeat Step 3 to remove the cleaning solvent.

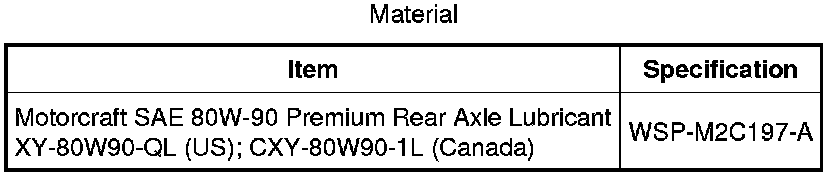

6. Refill the differential with lubricant.

7. Install the fill plug and tighten.
