Procedures

Transmission Draining and Filling

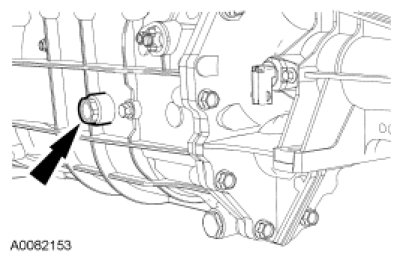

1. NOTE: Position a suitable drain pan under the transmission.

Remove the drain plug and drain the transmission.





2. Clean and install the drain plug.
- Tighten to 48 Nm (35 lb-ft).

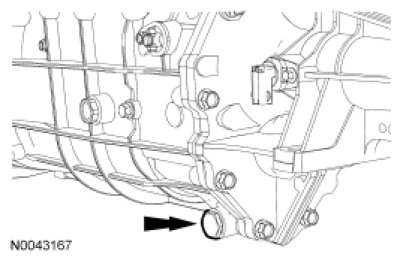

3. NOTE: Before removing, clean the area around the filler plug.

Remove the filler plug.





4. NOTE: Fill the transmission with the vehicle on a level surface.

NOTE: Transmission capacity is 2.6L (2.8 qt).

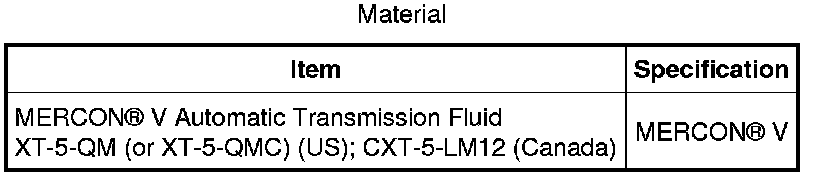

Using a suitable oil suction gun, fill the transmission to the correct level with the specified fluid. The fluid must be just below the fill plug hole.

5. Install the fill plug.
- Tighten to 48 Nm (35 lb-ft).
