Second Row

Seat - Exploded View, Second Row, Taurus, Sable

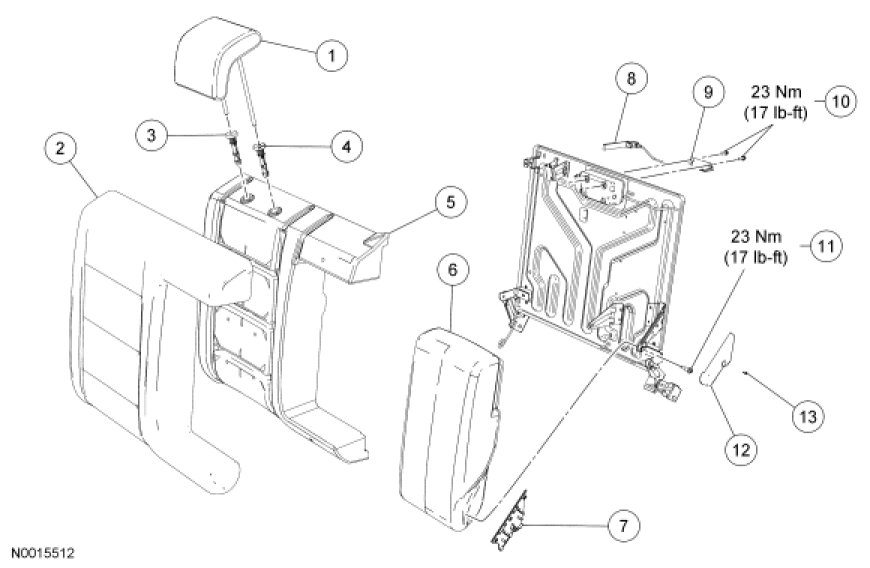

Taurus and Sable Rear Seat Backrest, Second Row, 60 Percent

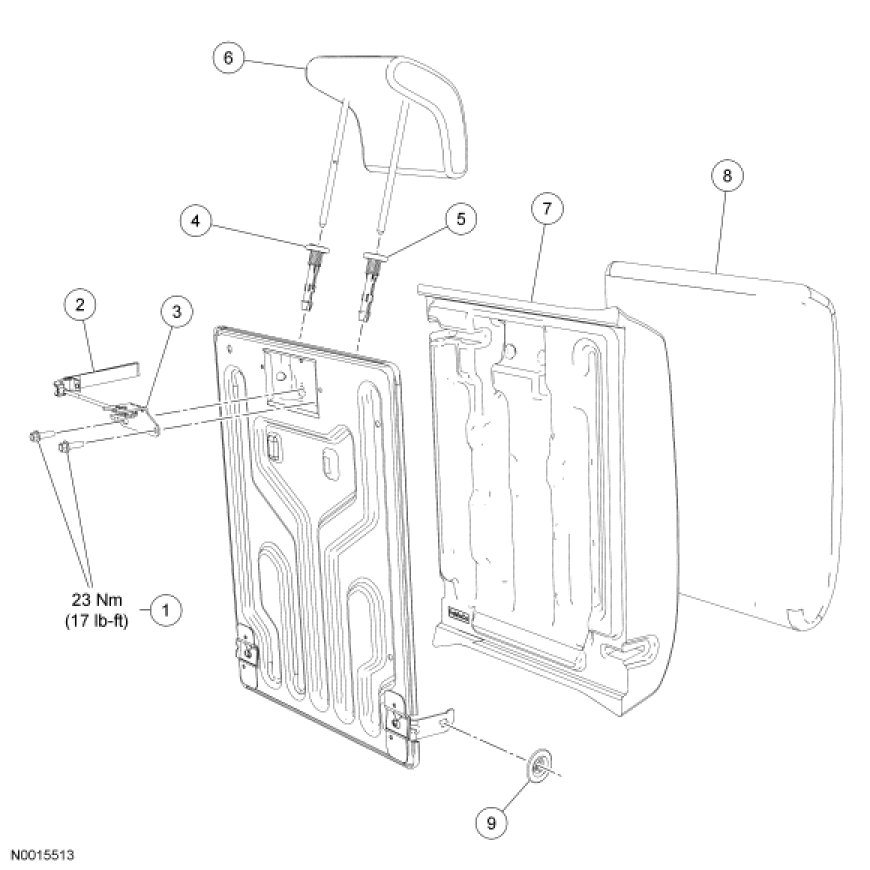

Taurus and Sable Rear Seat Backrest, Second Row, 40 Percent









1. For additional information, refer to the procedures.
