Seat - Exploded View, Third Row

Seat - Exploded View, Third Row

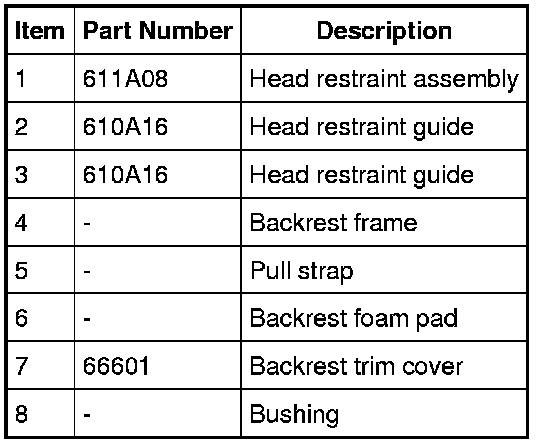

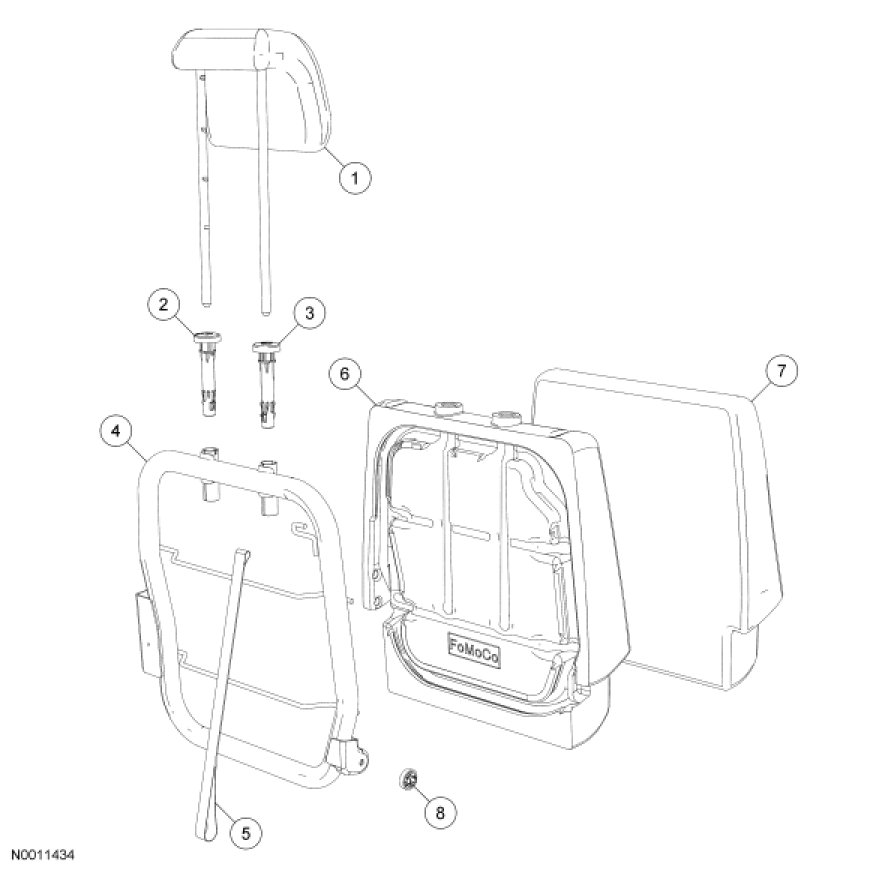

50 Percent Backrest

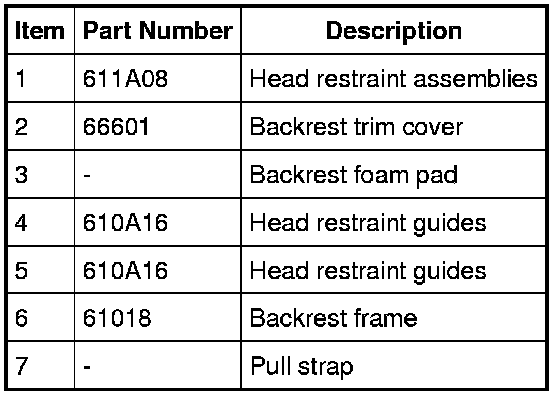

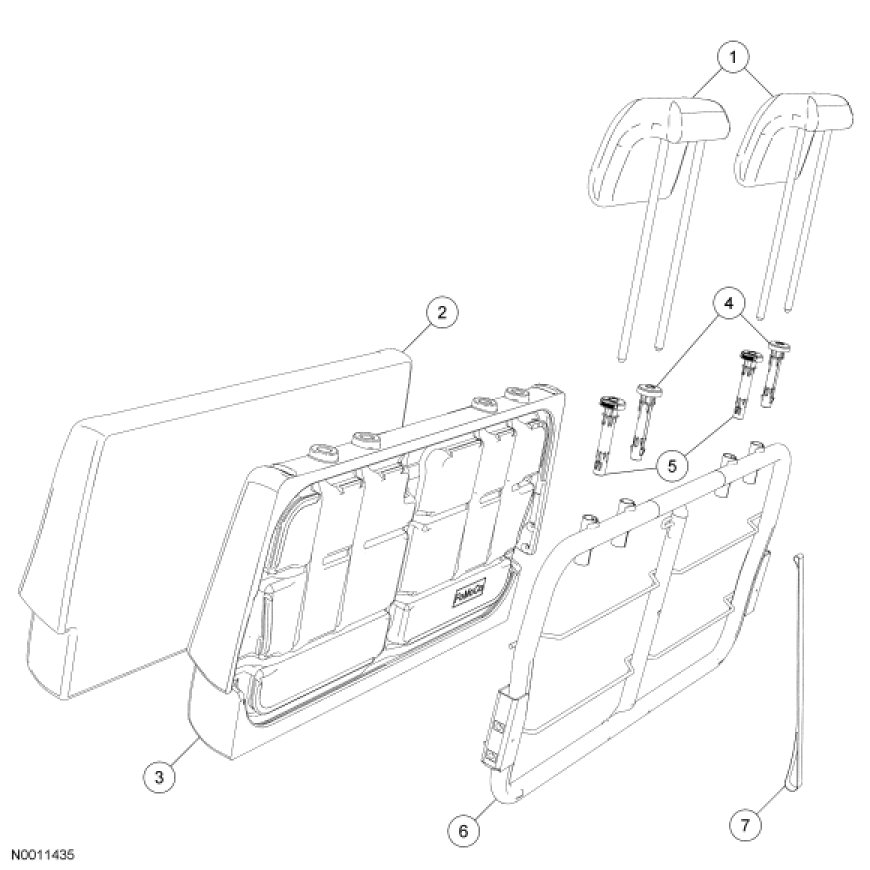

Bench Seat Backrest

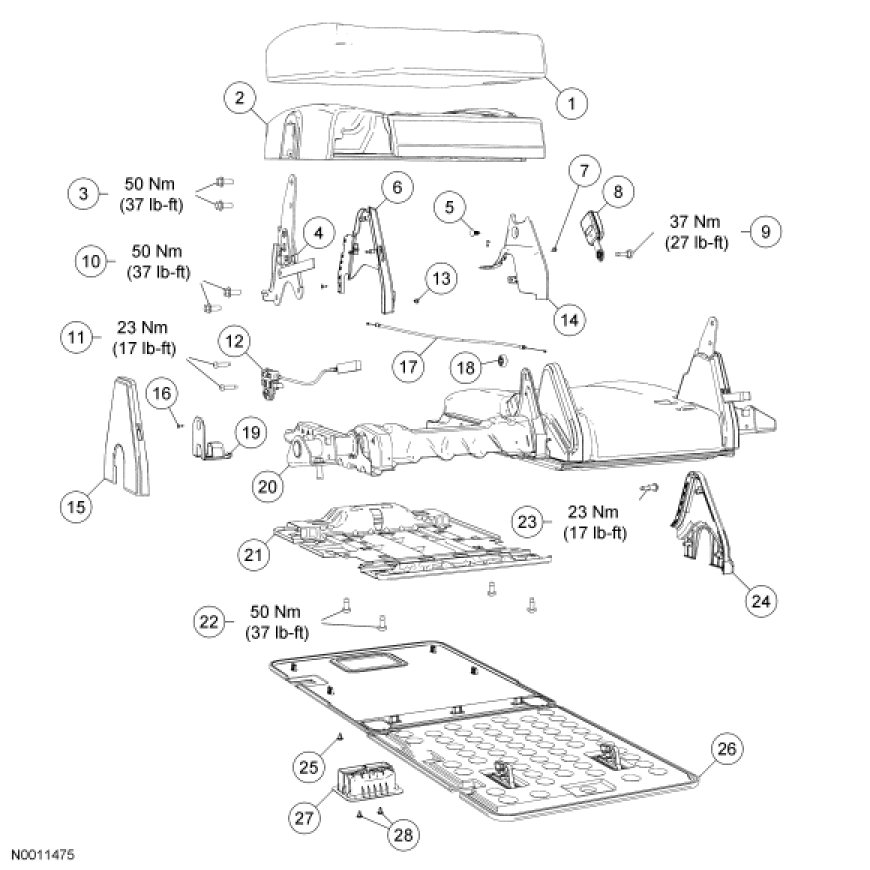

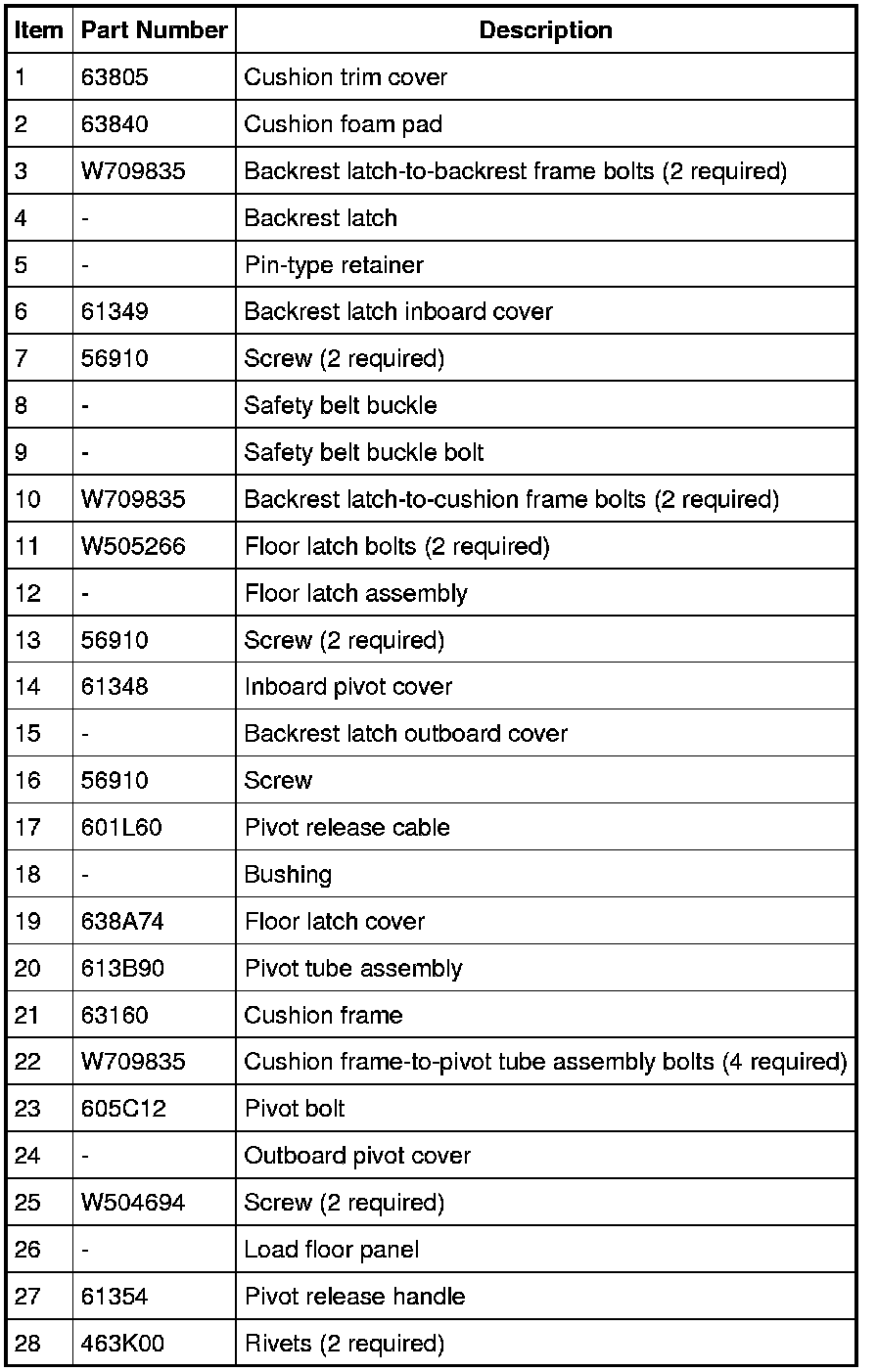

50 Percent Cushion

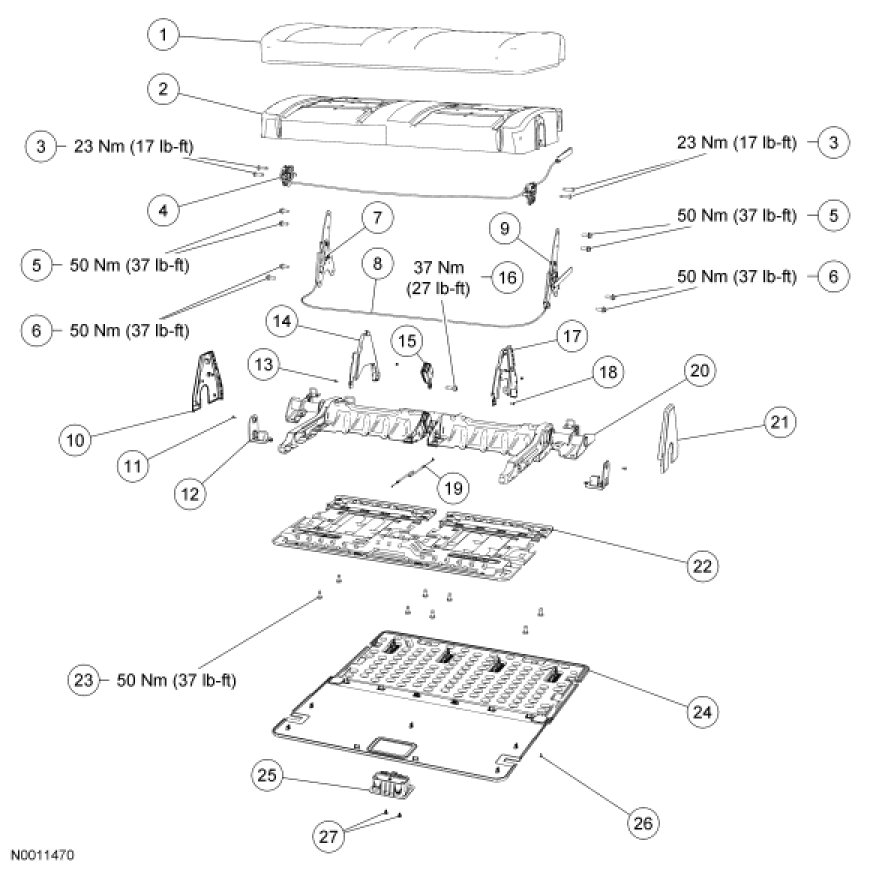

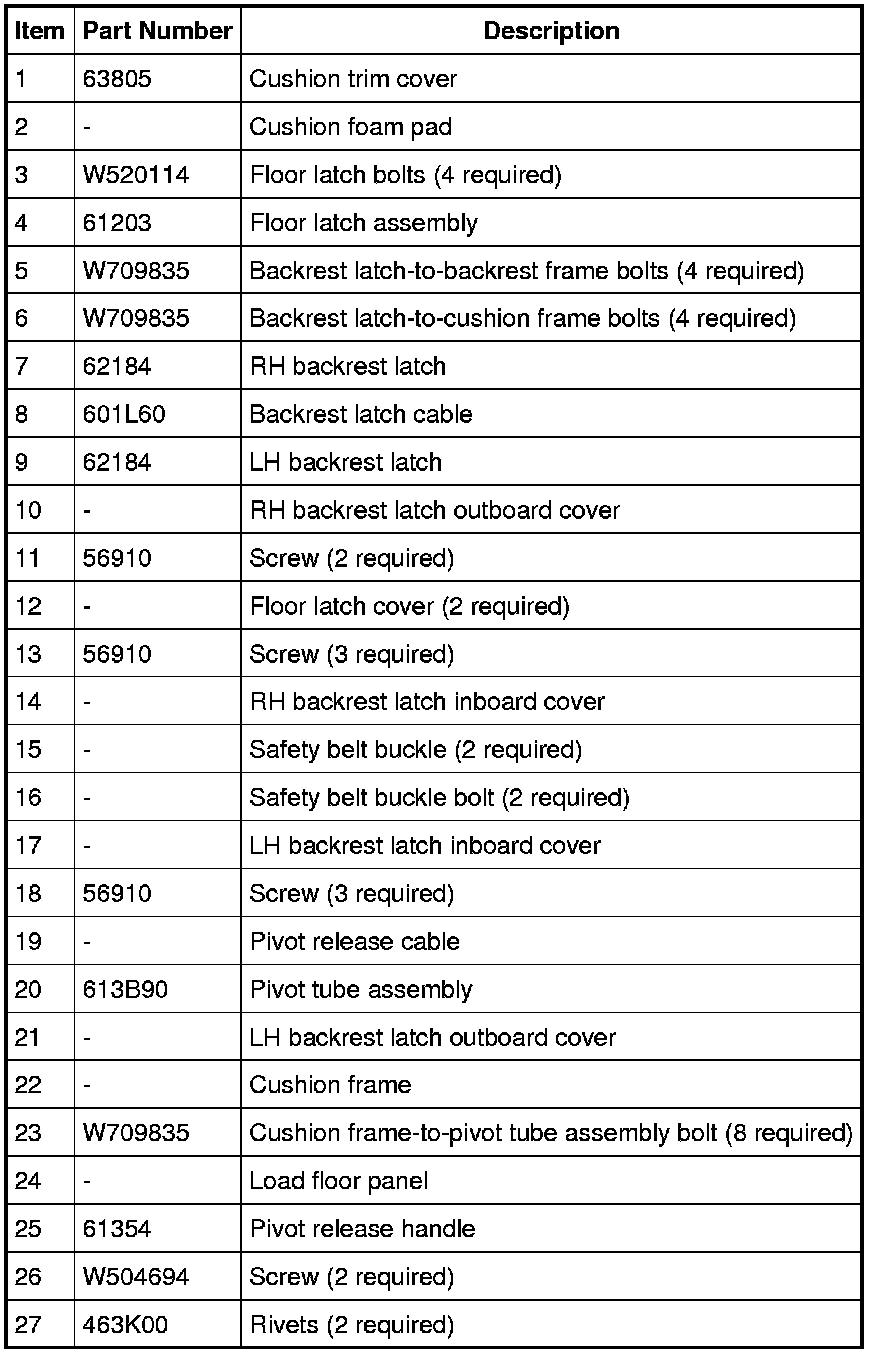

Bench Seat Cushion









1. For additional information, refer to the procedures.
