ABS Module DTC Chart
Anti-Lock Control
DTC Charts

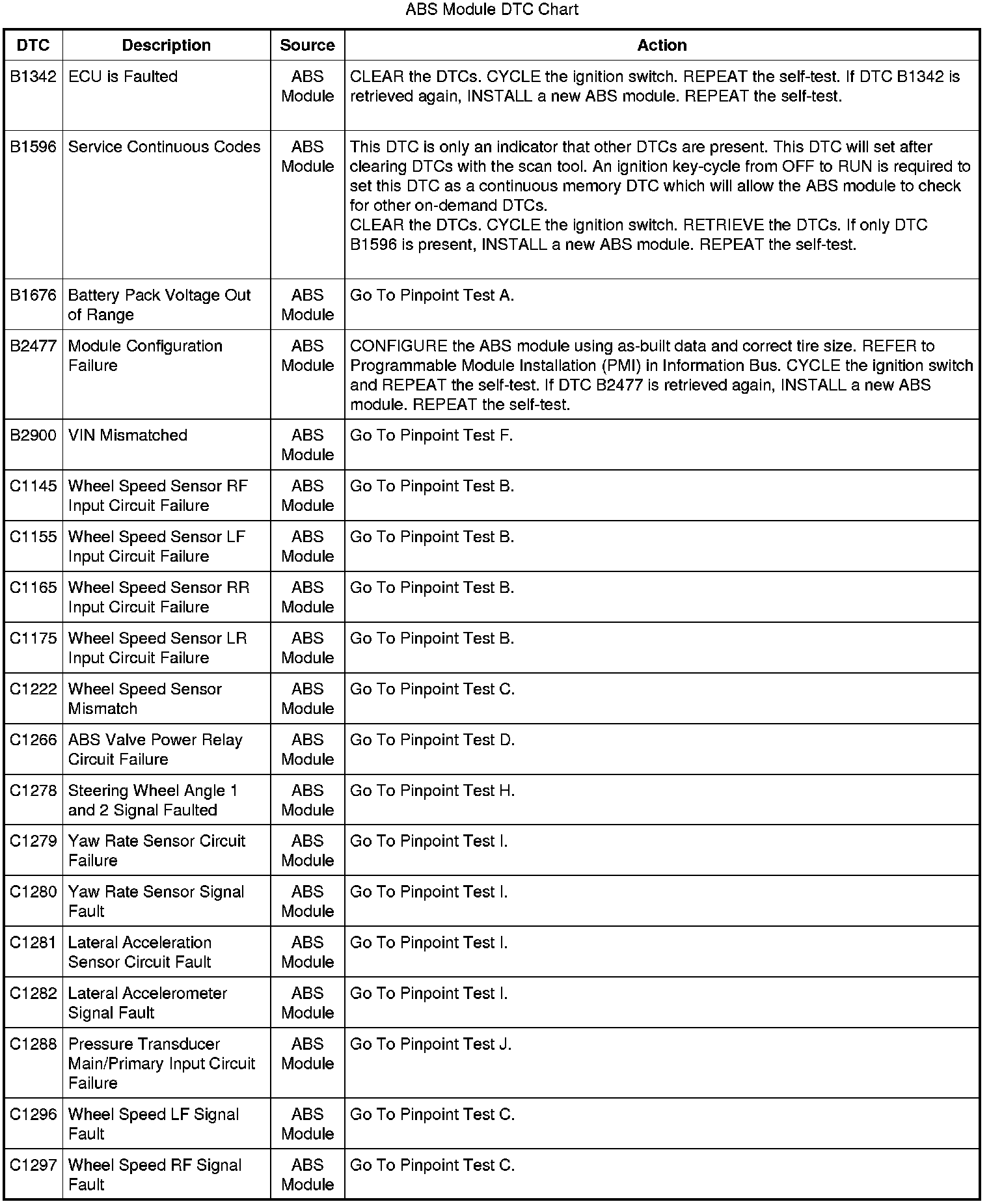

B1342-B2900 / C1145-C1297:

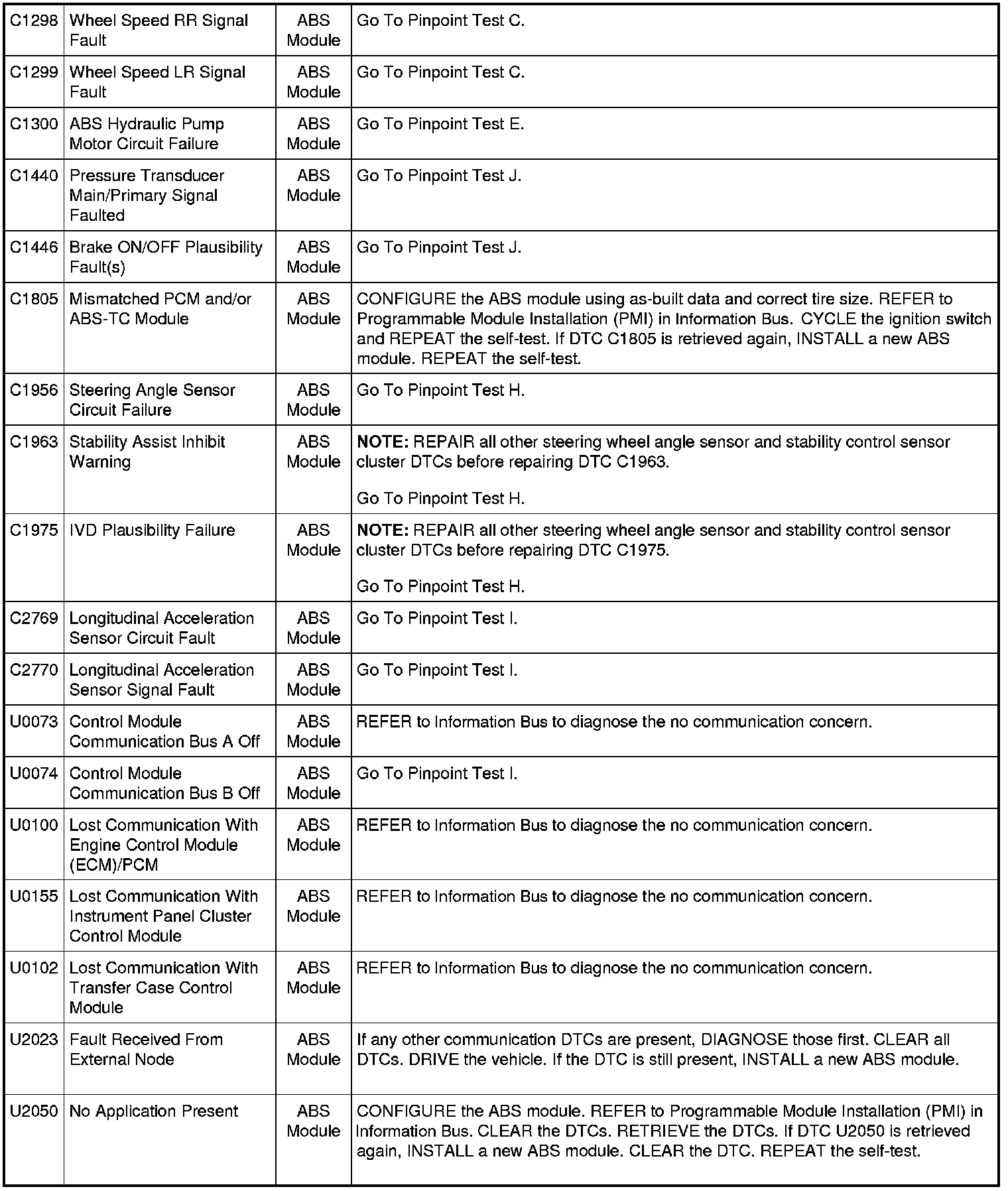

C1298-C2770 / U0073-U2050:
