Speed Control Deactivator Switch

Speed Control Deactivator Switch

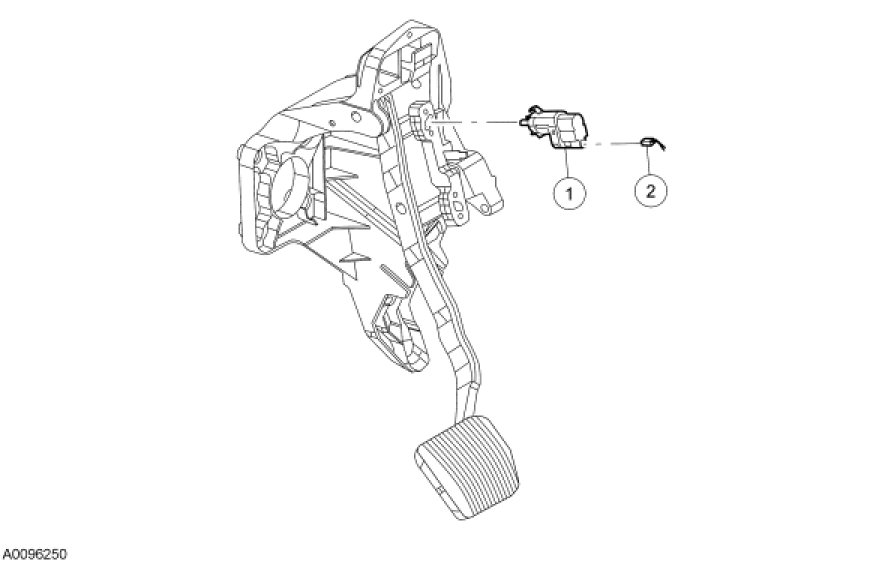

Removal and Installation

1. Disconnect the speed control deactivator switch electrical connector.

2. NOTICE: Do not press the brake pedal when removing or installing the speed control deactivator switch, as the switch will be damaged.

Remove the speed control deactivator switch.

- Rotate the speed control deactivator switch counterclockwise 45 degrees and remove the deactivator switch.

3. NOTE: When installing the speed control deactivator switch, it is automatically self-adjusting to the correct position. Do not pull up or push down on the pedal during installation. Initial installation of the speed control deactivator switch allows for one adjustment. If additional adjustments are necessary, install a new switch.

To install, reverse the removal procedure.
