Connector Locations

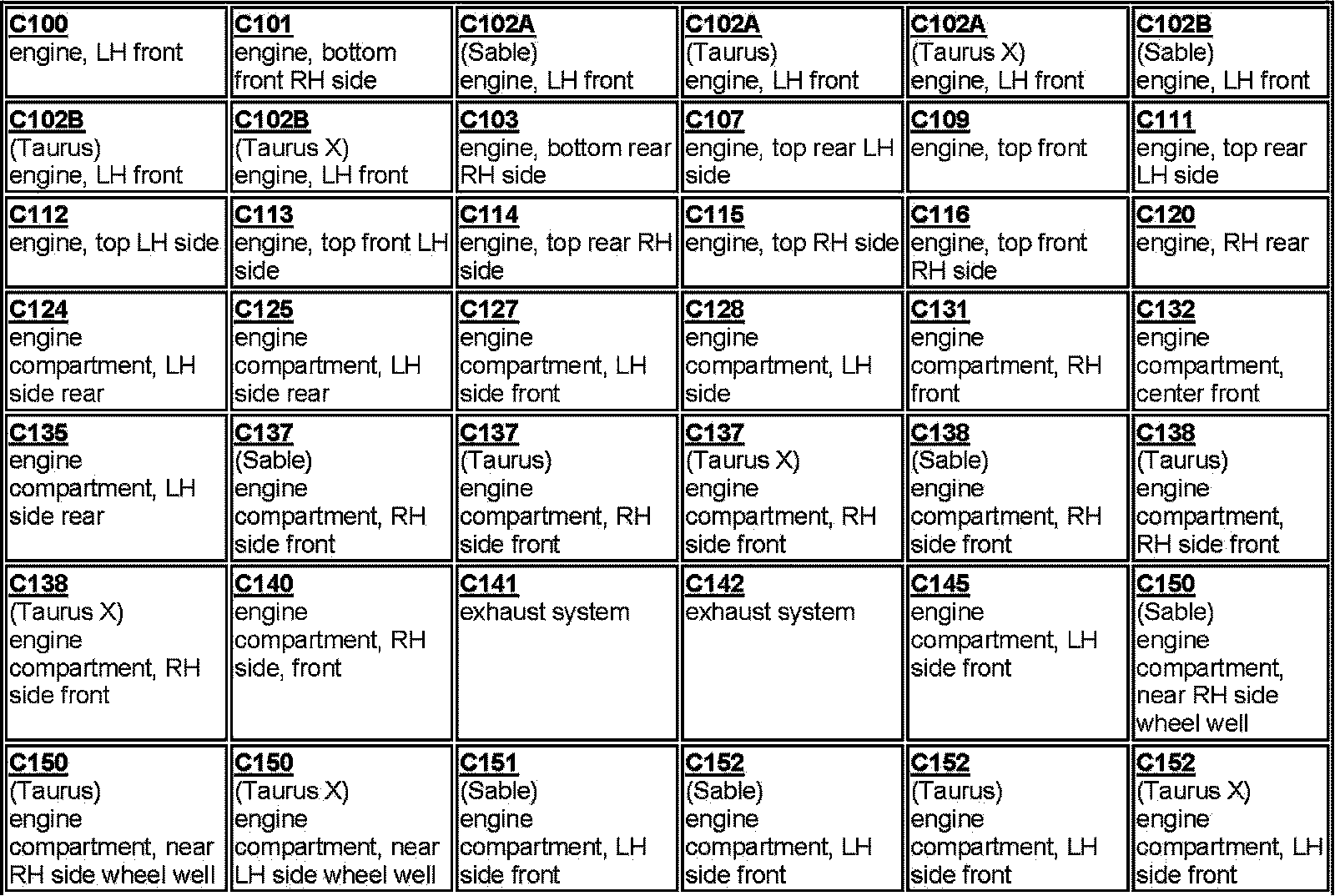

C100-C152:

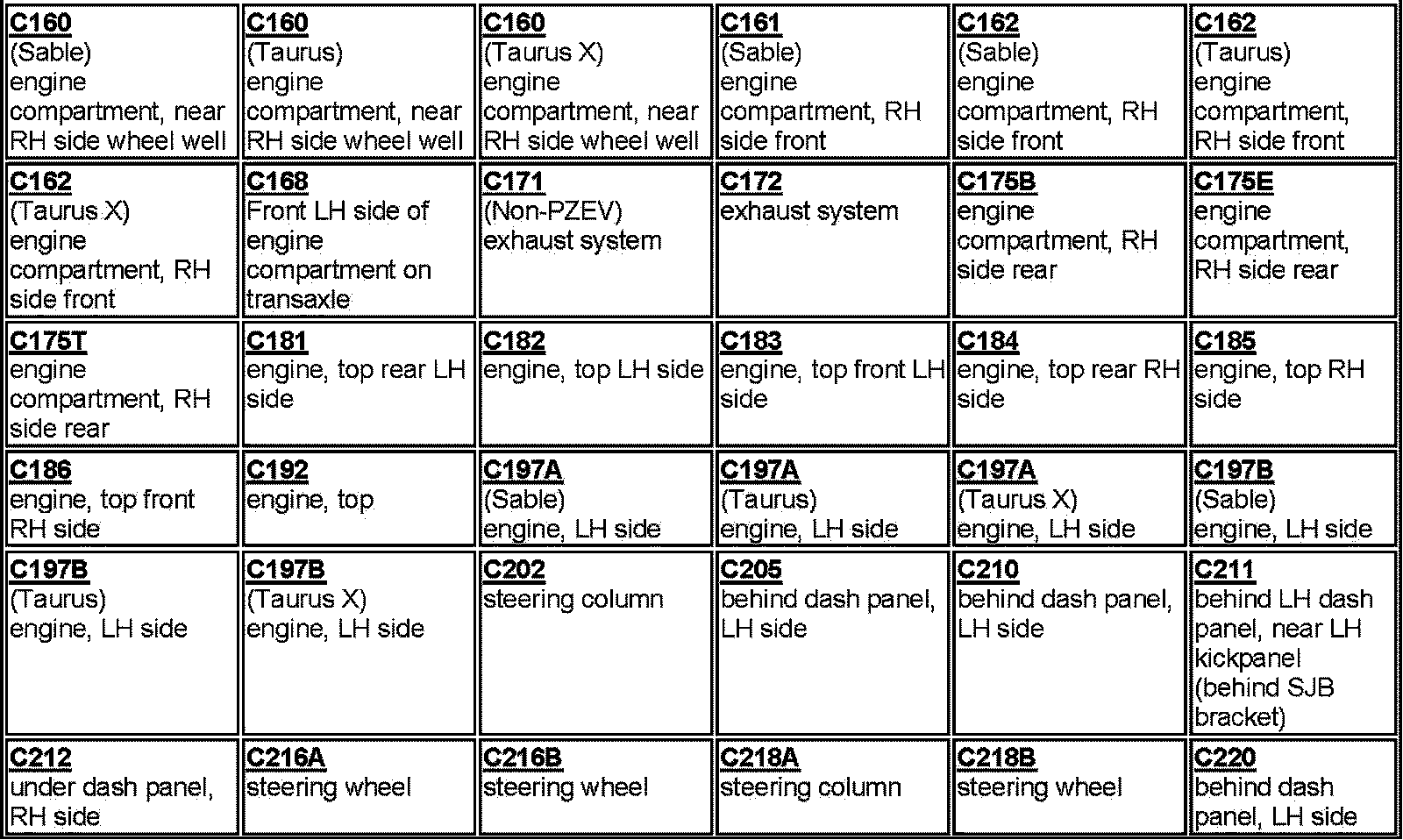

C160-C220:

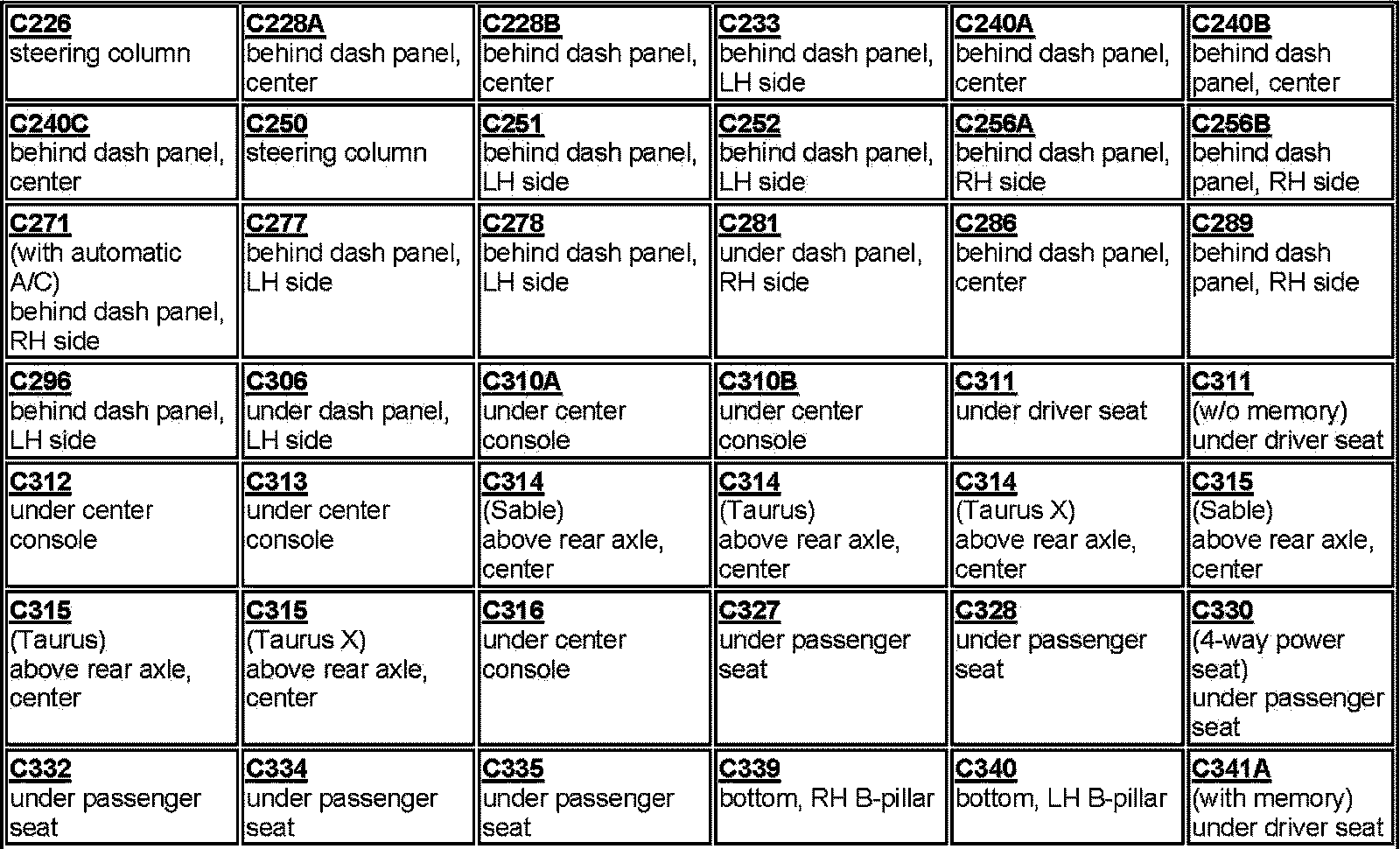

C226-C341A:

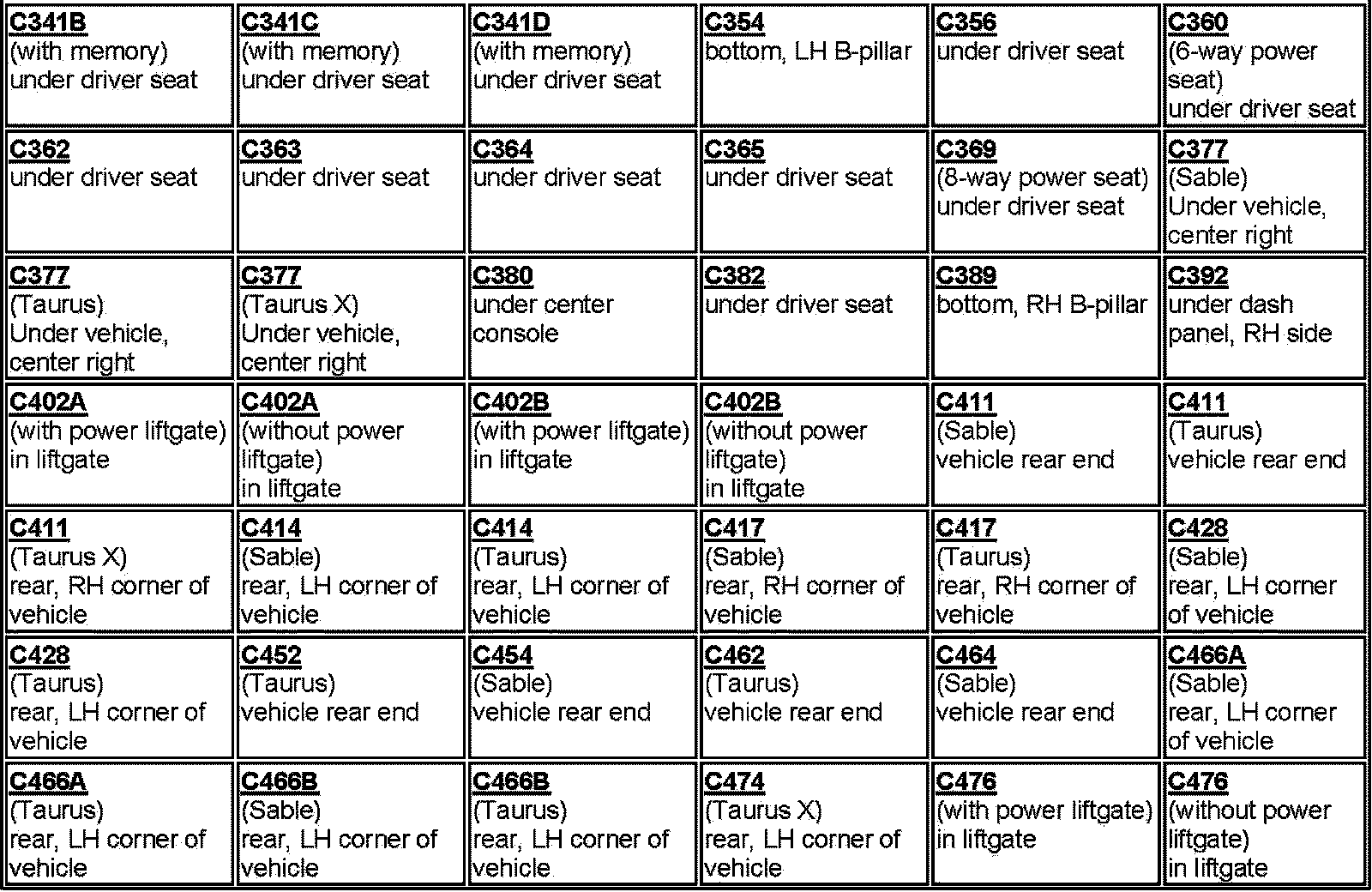

C341B-C476:

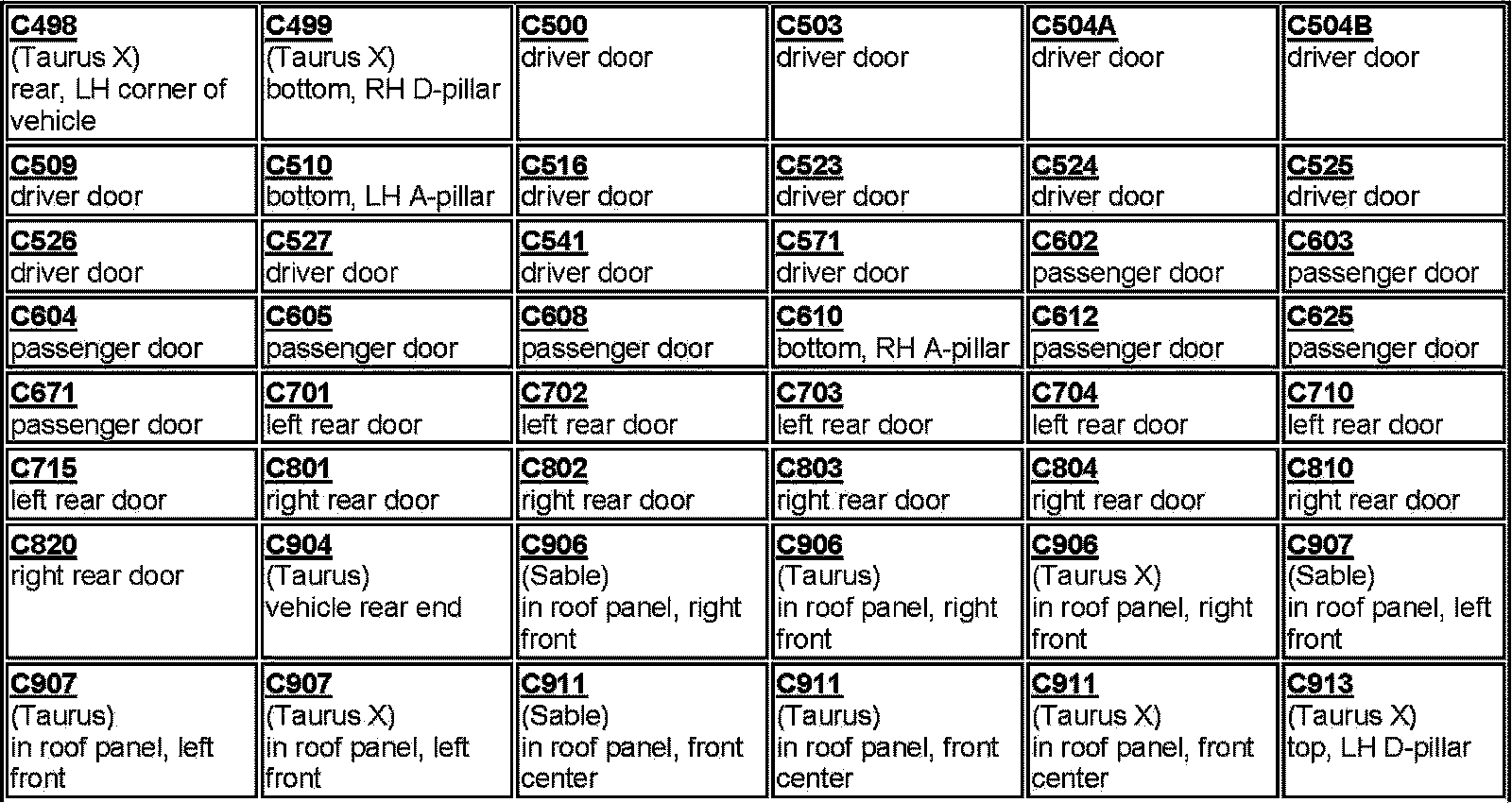

C498-C913:

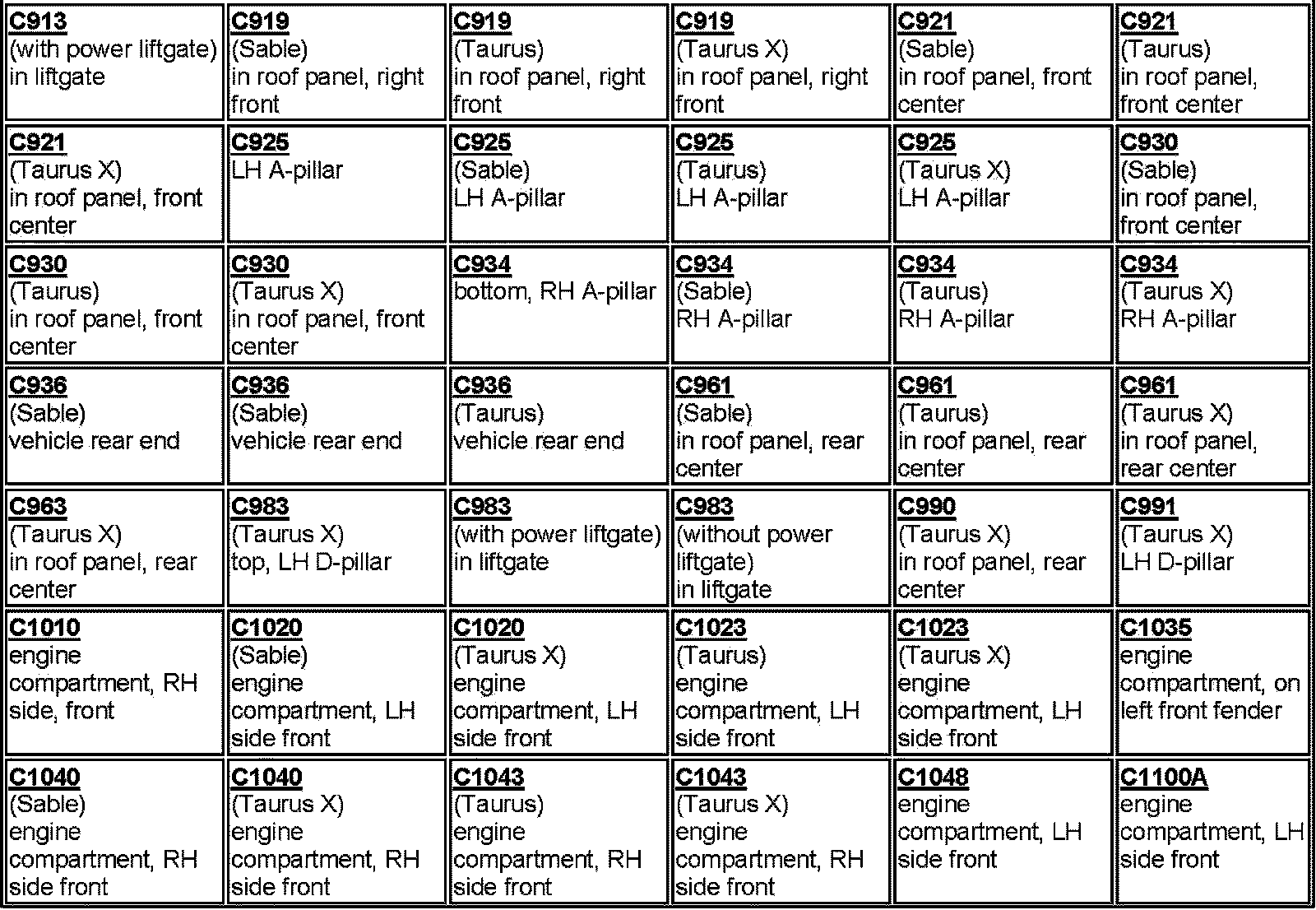

C913-C1100A:

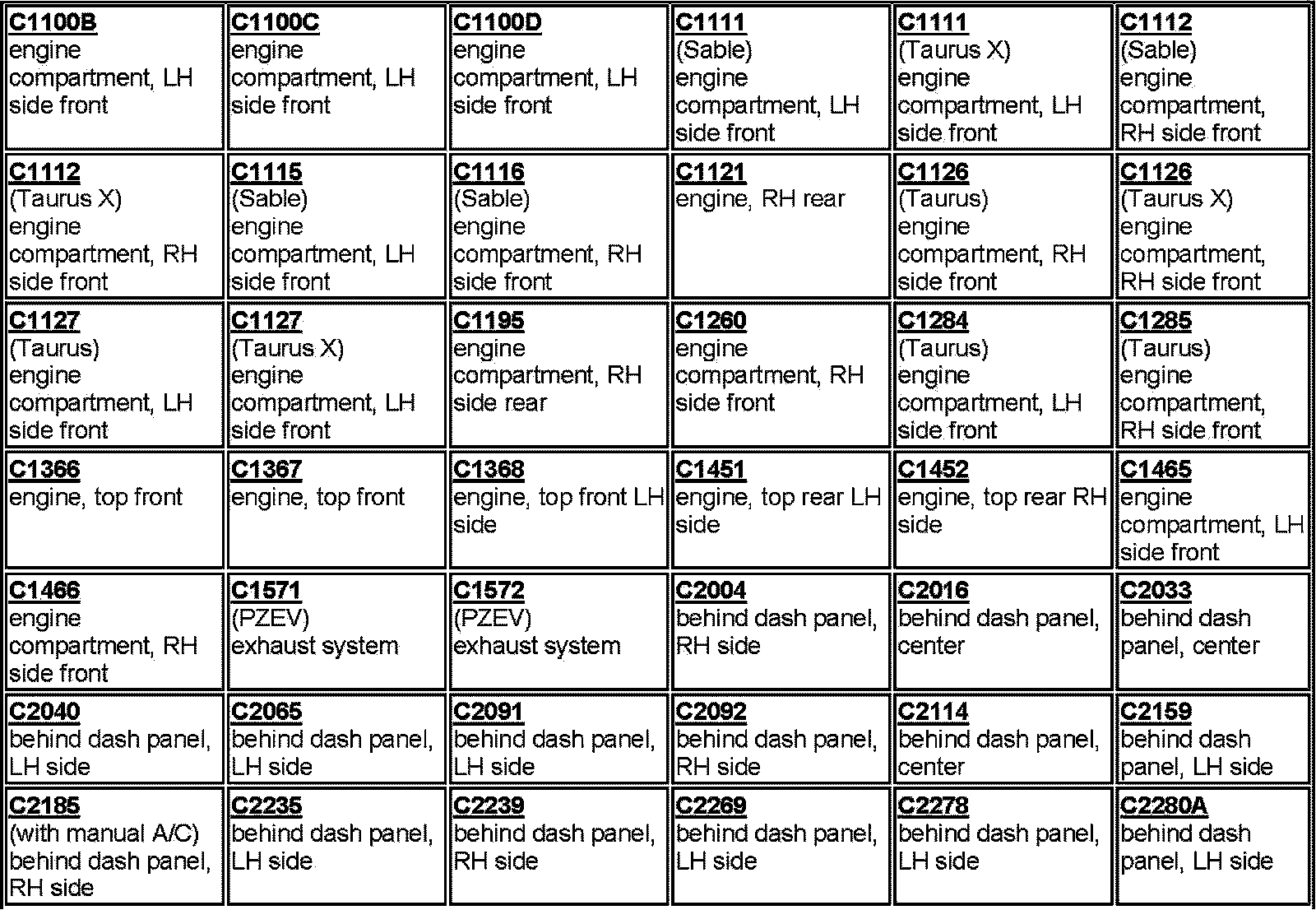

C1100B-C2280A:

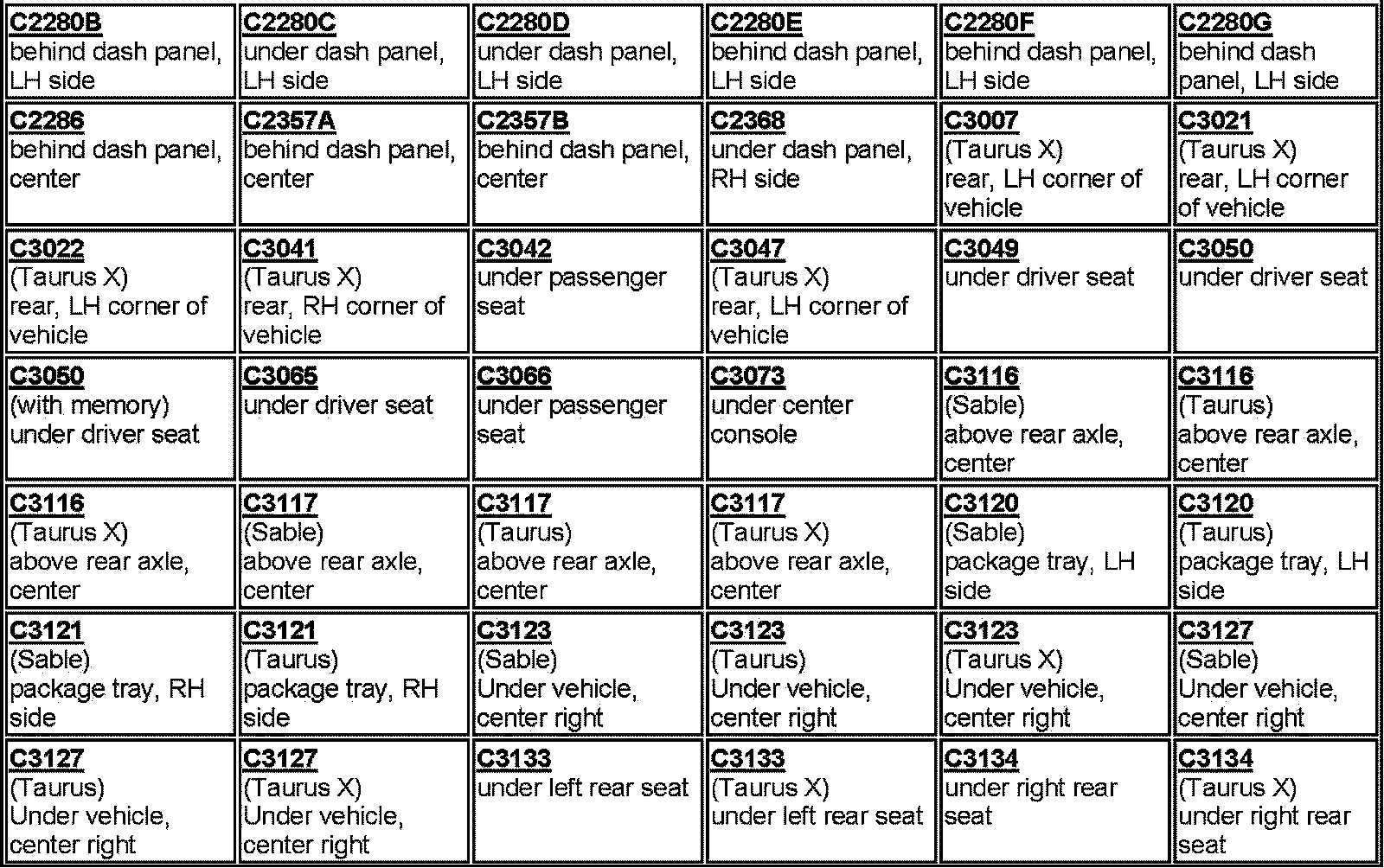

C2280B-C3134:

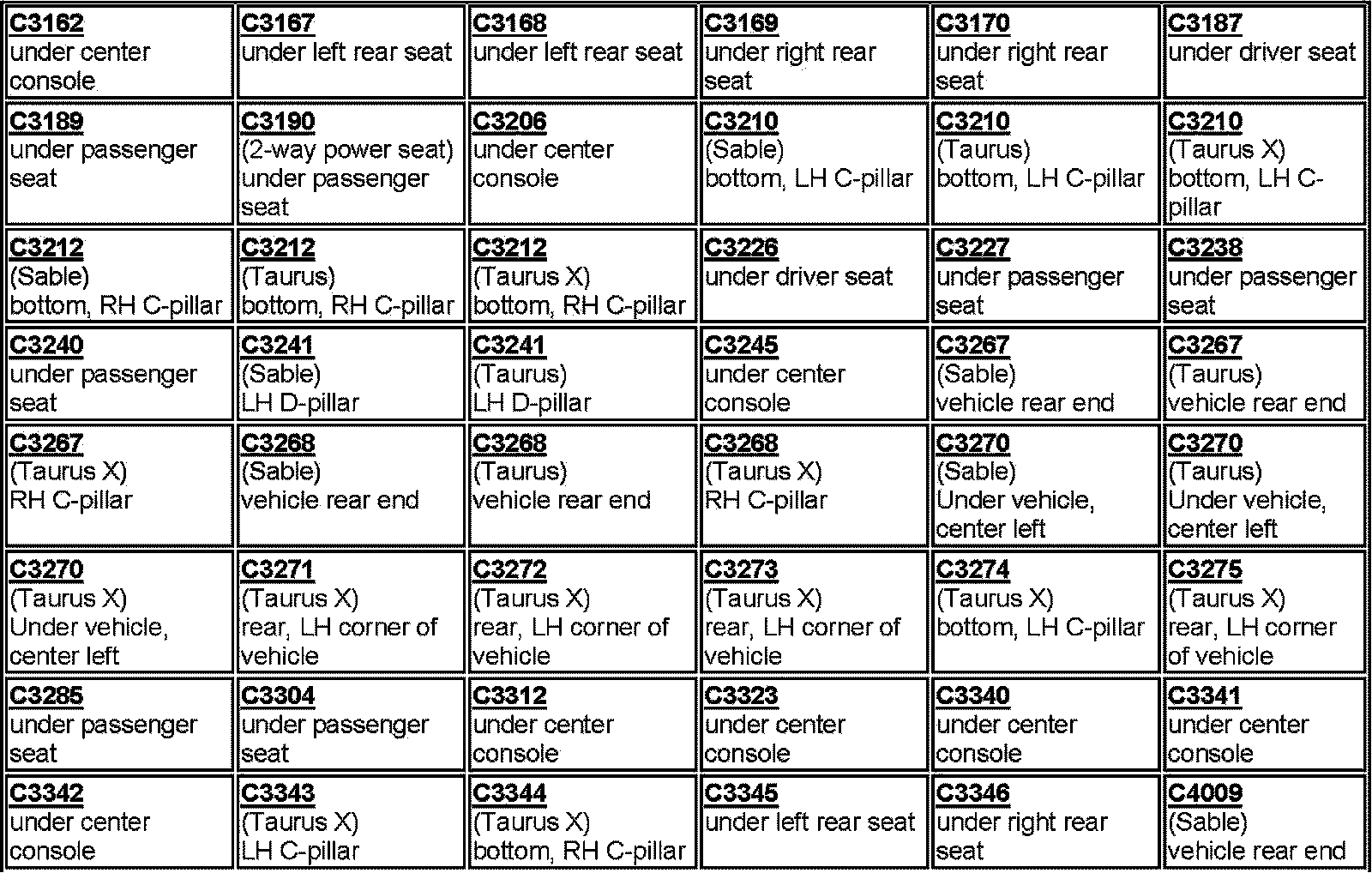

C3162-C4009:

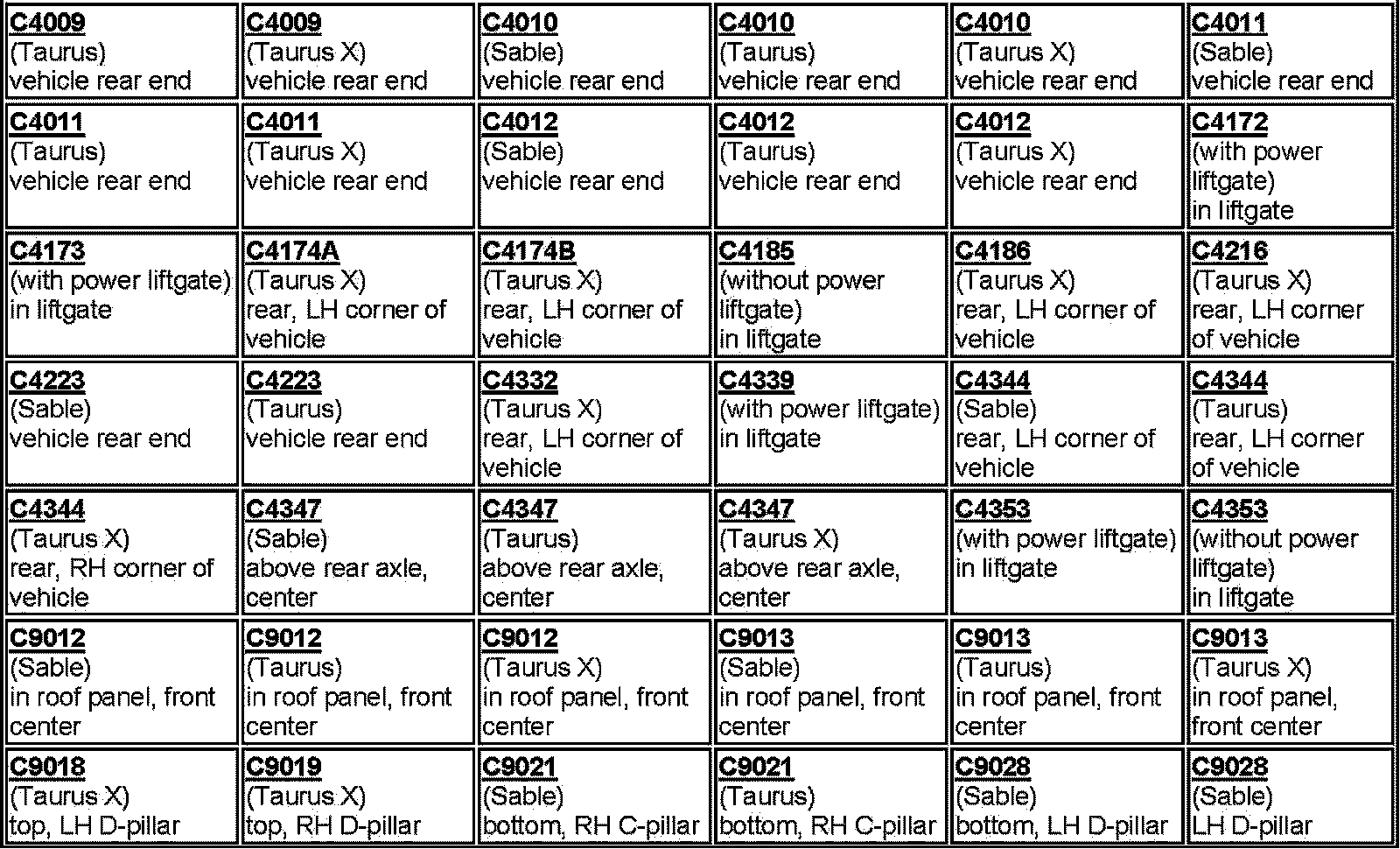

C4009-C9028:

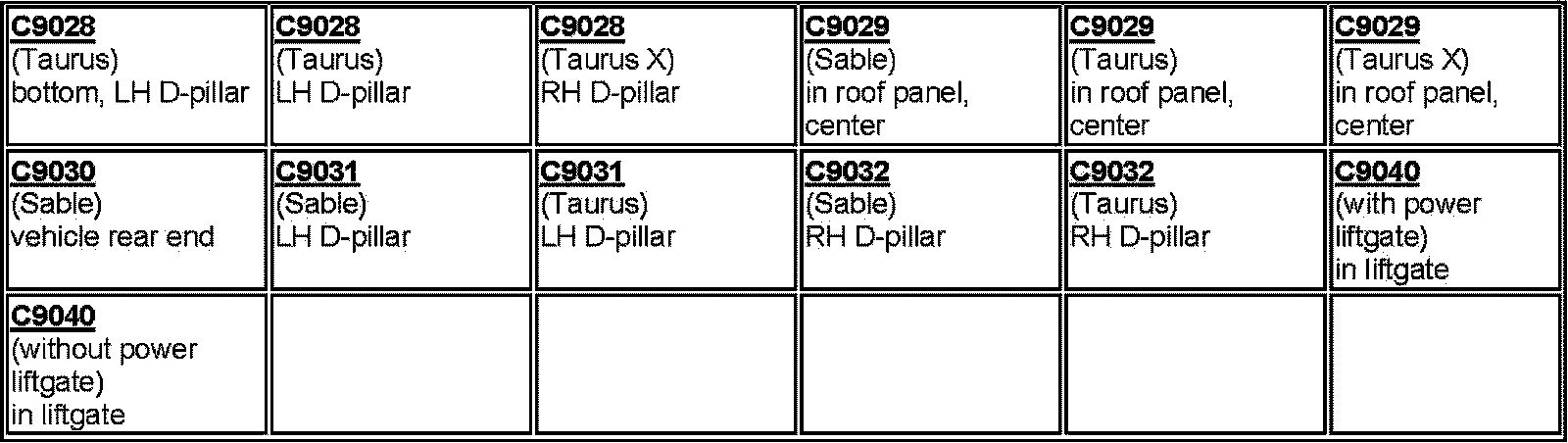

C9028-C9040:
