Drive Belt: Diagrams




Accessory Drive

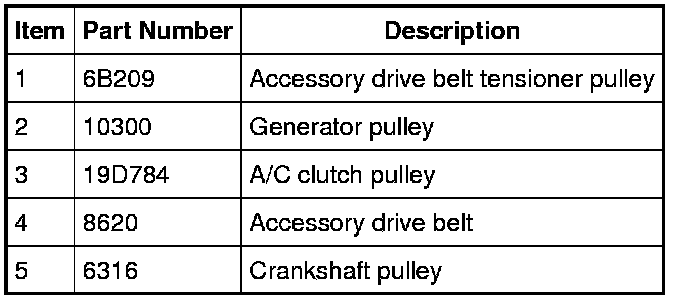

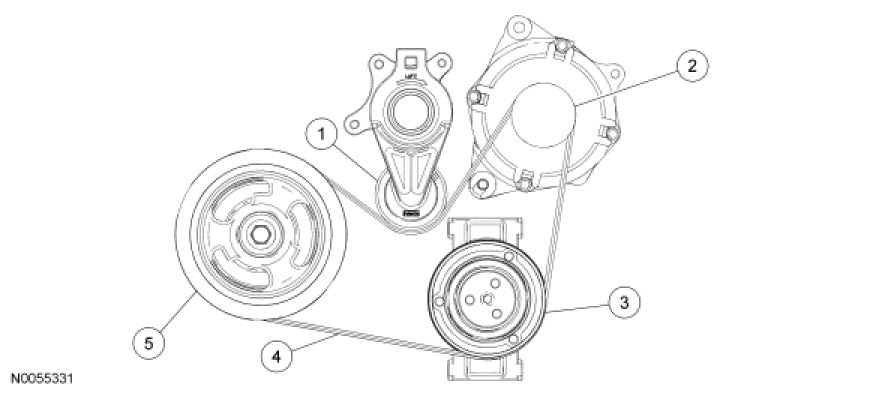

Accessory Drive Belt Routing



Front End Accessory Drive (FEAD) Belt

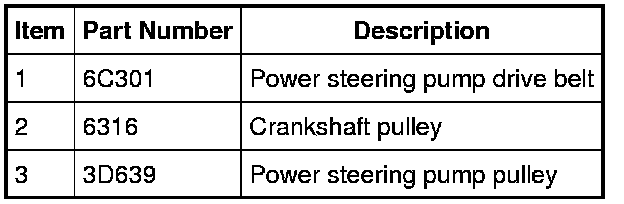

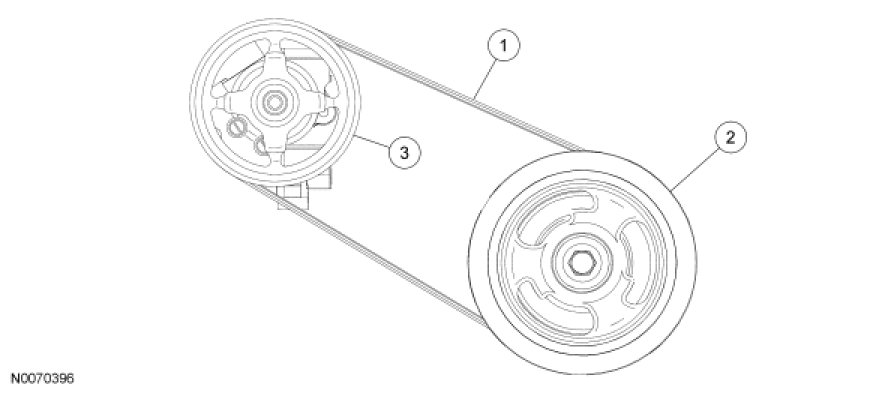

Power Steering Pump Belt
