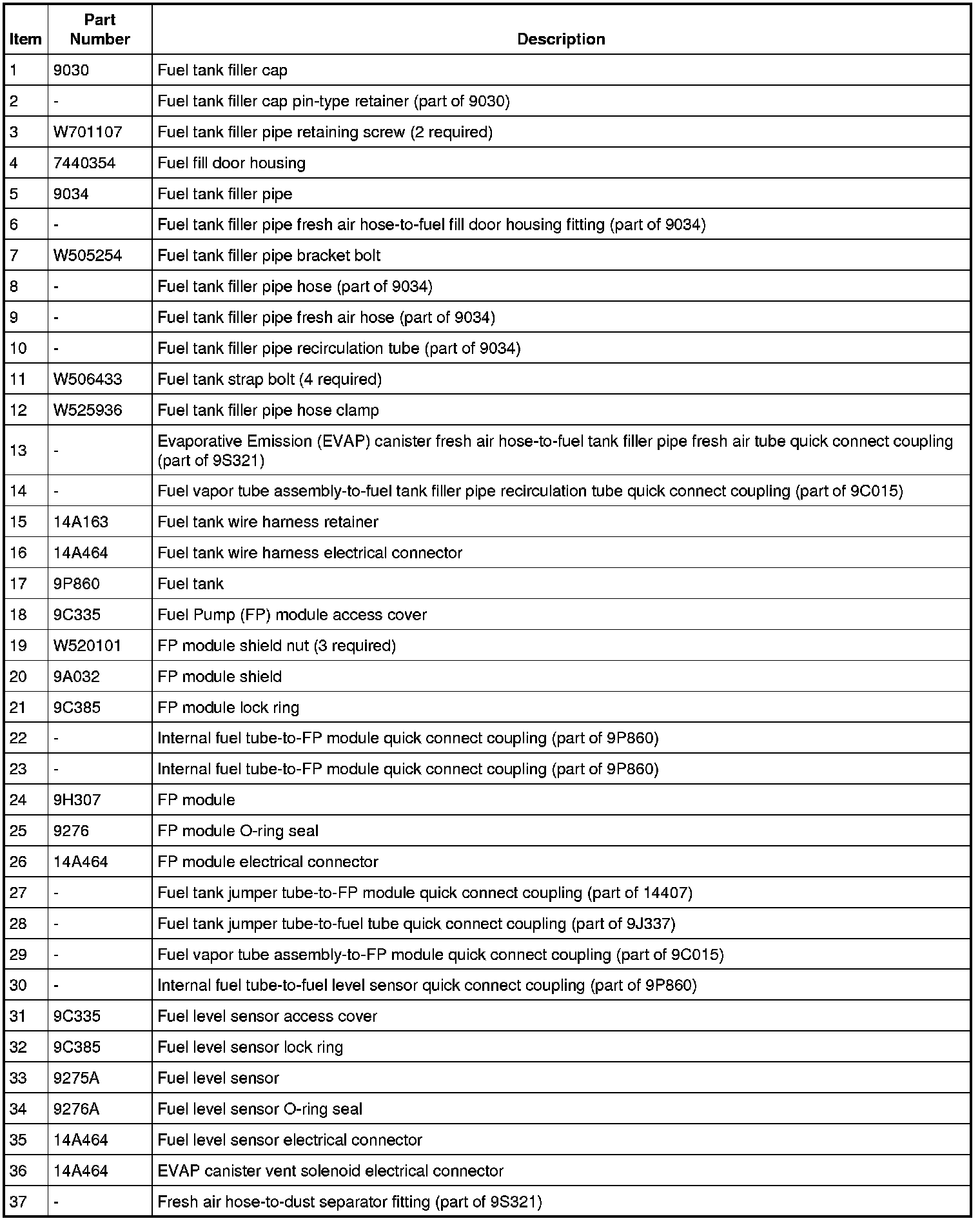

Fuel Tank and Filler Pipe - Exploded View

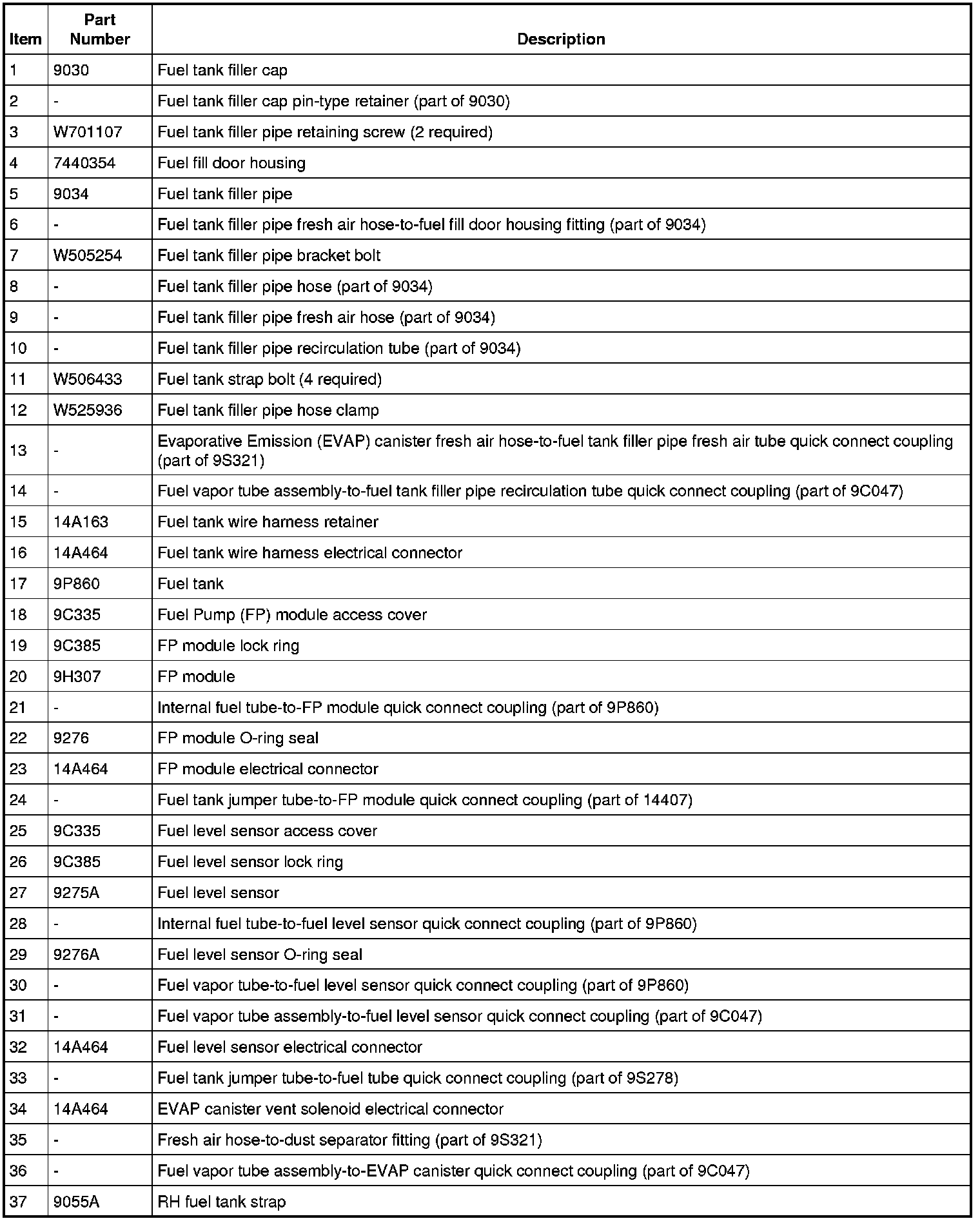

Fuel Tank and Filler Pipe - Exploded View

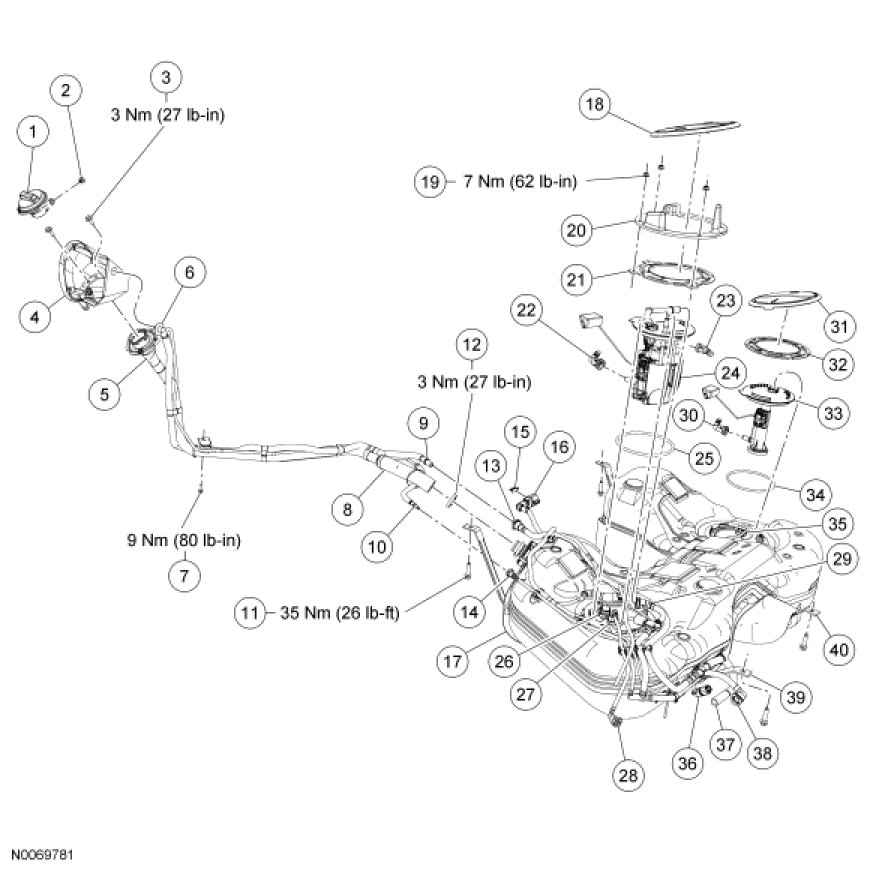

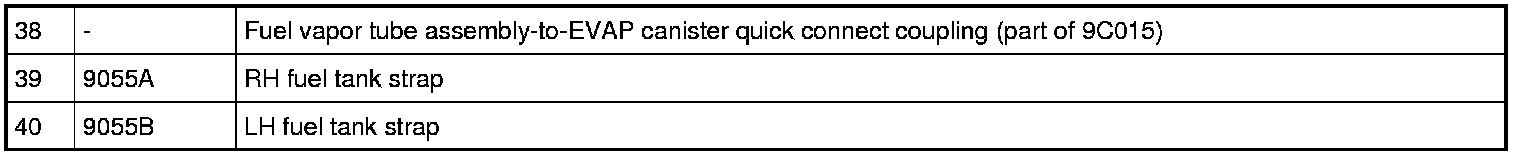

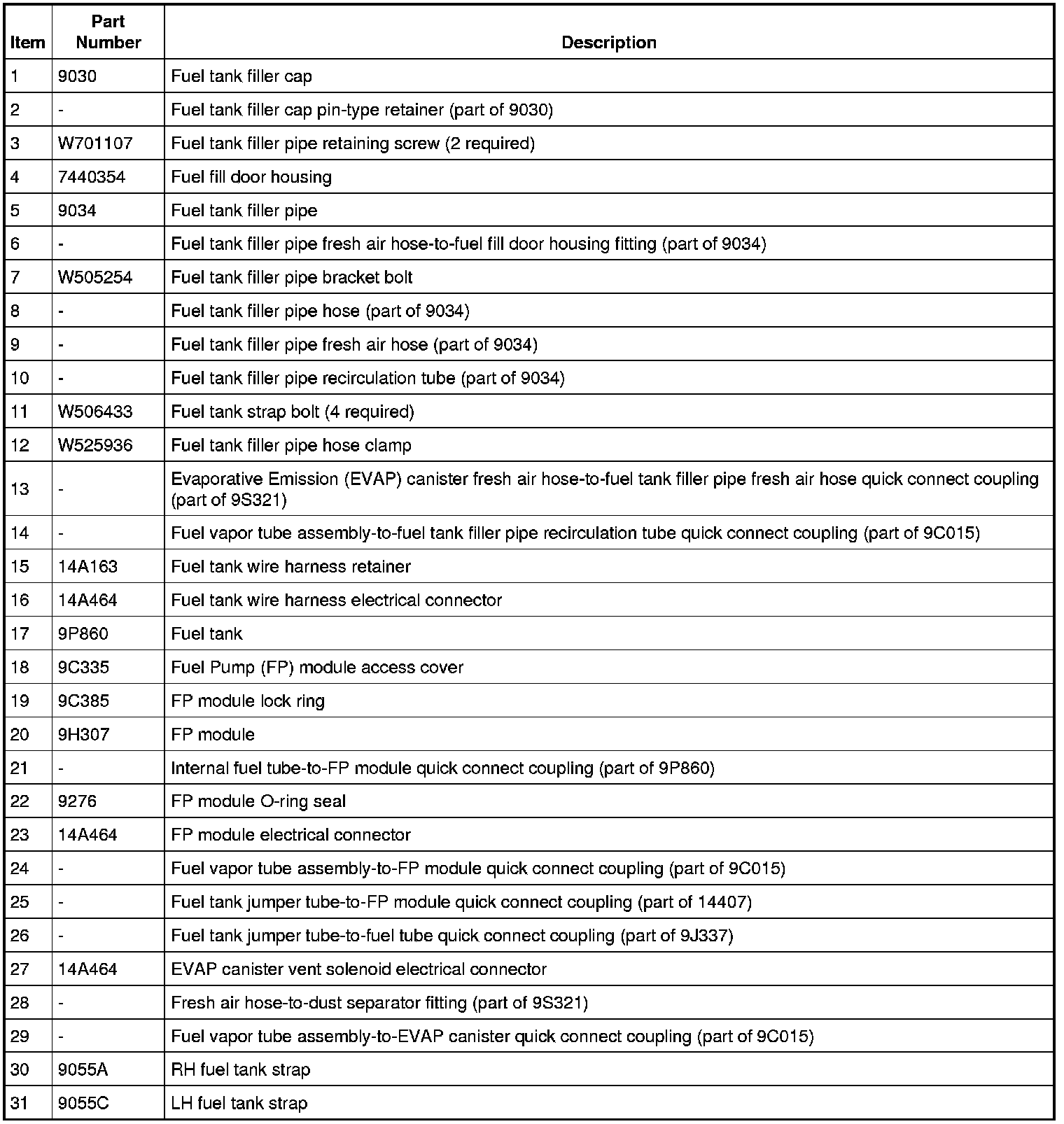

Taurus and Sable L-Shaped Fuel Tank

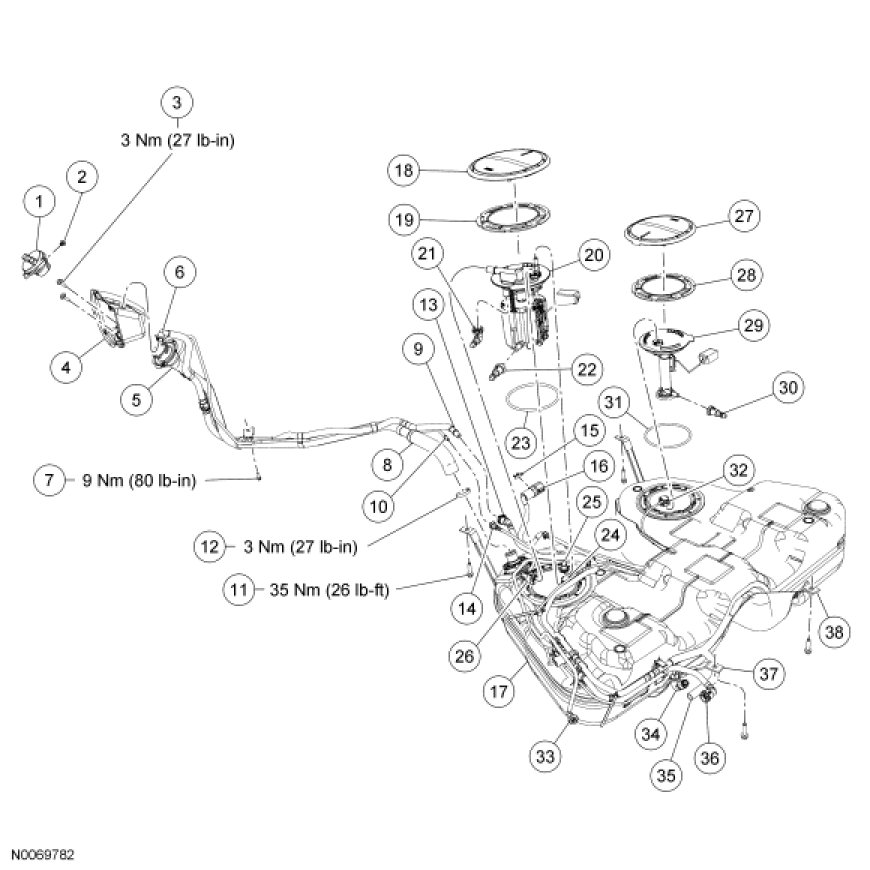

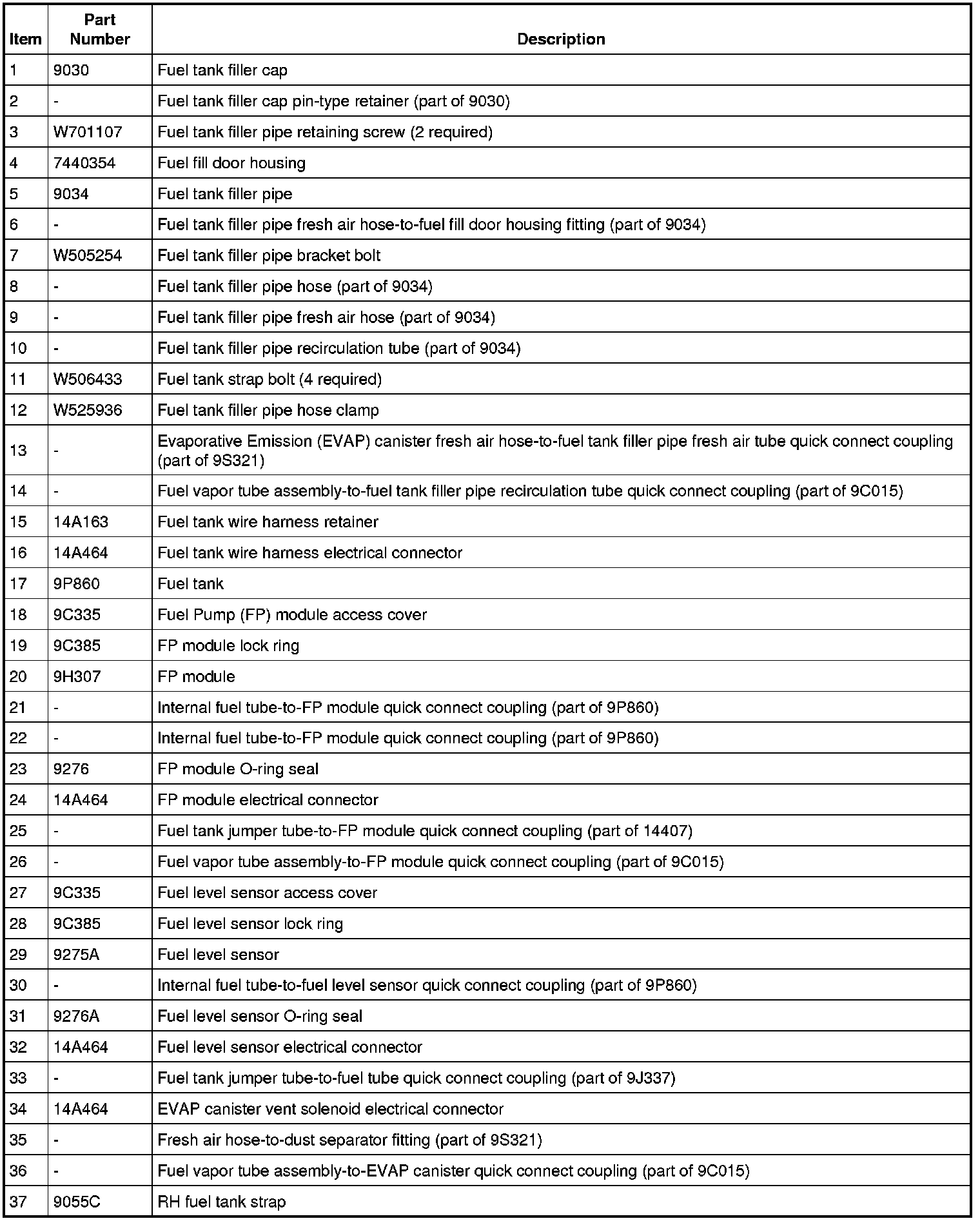

Taurus and Sable Saddle-Type Fuel Tank

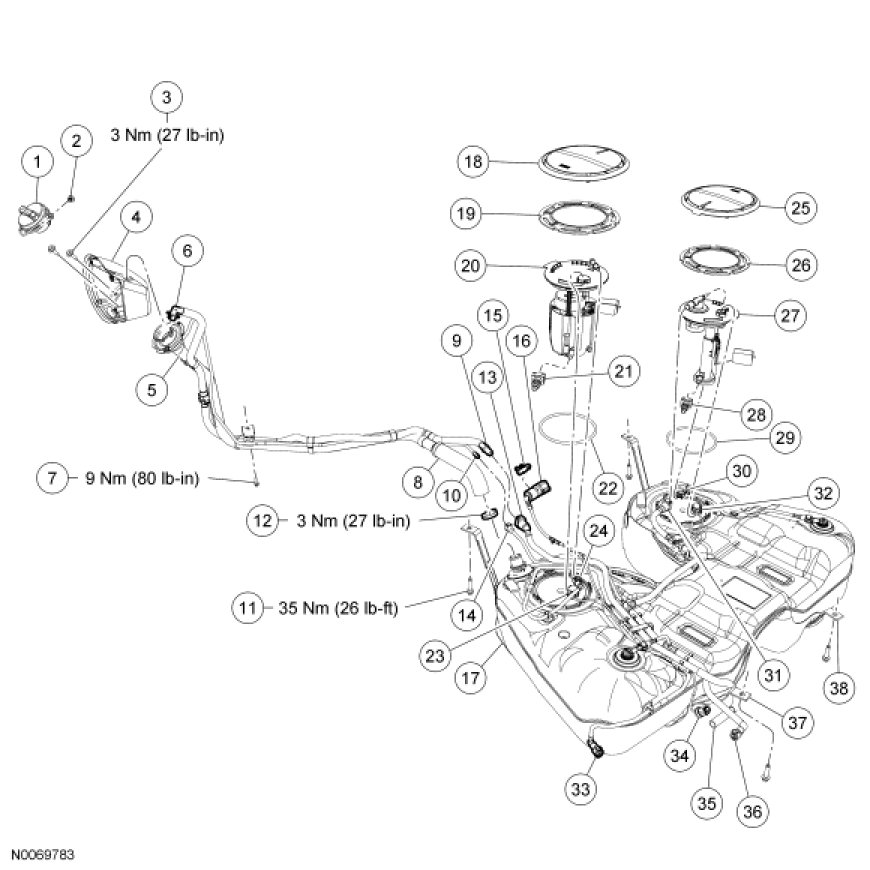

Taurus X Partial Zero Emissions Vehicle (PZEV)

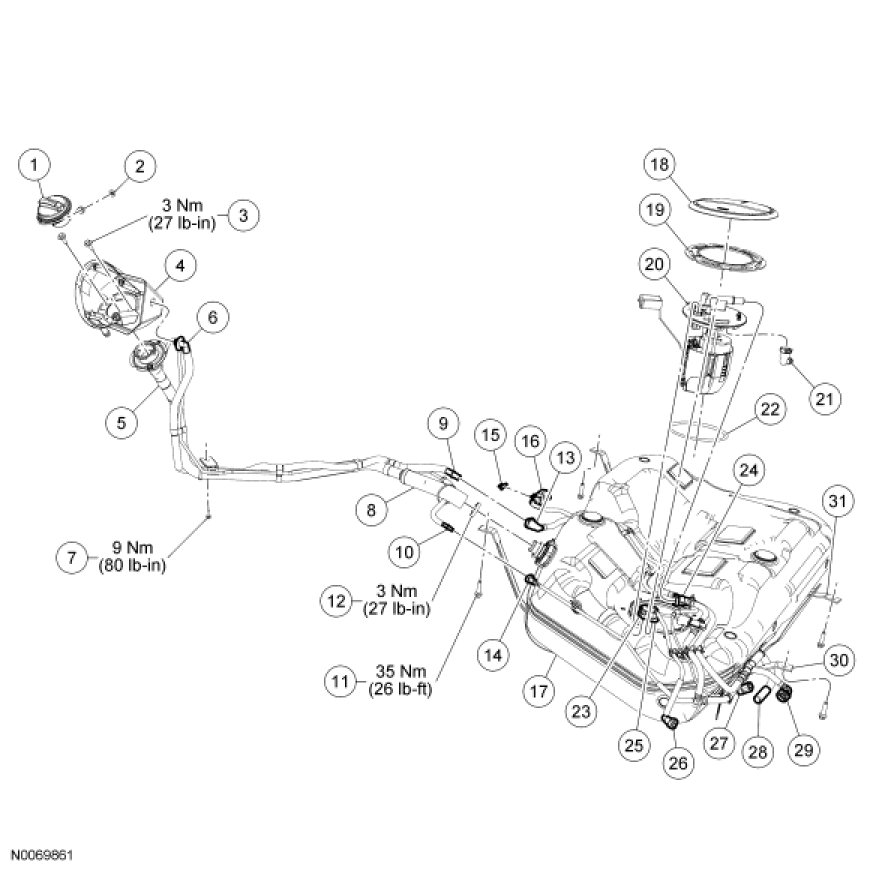

Taurus X Federal Emission















All Vehicles









1. For additional information, refer to the procedures.
