DH - Throttle Position (TP) Sensor
PINPOINT TEST DH: THROTTLE POSITION (TP) SENSOR

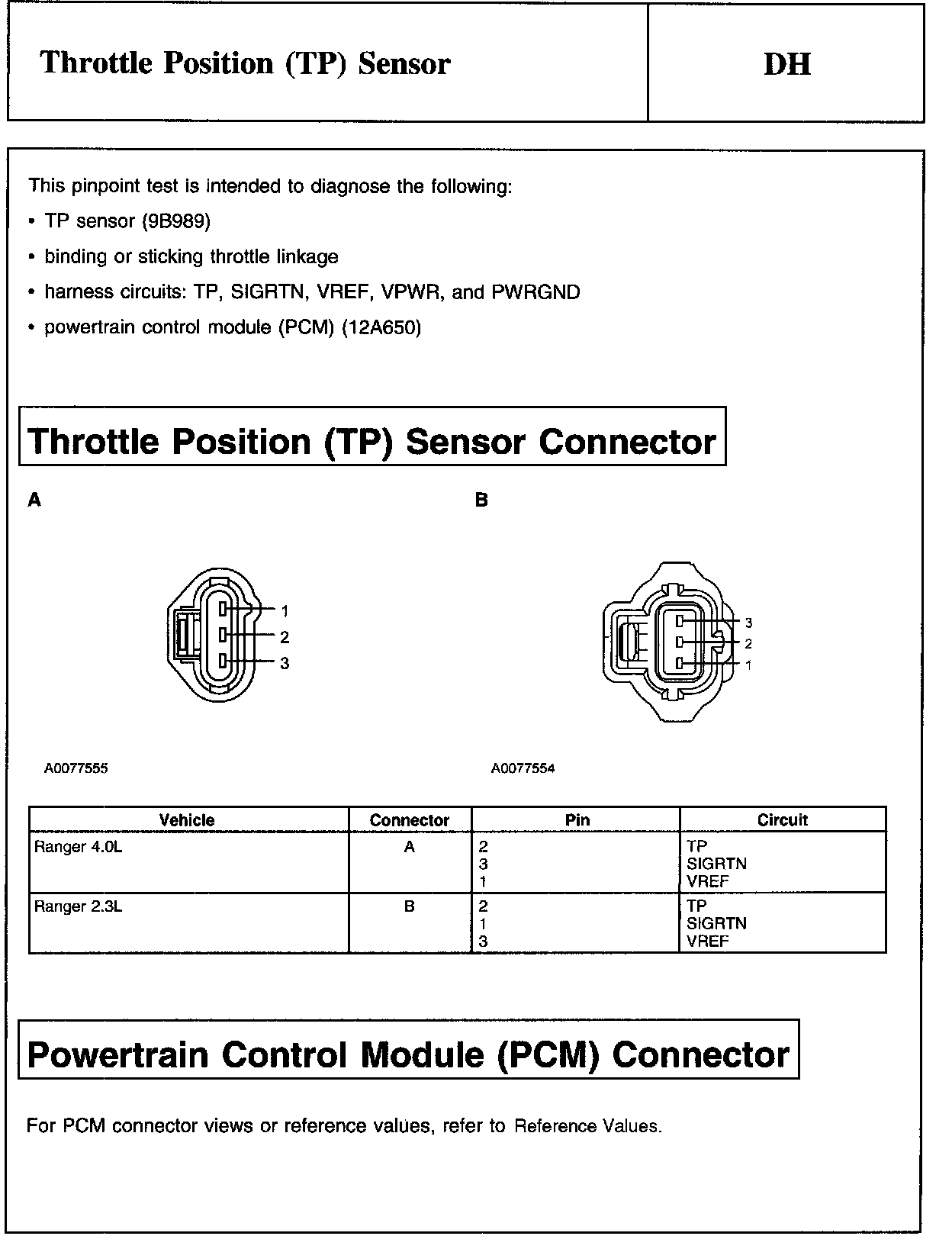

Throttle Position Sensor And Powertrain Control Module Connector:

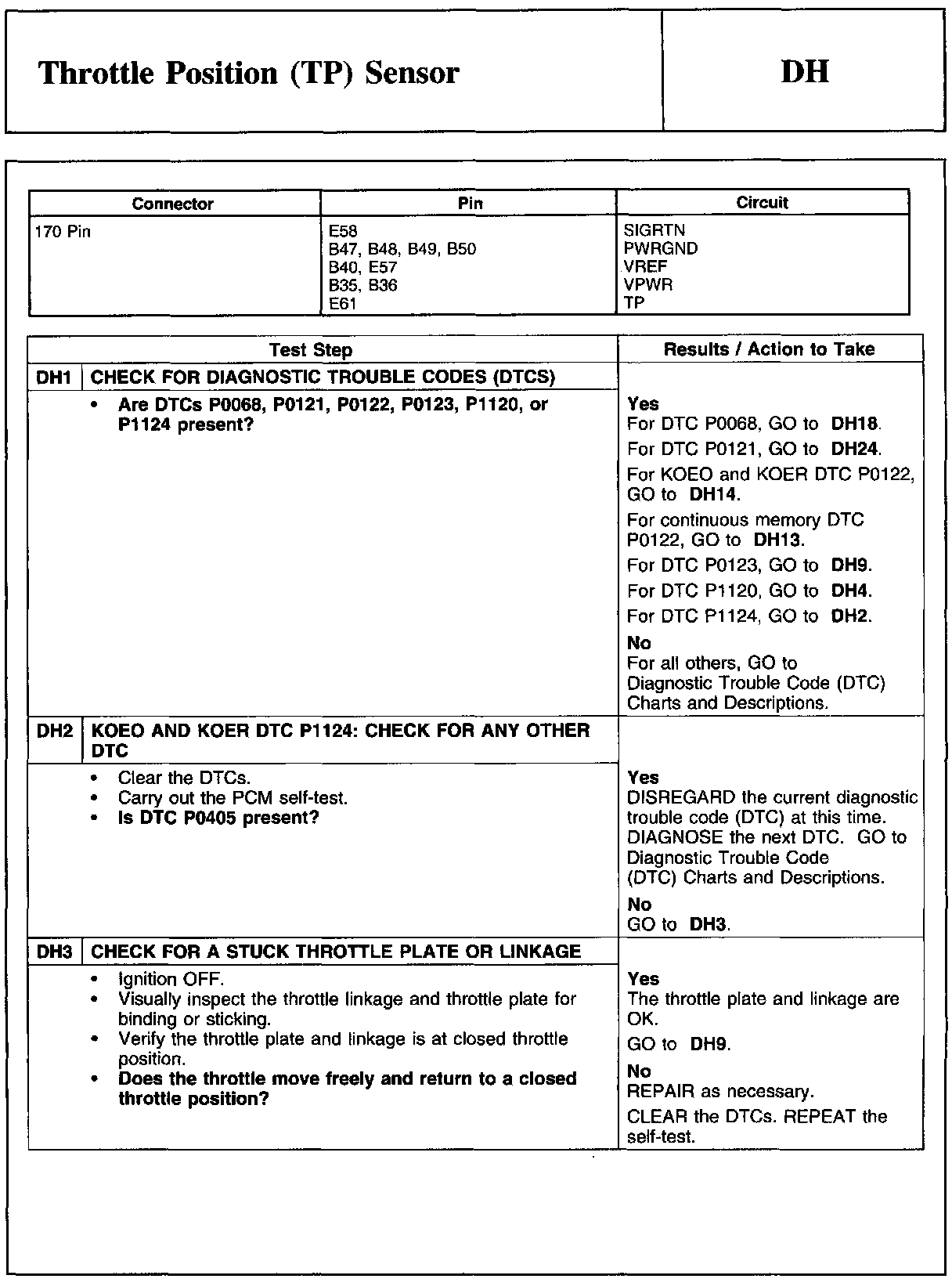

DH1-DH3:

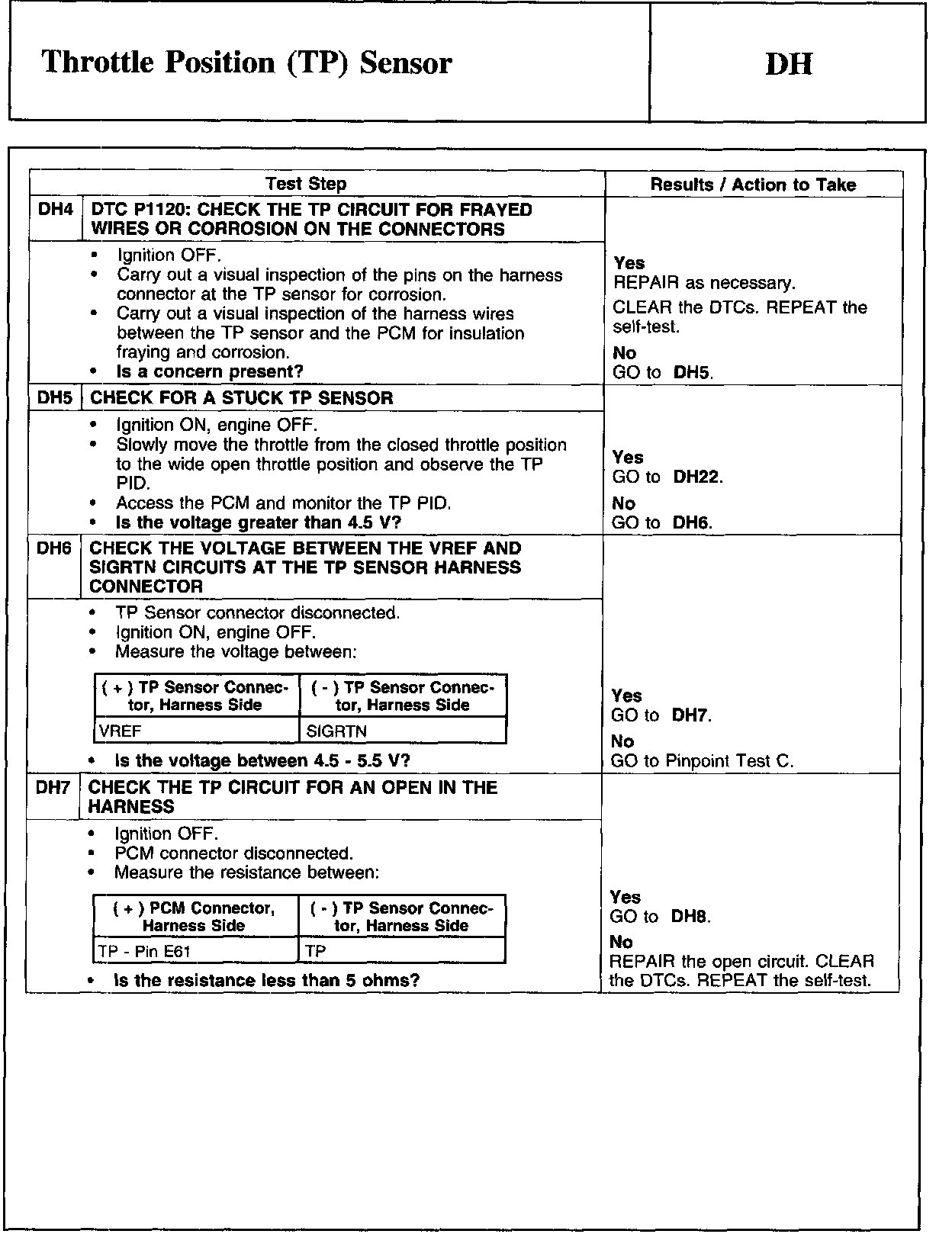

DH4-DH7:

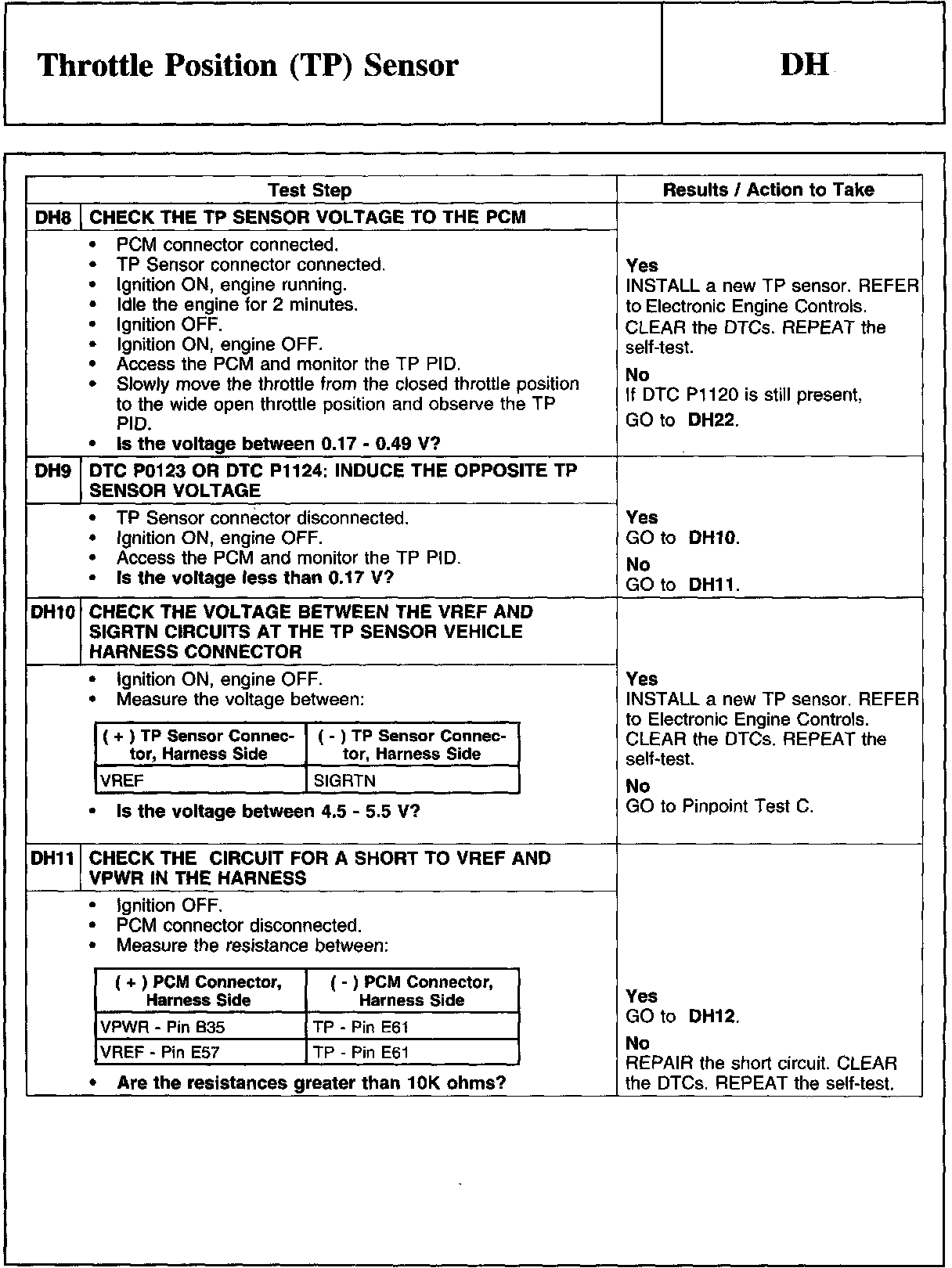

DH8-DH11:

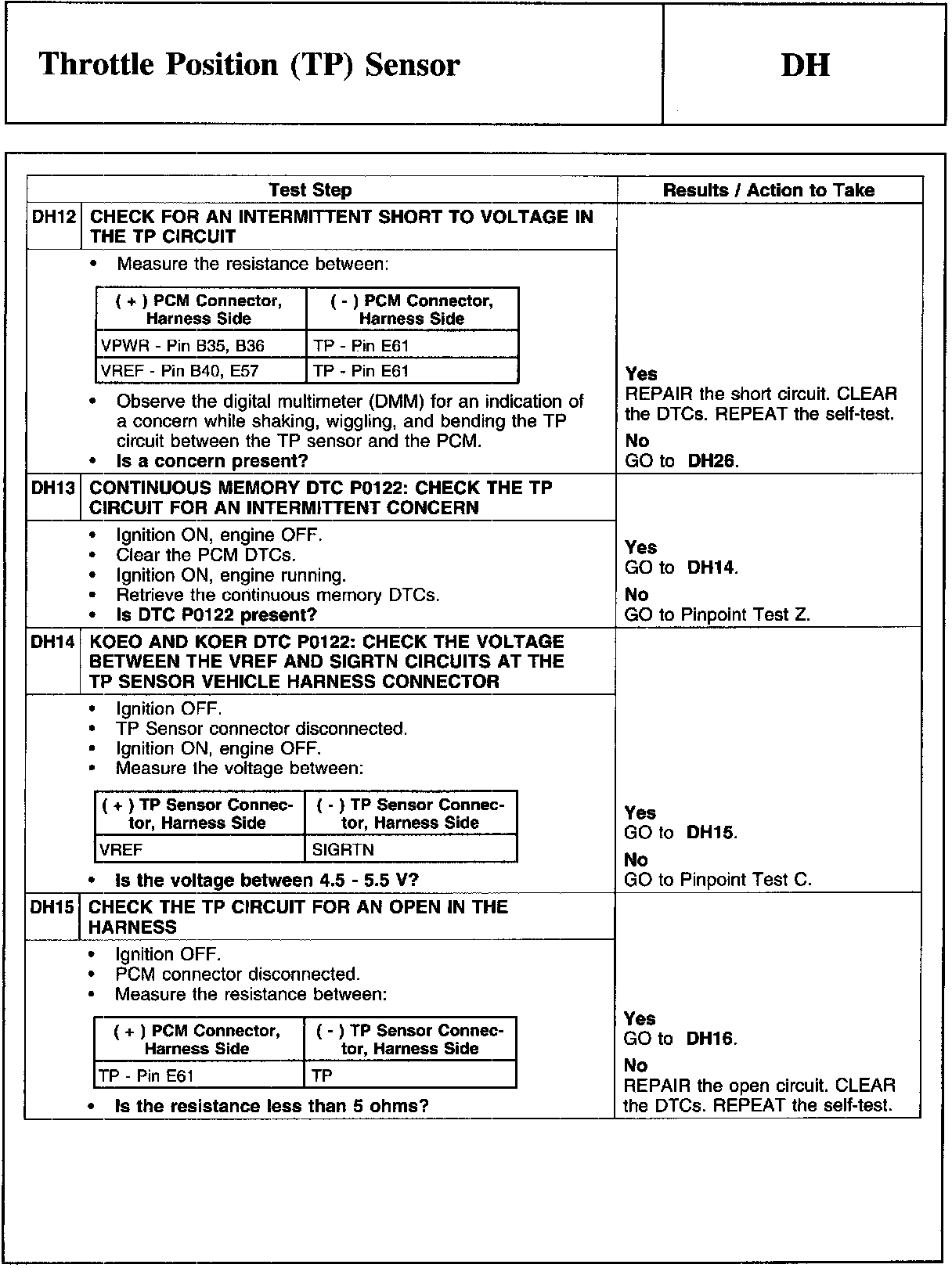

DH12-DH15:

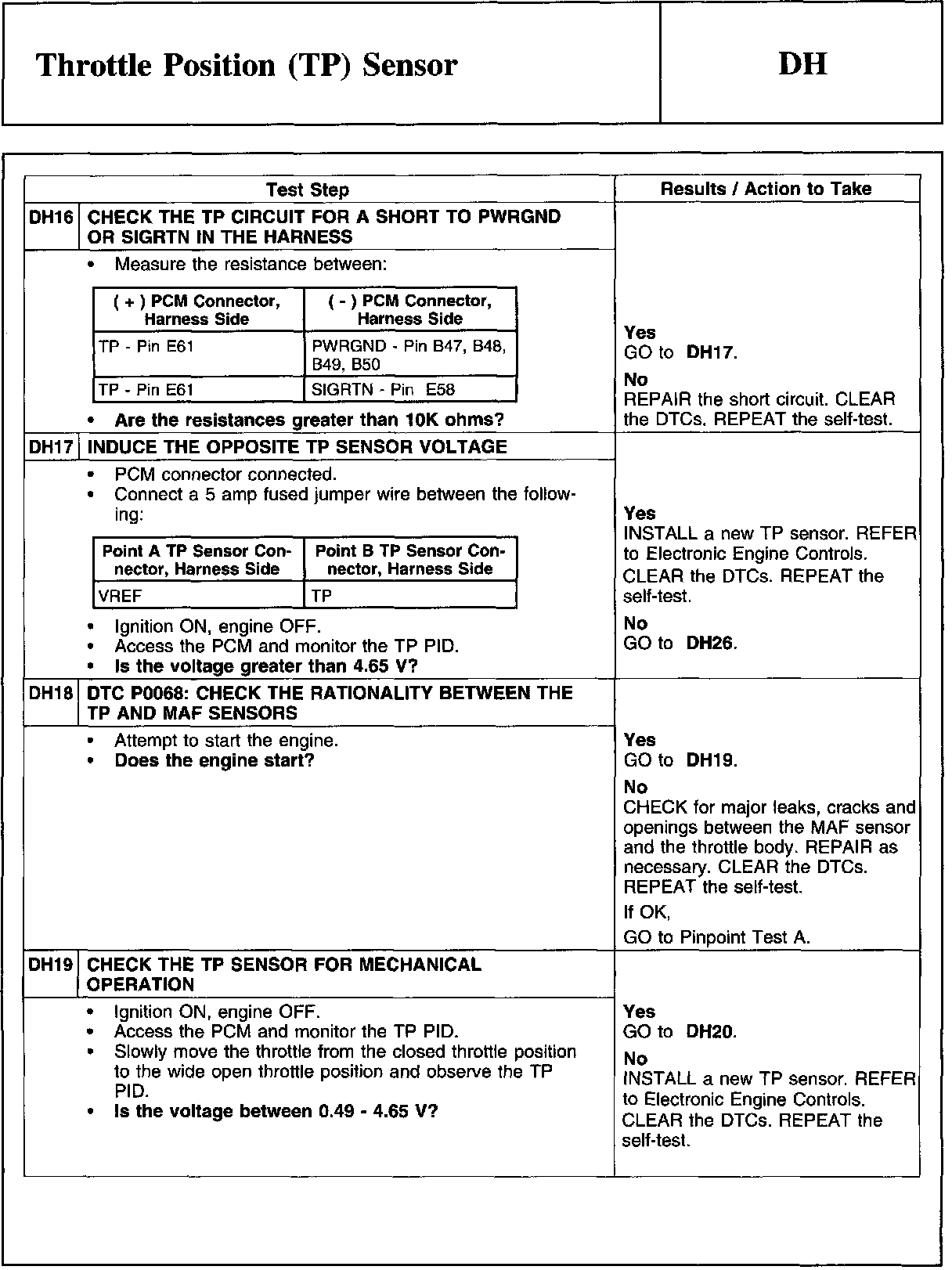

DH16-DH19:

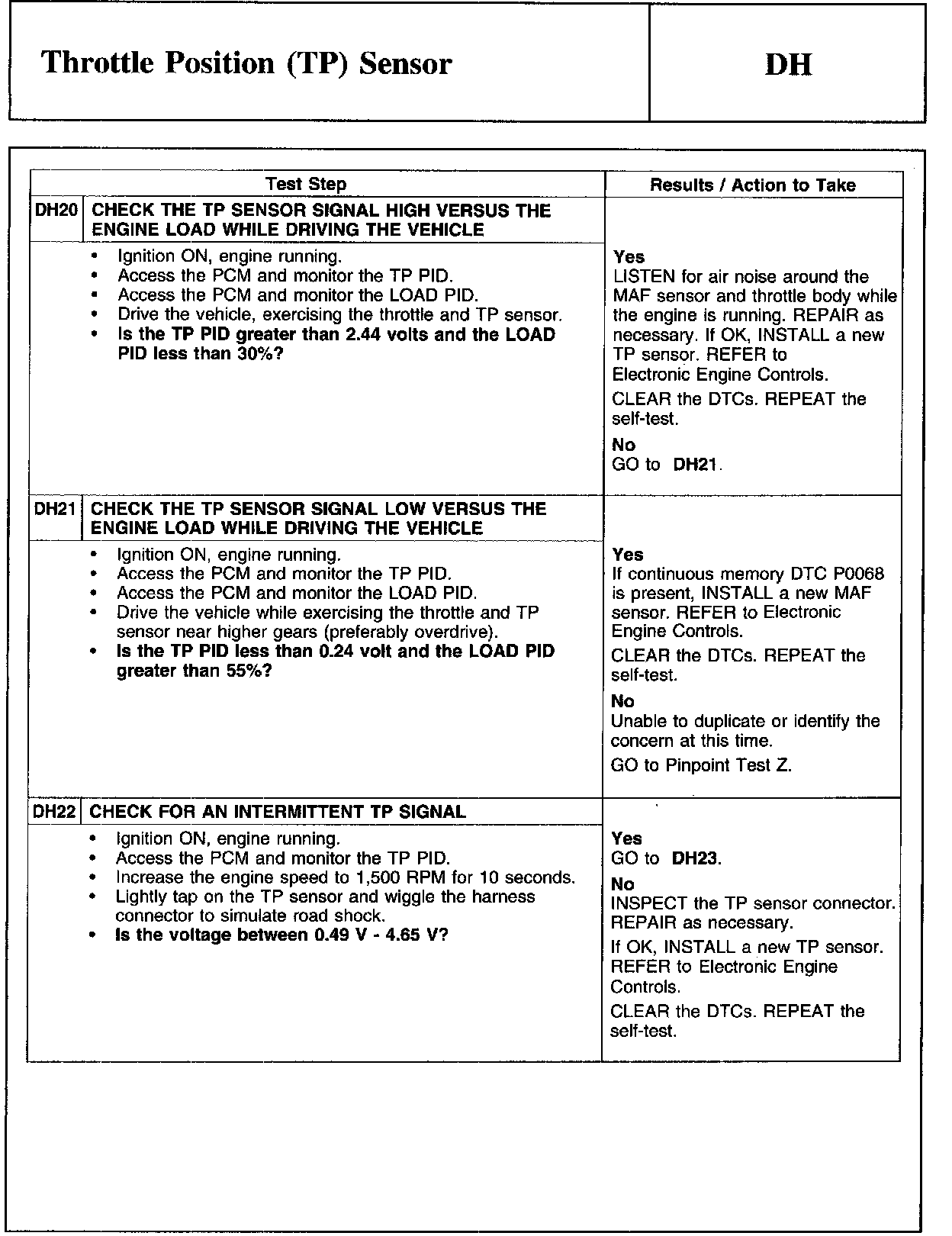

DH20-DH22:

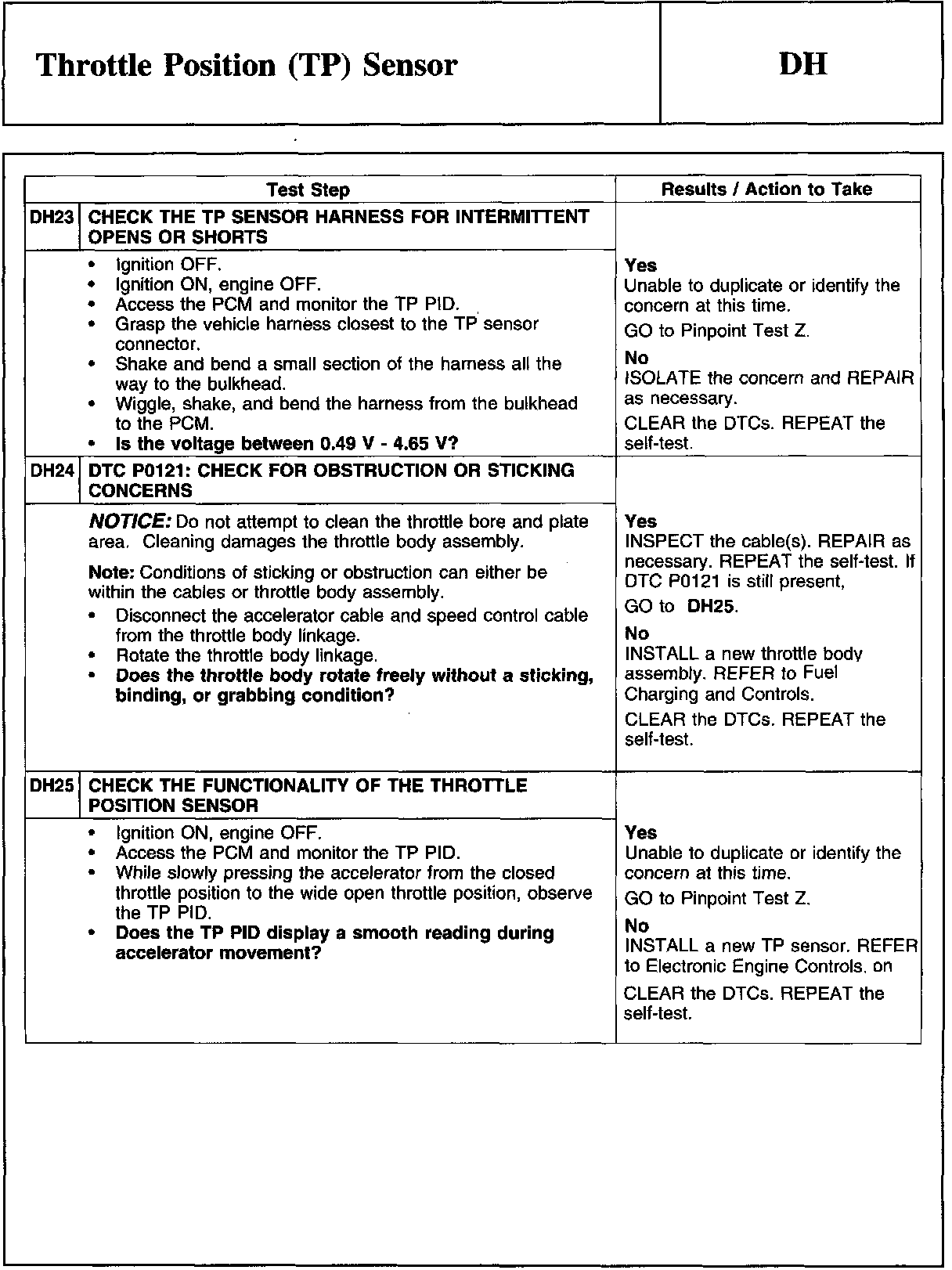

DH23-DH25:

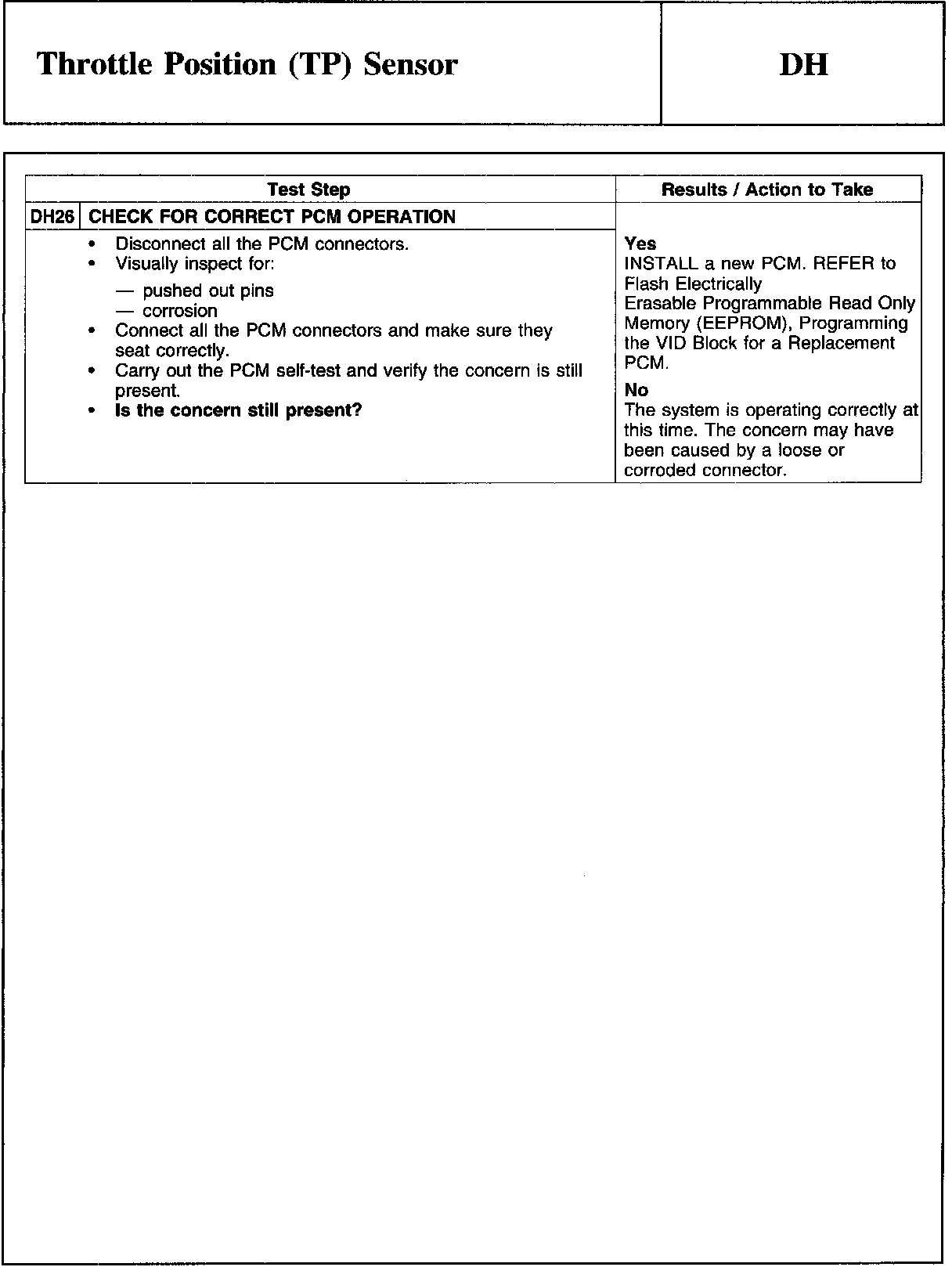

DH26:
