FD - Brake Pedal Inputs
PINPOINT TEST FD: BRAKE PEDAL INPUTS

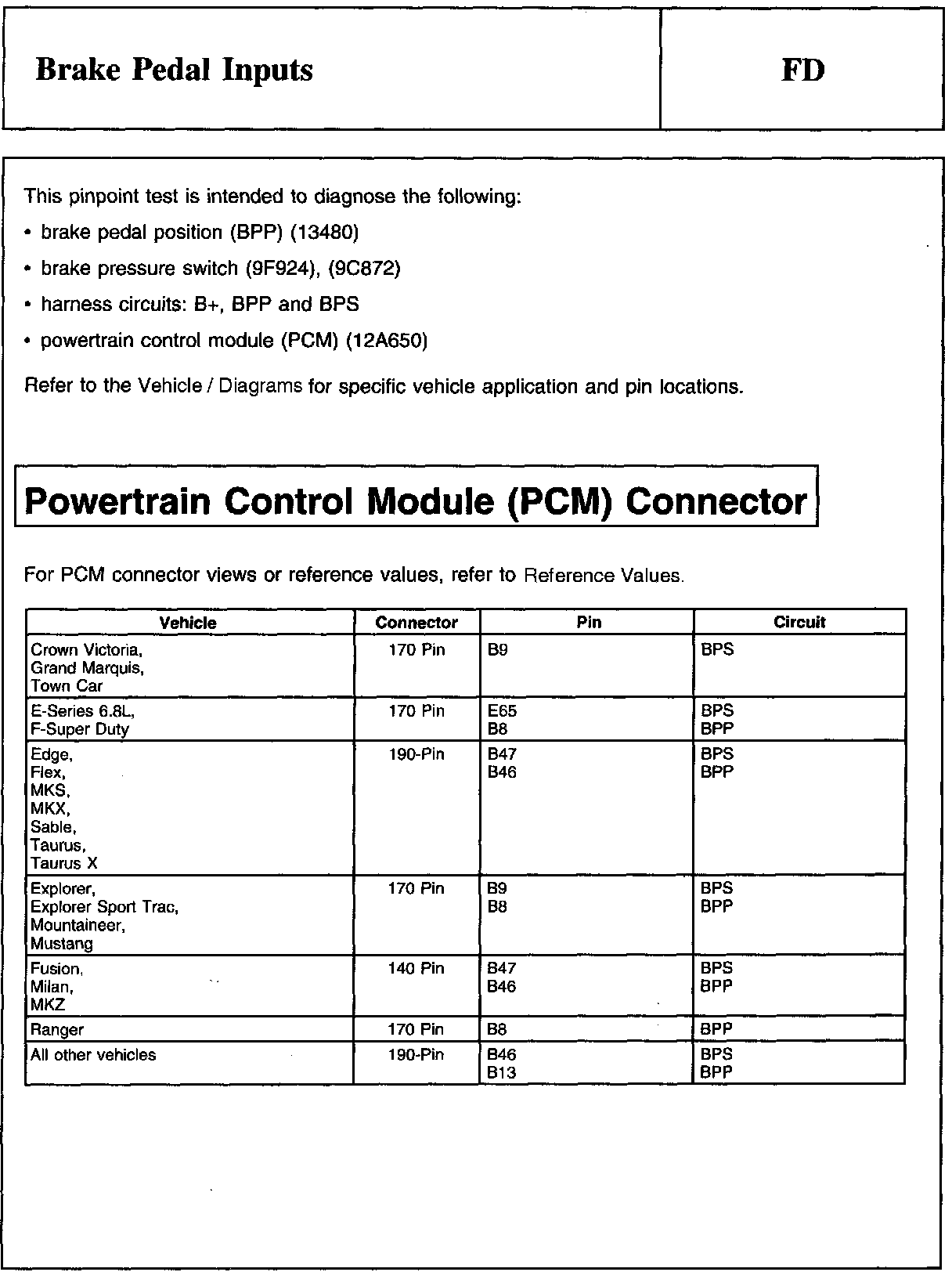

Powertrain Control Module Connector:

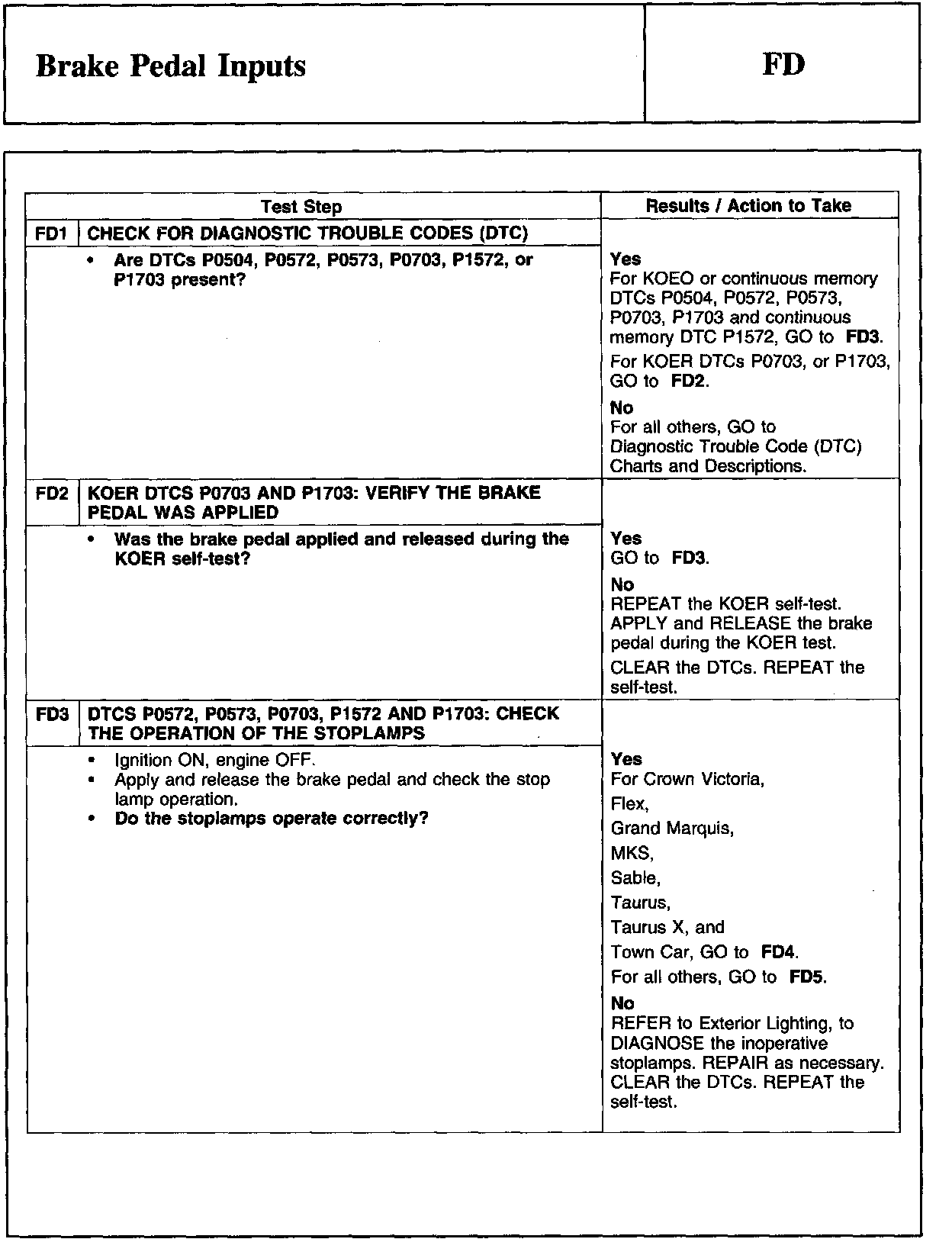

FD1-FD3:

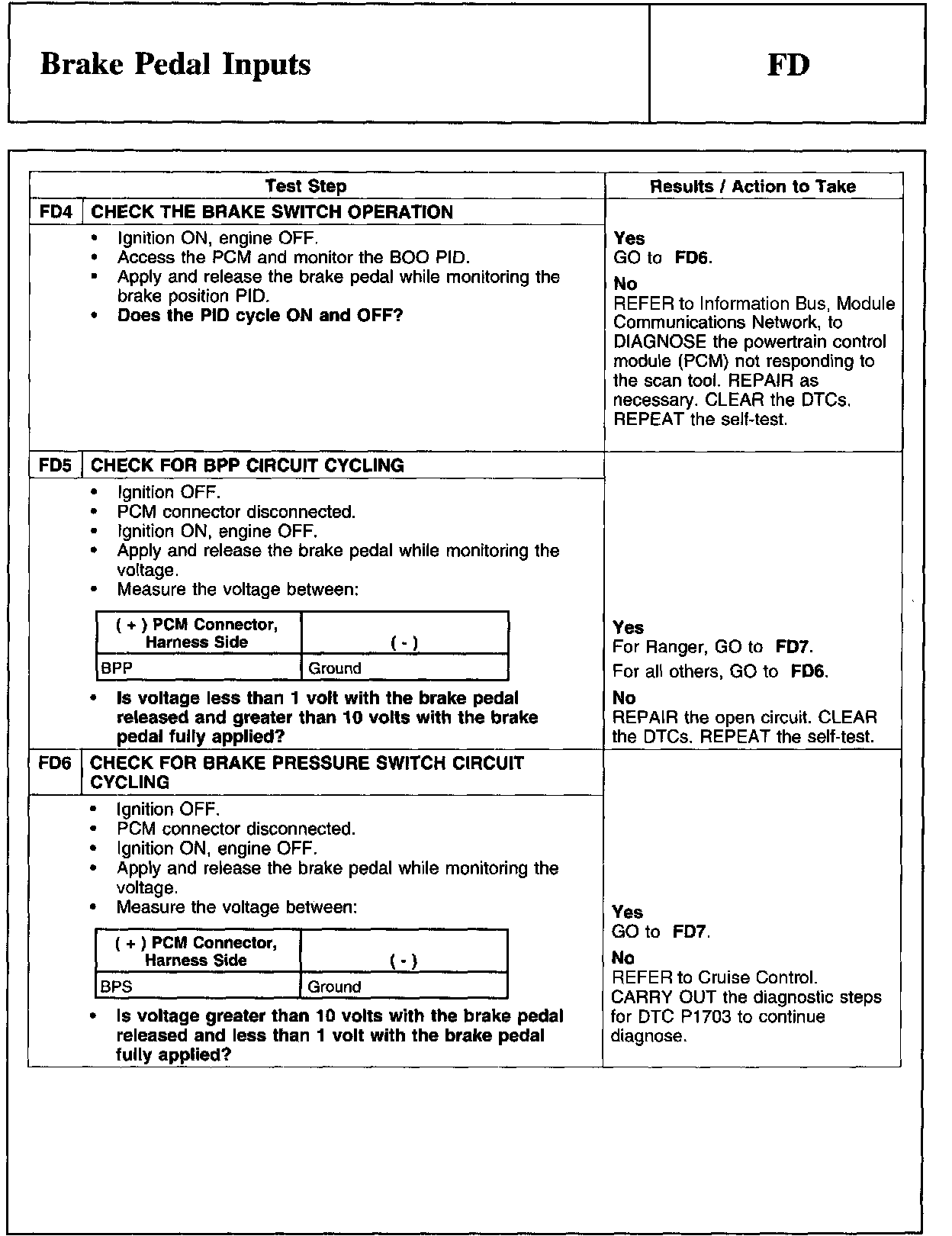

FD4-FD6:

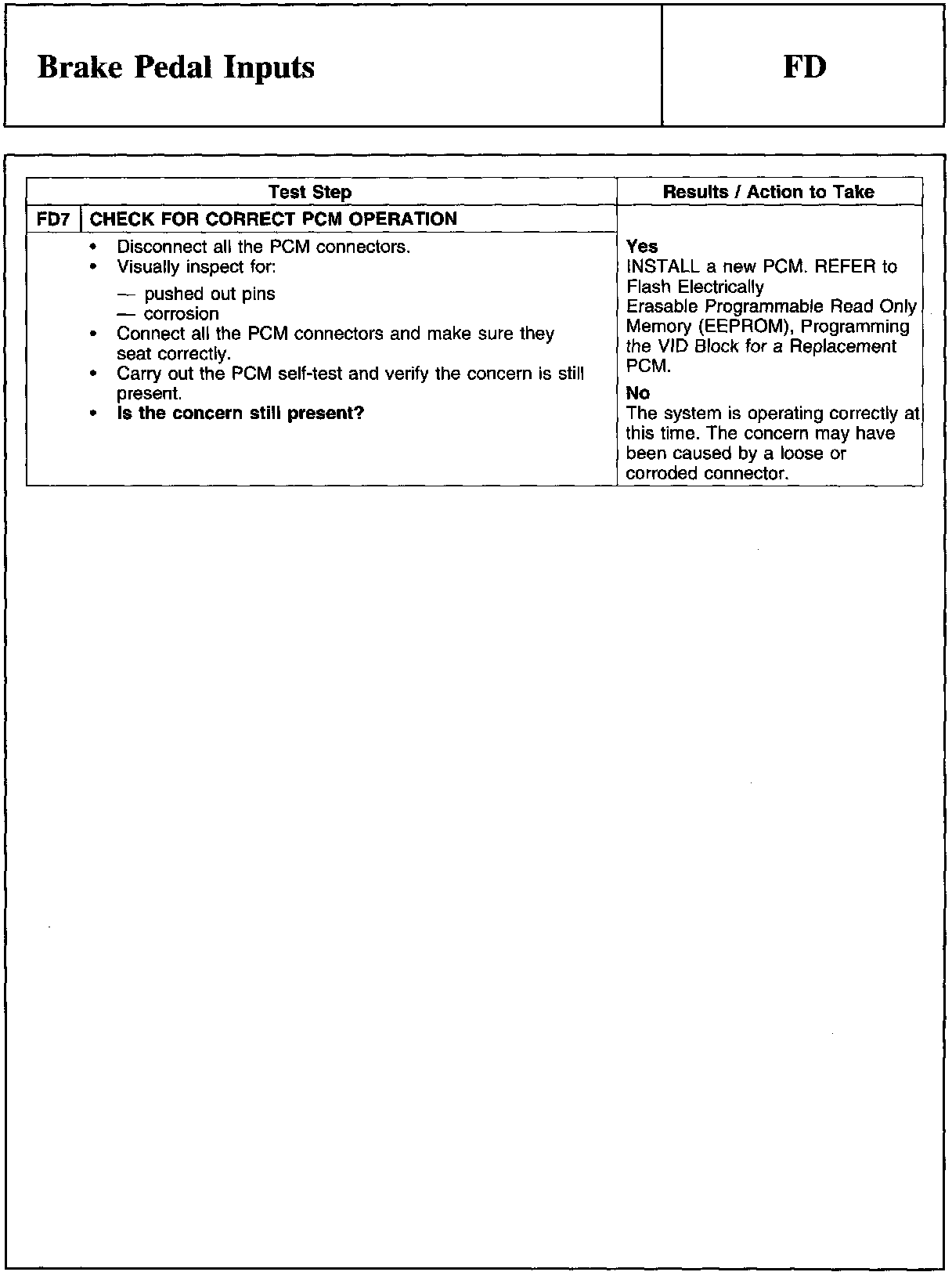

FD7:
