HU - Intake Air Systems

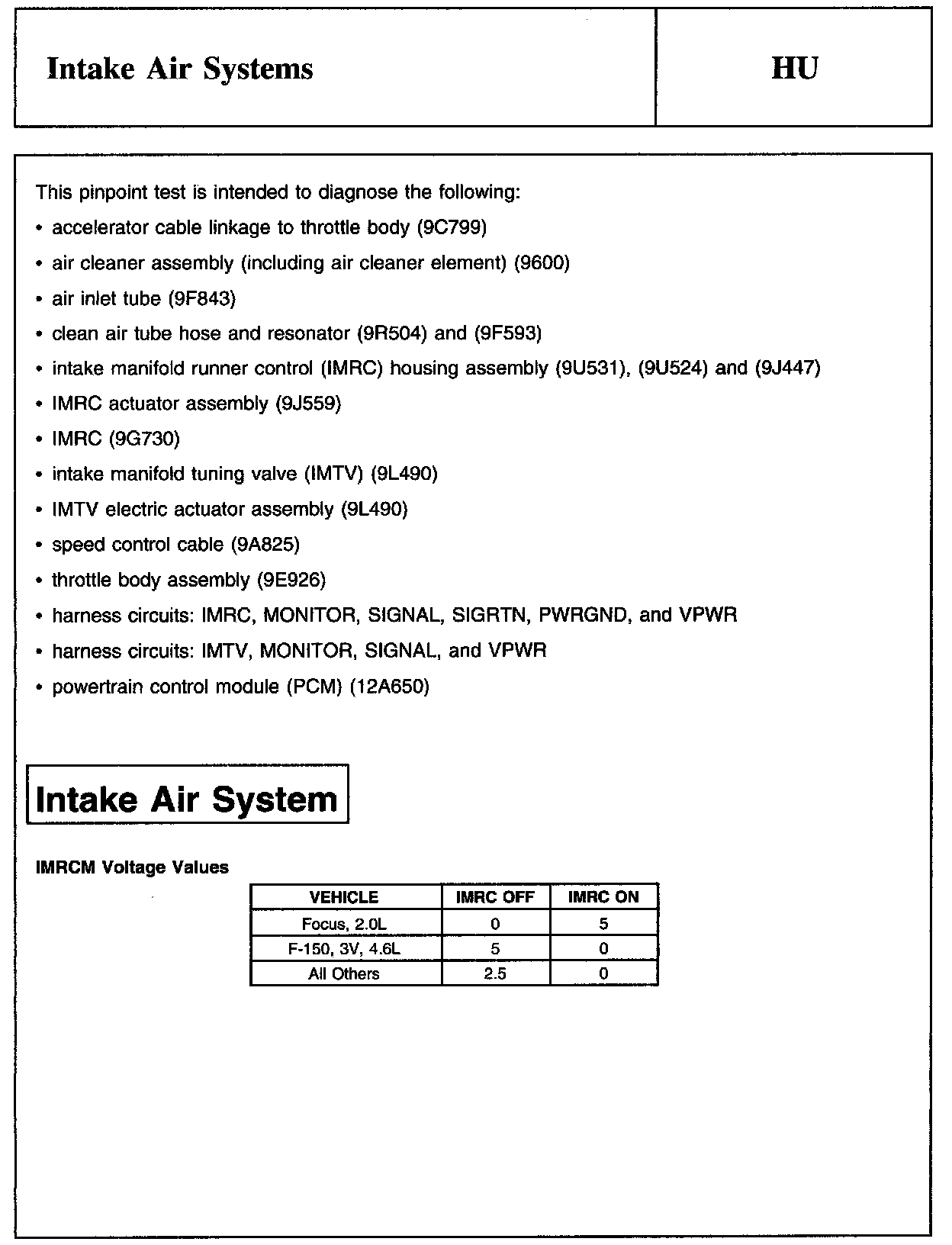

IMRCM Voltage Values:

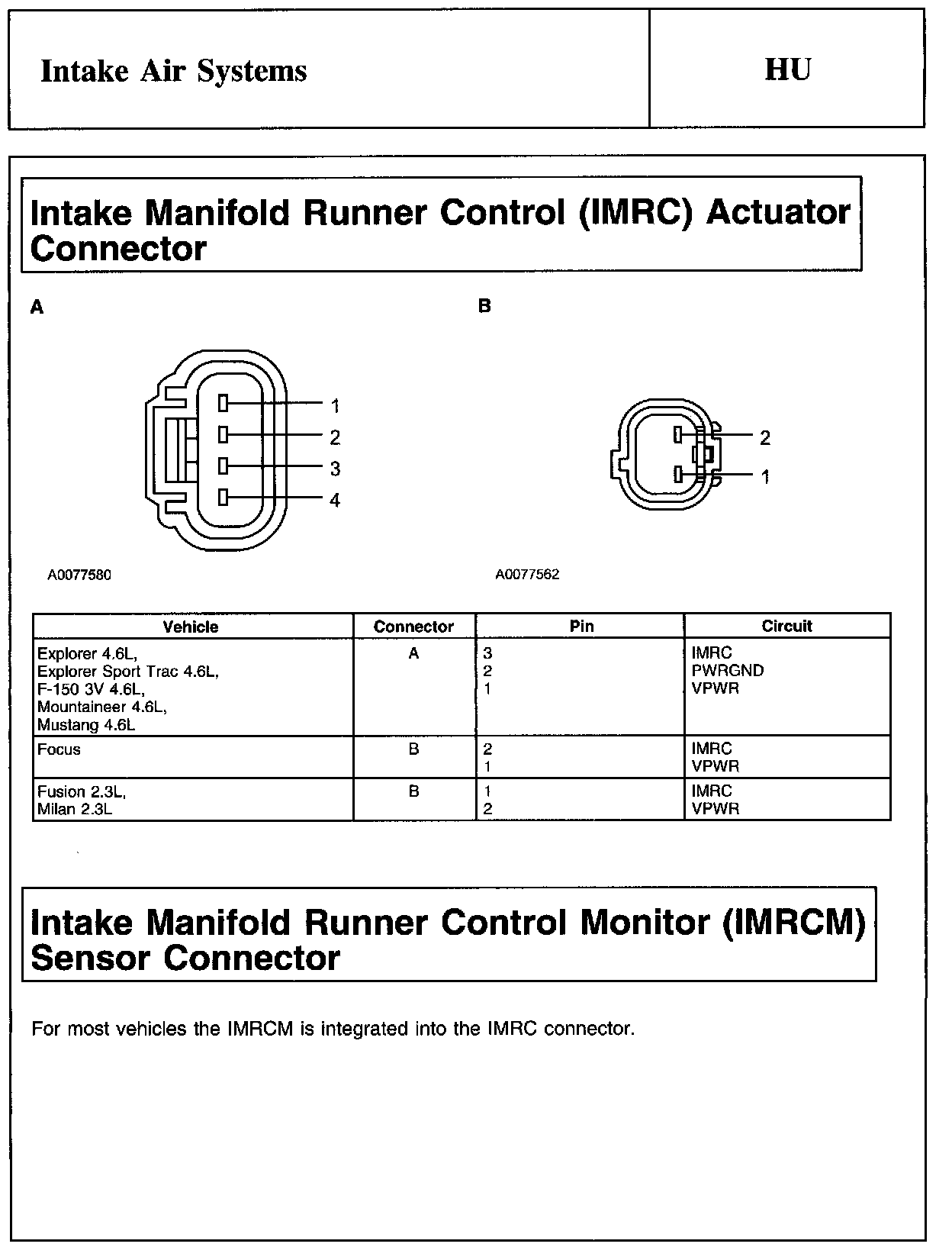

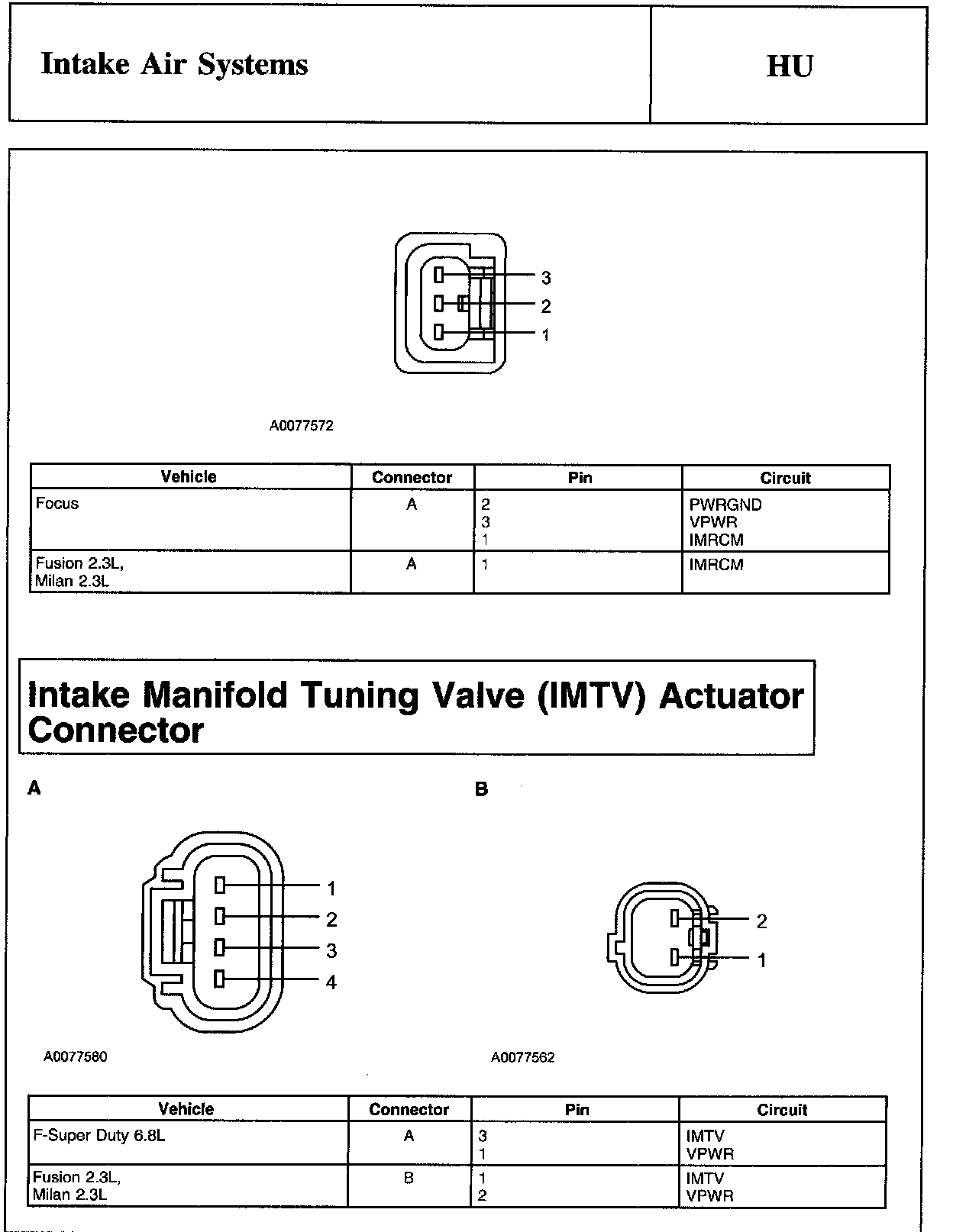

Intake Manifold Runner Control Actuator And Intake Manifold Runner Control Monitor Sensor Connector:

Intake Manifold Tuning Valve Actuator Connector:

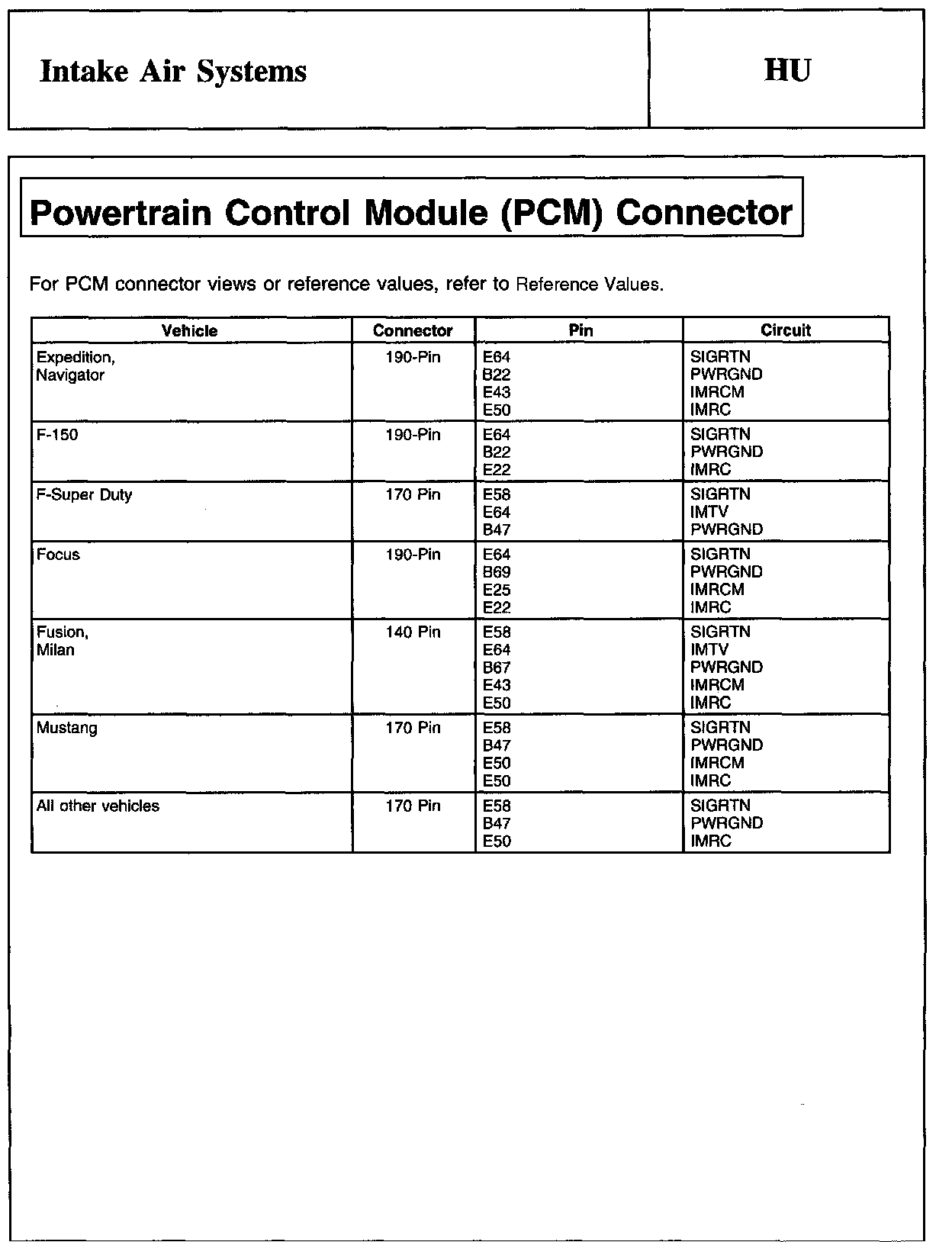

Powertrain Control Module Connector:

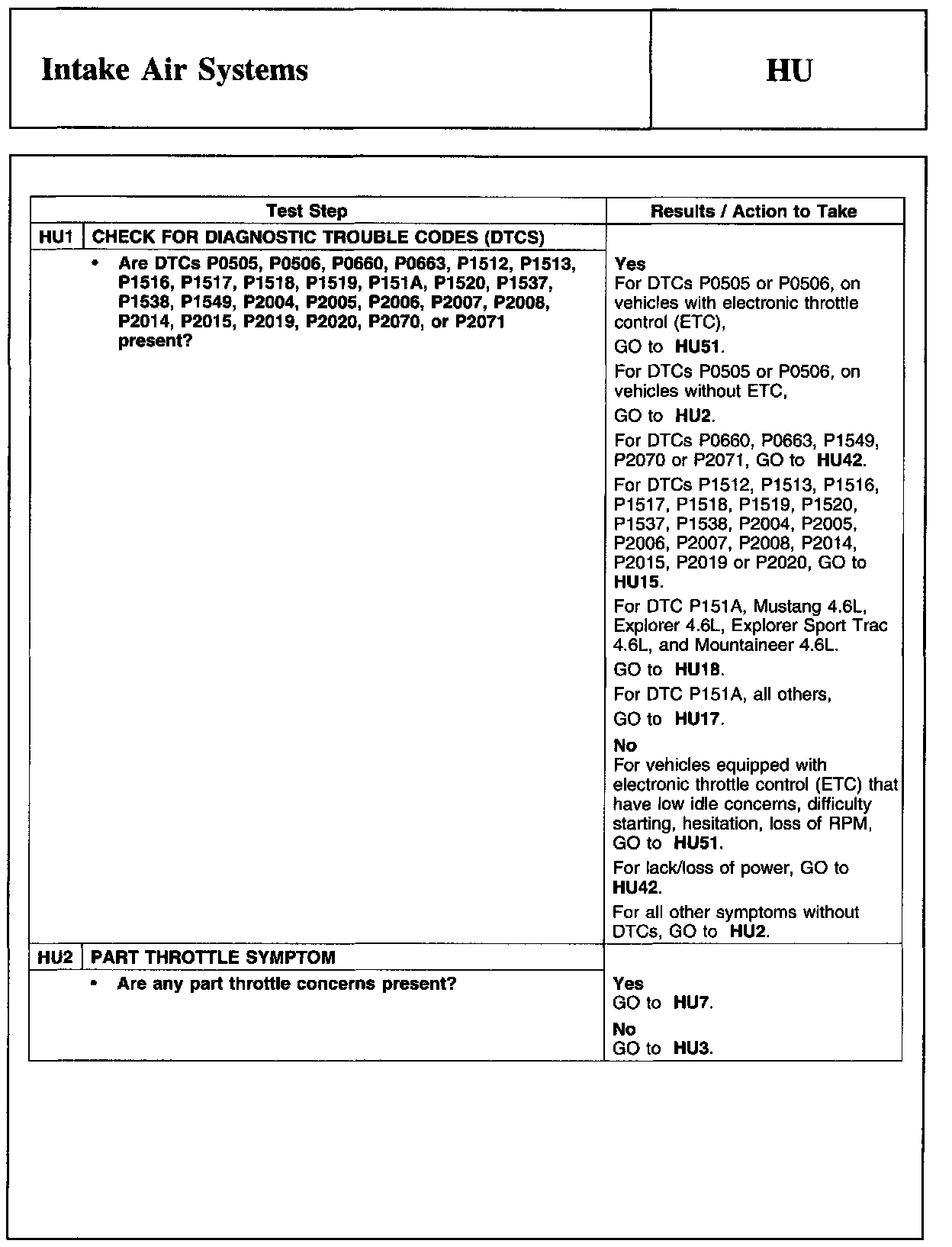

HU1-HU2:

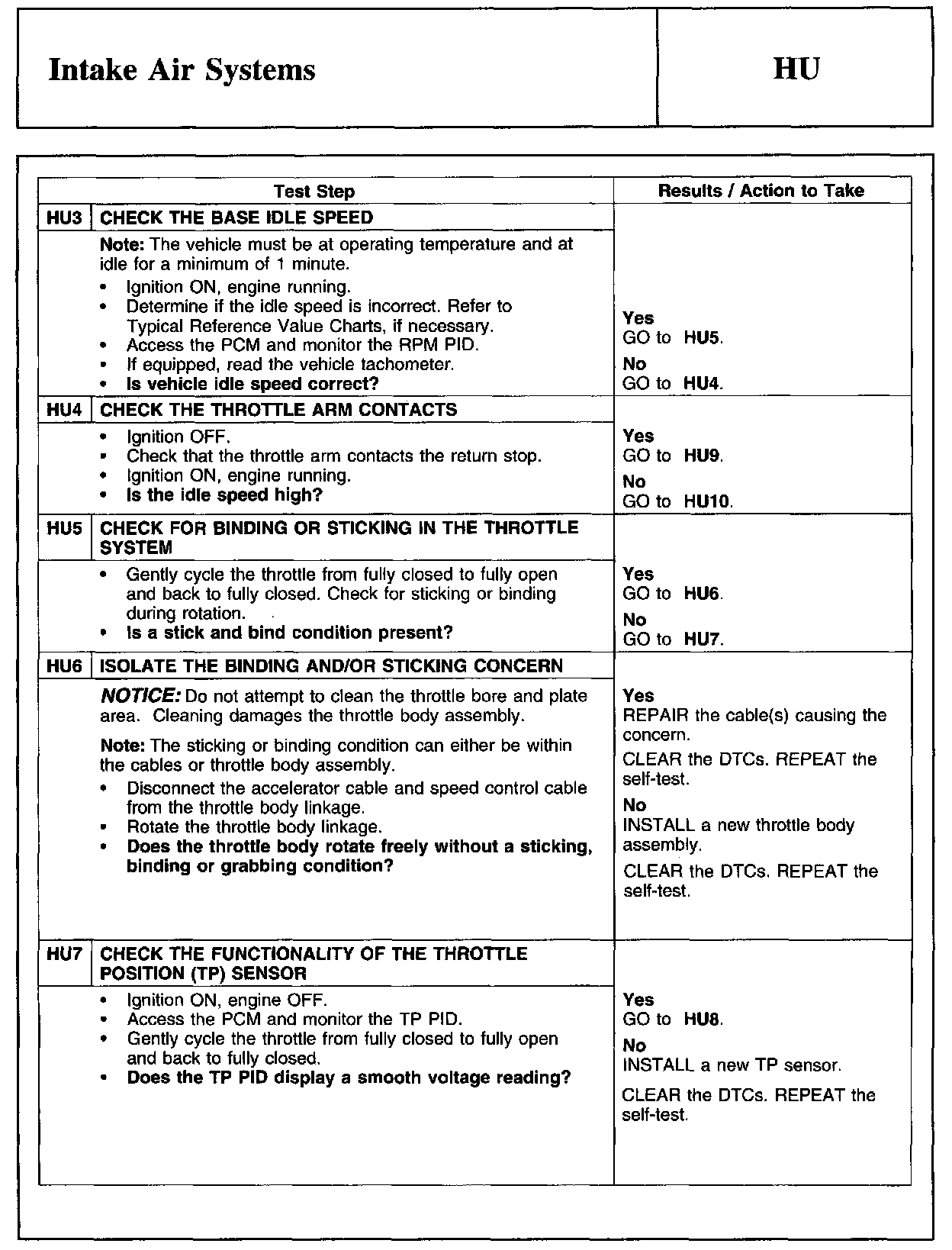

HU3-HU7:

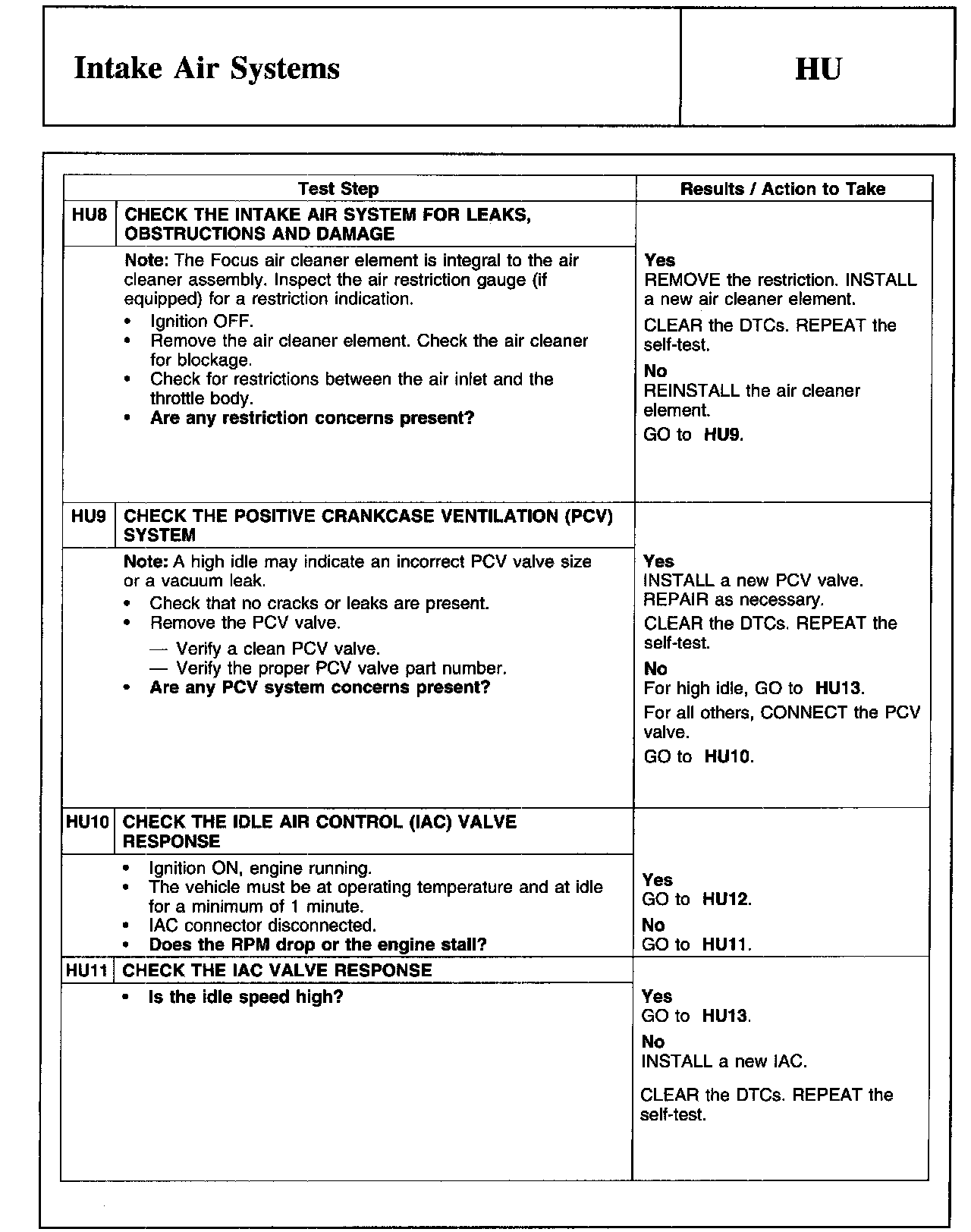

HU8-HU11:

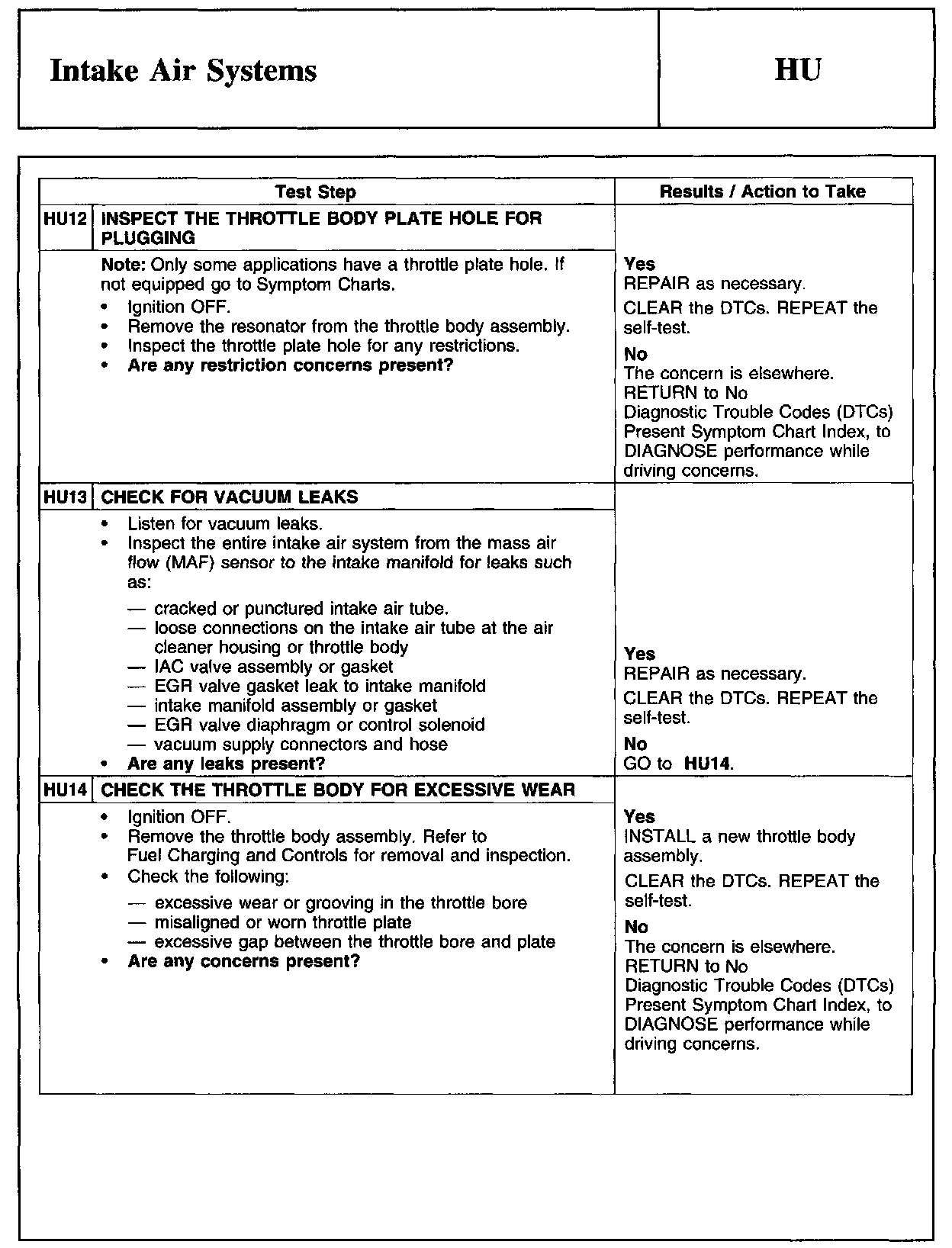

HU12-HU14:

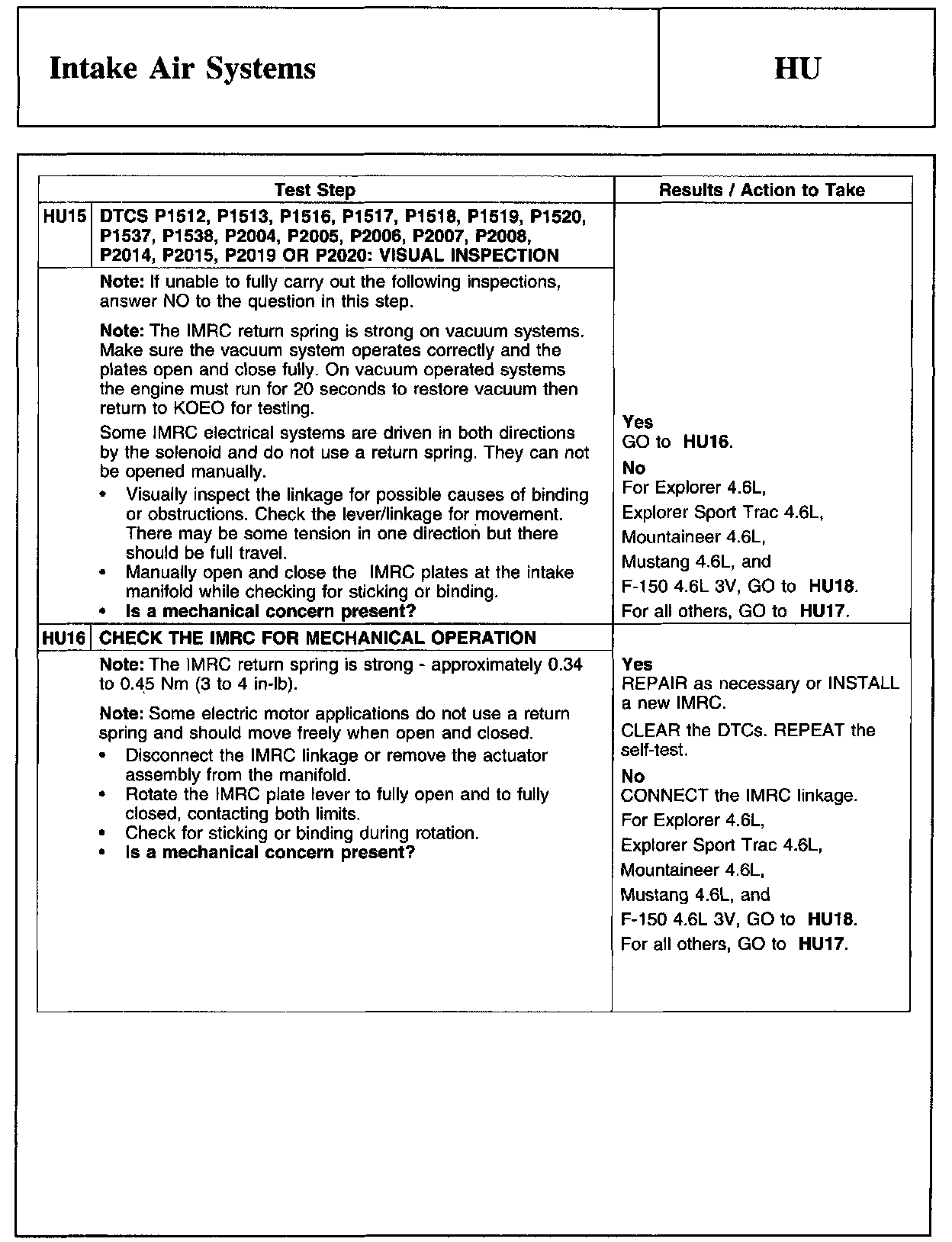

HU15-HU16:

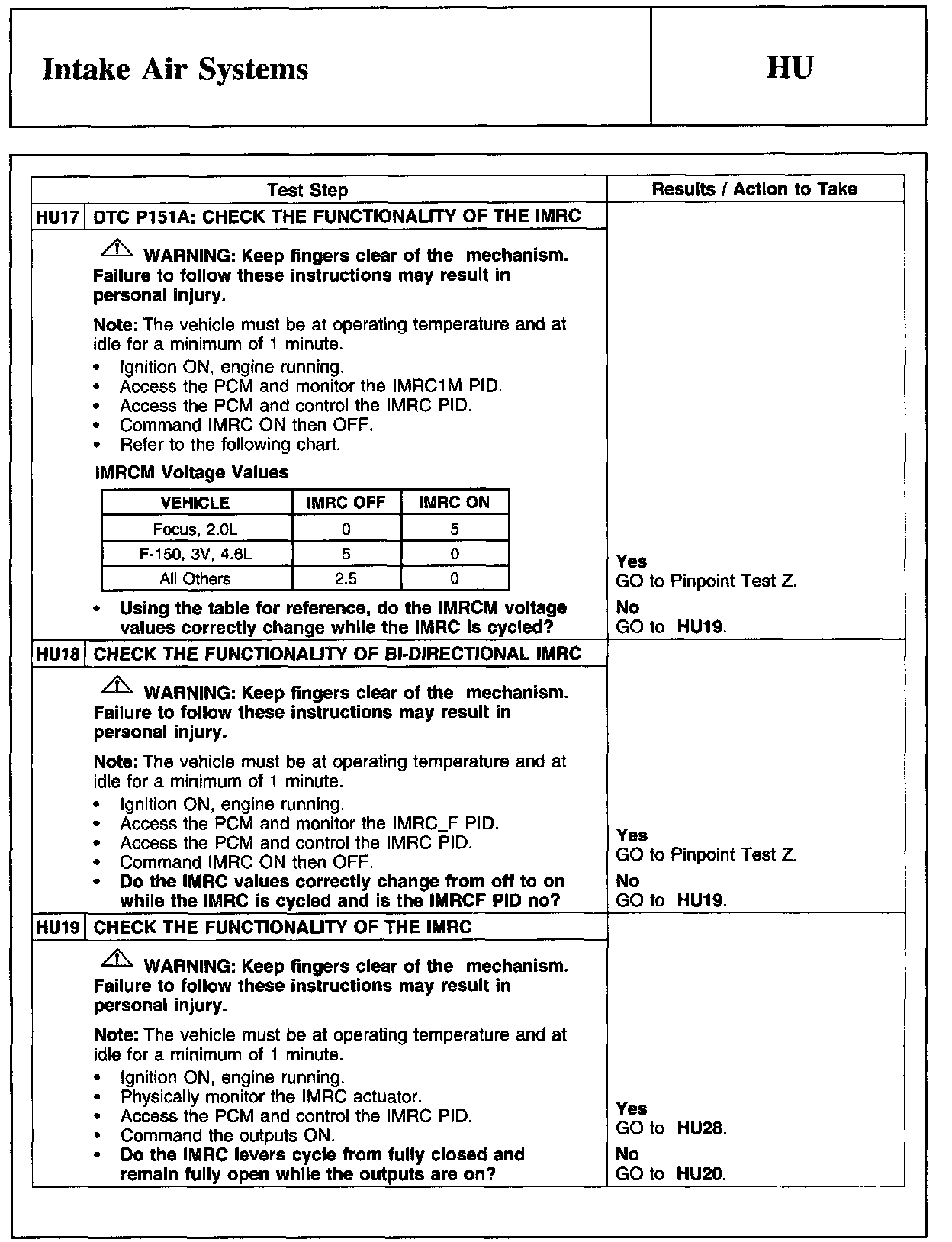

HU17-HU19:

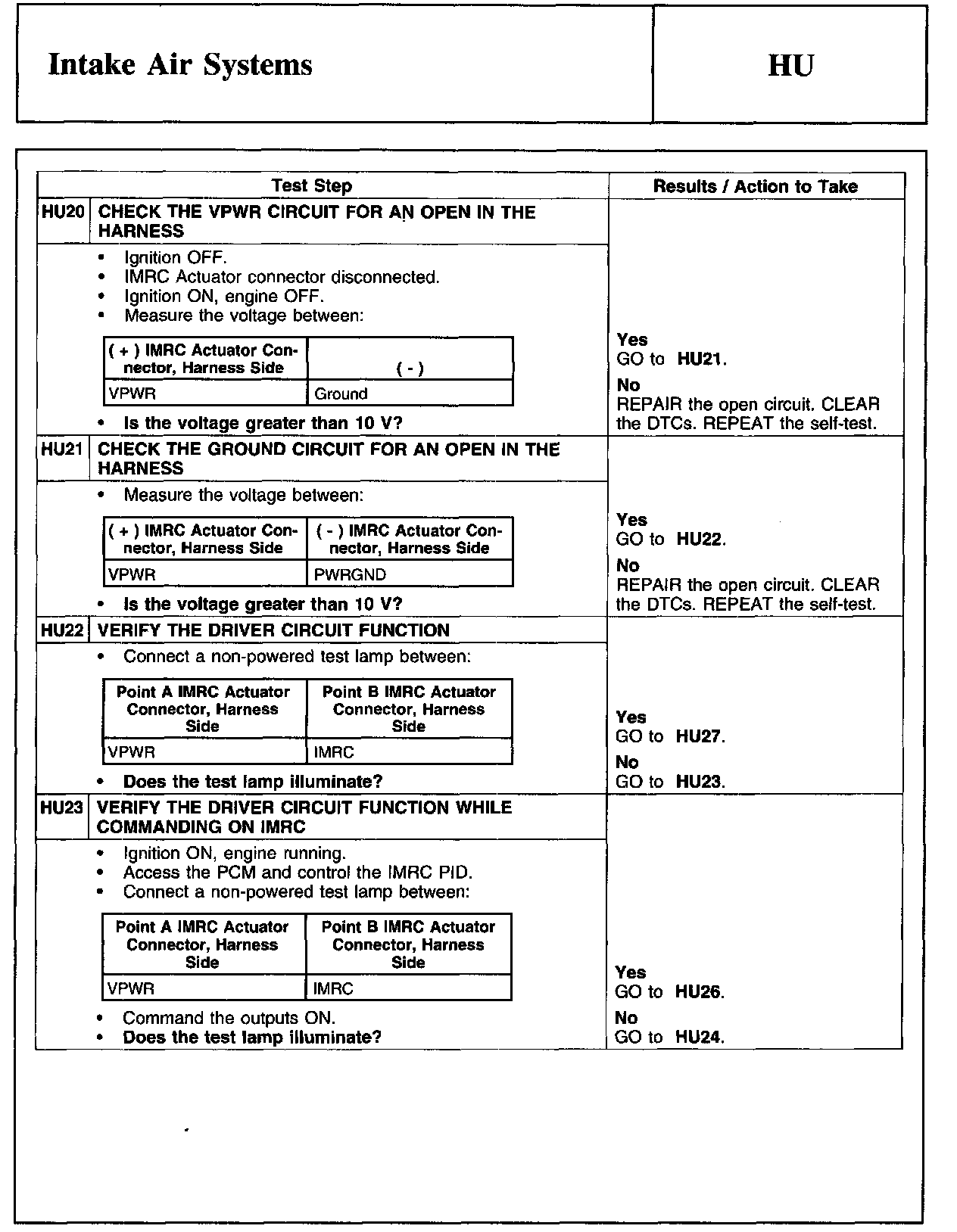

HU20-HU23:

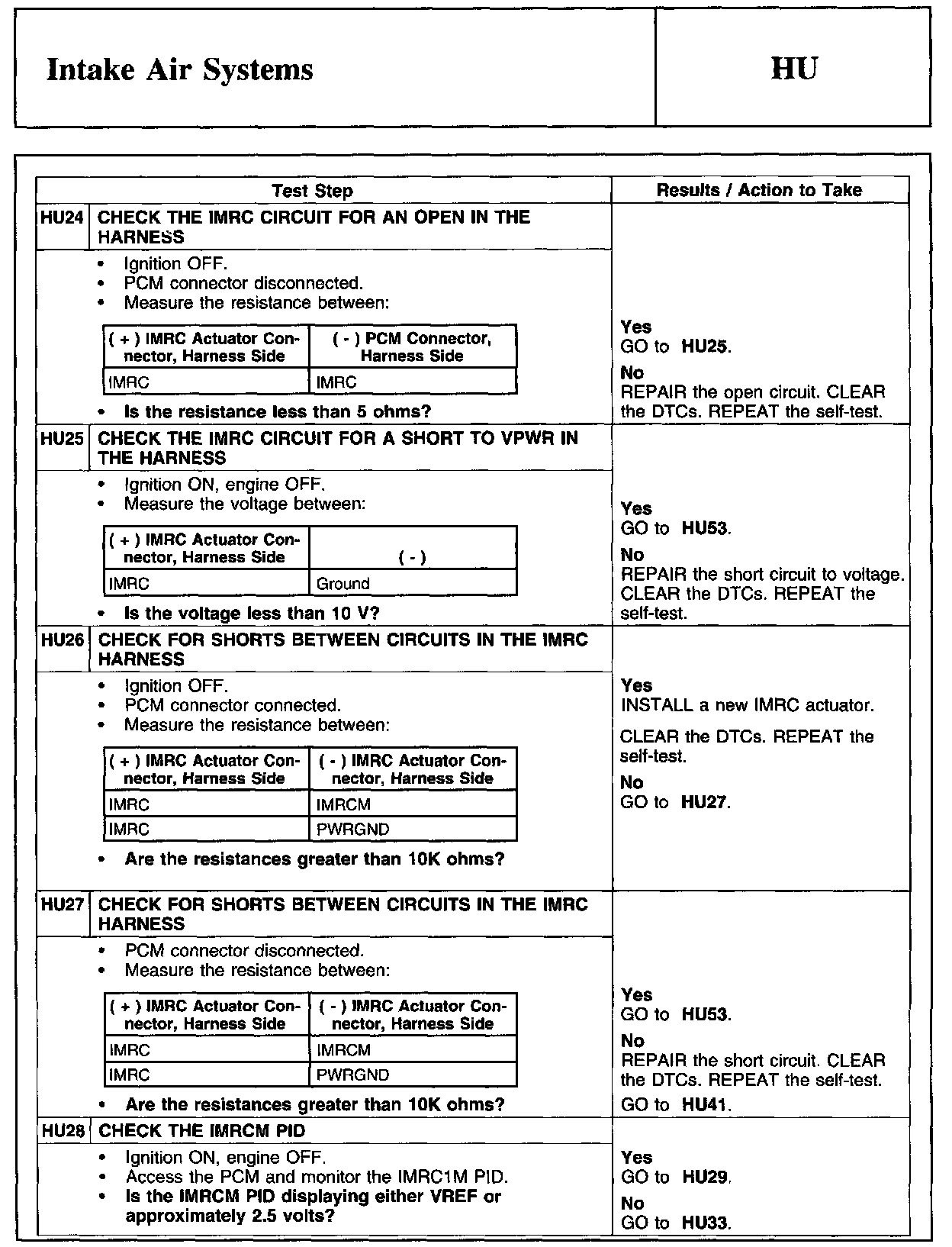

HU24-HU28:

HU29-HU32:

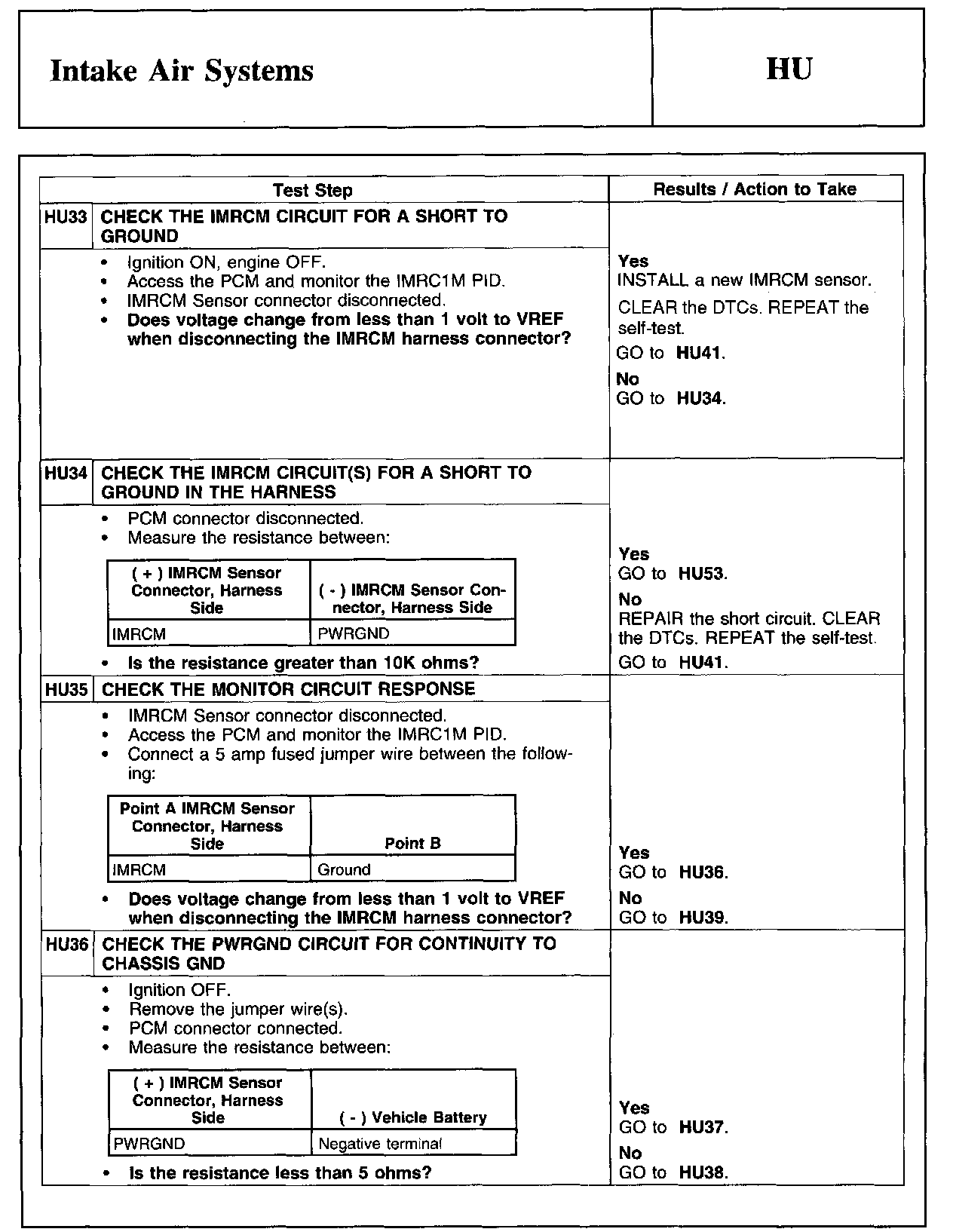

HU33-HU36:

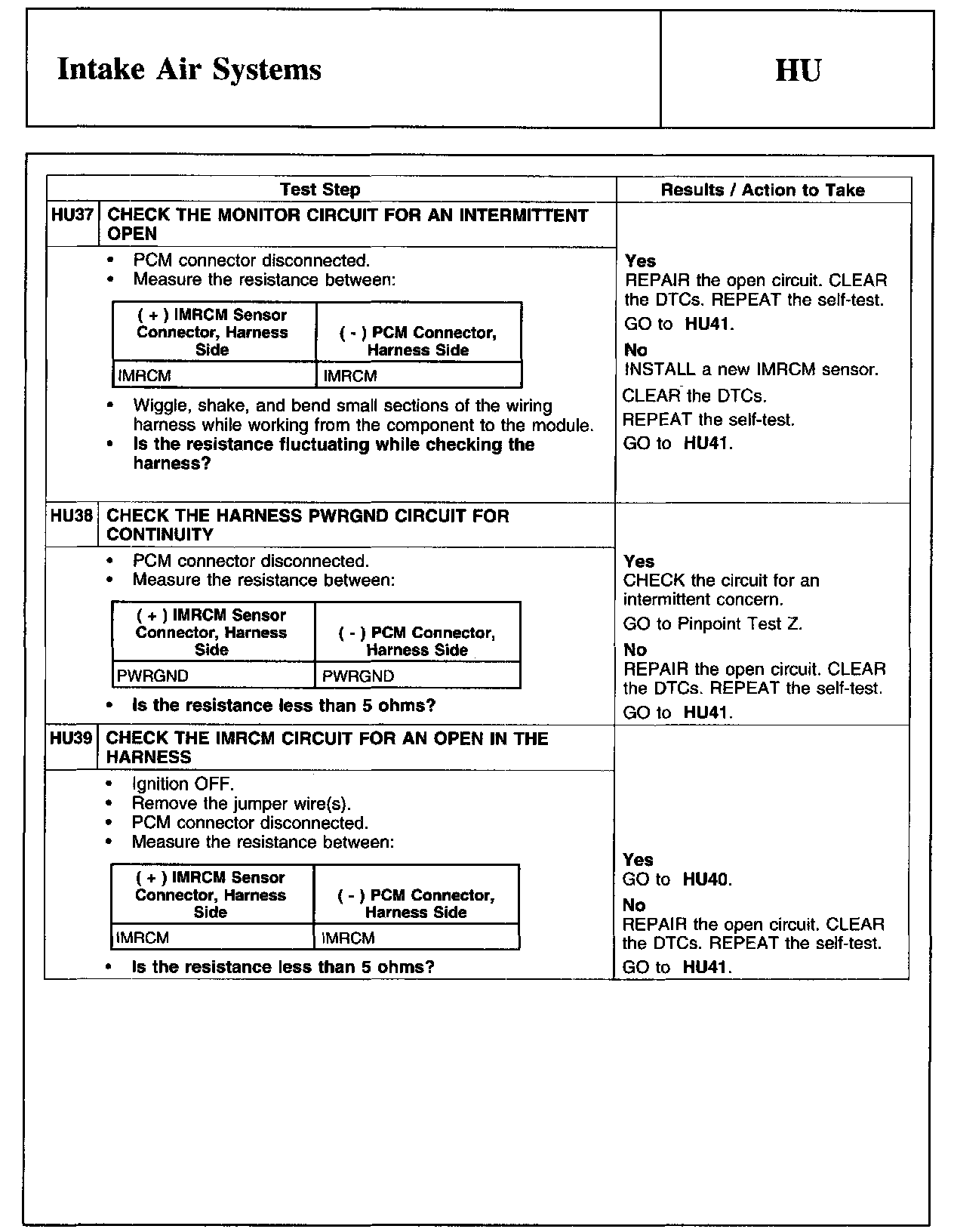

HU37-HU39:

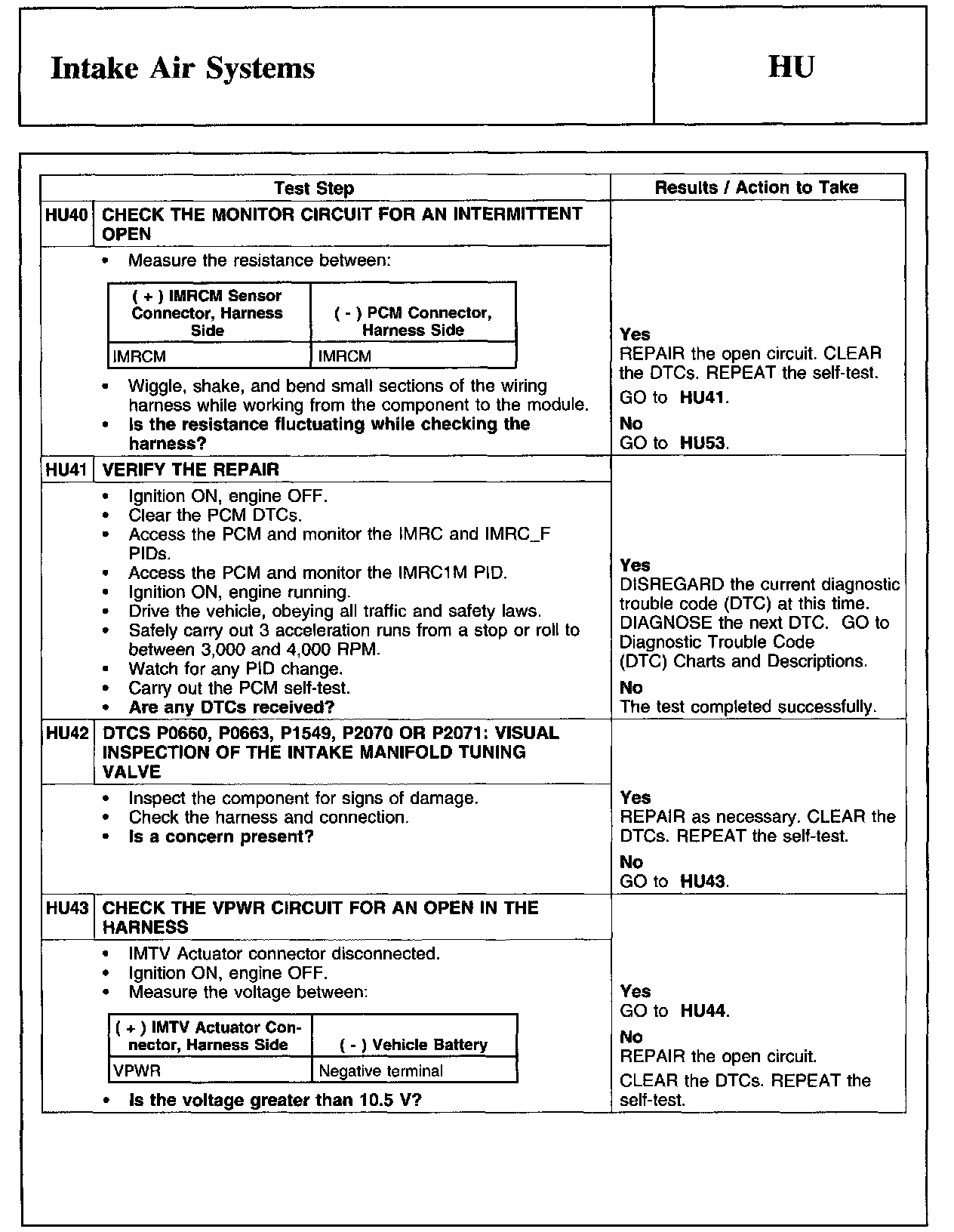

HU40-HU43:

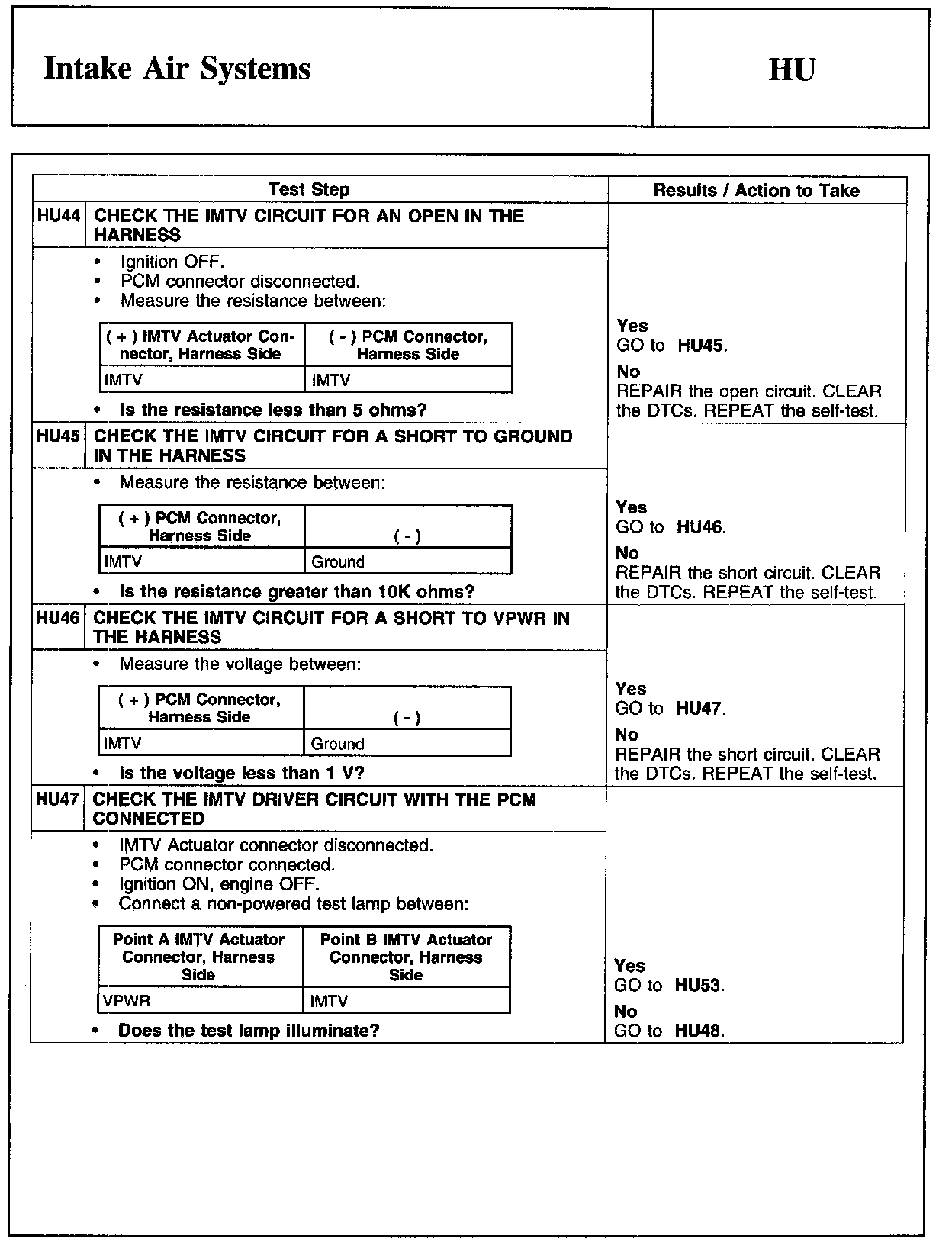

HU44-HU47:

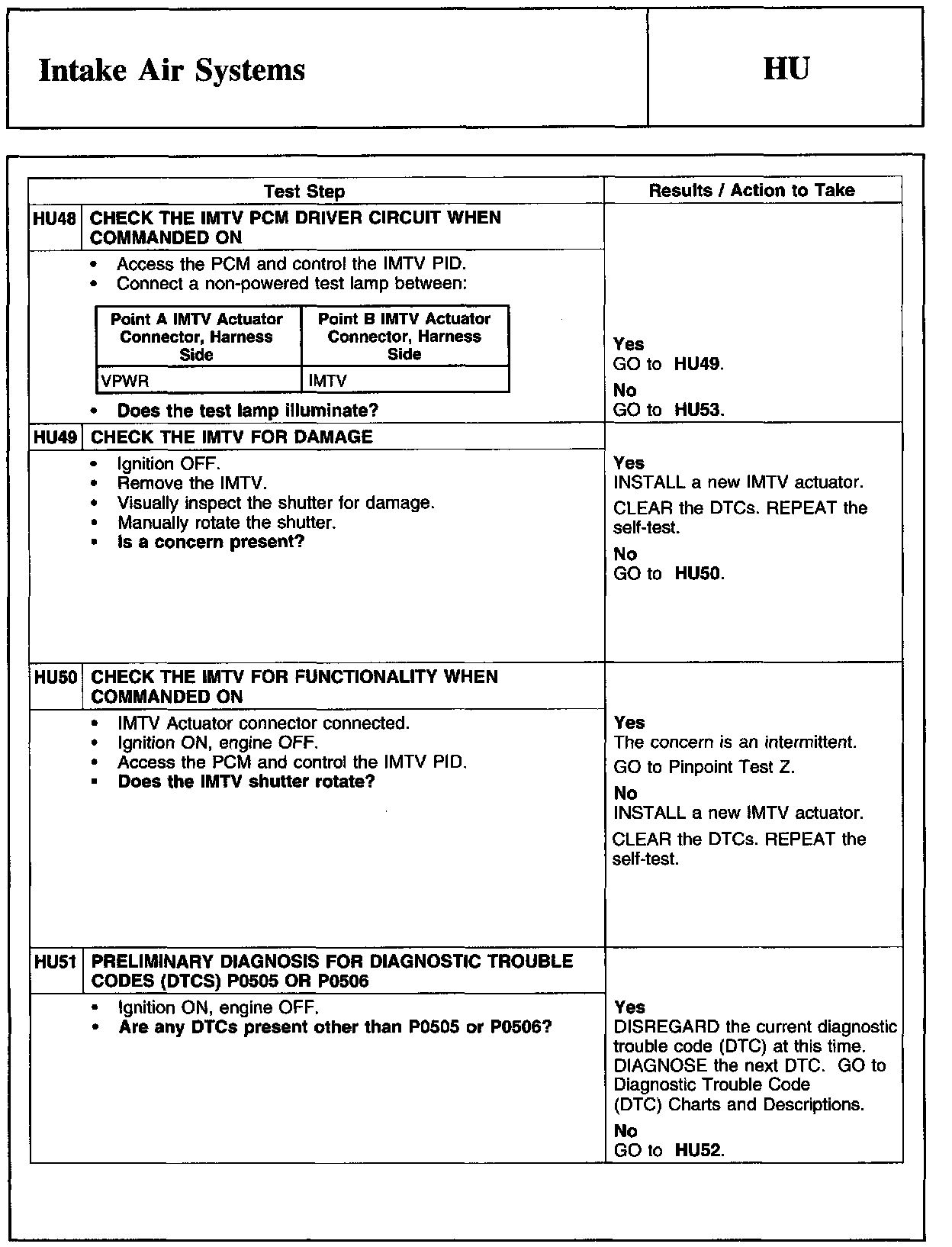

HU48-HU51:

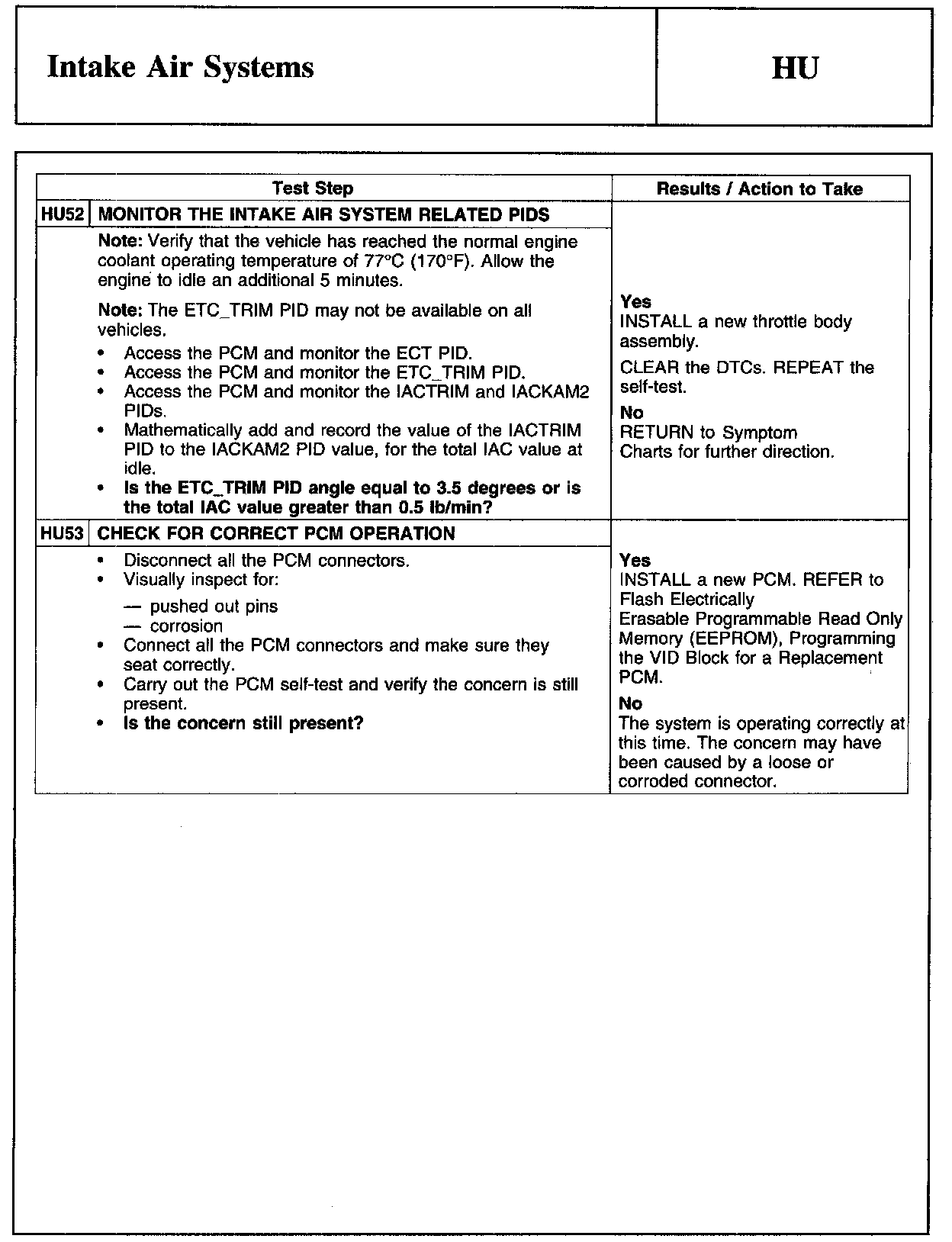

HU52-HU53:
