Reference Value Parameter Identification (PID)/Measured Signal Chart

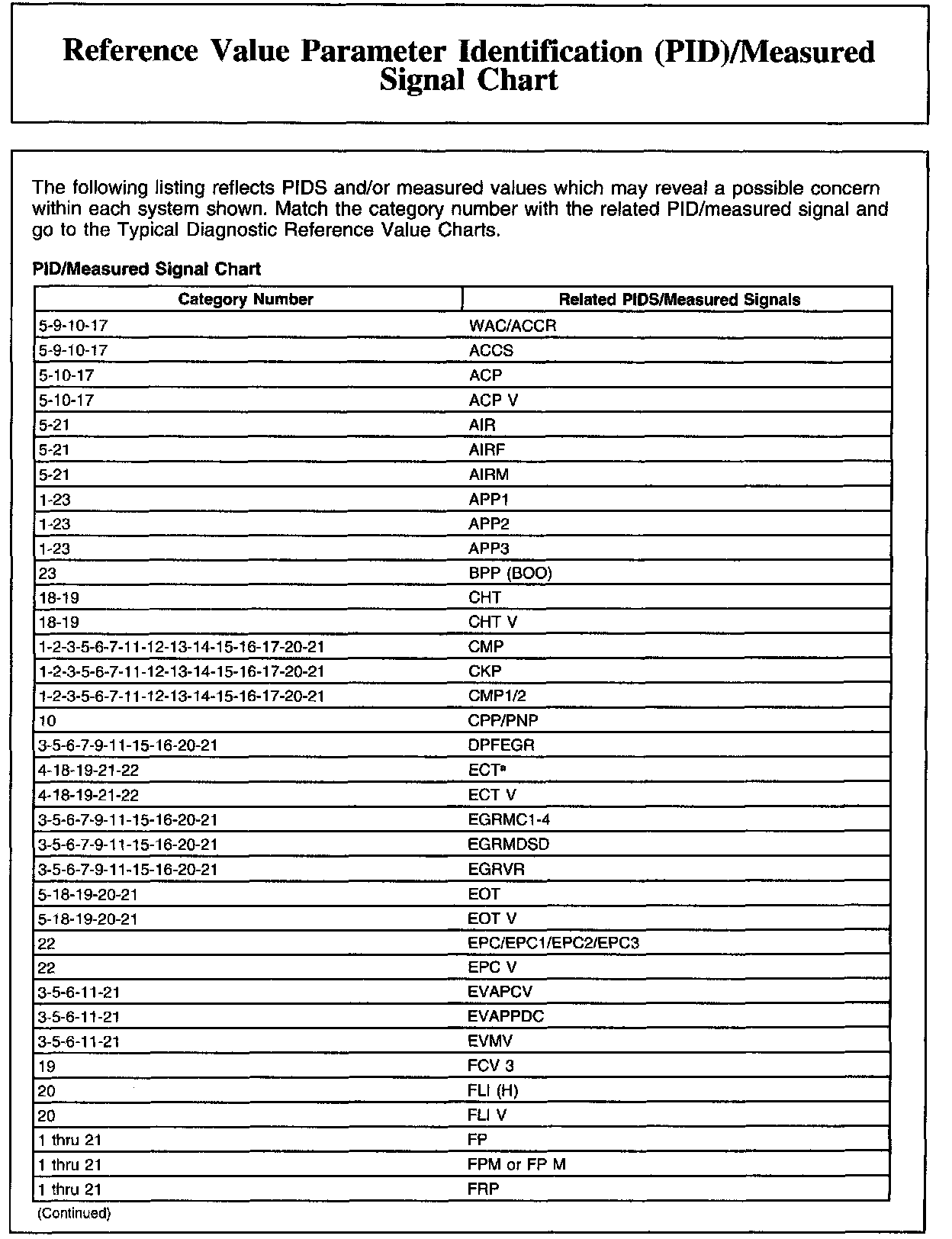

PID/Measured Signal Chart (Part 1):

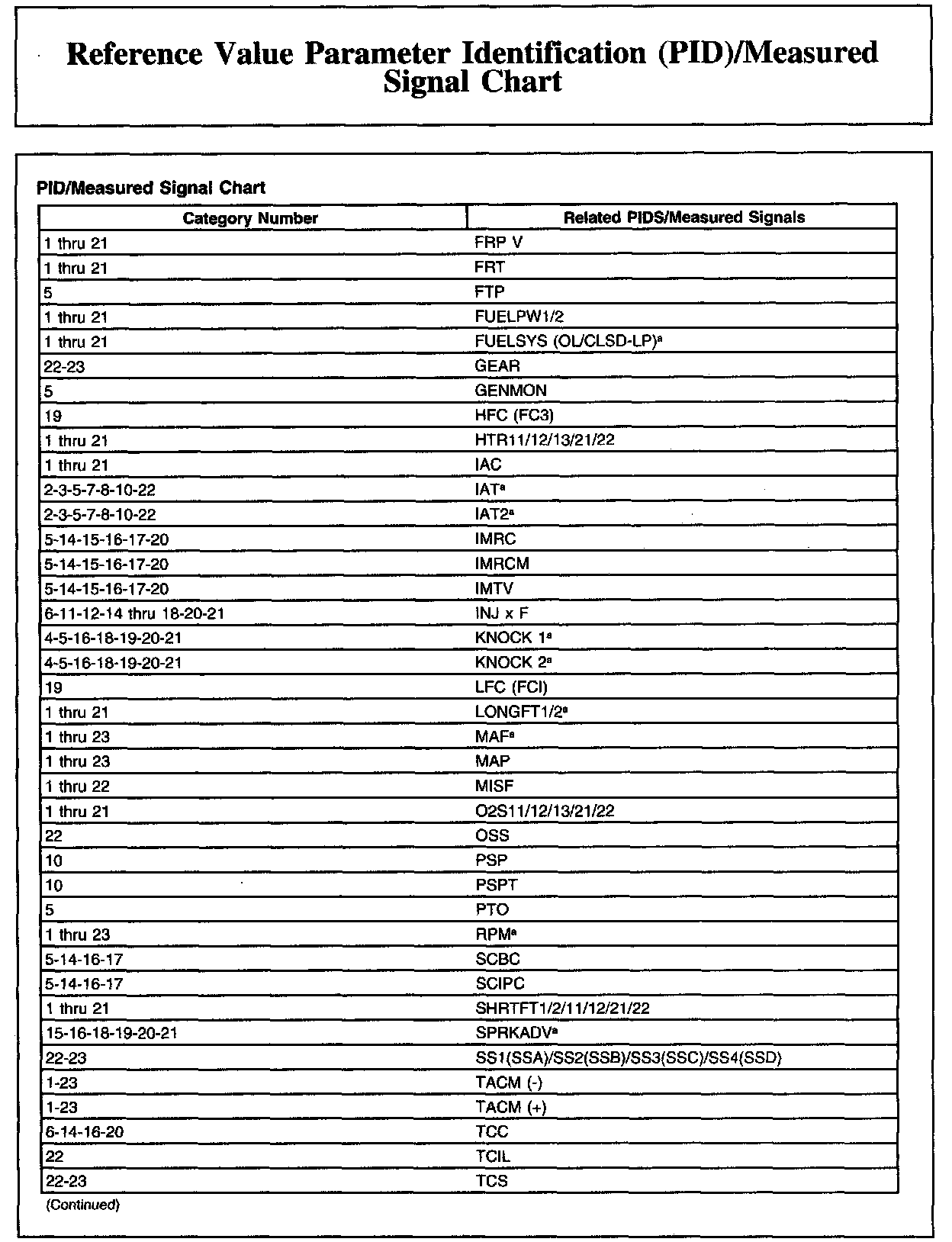

PID/Measured Signal Chart (Part 2):

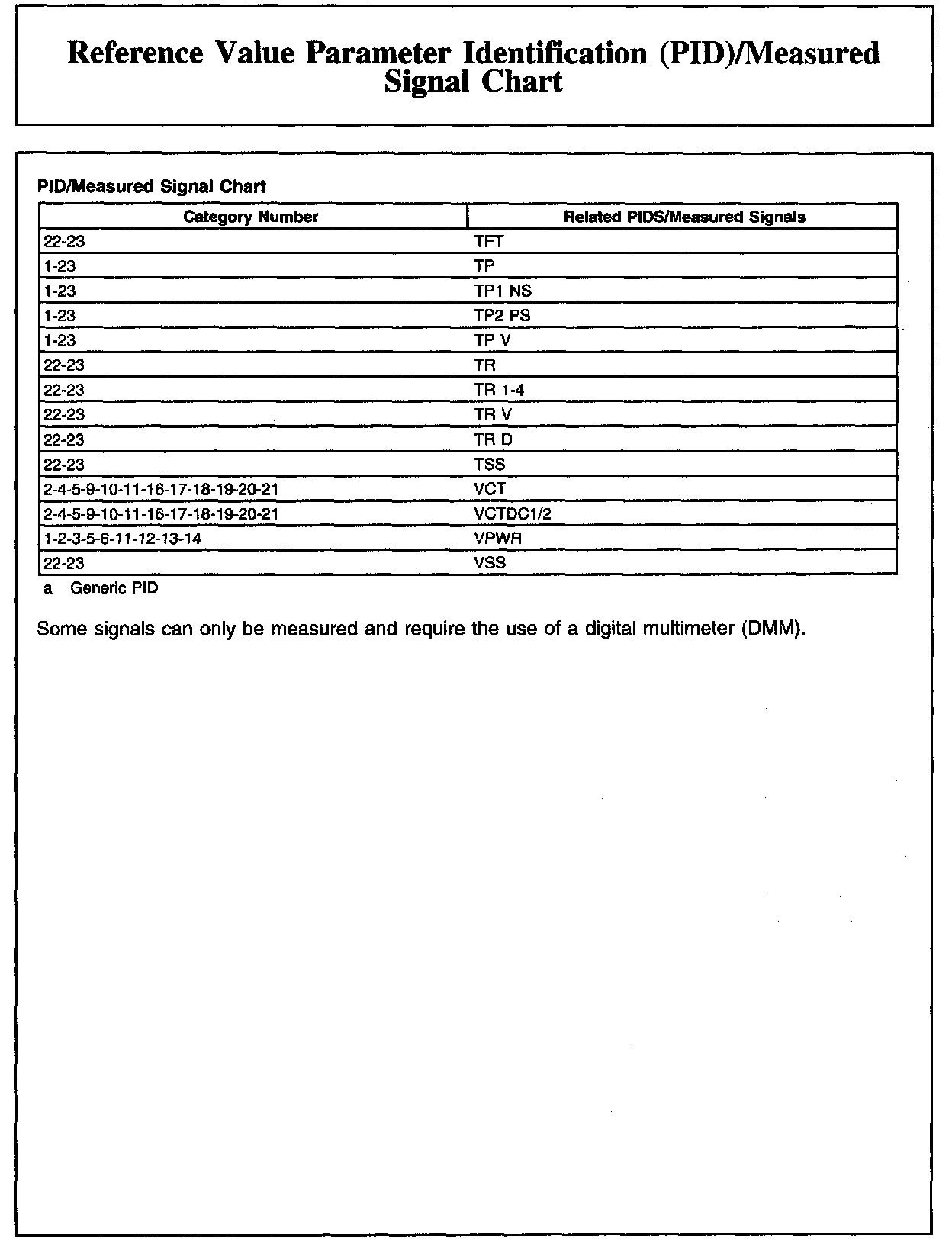

PID/Measured Signal Chart (Part 3):
