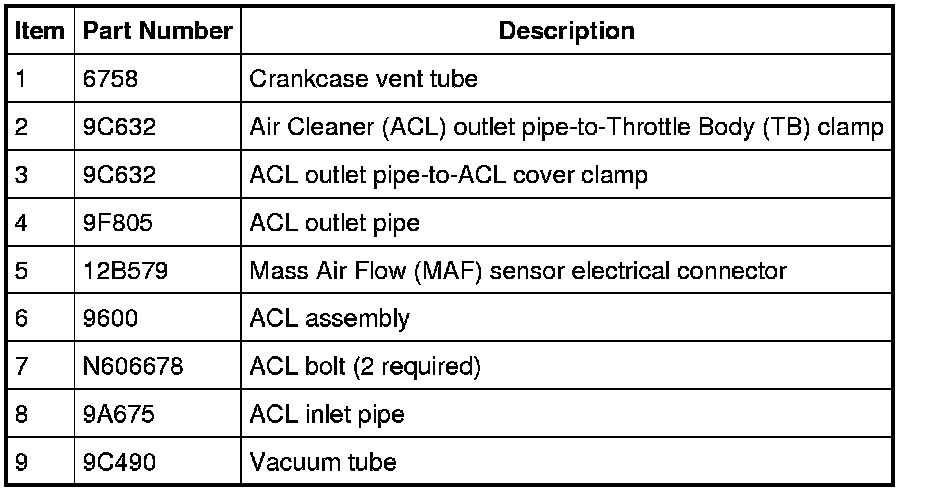

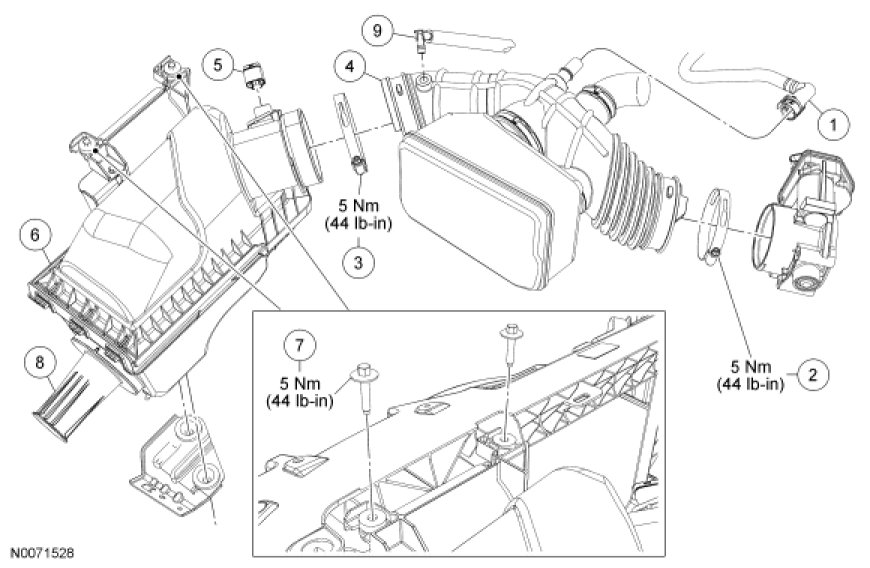

Intake Air System Components - Exploded View




Intake Air System Components - Exploded View









1. For additional information, refer to the procedures.
