Restraints Control Module (RCM)

Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)

DTC Charts

While the Lamp Fault Codes (LFCs) are an indication of a general concern in the passive restraints system, the DTCs are more specific. The DTCs can be retrieved from the RCM and OCSM with a scan tool via the DLC.

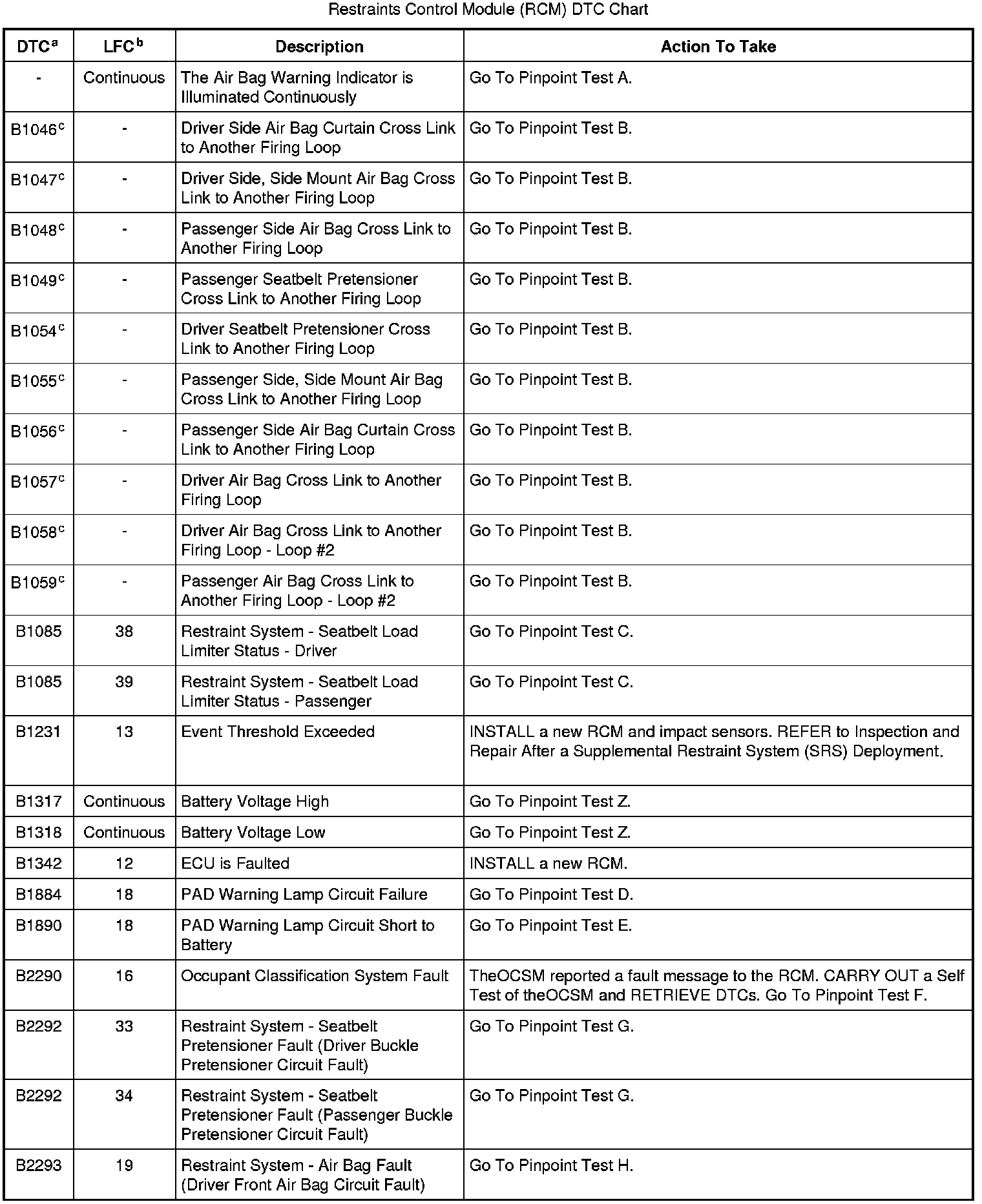

B1046-B2293:

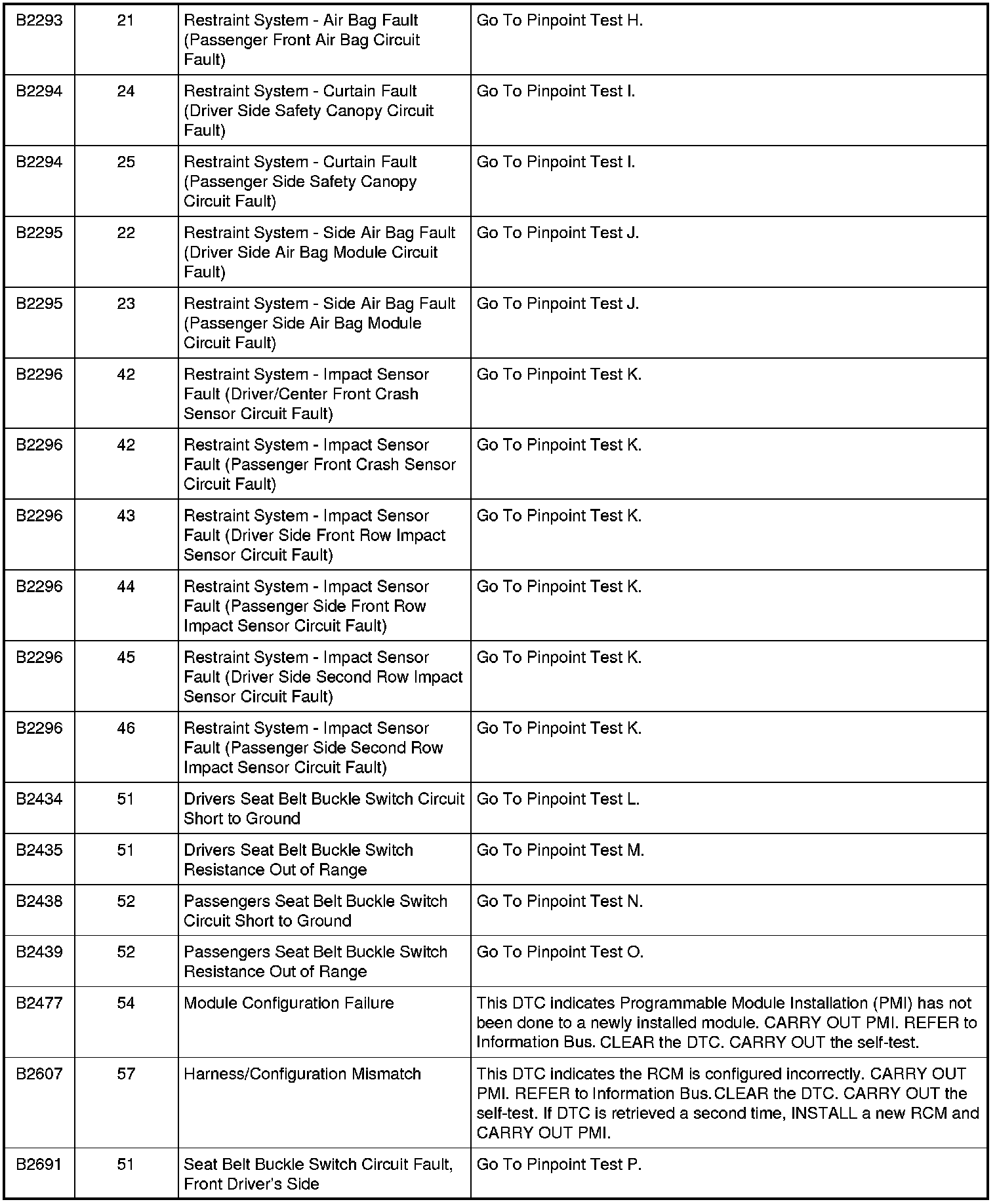

B2293-B2691:

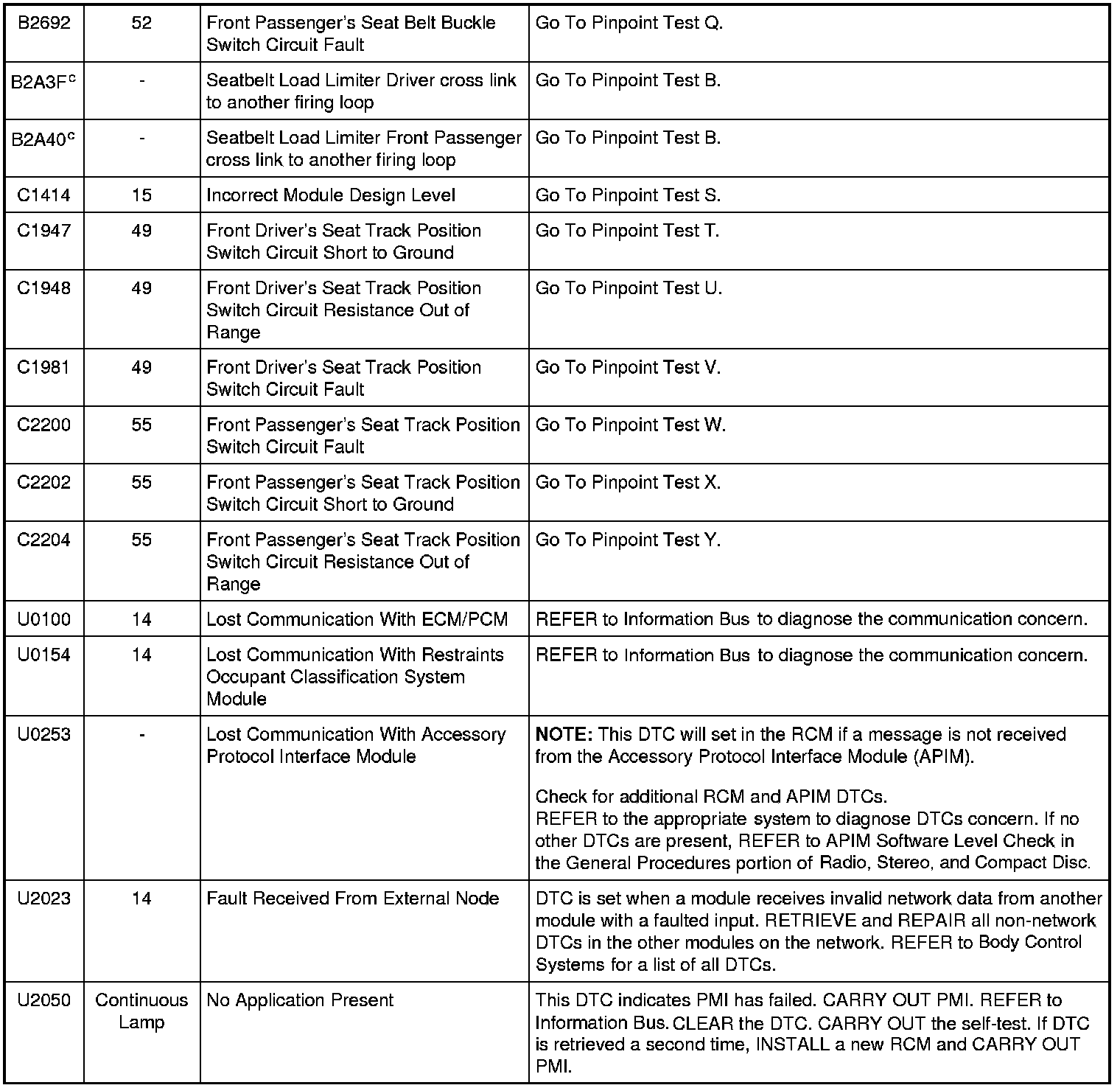

B2A3F-B2692 / C1414-C2204 / U0100-U2050:

a Retrieved using scan tool.
b Lamp fault code, flashed on air bag warning indicator.
c Cross-link DTCs will be retrieved in pairs to identify the 2 cross-linked components.
