Ignition Switch Lock Cylinder: Service and Repair

Ignition Lock Cylinder









Removal and Installation

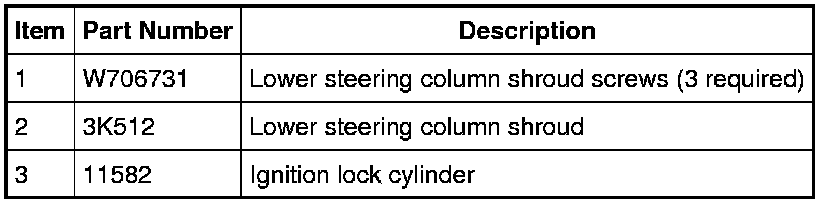

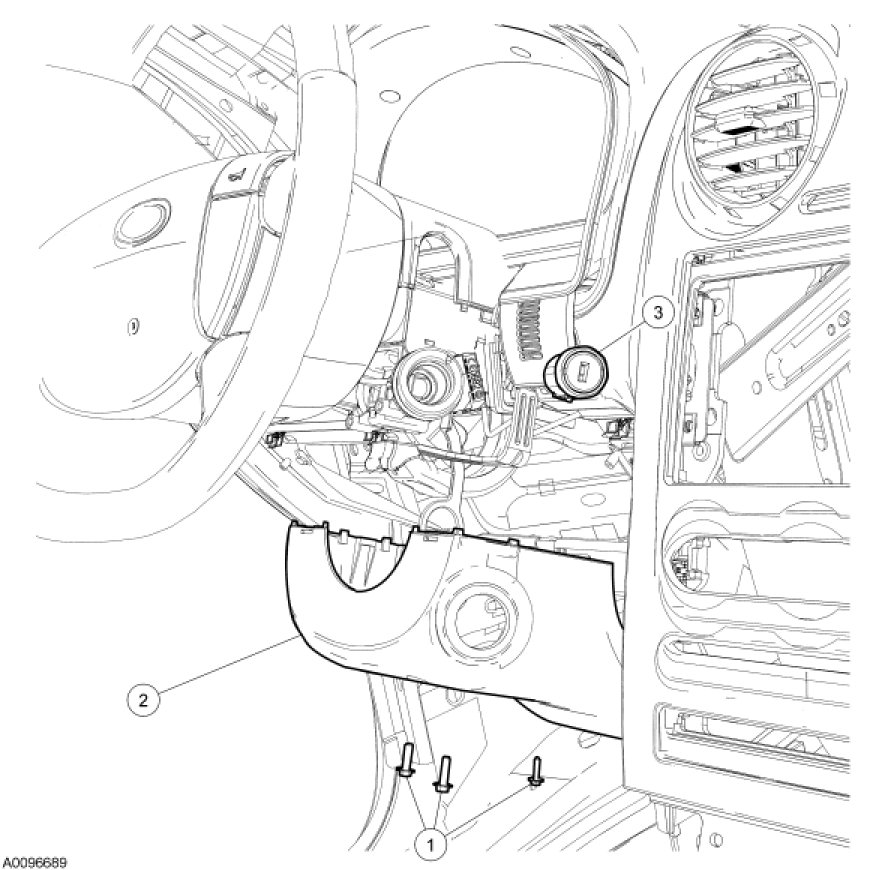

1. Remove the 3 lower steering column shroud screws.

2. Remove the lower steering column shroud.

3. Insert the ignition key and turn it to the ACC position.

4. Using a suitable tool, press the release pin and remove the ignition cylinder.

5. To install, reverse the removal procedure.
