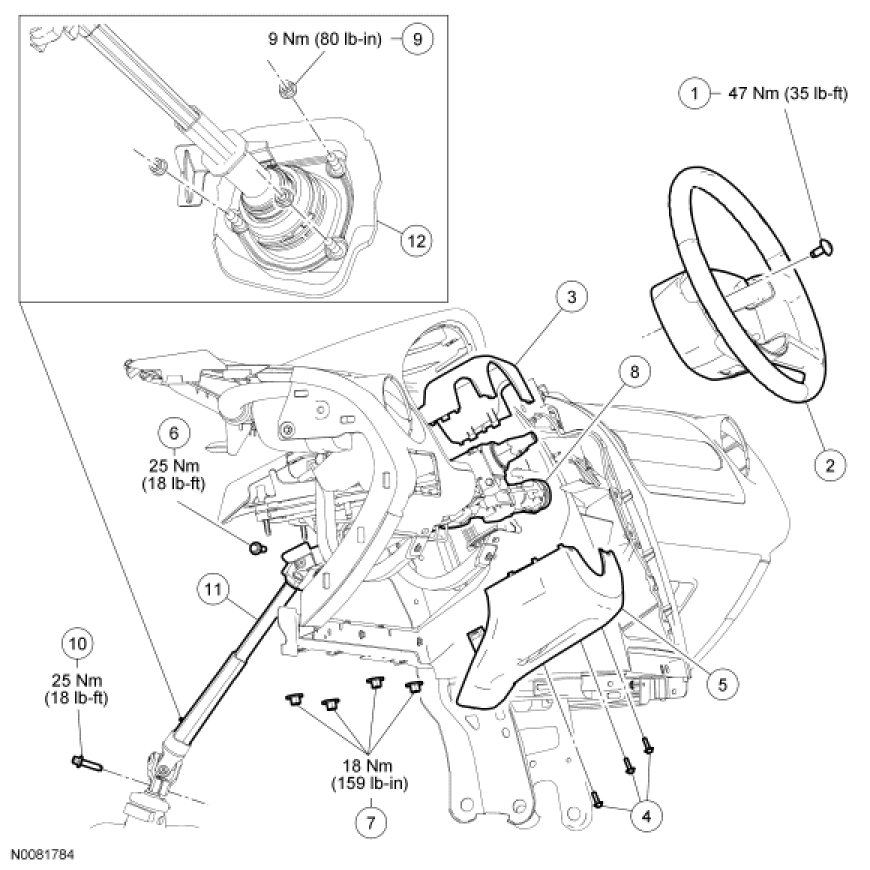

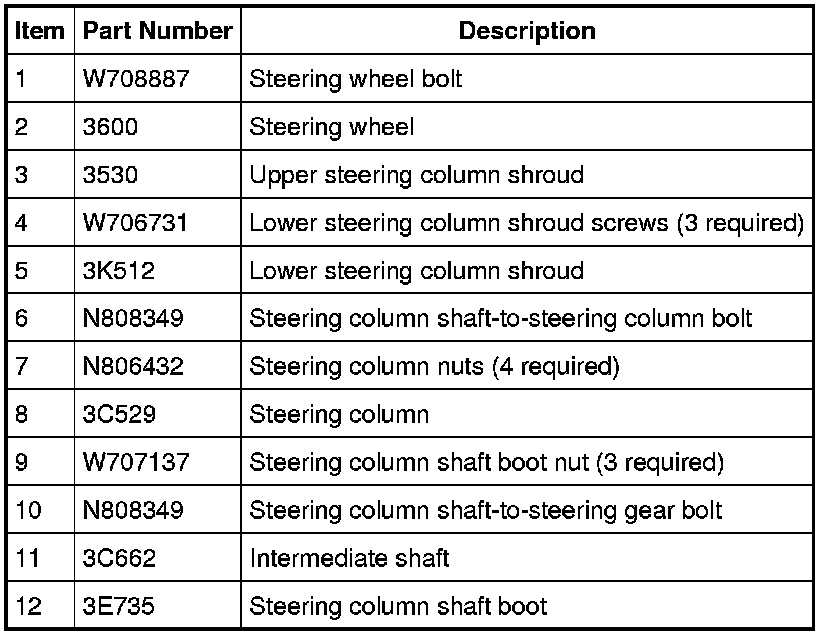

Steering Column - Exploded View




Steering Column - Exploded View









1. For additional information, refer to the procedures.
