Wiper and Washer Systems: Service and Repair

Wiper and Washer System - Exploded View

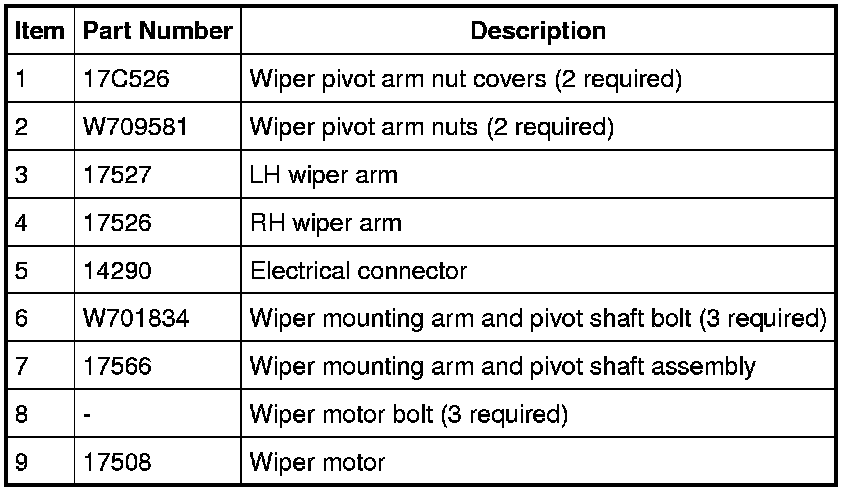

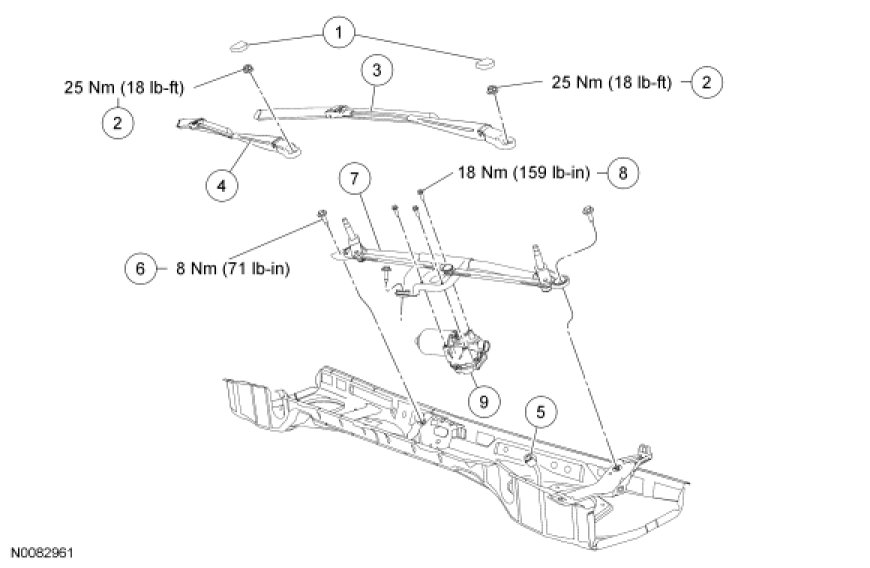

Front Wipers

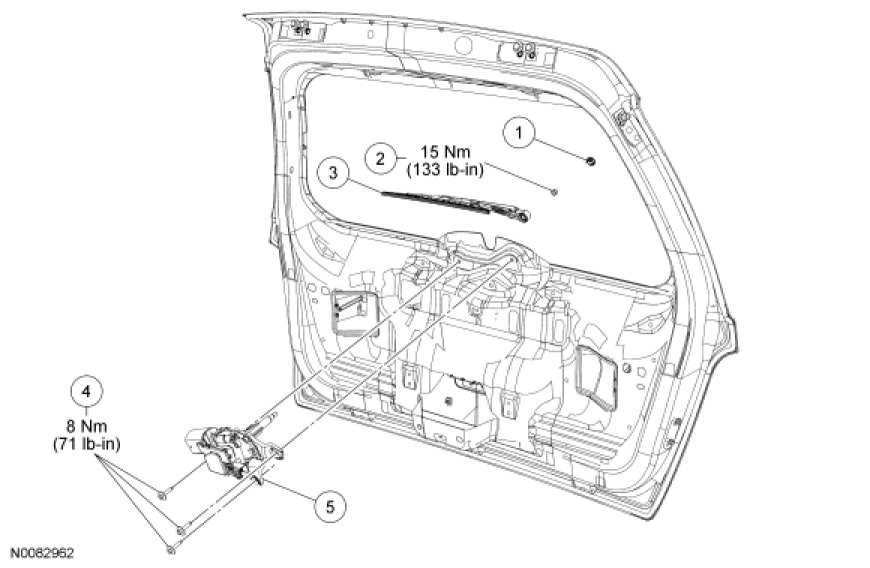

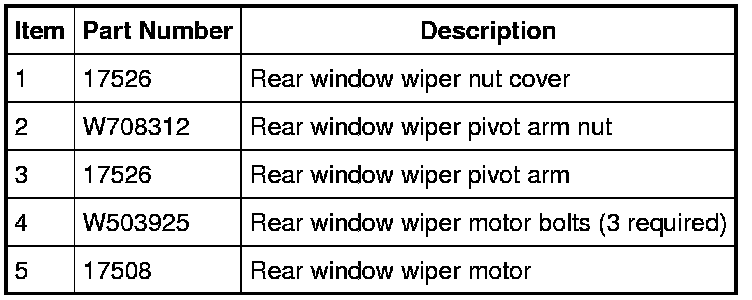

Rear Wiper

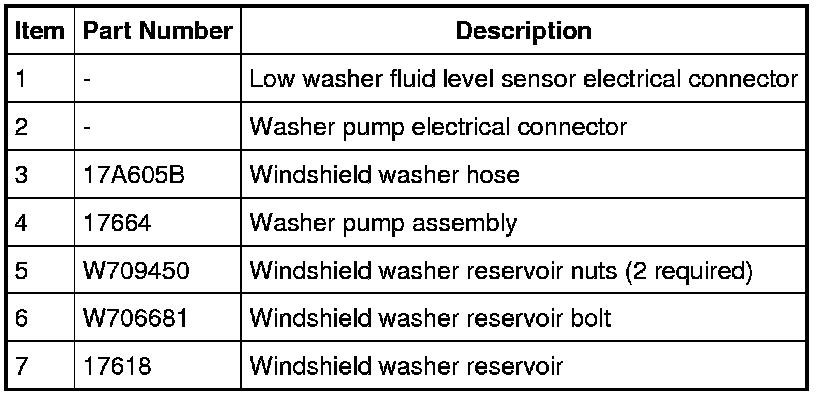

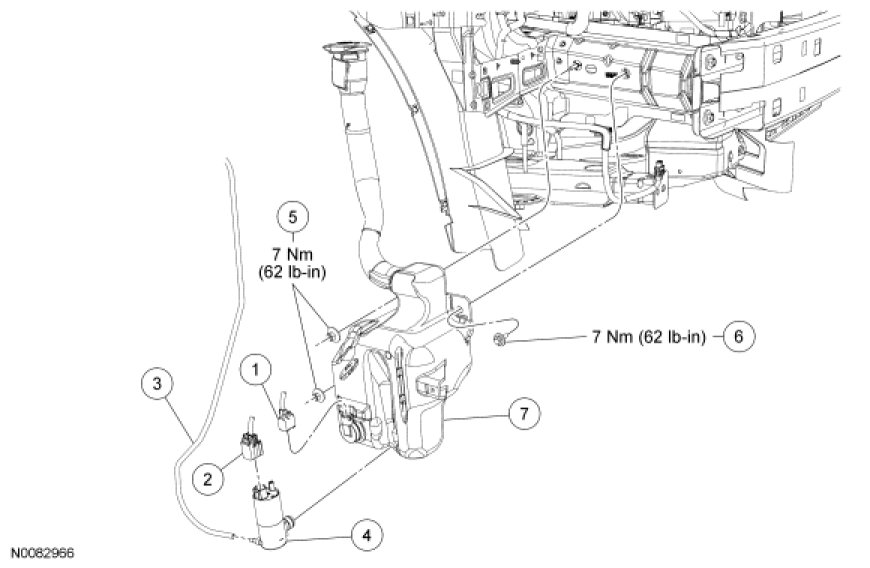

Washer Pump and Reservoir

NOTE: Taurus and Sable shown, Taurus X similar.










1. For additional information, refer to the procedures.
