Heated Seat Module - Front

Heated Seat Module - Front

Removal and Installation

1. Remove the front passenger seat. For additional information, refer to Seat - Front Seat - Front.

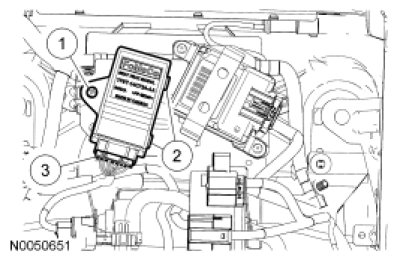

2. Remove the heated seat module.

1. Remove the rivet.

2. Tip the heated seat module and slide the retainers out of the cushion frame bracket.

3. Disconnect the electrical connector.





3. To install, reverse the removal procedure.

4. Install the front passenger seat. For additional information, refer to Seat - Front Seat - Front.
