Heated Seat Module - Rear

Heated Seat Module - Rear

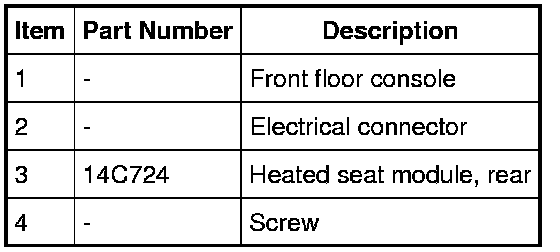

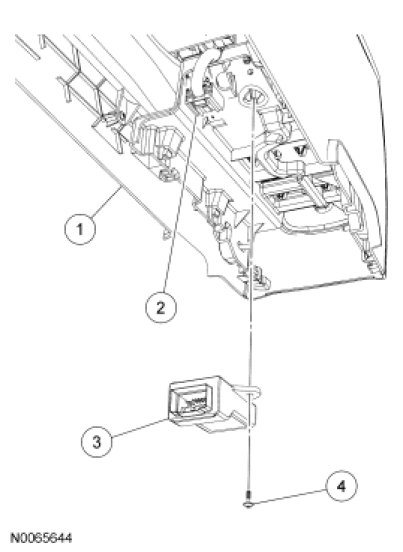

Removal and Installation

1. Remove the front floor console.

2. Disconnect the heated seat module electrical connector at the bottom of the front center console.

3. Remove the screw and un-hook the heated seat module.

4. To install, reverse the removal procedure.

5. Install the front floor console.
