Spark Plugs

Spark Plugs

Removal

1. Remove the ignition coil-on-plugs for the spark plugs being serviced. For additional information, refer to Ignition Coil-On-Plug Ignition Coil-On-Plug.

2. NOTICE: Only use hand tools when removing or installing the spark plugs, or damage may occur to the cylinder head or spark plug.

NOTE: Use compressed air to remove any foreign material in the spark plug well before removing the spark plugs.

Remove the 6 spark plugs.

Installation

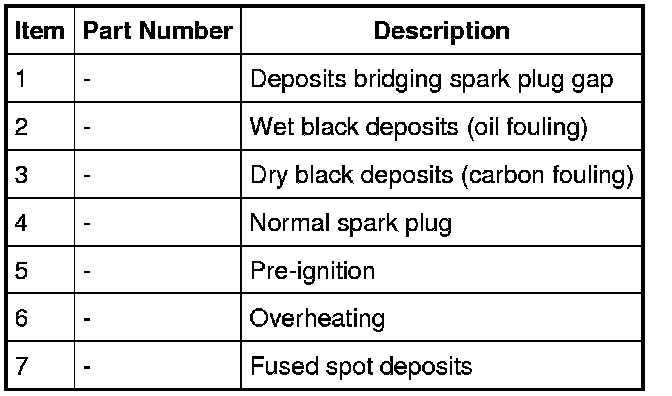

1. Inspect the 6 spark plugs.

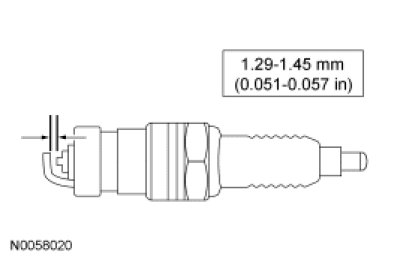

2. Adjust the spark plug gap as necessary.





3. NOTICE: Only use hand tools when removing or installing the spark plugs, or damage may occur to the cylinder head or spark plug.

Install the 6 spark plugs.

- Tighten to 15 Nm (133 lb-in).

4. Install the ignition coil-on-plugs. For additional information, refer to Ignition Coil-On-Plug Ignition Coil-On-Plug.
