6F50

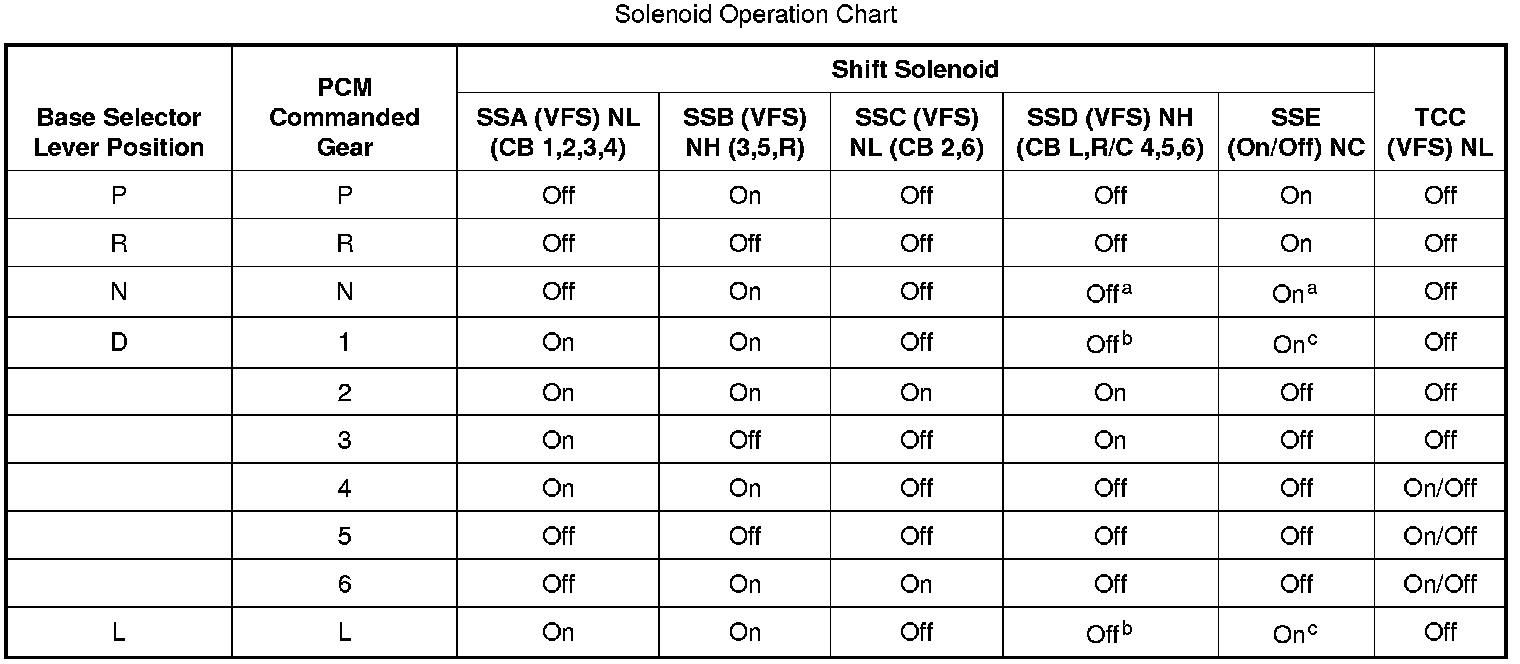

Solenoid Operation Chart:

a Solenoid state will change if vehicle is moving forward with the selector lever in the NEUTRAL position.

b Turns on above 10 km/h (6 mph).

c Turns off above 10 km/h (6 mph).
CB = Clutch brake

NC = Normally closed

NH = Normally high

NL = Normally low

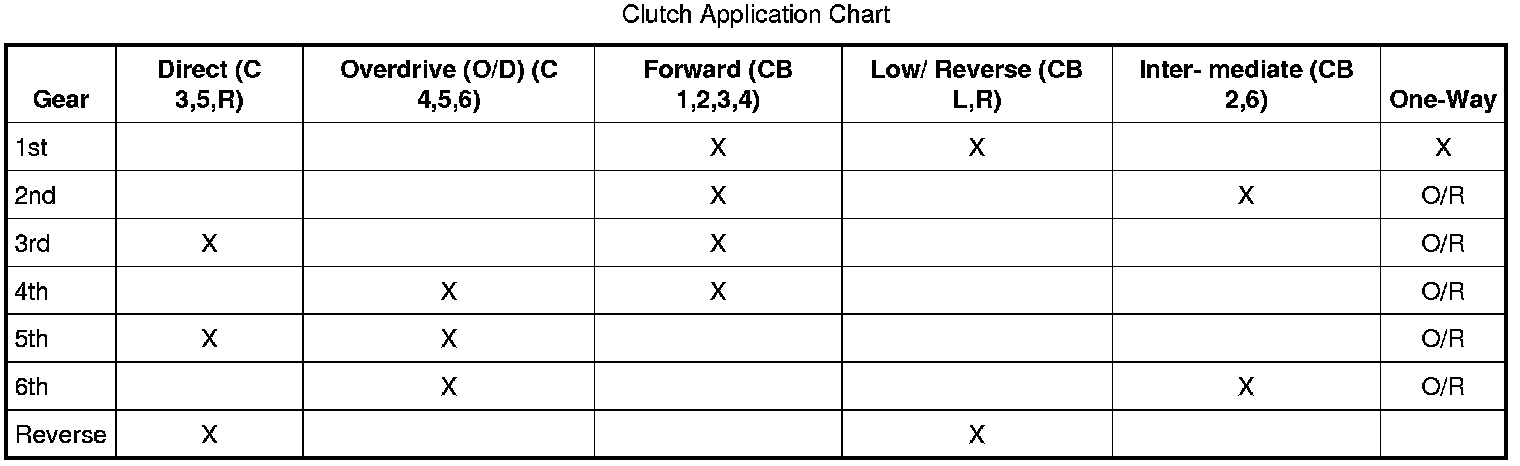

Clutch Application Chart:

CB = Clutch brake

O/R = Overrunning

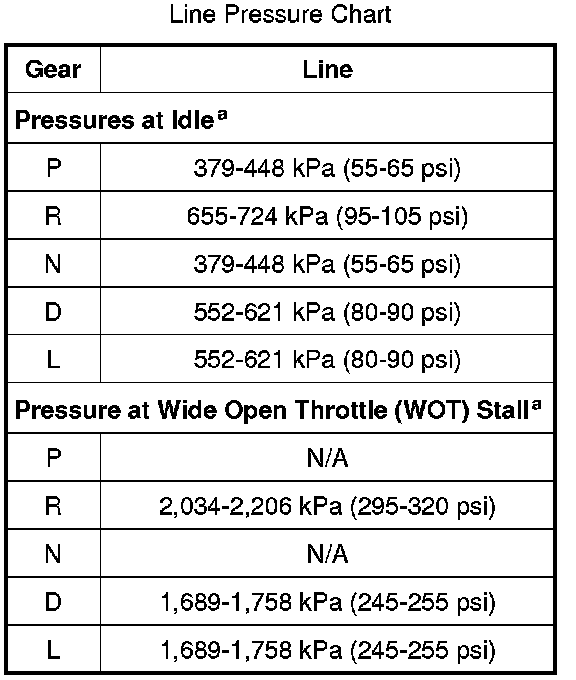

Line Pressure Chart:

a All pressures are approximate.

Stall Speed Chart:

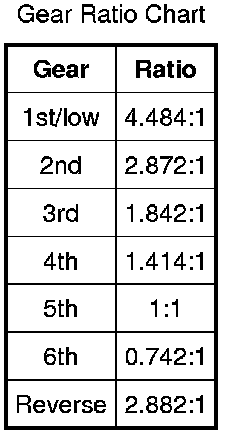

Gear Ratio Chart:

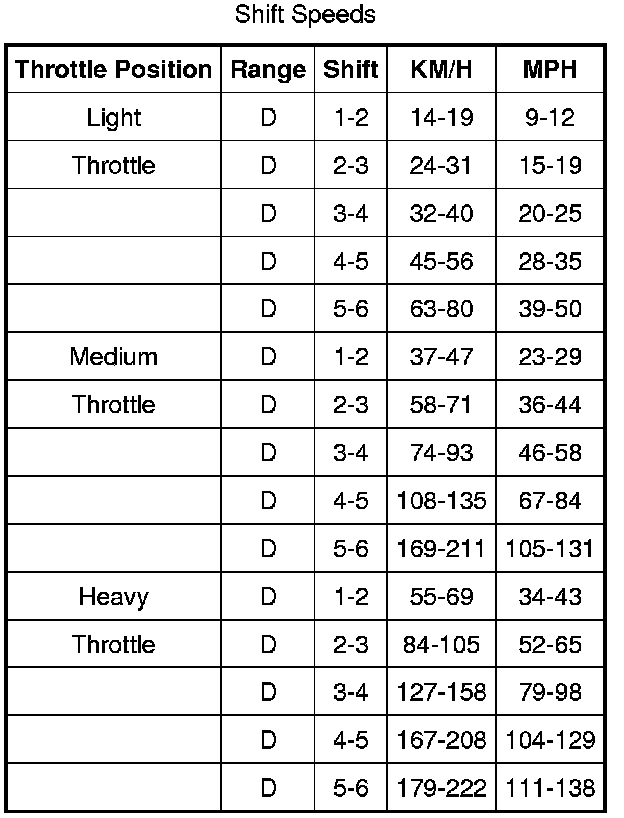

Shift Speeds:
