Safety Belt Shoulder Height Adjuster: Notes
NOTE:

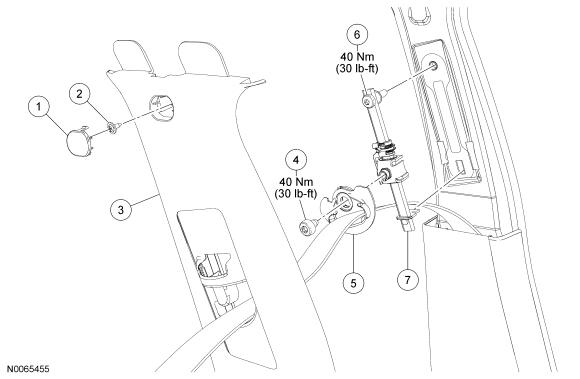

LH shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 046B96 | Upper B-pillar screw cover |
| 2 | W711206 | Upper B-pillar screw |
| 3 | 24397 | Upper B-pillar trim panel |
| 4 | 611B09 | D-ring bolt |
| 5 | - | D-ring (part of 612D65) |
| 6 | - | Safety belt shoulder height adjuster bolt (part of 602B82) |
| 7 | 602B82 | Safety belt shoulder height adjuster |
